H HiTRON
AC/DC EXTERNAL WALLMOUNT & DESKTOP ADAPTER
UNIVERSAL INPUT MULTIPLE OUTPUT 15-16 WATTS
SWITCHING POWER SUPPLIES HES15 SERIES
FEATURES:
SINGLE, DUAL, TRIPLE & QUAD OUTPUT
WALLMOUNT OR DESKTOP ADAPTER
DIVERSE AC PLUGS AVAILABLE
MEET UNIVERSAL SAFETY STANDARDS
EMI MEET EN 55022/FCC CLASS B
CE MARKING COMPLIANCE
SPECIFICATION
INPUT SPECIFICATION
Input Voltage:
90-264Vac typical.
Input Connector:
Wallmount Format:
WM1,2(USA/JAPAN),WM3( Euro-stecker),
WM4(Schuko-stecker),WM5(UK),WM6 (Australia).
Desktop Format: IEC320-3P Type DT7.
Input Frequency:
47-63Hz.
Inrush Current:
20.0-50.0A typical.
Input Current:
0.3-0.5A @ 115Vac typical.
0.14-0.3A @ 230Vac typical.
Dielectric Withstand:
Meet IEC60950.
EMI:
Meet EN 55022/FCC Class B.
Hold-up Time:
15mS @115Vac typical.
60mS @230Vac typical.
OUTPUT SPECIFICATION
Output Voltage:
See Ratings Chart.
Output Current:
See Ratings Chart.
Output Connection:
Optional.
Line Regulation:
0.1% typical.
Load Regulation:
Main O/P VO1 ±1.5-3.0% typical.
Aux. O/P VO2 ±2.0-4.0% typical. (Stacked on VO1)
Aux. O/P VO3 ±1.0-2.0% typical. (P.R. installed)
Aux. O/P VO4 ±1.0-2.0% typical. (P.R. installed)
Noise & Ripple:
Typical 1%peak to peak.
OVP:
Built-in, Zener diode clamping.
Adjustability:
Factory set.
Overload Protection:
Typical 125-150% of max. power overrange or
short circuit, power foldback & self-recovering.
Operating Temperature:
0 °C to room temperature.
Storage Temperature:
-20 to +85°C.
Temperature Coefficient:
0.04% /°C typical.
Cooling:
Free air convection.
Construction:
Impact resistant thermo- plastic
enclosure case.
Wallmount or Desktop Format.
GENERAL SPECIFICATION
Efficiency:
65-75% typical.
Switching Frequency:
Approximate 33K Hz.
Circuit Topology:
Fixed Frequency Flyback circuit.
Transient Response:
Output voltage returns in less than
0.5mS following a 25% load change.
Safety Standard:
Meet UL1950/ EN60950 Class I.
Power Density:
0.68Watts /Cubic inch.
NOTE: (1) All measurements are at nominal input, full load, and +25°C unless otherwise specified.
(2) Load regulation is measured at 115Vac or 230Vac in percentage to indicate the change in output voltage as the load varied from half load to full load (unit ±%).
For the multi-output, the main output remains 50% load and other aux. output remains 20% load.
(3) The exact obtainable load regulation depends upon the output cord selected and load current. Upper data are for 6 ft. (2 meters) cord AWG#18 wires.
(4) Due to requests in market and advances in technology, specifications subject to change without notice.
For the details of safety approval, please consult the factory.
-15-
MODEL NO. DESCRIPTION:
HES15 – X X X YY – N2N3 – S
AC PLUG TYPE:
[1] WM1, [2] WM2, [3] WM3,
[4] WM4,[5]WM5, [6] WM6, [7]DT7
SINGLE OUTPUT:[00] for No Aux. O/P.
AUX.O/P SET: [A]+5V, [B]+12V, [C]+15V,[D]+18V
[E]+24V,[F]-5V,[G]-12V,[H]-15V
[I]-18V, [J]-24V
OUTPUT CURRENT
OUTPUT VOLTAGE
SERIES NAME (HiTRON External Switcher): 15W
OUTPUT VOLTAGE/CURRENT RATINGS CHART
SINGLE OUTPUT V/A CHART
DEFINED OUTPUT VOLTAGE (Vdc)
OUTPUT VOLTAGE (Vdc) / CURRENT (A)
3.3V/3.5A, 3.4-3.6V/3.4A, 3.7-3.9V/3.3A, 4.0-4.2V/3.2A,
4.3-4.6V/3.1A, 4.7-5.0V/3.0A, 5.1V/2.9A, 5.2-5.3V/2.8A,
5.4-5.5V/2.7A, 5.6-5.7V/2.6A, 5.8-6.0V/2.5A, 6.1-6.2V/2.4A,
6.3-6.5V/2.3A, 6.6-6.8V/2.2A, 6.9-7.1V/2.1A, 7.2-7.5V/2.0A,
7.6-7.8V/1.9A, 7.9-8.3V/1.8A, 8.4-8.8V/1.7A, 8.9-9.3V/1.6A,
9.4-10.0V/1.5A.
10.1-10.7V/1.4A, 10.8-11.5V/1.3A, 11.6-12.5V/1.2A,
12.6-13.6V/1.1A, 13.7-15.0V/1.0A, 15.1-16.6V/0.9A,
16.7-18.7V/0.8A, 18.8-21.4V/0.7A, 21.5-24.0V/0.6A
3.3 Vdc
≤
Any Voltage
≤
10.0 Vdc
10.0Vdc< Any Voltage
≤
24.0 Vdc
Note: Refer to the upper Chart or specify the V/A ratings and consult factory for the exact Model No.
SINGLE OUTPUT
(Model No. for examples.)
MODEL NO.
HES15-03335-00-1
HES15-05030-00-2
HES15-09216-00-3
HES15-12112-00-4
HES15-15209-00-5
HES15-18508-00-6
HES15-20007-00-7
HES15-22306-00-7
HES15-24006-00-7
AC INPUT
90-264Vac
90-264Vac
90-264Vac
90-264Vac
90-264Vac
90-264Vac
90-264Vac
90-264Vac
90-264Vac
AC PLUG
WM1
WM2
WM3
WM4
WM5
WM6
DT7
DT7
DT7
O/P VOLTAGE
3.3Vdc
5.0Vdc
9.2Vdc
12.1Vdc
15.2Vdc
18.5Vdc
20.0Vdc
22.3Vdc
24.0Vdc
O/P CURRENT
3.5 A
3.0 A
1.6 A
1.2 A
0.9 A
0.8 A
0.7 A
0.6 A
0.6 A
FORMAT
Wallmount
Wallmount
Wallmount
Wallmount
Wallmount
Wallmount
Desktop
Desktop
Desktop
DUAL OUTPUT V/A CHART
OUTPUT RAIL
Main O/P VO1
Aux. O/P ±VO2
†
OUTPUT VOLTAGE (Vdc) /CURRENT (A)
3.3V/2.5A, 5.0V/2.0A, 5.1-5.5V/1.9-1.8A, 5.6-6.2V/1.7-1.6A,
6.3-7.1V/1.5-1.4A, 7.2-8.3V//1.3-1.2A, 8.4-10.0V/1.1-1.0A,
10.1-11.1V/0.9A, 11.2-12.5V/0.8A, 12.6-14.2V/0.7A, 14.3-15.0V/0.6A.
5V/1.0A, 12V/0.4A, 15V/0.3A, 18V/0.25A, 24V/0.2A.
Note: Refer to the upper Chart or specify the V/A ratings and consult factory for the exact Model No.
-16-
DUAL OUTPUT
(Model No. for examples.)
MODEL NO.
HES15-03325-A0-1
HES15-05020-B0-2
HES15-06615-C0-3
HES15-07712-D0-4
HES15-09011-E0-5
HES15-05020-F0-6
HES15-10010-G0-7
HES15-11009-H0-1
HES15-12008-I0-2
HES15-15006-J0-7
Symbol: "
" OVP built-in,
AC INPUT AC PLUG
90-264Vac
90-264Vac
90-264Vac
90-264Vac
90-264Vac
90-264Vac
90-264Vac
90-264Vac
90-264Vac
WM1
WM2
WM3
WM4
WM5
WM6
DT7
WM1
WM2
MAIN O/P VO1
VOLT.
TYP.
2.5A
+3.3Vdc
+5.0Vdc
+6.6Vdc
+7.7Vdc
+9.0Vdc
+5.0Vdc
+10.0Vdc
+11.0Vdc
+12.0Vdc
+15.0Vdc
2.0A
1.5A
1.2A
1.1A
2.0A
1.0A
0.9A
0.8A
0.6A
AUX. O/P VO2†
VOLT.
TYP.
1.00A
+5Vdc
+12Vdc
+15Vdc
+18Vdc
+24Vdc
- 5Vdc
-12Vdc
-15Vdc
-18Vdc
-24Vdc
0.40A
0.30A
0.25A
0.20A
1.00A
0.40A
0.30A
0.25A
0.20A
FORMAT
Wallmount
Wallmount
Wallmount
Wallmount
Wallmount
Wallmount
Desktop
Wallmount
Wallmount
Desktop
90-264Vac
DT7
"
†
" Stacked on main output.
TRIPLE OUTPUT V/A CHART
OUTPUT RAIL
Main O/P +VO1
Aux. O/P ±VO2
†
Aux. O/P -VO3
●
OUTPUT VOLTAGE (Vdc) / CURRENT (A)
+5.0-15.0V/1.5-0.5A.
Max. output power: 7.5W.
12V, 15V, 18V, 24V/0.25-0.1A
Max. output power: 3.0W.
5, 12, 15, 18, 24Vdc/0.5-0.1A.
Max. output power: 3.0W.
Note: Refer to the upper Chart or specify the V/A ratings and consult factory for the exact Model No.
TRIPLE OUTPUT
(Model No. for examples.)
MODEL NO.
HES15-05015-BF-1
HES15-07510-BG-2
HES15-08309-CH-3
HES15-09308-CI-4
HES15-10707-DI-5
HES15-12506-DJ-6
HES15-15005-EJ-7
AC PLUG
WM1
WM2
WM3
WM4
WM5
WM6
DT7
MAIN O/P VO1
VOLT.
TYP.
1.5A
+5.0Vdc
+7.5Vdc
+8.3Vdc
+9.3Vdc
+10.7Vdc
+12.5Vdc
+15.0Vdc
1.0A
0.9A
0.8A
0.7A
0.6A
0.5A
AUX.O/P VO2
†
VOLT.
TYP.
0.25A
+12Vdc
+12Vdc
+15Vdc
+15Vdc
+18Vdc
+18Vdc
+24Vdc
0.25A
0.2 A
0.2 A
0.15A
0.15A
0.10A
AUX. O/P VO3
●
VOLT.
TYP.
0.50A
-5Vdc
-12Vdc
-15Vdc
-18Vdc
-18Vdc
-24Vdc
-24Vdc
0.25A
0.20A
0.15A
0.15A
0.10A
0.10A
FORMAT
Wallmount
Wallmount
Wallmount
Wallmount
Wallmount
Wallmount
Desktop
Symbol: " " OVP built-in, "†" Stacked on main output, "●" Installed with Post Regulator (P.R.).
QUAD OUTPUT V/A CHART
MODEL NO.
HES15-490
HES15-491
HES15-492
HES15-493
HES15-494
HES15-495
HES15-496
AC PLUG
DT7
DT7
DT7
DT7
DT7
DT7
DT7
MAIN O/P VO1
VOLT.
TYP.
+3.3Vdc
1.5A
+3.3Vdc
+3.3Vdc
+3.3Vdc
+3.3Vdc
+3.3Vdc
+3.3Vdc
1.5A
1.5A
1.5A
1.5A
1.5A
1.5A
AUX. O/P VO2
†
VOLT.
TYP.
1.5A
+5Vdc
+5Vdc
+5Vdc
+5Vdc
+5Vdc
+5Vdc
+5Vdc
1.5A
1.5A
1.5A
1.5A
1.5A
1.5A
AUX. O/P VO3
●
VOLT.
TYP.
0.10A
+12Vdc
+15Vdc
+24Vdc
+24Vdc
+24Vdc
+15Vdc
+12Vdc
0.10A
0.05A
0.05A
0.05A
0.10A
0.10A
AUX. O/P VO4
●
VOLT.
TYP.
-12Vdc
0.10A
-15Vdc
-12Vdc
-15Vdc
-24Vdc
-12Vdc
-15Vdc
0.10A
0.10A
0.10A
0.05A
0.10A
0.10A
Symbol: " " OVP built-in. "† "Stacked on main output. "●" Installed with Post Regulator (P.R.).
-17-

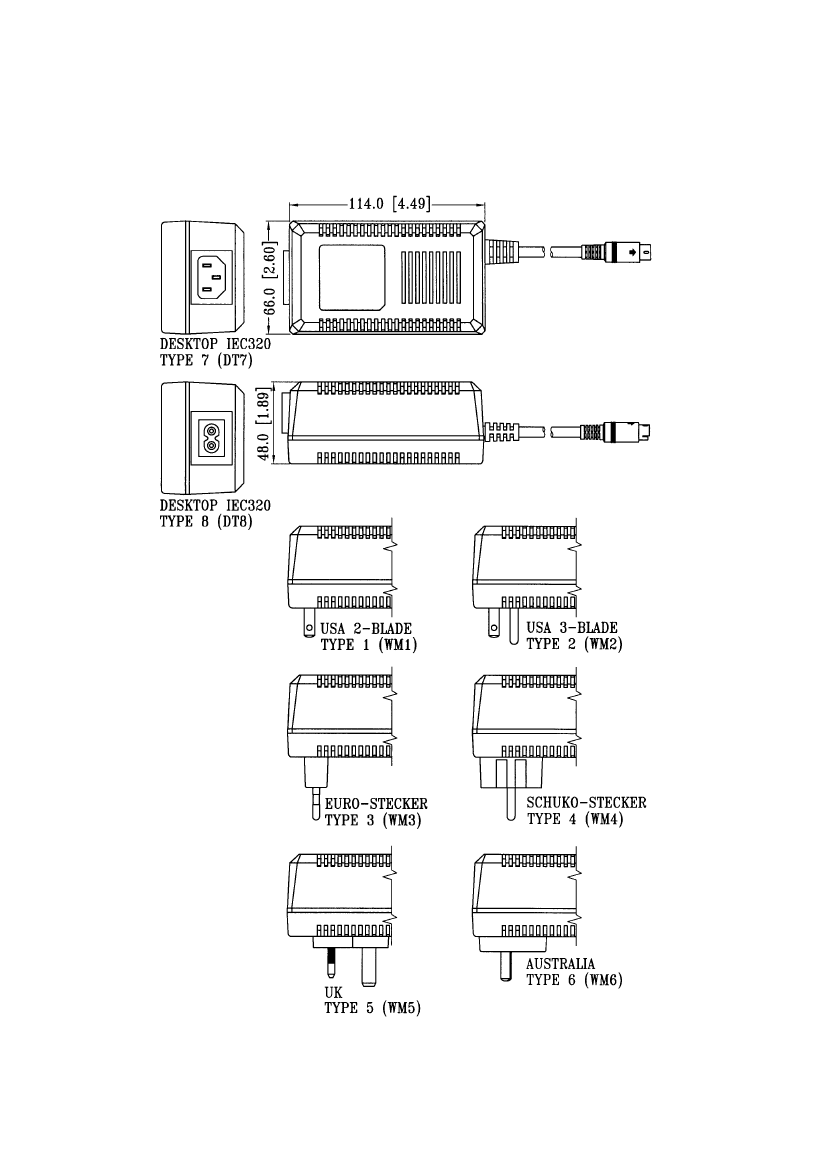

MECHANICAL DIMENSIONS:
MM [INCHES]
WEIGHT:
270.0g (9.52 Oz).
443.0g for HES15-4X-WM3
-18-
