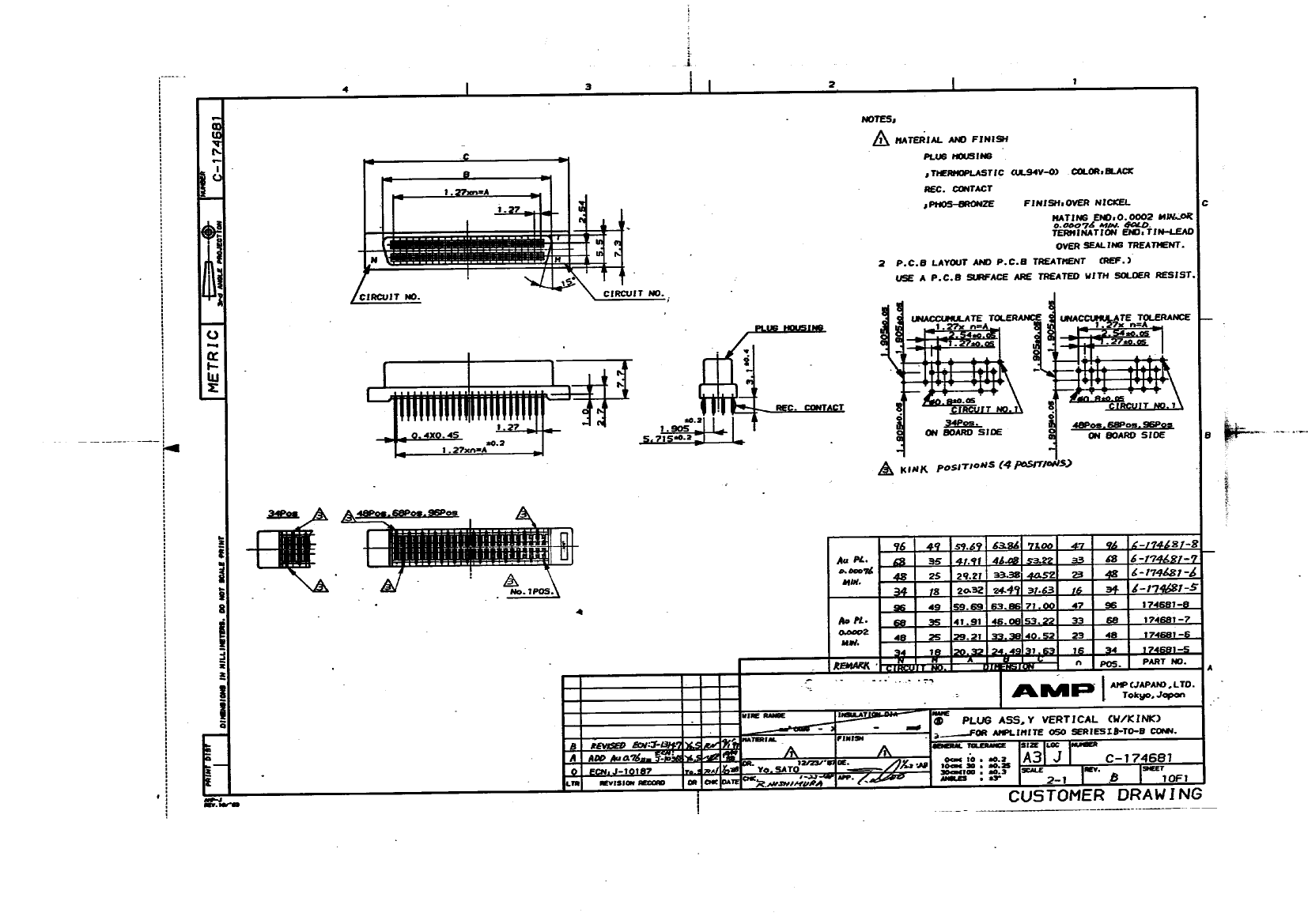

Preview

6-174681-8: Description96 CONTACT(S), FEMALE, OTHER D TYPE CONNECTOR, SOLDER; CategoryThe connector The connector; File Size41KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

6-174681-8 Overview

96 CONTACT(S), FEMALE, OTHER D TYPE CONNECTOR, SOLDER

6-174681-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1483098820
Reach Compliance Code	unknown
Other features	AMPLIMITE
Body/casing type	PLUG
Connector type	OTHER D TYPE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	96
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

6-174681-8 Related Products

	6-174681-8	6-174681-5	174681-5	174681-6	6-174681-6	174681-8
Description	96 CONTACT(S), FEMALE, OTHER D TYPE CONNECTOR, SOLDER	CONNECTOR,D-SHELL,PCB MNT,PLUG,34 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL	CONNECTOR,D-SHELL,PCB MNT,PLUG,34 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL	48 CONTACT(S), FEMALE, OTHER D TYPE CONNECTOR, SOLDER	CONNECTOR,D-SHELL,PCB MNT,PLUG,48 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL	CONNECTOR,D-SHELL,PCB MNT,PLUG,96 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL
Objectid	1483098820	300071964	300071960	1483098794	300071965	300071963
Reach Compliance Code	unknown	unknown	compliant	unknown	unknown	compliant
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Contact to complete cooperation	GOLD (30)	AU ON NI	AU ON NI	GOLD (8)	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	96	34	34	48	48	96
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible
ECCN code	-	EAR99	EAR99	-	EAR99	EAR99
body width	-	0.287 inch	0.287 inch	-	0.287 inch	0.287 inch
subject depth	-	0.106 inch	0.106 inch	-	0.106 inch	0.106 inch
body length	-	1.24 inch	1.24 inch	-	1.59 inch	2.8 inch
contact mode	-	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Contact style	-	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	-	500VAC V	500VAC V	-	500VAC V	500VAC V
Insulation resistance	-	1000000000 Ω	1000000000 Ω	-	1000000000 Ω	1000000000 Ω
Insulator color	-	BLACK	BLACK	-	BLACK	BLACK
Plug contact pitch	-	0.05 inch	0.05 inch	-	0.05 inch	0.05 inch
Match contact row spacing	-	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch
Installation method	-	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT
PCB row number	-	4	4	-	4	4
Number of rows loaded	-	2	2	-	2	2
Maximum operating temperature	-	105 °C	105 °C	-	105 °C	105 °C
Minimum operating temperature	-	-55 °C	-55 °C	-	-55 °C	-55 °C
PCB contact pattern	-	STAGGERED	STAGGERED	-	STAGGERED	STAGGERED
PCB contact row spacing	-	1.905 mm	1.905 mm	-	1.905 mm	1.905 mm
Plating thickness	-	30u inch	8u inch	-	30u inch	8u inch
Rated current (signal)	-	1 A	1 A	-	1 A	1 A
Guideline	-	UL, CSA	UL, CSA	-	UL, CSA	UL, CSA
reliability	-	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal length	-	0.122 inch	0.122 inch	-	0.122 inch	0.122 inch
Terminal pitch	-	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
