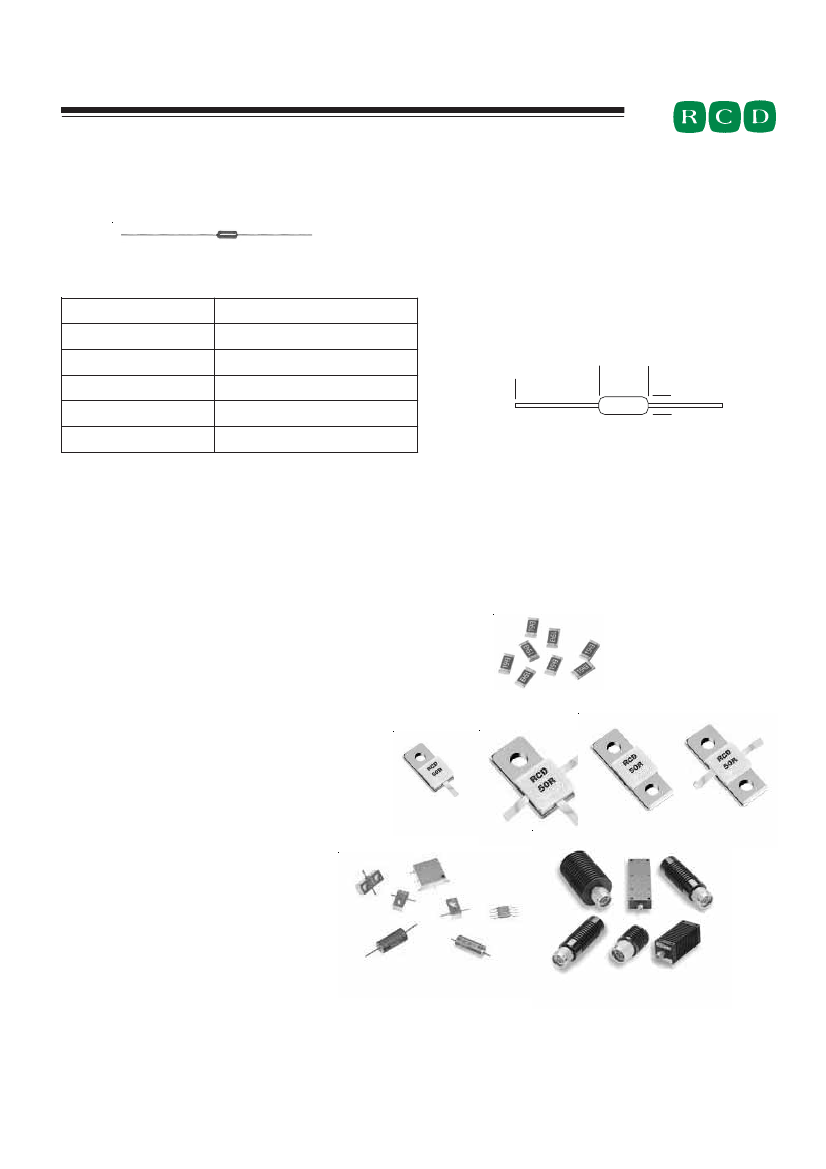

HIGH FREQUENCY MICROWAVE RESISTORS
RESISTORS CAPS & COILS DELAY LINES
HF SERIES
SPECIFICATIONS
Resistance Range
Standard Tolerance
Temperature Coefficient
Pow er Rating
Frequency Range
Temperature Range
10
Ω
to 1K
Ω
std. (avail. to 10K)
±1%, ±5% (avail. to 0.1%)
RCD Series HF thin film resistors offer extremely stable perfor-
mance under microwave applications. A proprietary production
process results in significant improvements in high-frequency
performance, as well as reduced TCR and noise characteristics.
Series HF resistors are essentially non-inductive and are custom
designed to particular customer requirements. Please advise
resistance value, tolerance, T.C., and operating frequency range
when ordering.
Available on exclusive
SWIFT
TM
delivery
program.
DIMENSIONS
±100ppm/°C (avail. to 25ppm)
1/4W @ 25°C (avail. to 1.0W)
D.C. to 10GHz available
-55°C to +160°C
←
←
1.0[25.4] min.
→
.440
[11.2]
max.
→
.160 [4.06] Max
↓
.026 [.66] Max
↓
↑
↑
CUSTOM MICROWAVE PRODUCTS TO 112GHz
Flange Resistors
Chip Resistors
Terminations
SAW (Surface Acoustic Wave) RF Low Loss Filter
Narrow Band SAW Filters
SAW Resonators
Ceramic Filters, Discriminators, Traps
Mixers
Couplers
Attenuators
Chip Inductors
RCD Components Inc.,
520 E. Industrial Park Dr., Manchester, NH, USA 03109
Tel: (603) 669-0054 Fax:(603) 669-5455 E-mail: sales@rcdcomponents.com
www.rcdcomponents.com
FA113 Sale of this product is in accordance with GF-061. Specifications subject to change without notice
