SY10EP16UMG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> SY10EP16UMG

SY10EP16UMG: DescriptionLINE TRANSCEIVER, DSO8; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size557KB，15 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance; Related ProductsFound7parts with similar functions to SY10EP16UMG

Download Datasheet Parametric Compare View All

SY10EP16UMG Overview

LINE TRANSCEIVER, DSO8

SY10EP16UMG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Microchip
package instruction	MLF-8
Reach Compliance Code	compli
ECCN code	EAR99
Differential output	YES
Number of drives	1
Input properties	DIFFERENTIAL
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	GENERAL PURPOSE
JESD-30 code	S-XDSO-N8
JESD-609 code	e4
length	2 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
encapsulated code	HVSON
Package shape	SQUARE
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum receive delay	0.33 ns
Number of receiver bits	1
Maximum seat height	0.9 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
maximum transmission delay	0.33 ns
width	2 mm

Preview

Download Datasheet

View All

NOT RECOMMENDED FOR NEW DESIGNS

SY10/100EP16U

2.5/3.3V Precision ECL Differential

Receiver/Driver

General Description

The SY10/100EP16U is a 2.5/3.3V, high-speed, fully

differential ECL Receiver/Driver that can process

clock signals as fast as 3GHz or data patterns up to

2.5Gbps.

The differential input includes an internal 75kΩ pull-

down resistor on both the true and complement inputs

and a 37.5kΩ pull-up resistor in the complement input

only. For AC-coupled input interface and single-ended

applications, an integrated voltage reference (V

) is

provided. Single-ended CLK input operation is limited

to V

≥

3.0V in PECL mode, or V

≤

-3.0V. The V

pin should be used only as a bias for the

SY10/100EP16U since its current sink/source

capability is limited. Whenever used, the V

should be bypassed to the most positive supply

voltage. The output is 800mV ECL, with fast rise/fall

times guaranteed to be less than 200ps.

When the inputs are left open, the internal input

clamps will force the Q output low.

The SY10/100EP16U operates from a 2.5V ±5% or

3.3V ±10% supply and is guaranteed over the full

industrial temperature range (–40°C to +85°C). The

SY100EP16V is part of Micrel’s high-speed, Precision

Edge

product line.

Datasheets and support documentation can be found

on Micrel’s web site at:

www.micrel.com.

Precision Edge

Features

•

Precision 800mV ECL Receiver/Driver

•

10K and 100K ECL compatible I/O

•

Guaranteed AC performance over temperature and

voltage:

– DC-to > 2.5Gbps throughput

– 240ps typical propagation delay (D-to-Q)

– <200ps rise/fall times

•

Ultra-low jitter design

– < 0.3ps

RMS

random jitter

•

PECL and NECL operation capability

•

PECL operating range: V

= 2.375V to 3.63V with

= 0V

•

NECL operating range: V

= 0V with V

= -2.375V

to -3.63V

•

2.5V ±5% or 3.3V ±10% power supply operation

•

Industrial temperature range: –40°C to +85°C

•

Available in 8-pin (2mm x 2mm) MLF

, 8-pin MSOP,

8-pin SOIC packages

Applications

•

All SONET clock and data distribution

Fibre Channel clock and data distribution

Gigabit Ethernet clock and data distribution

Backplane distribution

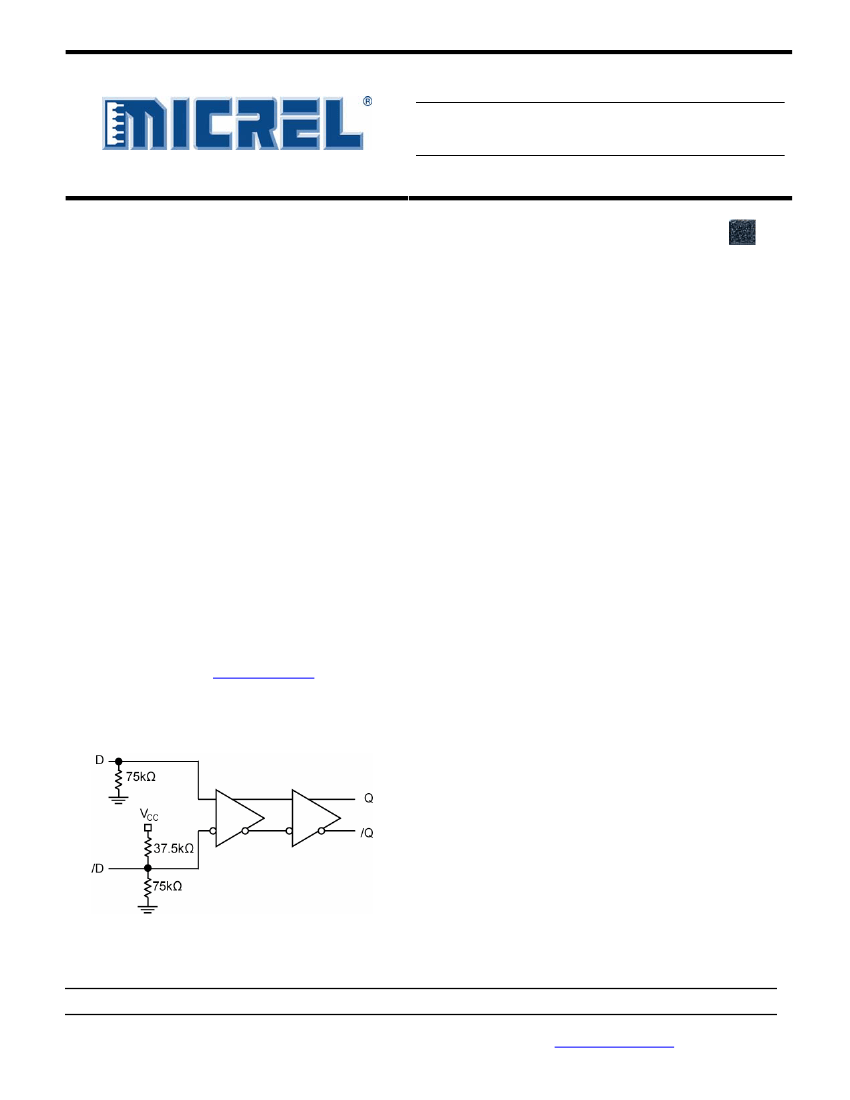

Functional Block Diagram

Markets

•

Storage

ATE

Test and measurement

Enterprise networking equipment

High-end servers

Access

Metro area network equipment

Precision Edge is a registered trademark of Micrel, Inc.

MLF and

MicroLeadFrame

are registered trademarks of Amkor Technology.

Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com

December 2008

M9999-121808-A

hbwhelp@micrel.com

or (408) 955-1690

SY10EP16UMG Related Products

	SY10EP16UMG	SY10EP16UKGTR	SY10EP16UZGTR	SY100EP16UKGTR	SY100EP16UMG
Description	LINE TRANSCEIVER, DSO8	Line Transceiver	Line Transceiver	Line Transceiver	LINE TRANSCEIVER, DSO8
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Microchip	Microchip	Microchip	Microchip	Microchip
package instruction	MLF-8	MSOP-8	SOIC-8	MSOP-8	MLF-8
Reach Compliance Code	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Differential output	YES	YES	YES	YES	YES
Number of drives	1	1	1	1	1
Input properties	DIFFERENTIAL	DIFFERENTIAL	DIFFERENTIAL	DIFFERENTIAL	DIFFERENTIAL
Interface integrated circuit type	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER
Interface standards	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
JESD-30 code	S-XDSO-N8	S-PDSO-G8	R-PDSO-G8	S-PDSO-G8	S-XDSO-N8
JESD-609 code	e4	e4	e4	e4	e4
length	2 mm	3 mm	4.93 mm	3 mm	2 mm
Number of functions	1	1	1	1	1
Number of terminals	8	8	8	8	8
Maximum operating temperature	85 °C	125 °C	125 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED
encapsulated code	HVSON	TSSOP	SOP	TSSOP	HVSON
Package shape	SQUARE	SQUARE	RECTANGULAR	SQUARE	SQUARE
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260
Maximum receive delay	0.33 ns	0.33 ns	0.33 ns	0.33 ns	0.33 ns
Number of receiver bits	1	1	1	1	1
Maximum seat height	0.9 mm	1.1 mm	1.73 mm	1.1 mm	0.9 mm
Maximum supply voltage	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage	2.375 V	2.375 V	2.375 V	2.375 V	2.375 V
Nominal supply voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
surface mount	YES	YES	YES	YES	YES
Temperature level	INDUSTRIAL	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	INDUSTRIAL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	NO LEAD	GULL WING	GULL WING	GULL WING	NO LEAD
Terminal pitch	0.5 mm	0.65 mm	1.27 mm	0.65 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30
maximum transmission delay	0.33 ns	0.33 ns	0.33 ns	0.33 ns	0.33 ns
width	2 mm	3 mm	3.94 mm	3 mm	2 mm
Other features	-	ALSO OPERATES WITH NEG SUPPLY FROM -2.375V TO -3.6V IN NECL MODE	ALSO OPERATES WITH NEG SUPPLY FROM -2.375V TO -3.6V IN NECL MODE	ALSO OPERATES WITH NEG SUPPLY FROM -2.375V TO -3.6V IN NECL MODE	-
