HD74HC540FPEL

Description
Octal Buffers/Line Drivers (with 3-state outputs)
Categorylogic    logic
File Size105KB，9 Pages
ManufacturerRenesas Electronics Corporation
Websitehttps://www.renesas.com/
Download Datasheet Parametric Compare View All

HD74HC540FPEL Overview

Octal Buffers/Line Drivers (with 3-state outputs)

HD74HC540FPEL Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerRenesas Electronics Corporation
Parts packaging codeSOIC
package instructionSOP, SOP20,.3
Contacts20
Reach Compliance Codeunknow
ECCN codeEAR99
Control typeENABLE LOW
seriesHC/UH
JESD-30 codeR-PDSO-G20
length12.6 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeBUS DRIVER
MaximumI(ol)0.006 A
Humidity sensitivity level1
Number of digits8
Number of functions1
Number of ports2
Number of terminals20
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityINVERTED
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP20,.3
Package shapeRECTANGULAR
Package formSMALL OUTLINE
method of packingTAPE AND REEL
Peak Reflow Temperature (Celsius)225
power supply2/6 V
Prop。Delay @ Nom-Su25 ns
propagation delay (tpd)125 ns
Certification statusNot Qualified
Maximum seat height2.2 mm
Maximum supply voltage (Vsup)6 V
Minimum supply voltage (Vsup)2 V
Nominal supply voltage (Vsup)4.5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width5.5 mm

Preview

Download Datasheet
HD74HC540, HD74HC541
Octal Buffers/Line Drivers (with 3-state outputs)
REJ03D0628-0200
(Previous ADE-205-508)
Rev.2.00
Mar 30, 2006
Description
The HD74HC540 is an inverting buffer and the HD74HC541 is a non-inverting buffer. The 3-state control gate
operates as a two-input NOR such that if either G
1
or G
2
are high, all eight outputs are in the high-impedance state.
Features
•
High Speed Operation: t
pd
= 11.5 ns typ (C
L
= 50 pF)
•
High Output Current: Fanout of 15 LSTTL Loads
•
Wide Operating Voltage: V
CC
= 2 to 6 V
•
Low Input Current: 1
µA
max
•
Low Quiescent Supply Current: I
CC
(static) = 4
µA
max (Ta = 25°C)
•
Ordering Information
Part Name
HD74HC540P
HD74HC541P
HD74HC540FPEL
HD74HC541FPEL
HD74HC540RPEL
HD74HC541RPEL
HD74HC540TELL
HD74HC541TELL
Package Type
DILP-20 pin
SOP-20 pin (JEITA)
SOP-20 pin (JEDEC)
TSSOP-20 pin
Package Code
(Previous Code)
PRDP0020AC-B
(DP-20NEV)
PRSP0020DD-B
(FP-20DAV)
PRSP0020DC-A
(FP-20DBV)
PTSP0020JB-A
(TTP-20DAV)
Package
Abbreviation
P
FP
RP
T
—
EL (2,000 pcs/reel)
EL (1,000 pcs/reel)
ELL (2,000 pcs/reel)
Taping Abbreviation
(Quantity)
Note: Please consult the sales office for the above package availability.
Function Table
Inputs
G
1
L
L
H
H
L
X
Z
:
:
:
:
G
2
L
L
X
A
L
H
X
X
HD74HC540
H
L
Z
Z
Output Y
HD74HC541
L
H
Z
Z
X
H
high level
low level
irrelevant
off (high-impedance) state of a 3-state output
Rev.2.00 Mar 30, 2006 page 1 of 8

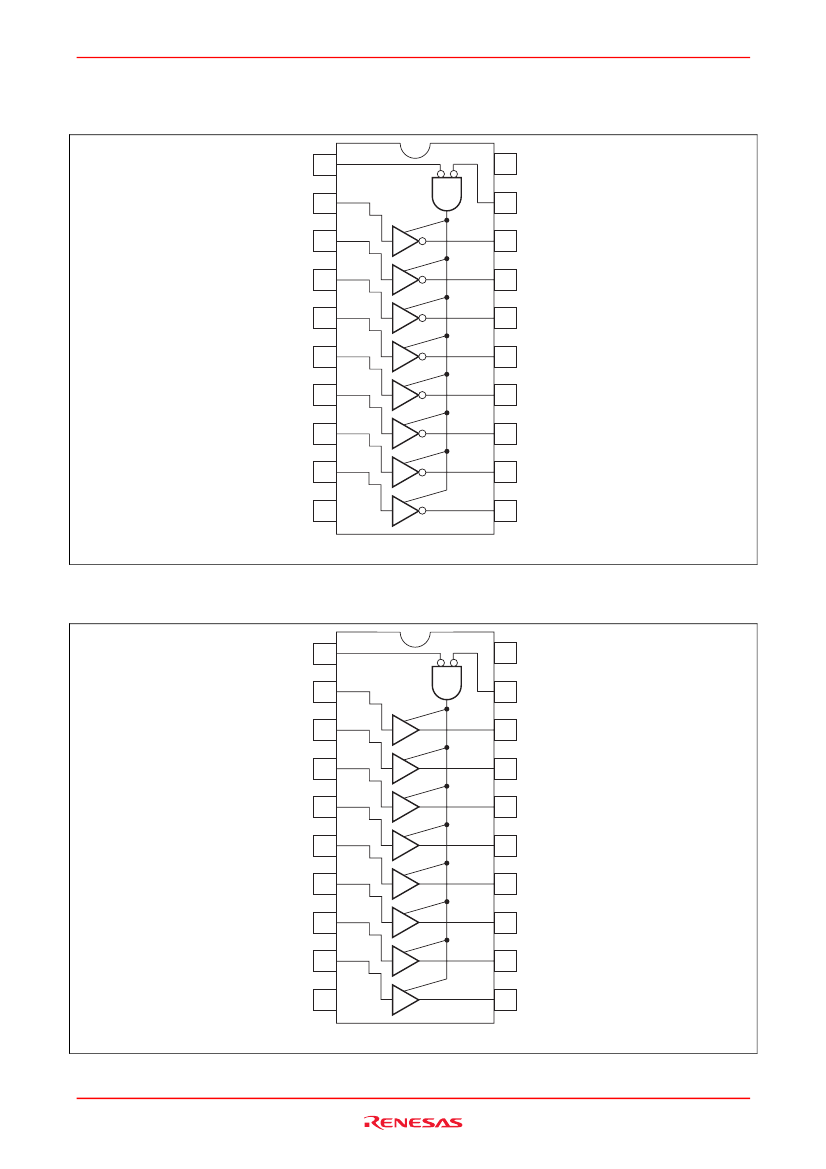

HD74HC540FPEL Related Products

HD74HC540FPEL HD74HC540 HD74HC540P HD74HC541 HD74HC541P HD74HC541RPEL HD74HC541FPEL HD74HC541TELL HD74HC540TELL HD74HC540RPEL
Description Octal Buffers/Line Drivers (with 3-state outputs) Octal Buffers/Line Drivers (with 3-state outputs) Octal Buffers/Line Drivers (with 3-state outputs) Octal Buffers/Line Drivers (with 3-state outputs) Octal Buffers/Line Drivers (with 3-state outputs) Octal Buffers/Line Drivers (with 3-state outputs) Octal Buffers/Line Drivers (with 3-state outputs) Octal Buffers/Line Drivers (with 3-state outputs) Octal Buffers/Line Drivers (with 3-state outputs) Octal Buffers/Line Drivers (with 3-state outputs)
Is it lead-free? Contains lead - Contains lead - Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible - incompatible - incompatible incompatible incompatible incompatible incompatible incompatible
Maker Renesas Electronics Corporation - Renesas Electronics Corporation - Renesas Electronics Corporation Renesas Electronics Corporation Renesas Electronics Corporation Renesas Electronics Corporation Renesas Electronics Corporation Renesas Electronics Corporation
Parts packaging code SOIC - DIP - DIP SOIC SOIC TSSOP TSSOP SOIC
package instruction SOP, SOP20,.3 - 6.30 X 24.50 MM, 2.54 MM PITCH, PLASTIC, DIP-20 - DIP, DIP20,.3 7.50 X 12.80 MM, 1.27 MM PITCH, PLASTIC, SOP-20 SOP, SOP20,.3 4.40 X 6.50 MM, 0.65 MM PITCH, PLASTIC, TSSOP-20 TSSOP, TSSOP20,.25 SOP, SOP20,.4
Contacts 20 - 20 - 20 20 20 20 20 20
Reach Compliance Code unknow - compli - compli compliant unknow compli unknow unknow
ECCN code EAR99 - EAR99 - EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Control type ENABLE LOW - ENABLE LOW - ENABLE LOW ENABLE LOW ENABLE LOW ENABLE LOW ENABLE LOW ENABLE LOW
series HC/UH - HC/UH - HC/UH HC/UH HC/UH HC/UH HC/UH HC/UH
JESD-30 code R-PDSO-G20 - R-PDIP-T20 - R-PDIP-T20 R-PDSO-G20 R-PDSO-G20 R-PDSO-G20 R-PDSO-G20 R-PDSO-G20
length 12.6 mm - 24.5 mm - 24.5 mm 12.8 mm 12.6 mm 6.5 mm 6.5 mm 12.8 mm
Load capacitance (CL) 50 pF - 50 pF - 50 pF 50 pF 50 pF 50 pF 50 pF 50 pF
Logic integrated circuit type BUS DRIVER - BUS DRIVER - BUS DRIVER BUS DRIVER BUS DRIVER BUS DRIVER BUS DRIVER BUS DRIVER
MaximumI(ol) 0.006 A - 0.006 A - 0.006 A 0.006 A 0.006 A 0.006 A 0.006 A 0.006 A
Humidity sensitivity level 1 - - - - 1 1 1 1 1
Number of digits 8 - 8 - 8 8 8 8 8 8
Number of functions 1 - 1 - 1 1 1 1 1 1
Number of ports 2 - 2 - 2 2 2 2 2 2
Number of terminals 20 - 20 - 20 20 20 20 20 20
Maximum operating temperature 85 °C - 85 °C - 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C - -40 °C - -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Output characteristics 3-STATE - 3-STATE - 3-STATE 3-STATE 3-STATE 3-STATE 3-STATE 3-STATE
Output polarity INVERTED - INVERTED - TRUE TRUE TRUE TRUE INVERTED INVERTED
Package body material PLASTIC/EPOXY - PLASTIC/EPOXY - PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP - DIP - DIP SOP SOP TSSOP TSSOP SOP
Encapsulate equivalent code SOP20,.3 - DIP20,.3 - DIP20,.3 SOP20,.4 SOP20,.3 TSSOP20,.25 TSSOP20,.25 SOP20,.4
Package shape RECTANGULAR - RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE - IN-LINE - IN-LINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE
method of packing TAPE AND REEL - - - - TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL
Peak Reflow Temperature (Celsius) 225 - NOT SPECIFIED - NOT SPECIFIED 225 225 225 225 225
power supply 2/6 V - 2/6 V - 2/6 V 2/6 V 2/6 V 2/6 V 2/6 V 2/6 V
Prop。Delay @ Nom-Su 25 ns - 25 ns - 29 ns - 29 ns 29 ns 25 ns 25 ns
propagation delay (tpd) 125 ns - 125 ns - 145 ns 145 ns 145 ns 145 ns 125 ns 125 ns
Certification status Not Qualified - Not Qualified - Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 2.2 mm - 5.08 mm - 5.08 mm 2.65 mm 2.2 mm 1.1 mm 1.1 mm 2.65 mm
Maximum supply voltage (Vsup) 6 V - 6 V - 6 V 6 V 6 V 6 V 6 V 6 V
Minimum supply voltage (Vsup) 2 V - 2 V - 2 V 2 V 2 V 2 V 2 V 2 V
Nominal supply voltage (Vsup) 4.5 V - 4.5 V - 4.5 V 4.5 V 4.5 V 4.5 V 4.5 V 4.5 V
surface mount YES - NO - NO YES YES YES YES YES
technology CMOS - CMOS - CMOS CMOS CMOS CMOS CMOS CMOS
Temperature level INDUSTRIAL - INDUSTRIAL - INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal form GULL WING - THROUGH-HOLE - THROUGH-HOLE GULL WING GULL WING GULL WING GULL WING GULL WING
Terminal pitch 1.27 mm - 2.54 mm - 2.54 mm 1.27 mm 1.27 mm 0.65 mm 0.65 mm 1.27 mm
Terminal location DUAL - DUAL - DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED - NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
width 5.5 mm - 7.62 mm - 7.62 mm 7.5 mm 5.5 mm 4.4 mm 4.4 mm 7.5 mm
