51940-565 datasheet, PDF - EEWORLD Datasheet

51940-565: DescriptionBoard Connector, 6 Contact(s), Female, Straight, Press Fit Terminal, Guide Pin, Receptacle; CategoryThe connector The connector; File Size223KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51940-565 Overview

Board Connector, 6 Contact(s), Female, Straight, Press Fit Terminal, Guide Pin, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	compliant
body width	0.47 inch
subject depth	0.5 inch
body length	2.05 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P6
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	BLADE PIN-SKT
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
maximum insertion force	6.95 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51940
Mixed contacts	YES
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Termination type	PRESS FIT
Total number of contacts	6
Evacuation force-minimum value	2.224 N
Base Number Matches	1

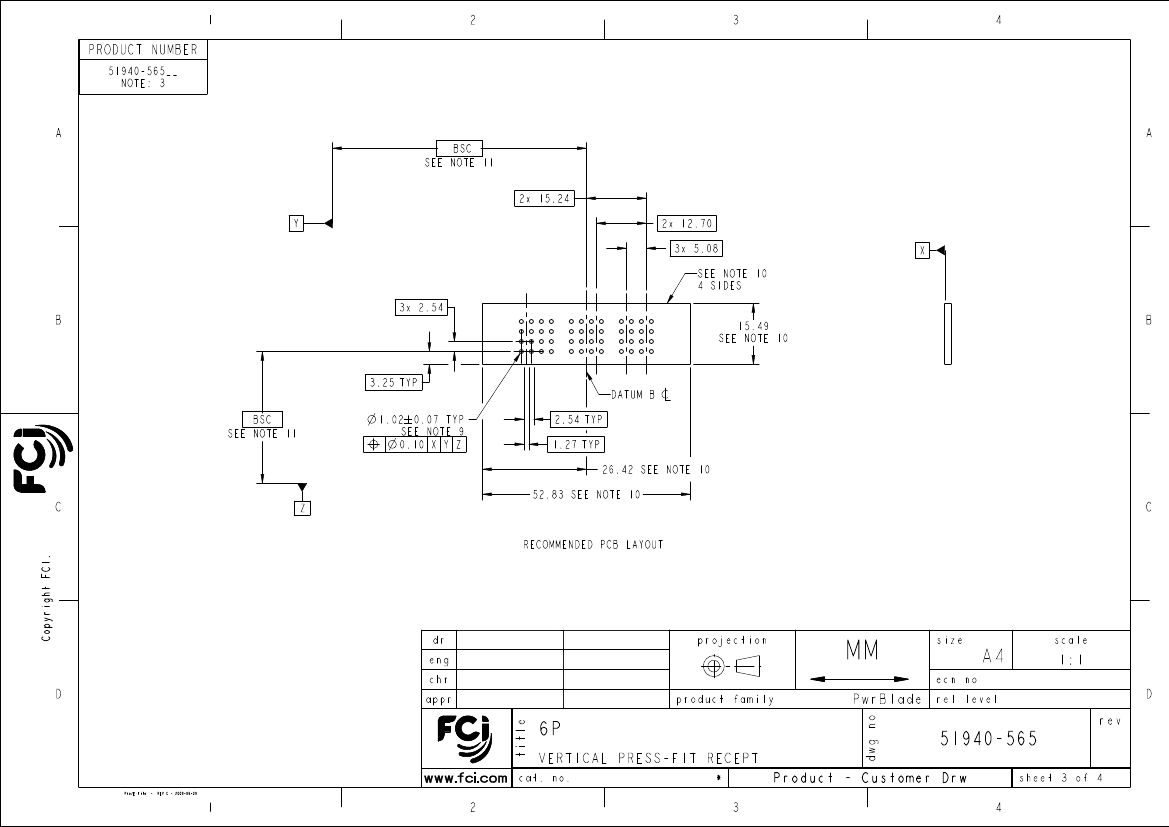

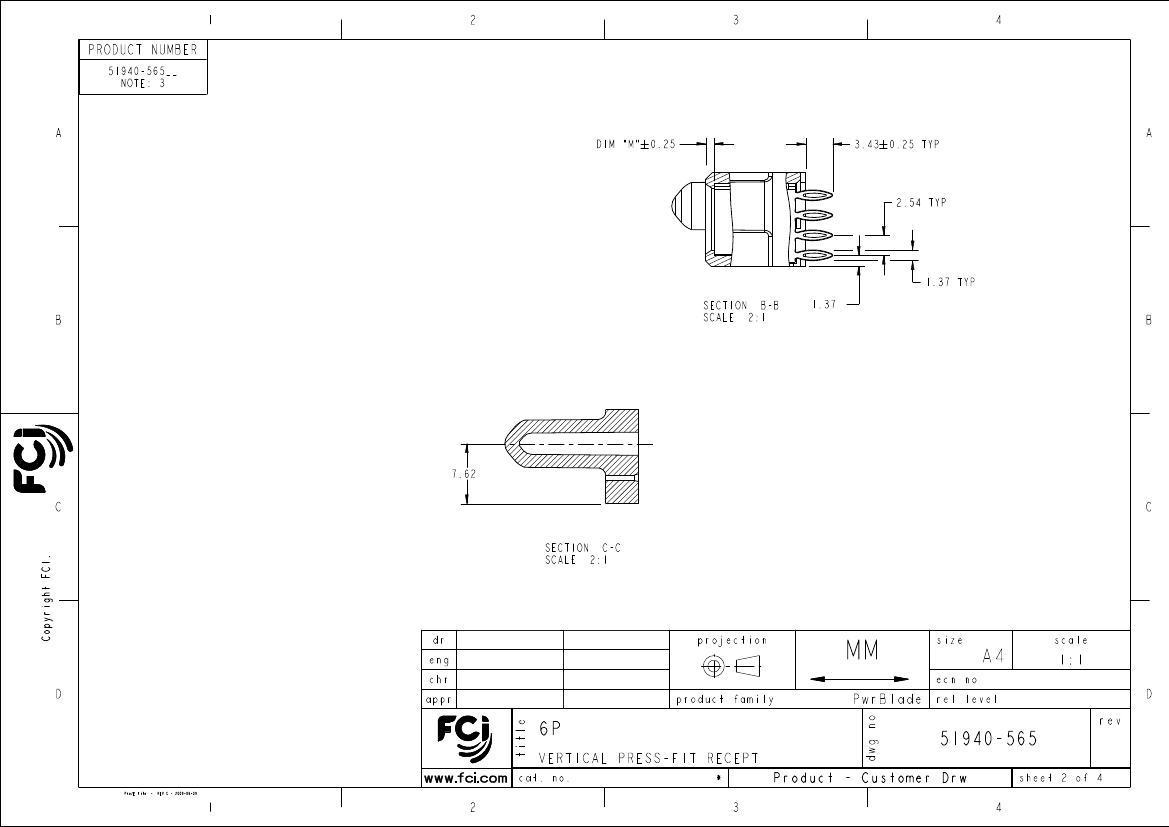

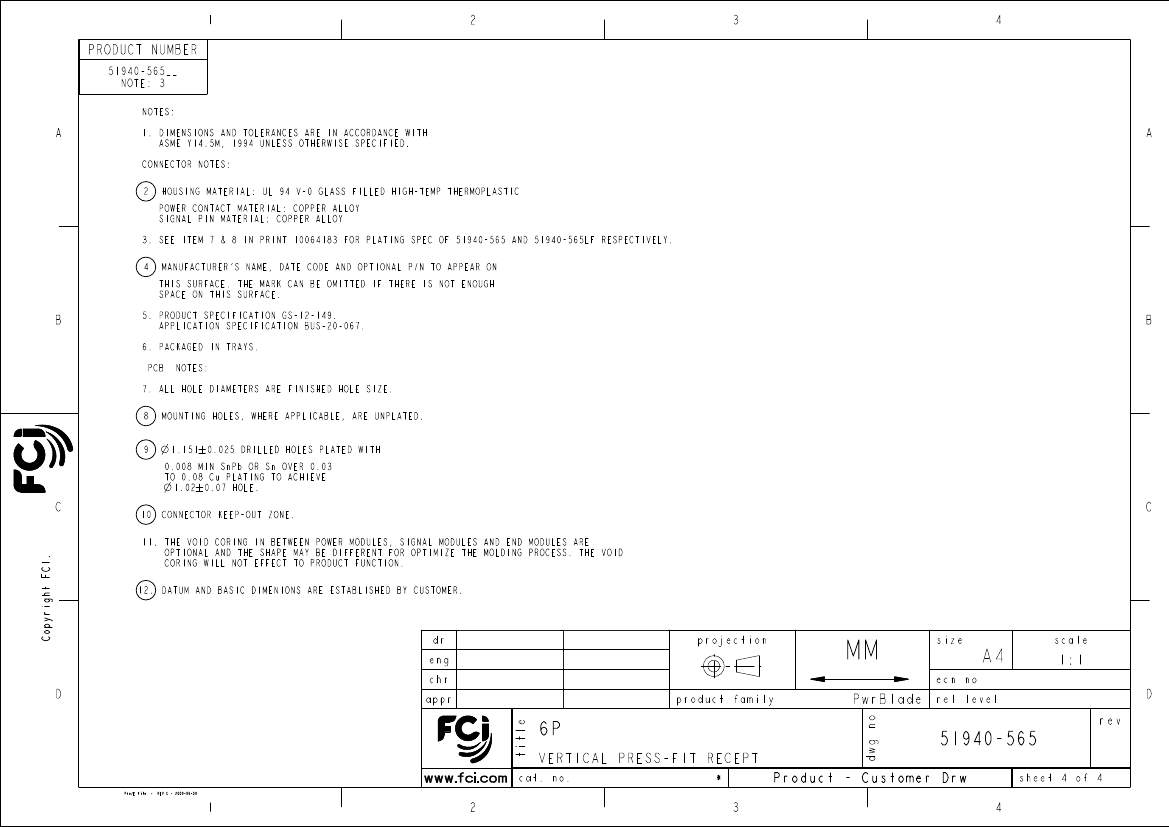

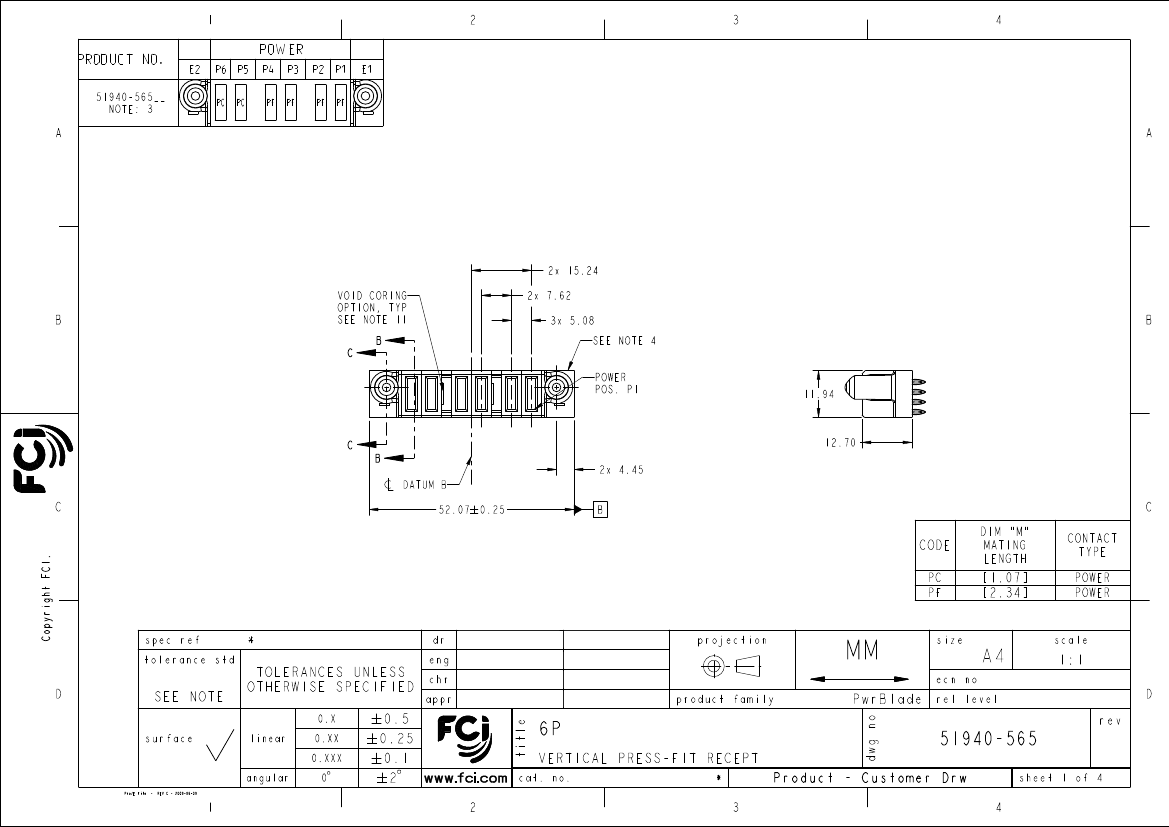

Ruan MT

De-Ming Lu

-

Pei-Ming Zheng

2015/01/20

2015/02/04

-

2015/02/04

-

Released

A

PDS: Rev :A

STATUS:Released

Printed: Feb 04, 2015

	51940-565	51940-565LF
Description	Board Connector, 6 Contact(s), Female, Straight, Press Fit Terminal, Guide Pin, Receptacle	PwrBlade®, Power Supply Connectors, 6P Vertical Receptacle.
Reach Compliance Code	compliant	compliant
body width	0.47 inch	0.47 inch
subject depth	0.5 inch	0.5 inch
body length	2.05 inch	2.05 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S0P6	S0P6
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ
Contact style	BLADE PIN-SKT	BLADE PIN-SKT
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
maximum insertion force	6.95 N	6.95 N
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51940	51940
Mixed contacts	YES	YES
Installation option 1	GUIDE PIN	GUIDE PIN
Installation option 2	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	6	6
Evacuation force-minimum value	2.224 N	2.224 N
