51940-563LHLF

Description
PwrBlade®, Power Supply Connectors, 2P 16S 2P Vertical Receptacle.
CategoryThe connector    The connector
File Size238KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

51940-563LHLF Online Shopping

Suppliers Part Number Price MOQ In stock
51940-563LHLF - - View Buy Now

51940-563LHLF Overview

PwrBlade®, Power Supply Connectors, 2P 16S 2P Vertical Receptacle.

51940-563LHLF Parametric

Parameter NameAttribute value
Objectid315207520
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.47 inch
subject depth0.5 inch
body length2.05 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS16P4
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialCOPPER ALLOY
Contact resistance20 mΩ
Contact styleHYBRID
Dielectric withstand voltage2500VDC V
Durability200 Cycles
Insulation resistance500000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
Manufacturer's serial number51940
Mixed contactsYES
Installation option 1GUIDE PIN
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Termination typeSOLDER
Total number of contacts20

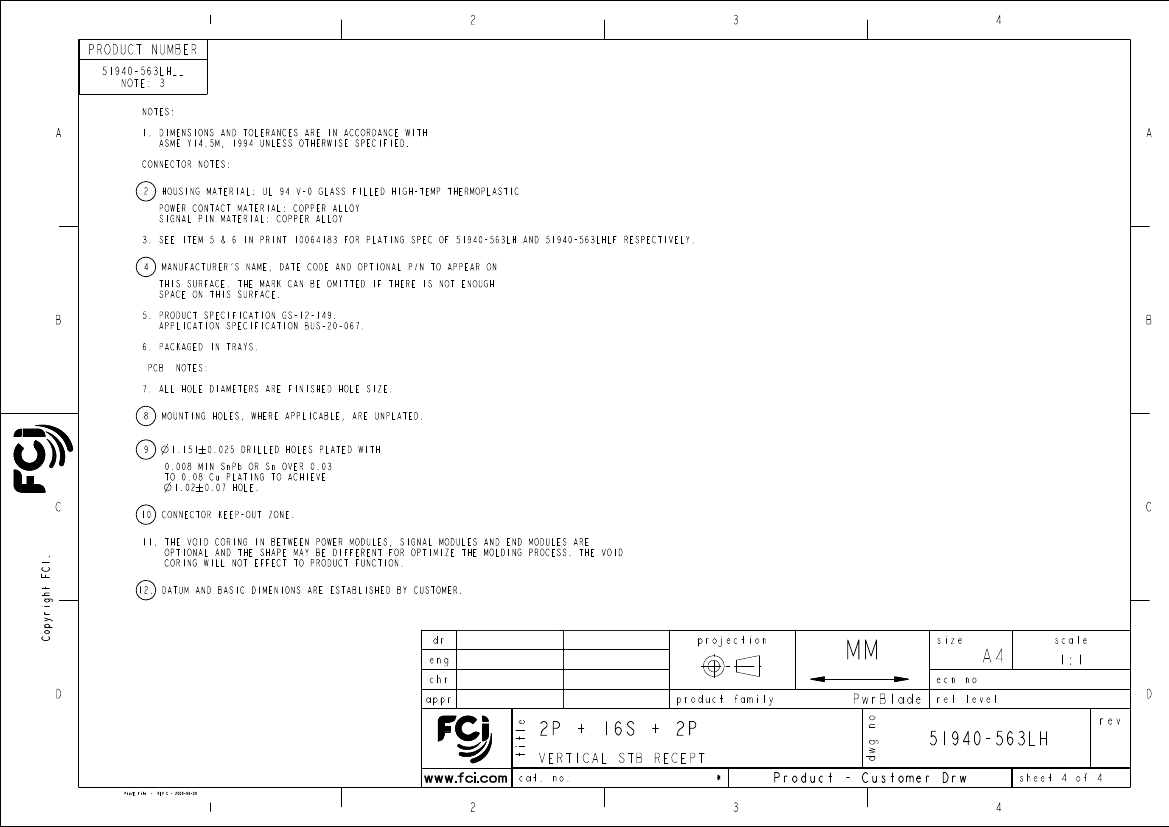

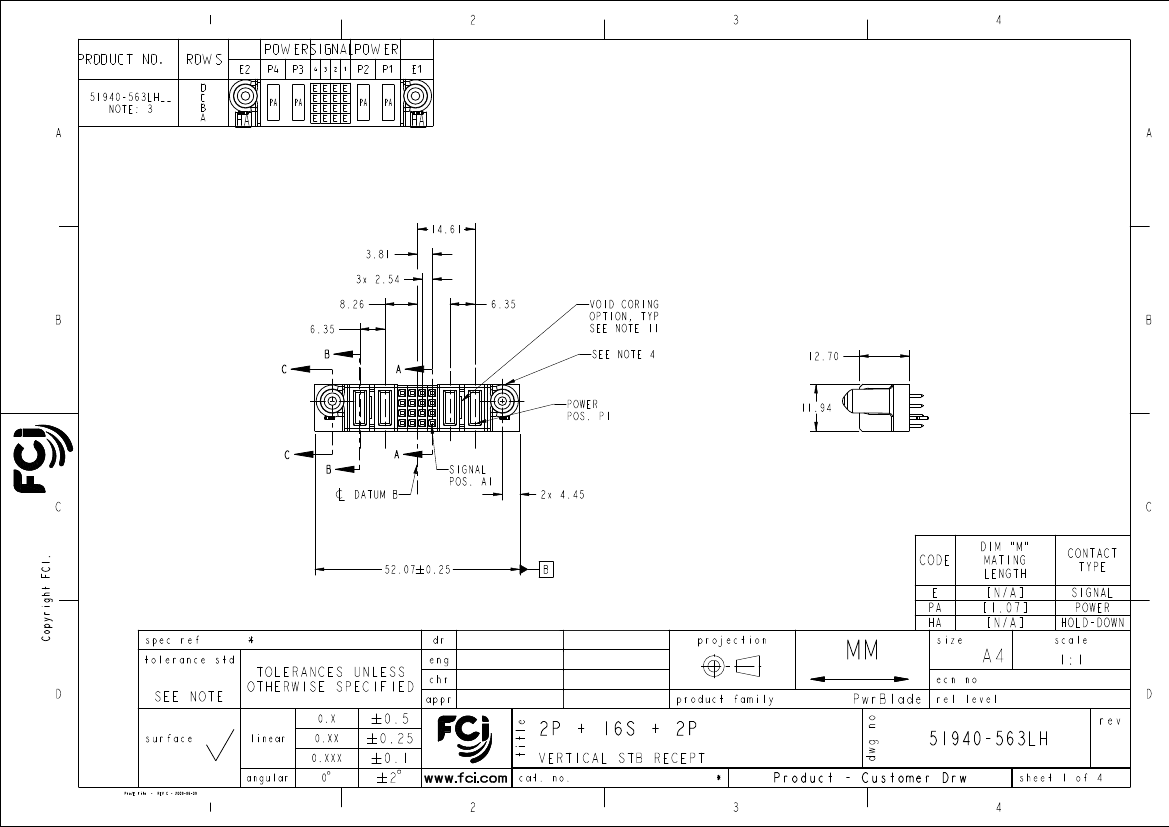

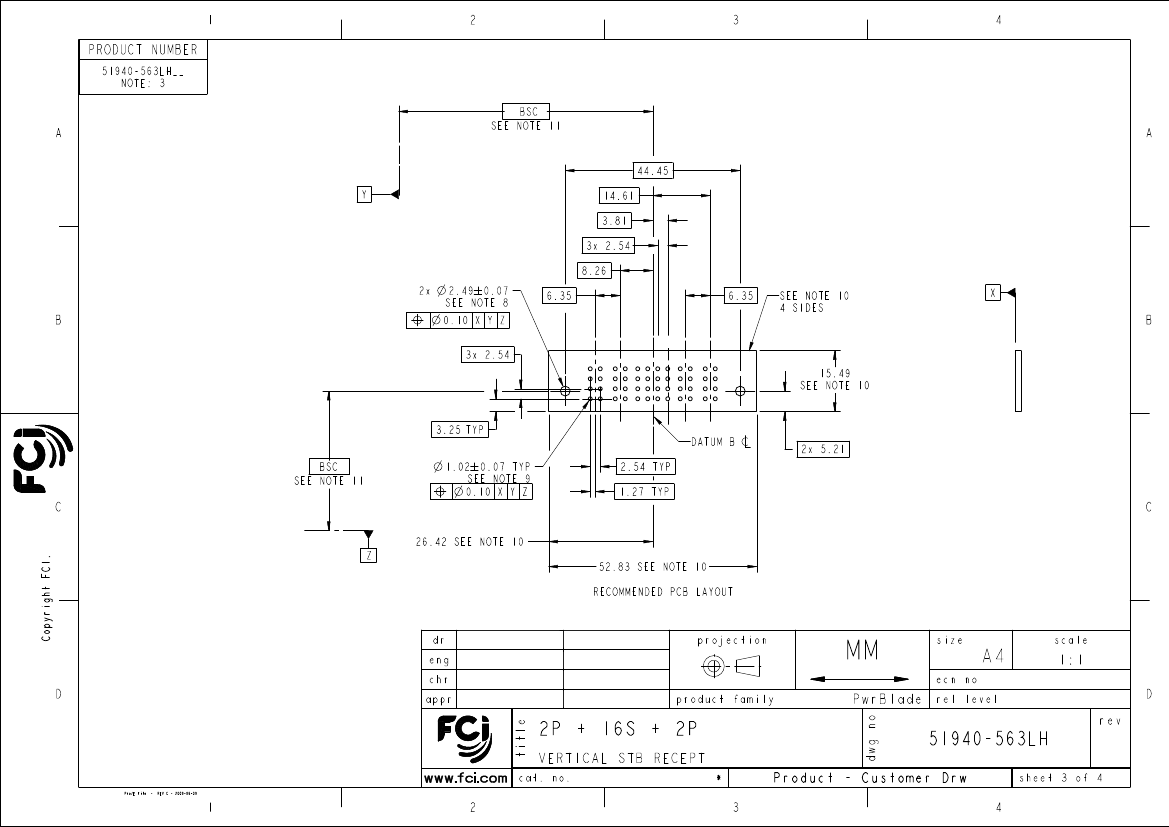

Ruan MT
Ruan MT
-
Pei-Ming Zheng
2014/12/19
2015/01/19
-
2015/01/19
-
Released
A
PDS: Rev :A
STATUS:Released
Printed: Jan 20, 2015

51940-563LHLF Related Products

51940-563LHLF 51940-563LH
Description PwrBlade®, Power Supply Connectors, 2P 16S 2P Vertical Receptacle. Board Connector, 20 Contact(s), Female, Straight, Solder Terminal, Guide Pin, Receptacle
Reach Compliance Code compliant compliant
body width 0.47 inch 0.47 inch
subject depth 0.5 inch 0.5 inch
body length 2.05 inch 2.05 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact arrangement S16P4 S16P4
Contact completed and terminated TIN TIN/LEAD
Contact point gender FEMALE FEMALE
Contact material COPPER ALLOY COPPER ALLOY
Contact resistance 20 mΩ 20 mΩ
Contact style HYBRID HYBRID
Dielectric withstand voltage 2500VDC V 2500VDC V
Durability 200 Cycles 200 Cycles
Insulation resistance 500000000 Ω 500000000 Ω
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
Manufacturer's serial number 51940 51940
Mixed contacts YES YES
Installation option 1 GUIDE PIN GUIDE PIN
Installation option 2 LOCKING LOCKING
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.135 inch 0.135 inch
Termination type SOLDER SOLDER
Total number of contacts 20 20
