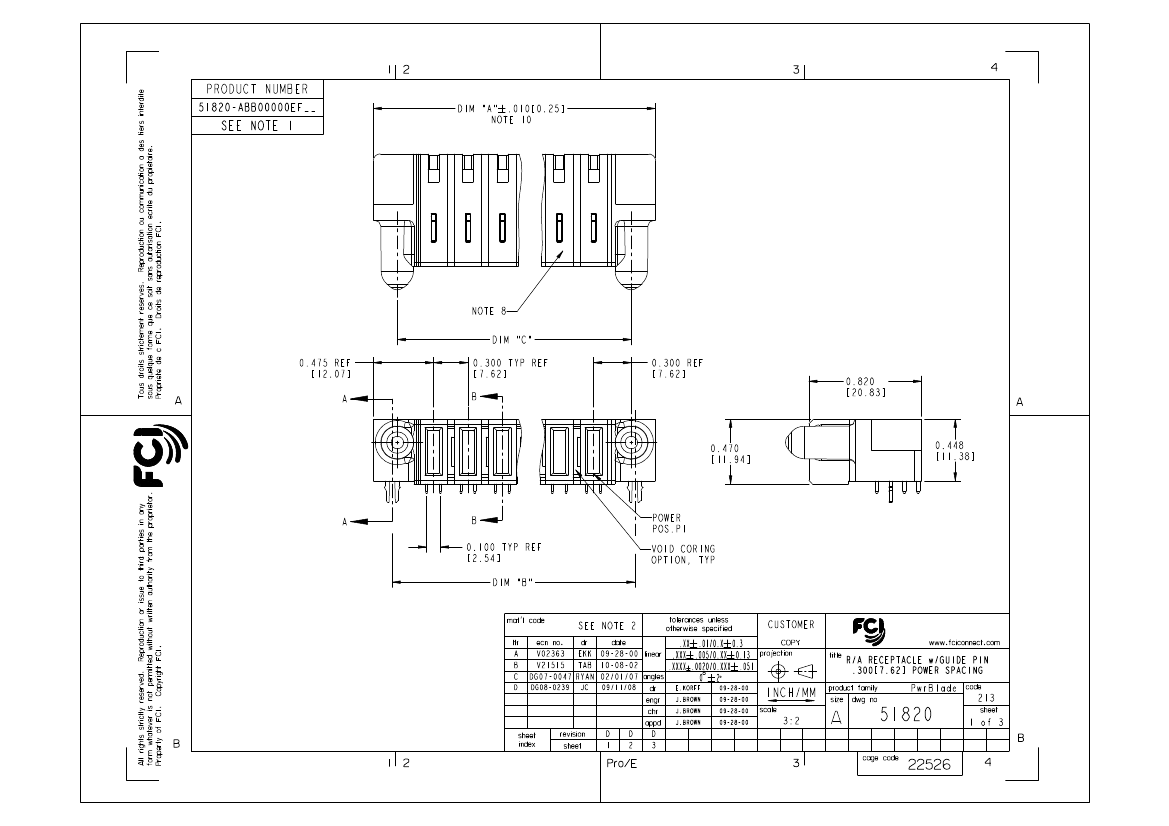

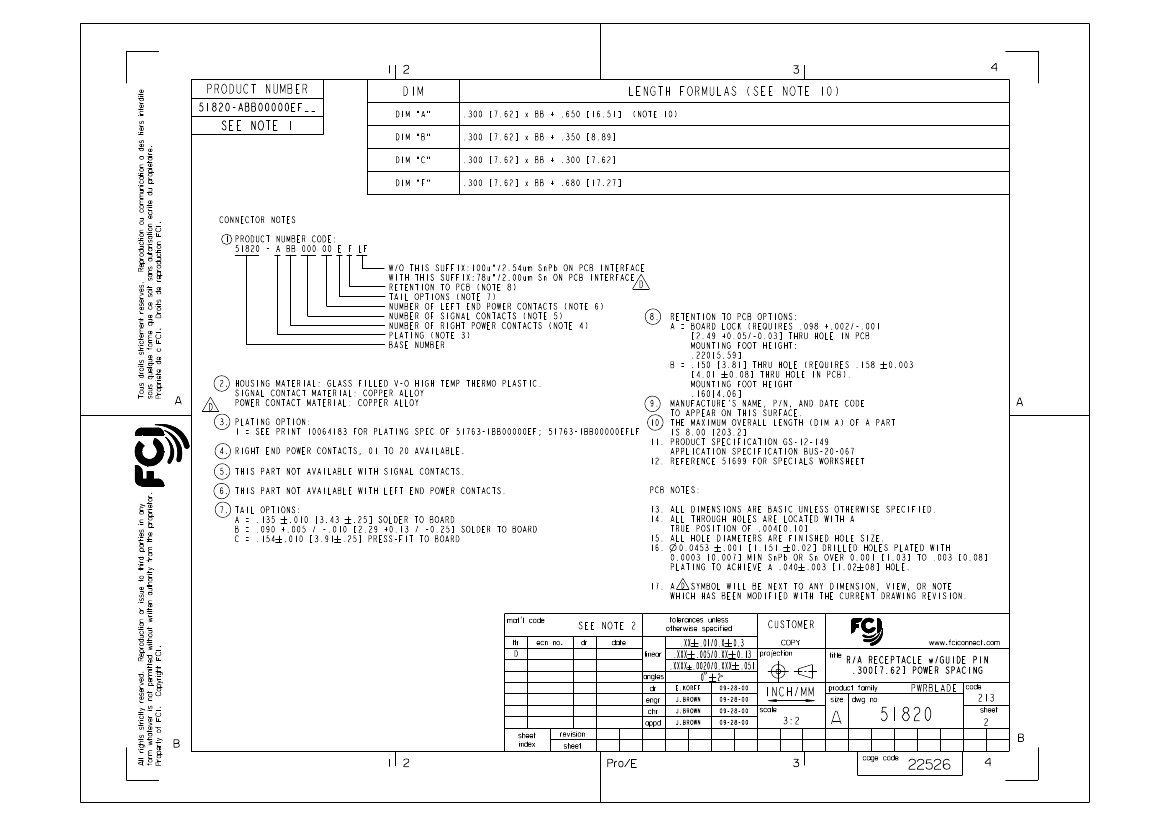

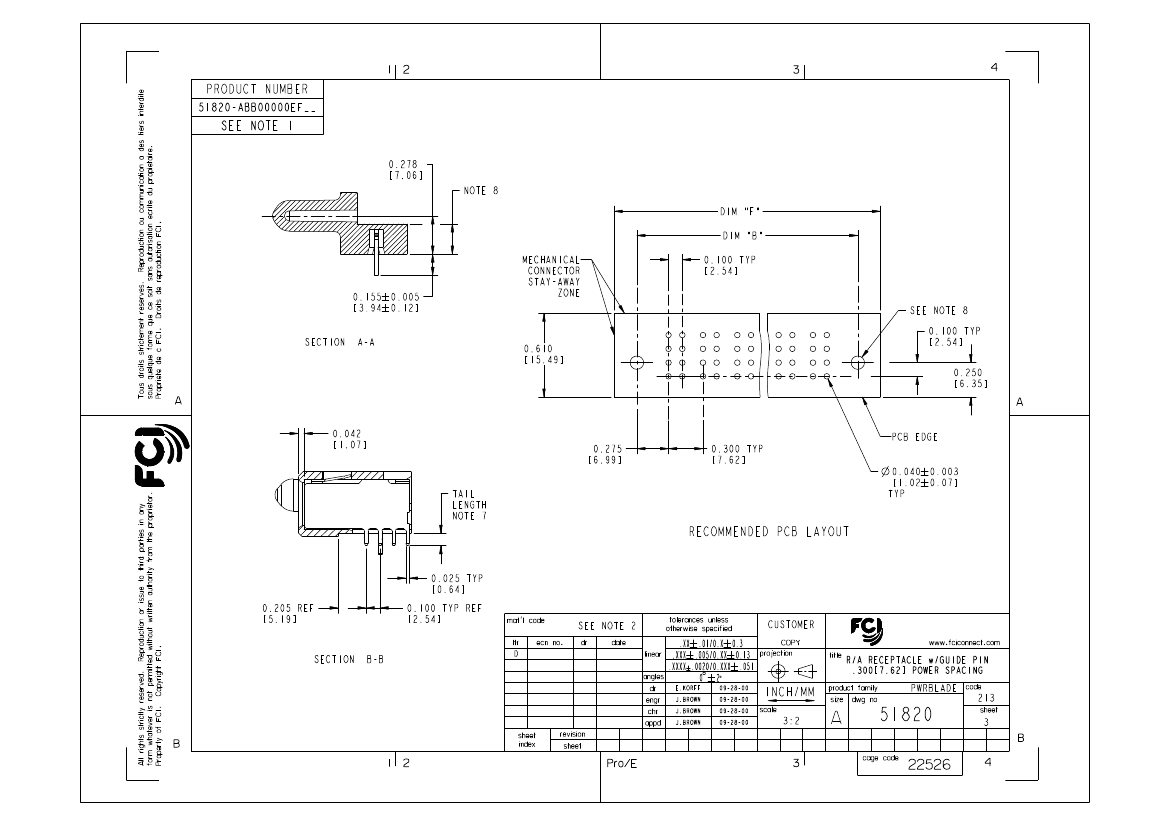

Board Connector, 32 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Guide Pin, Receptacle
| Parameter Name | Attribute value |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| body width | 0.574 inch |
| subject depth | 0.82 inch |
| body length | 3.05 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact arrangement | S0P8 |
| Contact to complete cooperation | AU-PD-NI ON NI |
| Contact completed and terminated | TIN/LEAD OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| Contact resistance | 0.7 mΩ |
| Contact style | BLADE PIN-SKT |
| DIN compliance | NO |
| Durability | 200 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 7.1168 N |
| Insulation resistance | 10000000000 Ω |
| insulator material | GLASS FILLED THERMOPLASTIC |
| MIL compliance | NO |
| Manufacturer's serial number | 51820 |
| Mixed contacts | NO |
| Installation option 1 | GUIDE PIN |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| Number of rows loaded | 4 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| Plating thickness | 100u inch |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.135 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 32 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | 2.224 N |
| Base Number Matches | 1 |
| 51820-10800000AB | 51820-10300000AB | |
|---|---|---|
| Description | Board Connector, 32 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Guide Pin, Receptacle | Board Connector, 12 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Guide Pin, Receptacle |
| Reach Compliance Code | compliant | compliant |
| ECCN code | EAR99 | EAR99 |
| body width | 0.574 inch | 0.574 inch |
| subject depth | 0.82 inch | 0.82 inch |
| body length | 3.05 inch | 1.55 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact arrangement | S0P8 | S0P3 |
| Contact to complete cooperation | AU-PD-NI ON NI | AU-PD-NI ON NI |
| Contact completed and terminated | TIN/LEAD OVER NICKEL | TIN/LEAD OVER NICKEL |
| Contact point gender | FEMALE | FEMALE |
| Contact material | COPPER ALLOY | COPPER ALLOY |
| Contact resistance | 0.7 mΩ | 0.7 mΩ |
| Contact style | BLADE PIN-SKT | BLADE PIN-SKT |
| DIN compliance | NO | NO |
| Durability | 200 Cycles | 200 Cycles |
| Filter function | NO | NO |
| IEC compliance | NO | NO |
| maximum insertion force | 7.1168 N | 7.1168 N |
| Insulation resistance | 10000000000 Ω | 10000000000 Ω |
| insulator material | GLASS FILLED THERMOPLASTIC | GLASS FILLED THERMOPLASTIC |
| MIL compliance | NO | NO |
| Manufacturer's serial number | 51820 | 51820 |
| Mixed contacts | NO | NO |
| Installation option 1 | GUIDE PIN | GUIDE PIN |
| Installation option 2 | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD |
| Number of connectors | ONE | ONE |
| Number of rows loaded | 4 | 4 |
| Maximum operating temperature | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE |
| Plating thickness | 100u inch | 100u inch |
| Guideline | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.135 inch | 0.135 inch |
| Terminal pitch | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER |
| Total number of contacts | 32 | 12 |
| UL Flammability Code | 94V-0 | 94V-0 |
| Evacuation force-minimum value | 2.224 N | 2.224 N |
| Base Number Matches | 1 | 1 |
