JANS2N2219A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> JANS2N2219A

JANS2N2219A: DescriptionSmall Signal Bipolar Transistor, 0.8A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size164KB，3 Pages; ManufacturerCRYSTALONICS Inc.

Download Datasheet Parametric Compare View All

JANS2N2219A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JANS2N2219A	-	-	View	Buy Now

JANS2N2219A Overview

Small Signal Bipolar Transistor, 0.8A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN

JANS2N2219A Parametric

Parameter Name	Attribute value
Parts packaging code	BCY
package instruction	CYLINDRICAL, O-MBCY-W3
Contacts	4
Manufacturer packaging code	CASE 79-04
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.8 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	100
JEDEC-95 code	TO-205AD
JESD-30 code	O-MBCY-W3
Number of components	1
Number of terminals	3
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
Certification status	Not Qualified
Guideline	MIL-19500/251
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	300 ns
Maximum opening time (tons)	35 ns
Base Number Matches	1

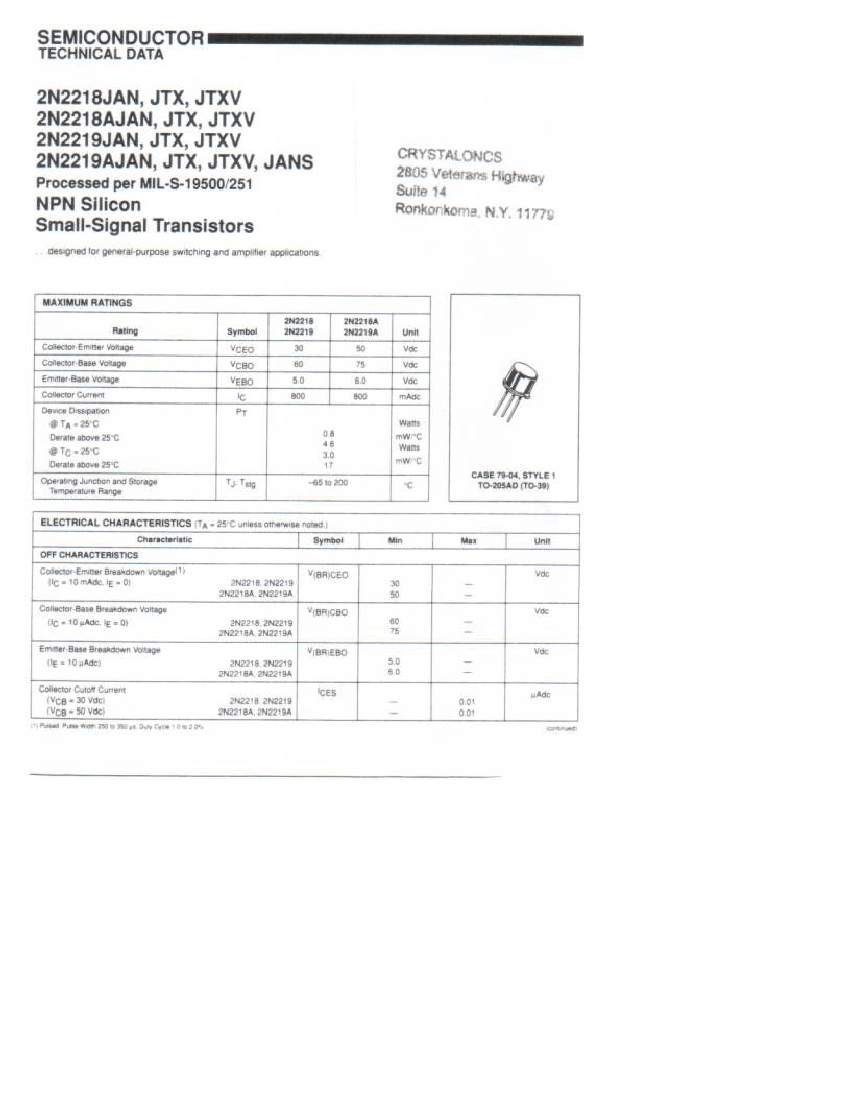

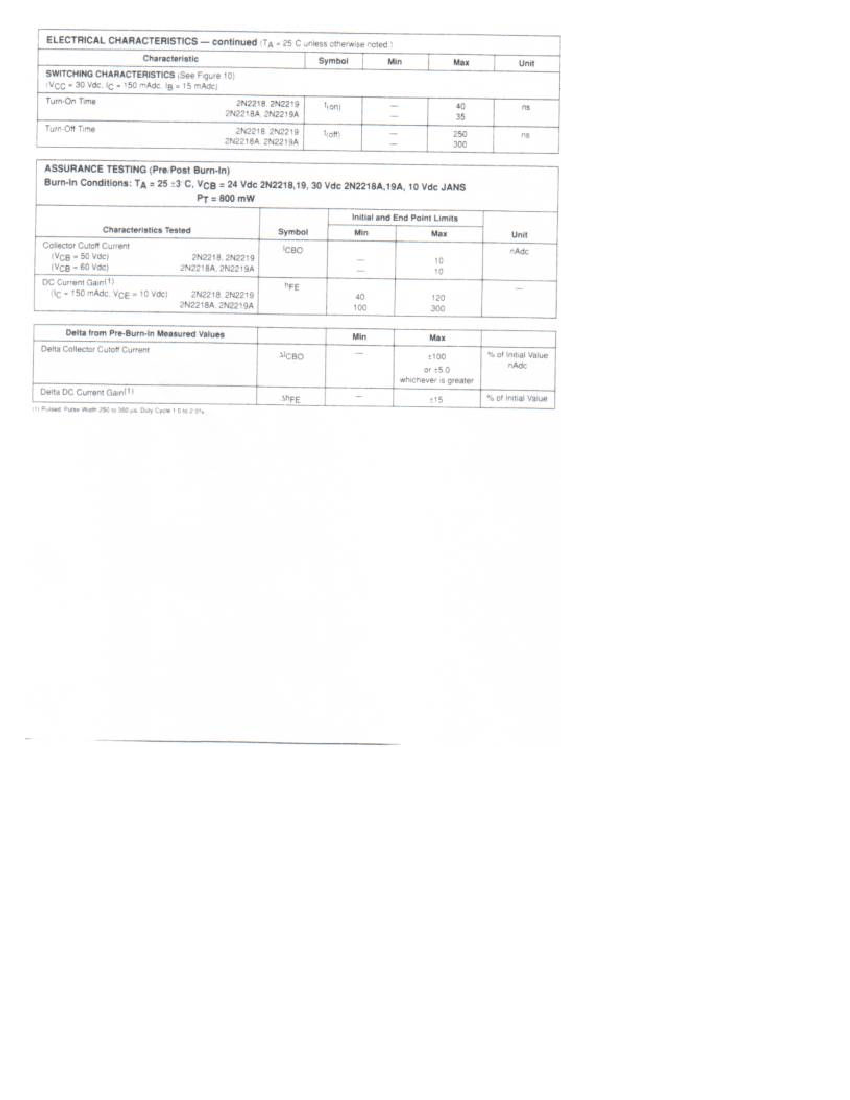

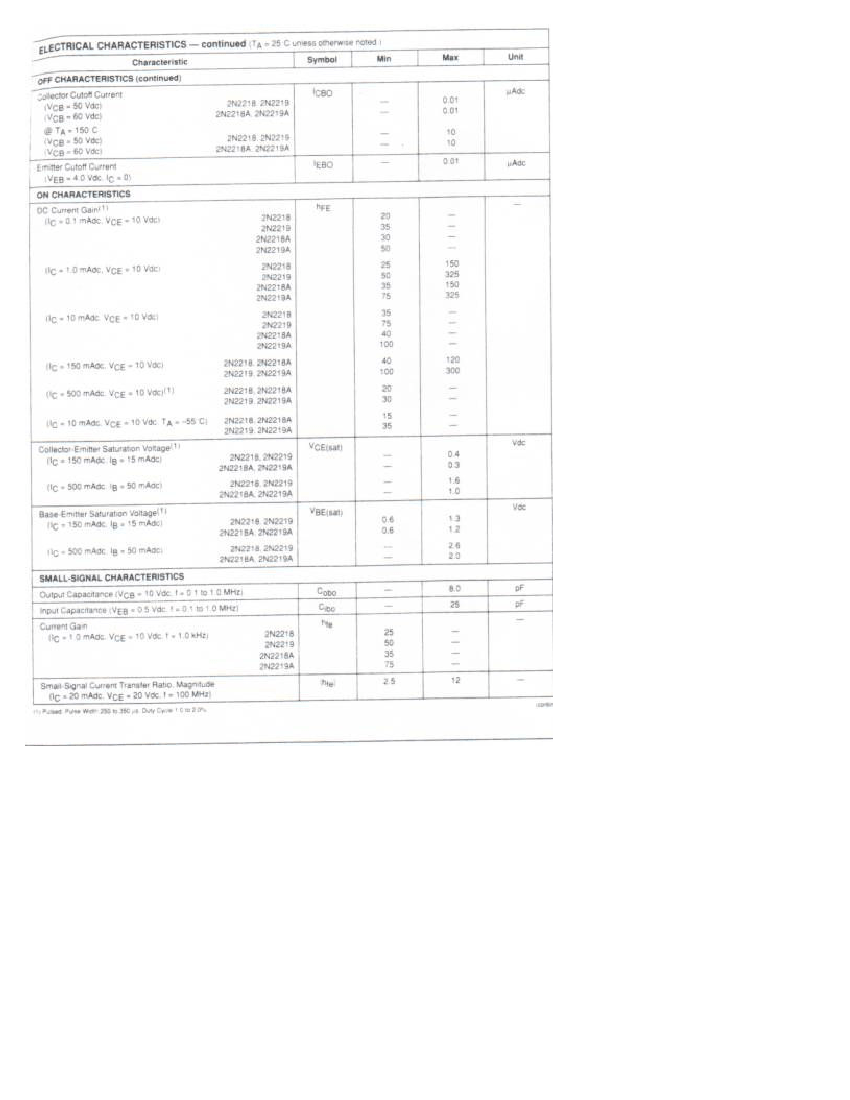

Preview

Download Datasheet

View All

JANS2N2219A Related Products

	JANS2N2219A	JAN2N2218A	JAN2N2219A	JTX2N2219A	JTX2N2218	JTX2N2218A	JTX2N2219	JAN2N2218	JAN2N2219
Description	Small Signal Bipolar Transistor, 0.8A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN	Small Signal Bipolar Transistor, 0.8A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN	Small Signal Bipolar Transistor, 0.8A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN	Small Signal Bipolar Transistor, 0.8A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN	Small Signal Bipolar Transistor, 0.8A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN	Small Signal Bipolar Transistor, 0.8A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN	Small Signal Bipolar Transistor, 0.8A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN	Small Signal Bipolar Transistor, 0.8A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN	Small Signal Bipolar Transistor, 0.8A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN
Parts packaging code	BCY	BCY	BCY	BCY	BCY	BCY	BCY	BCY	BCY
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Contacts	4	4	4	4	4	4	4	4	4
Manufacturer packaging code	CASE 79-04	CASE 79-04	CASE 79-04	CASE 79-04	CASE 79-04	CASE 79-04	CASE 79-04	CASE 79-04	CASE 79-04
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A
Collector-emitter maximum voltage	50 V	50 V	50 V	50 V	30 V	50 V	30 V	30 V	30 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	100	40	100	100	40	40	100	40	100
JEDEC-95 code	TO-205AD	TO-205AD	TO-205AD	TO-205AD	TO-205AD	TO-205AD	TO-205AD	TO-205AD	TO-205AD
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
Number of components	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Guideline	MIL-19500/251	MIL-19500/251	MIL-19500/251	MIL-19500/251	MIL-19500/251	MIL-19500/251	MIL-19500/251	MIL-19500/251	MIL-19500/251
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maximum off time (toff)	300 ns	300 ns	300 ns	300 ns	250 ns	300 ns	250 ns	250 ns	250 ns
Maximum opening time (tons)	35 ns	35 ns	35 ns	35 ns	40 ns	35 ns	40 ns	40 ns	40 ns
Maximum operating temperature	200 °C	-	-	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Maker	-	CRYSTALONICS Inc.	CRYSTALONICS Inc.	CRYSTALONICS Inc.	CRYSTALONICS Inc.	CRYSTALONICS Inc.	CRYSTALONICS Inc.	CRYSTALONICS Inc.	CRYSTALONICS Inc.
