2-175750-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-175750-7

2-175750-7: DescriptionCONNECTOR,D-SHELL,CABLE MNT,RECEPT,50 CONTACTS,PIN,0.05 PITCH; CategoryThe connector The connector; File Size84KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-175750-7 Overview

CONNECTOR,D-SHELL,CABLE MNT,RECEPT,50 CONTACTS,PIN,0.05 PITCH

2-175750-7 Parametric

Parameter Name	Attribute value
Objectid	300021874
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.315 inch
subject depth	0.323 inch
body length	1.626 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Minimum insulation diameter	0.02 inch
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Number of rows loaded	2
Options	GENERAL PURPOSE
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	50

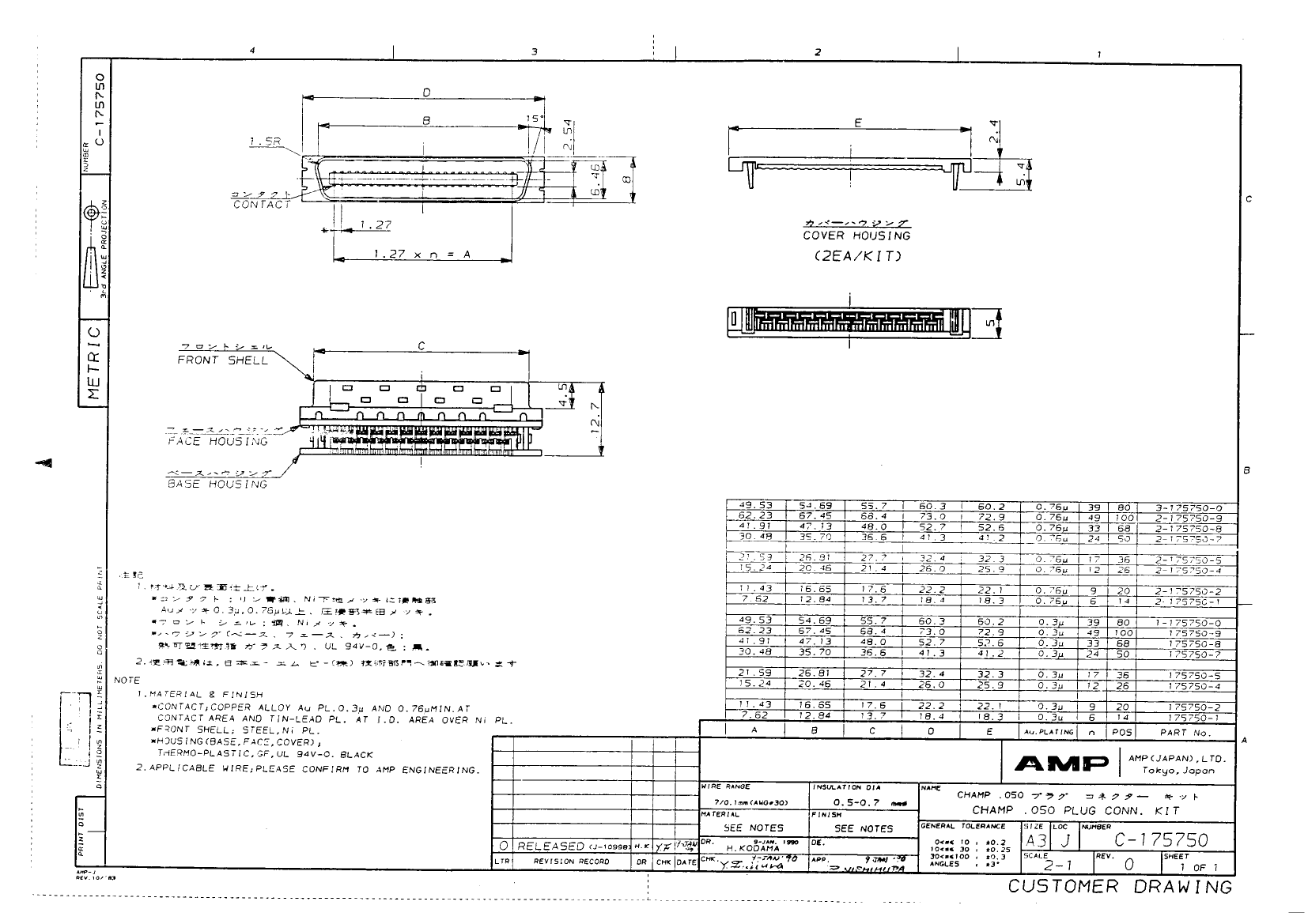

Preview

Download Datasheet

View All

2-175750-7 Related Products

	2-175750-7	2-175750-2	2-175750-4	2-175750-9	2-175750-1	2-175750-8
Description	CONNECTOR,D-SHELL,CABLE MNT,RECEPT,50 CONTACTS,PIN,0.05 PITCH	20 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, IDC, PLUG	CONNECTOR,D-SHELL,CABLE MNT,RECEPT,26 CONTACTS,PIN,0.05 PITCH	CONNECTOR,D-SHELL,CABLE MNT,RECEPT,100 CONTACTS,PIN,0.05 PITCH	CONNECTOR,D-SHELL,CABLE MNT,RECEPT,14 CONTACTS,PIN,0.05 PITCH	CONNECTOR,D-SHELL,CABLE MNT,RECEPT,68 CONTACTS,PIN,0.05 PITCH
Reach Compliance Code	unknown	unknown	unknow	unknow	unknown	unknown
Body/casing type	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Total number of contacts	50	20	26	100	14	68
Objectid	300021874	1421844609	-	-	300021870	300021875
body width	0.315 inch	-	0.315 inch	0.315 inch	0.315 inch	0.315 inch
subject depth	0.323 inch	-	0.323 inch	0.323 inch	0.323 inch	0.323 inch
body length	1.626 inch	-	1.024 inch	2.874 inch	0.724 inch	2.075 inch
Contact to complete cooperation	AU ON NI	-	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	-	GOLD	GOLD	GOLD	GOLD
Contact material	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	-	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Minimum insulation diameter	0.02 inch	-	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Insulator color	BLACK	-	BLACK	BLACK	BLACK	BLACK
Plug contact pitch	0.05 inch	-	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Number of rows loaded	2	-	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	30u inch	-	30u inch	30u inch	30u inch	30u inch
Guideline	UL	-	UL	UL	UL	UL
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
