2N2907ACSM4G4

Description
Small Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, MO-041BA, HERMETIC SEALED, LCC3, 4 PIN
CategoryDiscrete semiconductor    The transistor
File Size145KB,3 Pages
ManufacturerTT Electronics plc
Websitehttp://www.ttelectronics.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

2N2907ACSM4G4 Overview

Small Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, MO-041BA, HERMETIC SEALED, LCC3, 4 PIN

2N2907ACSM4G4 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionSMALL OUTLINE, R-XDSO-N4
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresHIGH RELIABILITY
Maximum collector current (IC)0.6 A
Collector-emitter maximum voltage60 V
ConfigurationSINGLE
Minimum DC current gain (hFE)50
JEDEC-95 codeMO-041BA
JESD-30 codeR-XDSO-N4
JESD-609 codee4
Number of components1
Number of terminals4
Maximum operating temperature200 °C
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typePNP
Certification statusNot Qualified
surface mountYES
Terminal surfaceGOLD
Terminal formNO LEAD
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)200 MHz
Maximum off time (toff)300 ns
Maximum opening time (tons)45 ns
Base Number Matches1

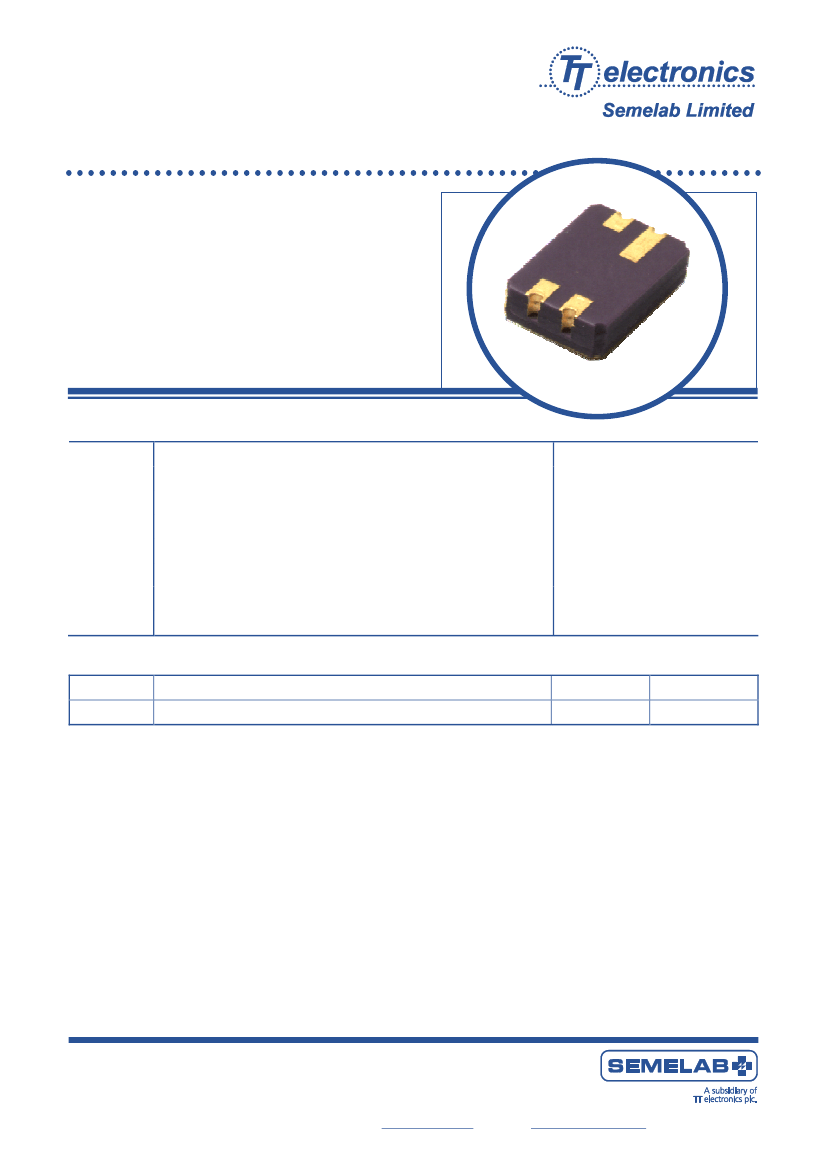

SILICON PLANAR
EPITAXIAL PNP TRANSISTOR
2N2907ACSM4
Low Power, High Speed Saturated Switching
Hermetic Surface Mounted Package.
Ideally suited for High Speed Switching
and General Purpose Applications
Screening Options Available
ABSOLUTE MAXIMUM RATINGS
(TA = 25°C unless otherwise stated)
VCBO
VCEO
VEBO
IC
PD
TJ
Tstg
Collector – Base Voltage
Collector – Emitter Voltage
Emitter – Base Voltage
Continuous Collector Current
TA = 25°C
Total Power Dissipation at
Derate Above 37.5°C
Junction Temperature Range
Storage Temperature Range
-60V
-60V
-5V
-600mA
500mW
3.08mW/°C
-65 to +200°C
-65 to +200°C
THERMAL PROPERTIES
(Each Device)
Symbols
R
θJA
Parameters
Thermal Resistance, Junction To Ambient
Max.
325
Units
°C/W
Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.
Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However
Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to
verify that datasheets are current before placing orders.
Semelab Limited
Coventry Road, Lutterworth, Leicestershire, LE17 4JB
Telephone +44 (0) 1455 556565
Fax +44 (0) 1455 552612
Email:
sales@semelab-tt.com
Document Number 9066
Issue 1
Page 1 of 3
Website:
http://www.semelab-tt.com

2N2907ACSM4G4 Related Products

2N2907ACSM4G4 2N2907ACSM4
Description Small Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, MO-041BA, HERMETIC SEALED, LCC3, 4 PIN Small Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, MO-041BA, HERMETIC SEALED, LCC3, 4 PIN
Is it Rohs certified? conform to incompatible
package instruction SMALL OUTLINE, R-XDSO-N4 SMALL OUTLINE, R-XDSO-N4
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Other features HIGH RELIABILITY HIGH RELIABILITY
Maximum collector current (IC) 0.6 A 0.6 A
Collector-emitter maximum voltage 60 V 60 V
Configuration SINGLE SINGLE
Minimum DC current gain (hFE) 50 50
JEDEC-95 code MO-041BA MO-041BA
JESD-30 code R-XDSO-N4 R-XDSO-N4
Number of components 1 1
Number of terminals 4 4
Maximum operating temperature 200 °C 200 °C
Package body material UNSPECIFIED UNSPECIFIED
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
Polarity/channel type PNP PNP
Certification status Not Qualified Not Qualified
surface mount YES YES
Terminal form NO LEAD NO LEAD
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
Nominal transition frequency (fT) 200 MHz 200 MHz
Maximum off time (toff) 300 ns 300 ns
Maximum opening time (tons) 45 ns 45 ns
Base Number Matches 1 1
