ROHS COMPLIANT
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
PRODUCT DATA DRAWING
-
DCN 35971
07/08
STW
.135 3.43
RP
4X
.290 7.37
.132 3.34
.020 0.51
4X
.042 1.07
2X .100 2.54
.024 0.61
4X .088 2.24
MATERIAL:
BODY &
CONTACT:
SLEEVE:
INSULATOR:
BERYLLIUM COPPER PER ASTM-B-196,
ALLOY No. UNS C17300, TD04
STAINLESS STEEL PER AMS-5640,
ALLOY NO. UNS S30300, TYPE 1
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
5X .096 2.44
.145 3.68
FINISH:
SLEEVE:
BODY, SLEEVE &
CONTACT:
PASSIVATED PER AMS-2700, TYPE 2
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27; OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
NOTES:
1. FOR RECOMMENDED FOOTPRINT TO YOUR SPECIFIC PCB,
CONTACT SV MICROWAVE SALES DEPARTMENT
(sales@svmicro.com, 561-840-1800).
MATERIAL:
FINISH:
SV PART NUMBER
3212-40002
3212-40003
INTERFACE
FD
SB
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
VSWR:
DWV:
OPERATING TEMP.:
50 OHMS
DC TO 26.5 GHz
1.401:1 DC TO 26.5 GHz
325 VRMS
-55 C TO +125 C
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
PJS 07/24/08
STW 07/24/08
STW 07/24/08

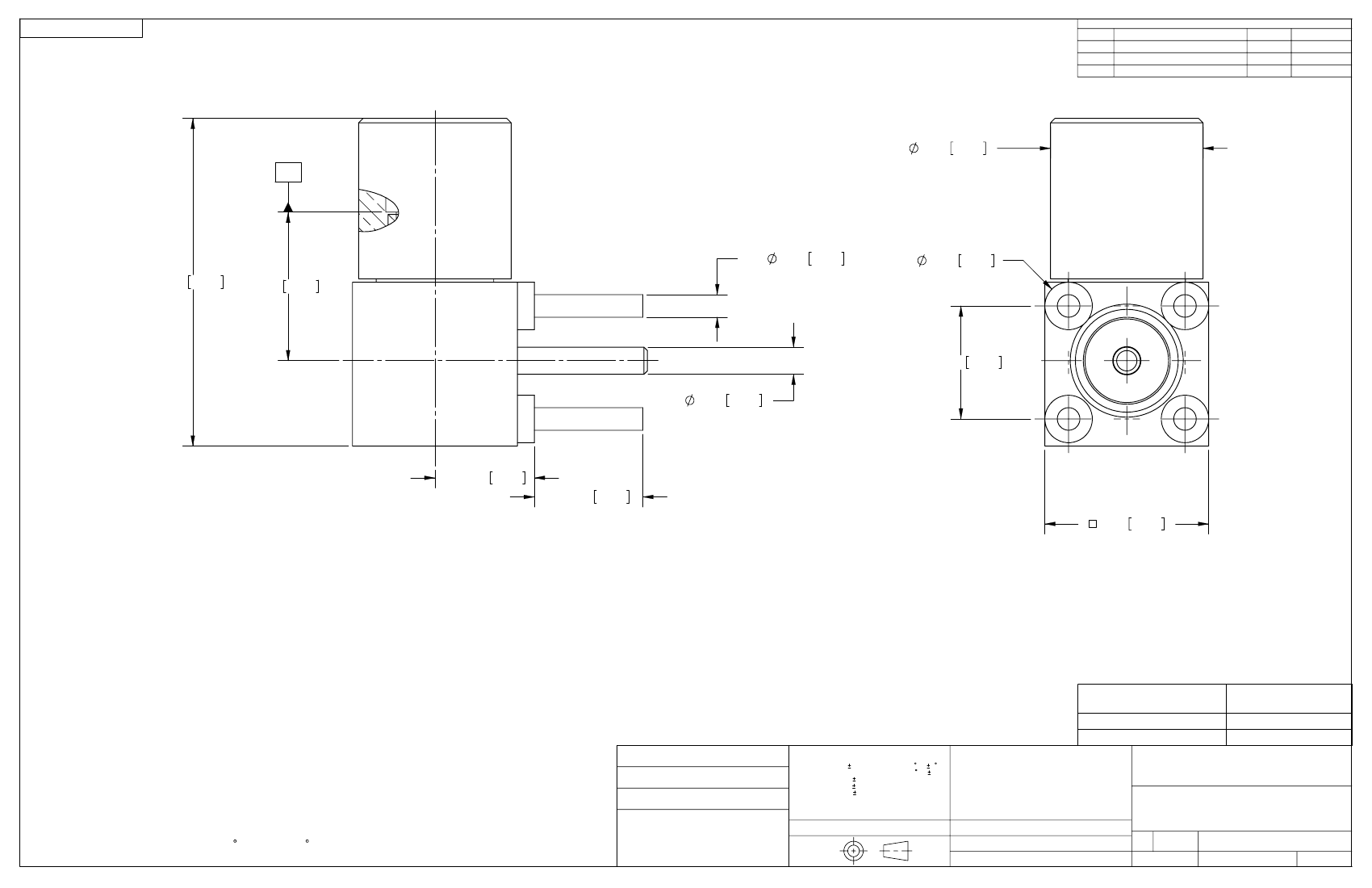

SMPM RA. MALE SMOOTH
BORE TO PCB MOUNT
95077
SIZE CAGE CODE DWG. NO.
B
3212-4000X
SHEET 1 OF 1
SCALE: 14:1
