Microwave Ceramics Filters
Series/Type:
A130
The following products presented in this data sheet are being withdrawn.
Ordering Code
B69842N4967A130
Substitute Product
CF61A4301D
Date of Withdrawal
2012-04-27
Deadline Last
Orders
2012-07-31
Last Shipments
2012-10-31
For further information please contact your nearest EPCOS sales office, which will also support you in selecting a
suitable substitute. The addresses of our worldwide sales network are presented at www.epcos.com/sales.
Microwave Ceramics Filter
2-pole filter for WLAN 5 GHz/[4.900 … 5.030] band
Preliminary data sheet
Modification
P1
P2
P3
Recommended footprint
Upgraded to new form
B69842N4967A130
S2H1/1/7
19.04.05
27.11.06
28.01.10
Reichel
Reichel
Features
SMD filter consisting of coupled resonators with stepped impedances
MgTiO3 - CaTiO3 (εr = 21/TCf = 0 ±10 ppm/K) with a coating of copper (10
μm)
and tin (>5
μm)
Excellent reflow solderability, no migration effect due to copper/tin metallization
SAW MLIP CER PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 6
2010-01-28
Microwave Ceramics Filter
2-pole filter for WLAN 5 GHz/[4.900 … 5.030] band
Preliminary data sheet

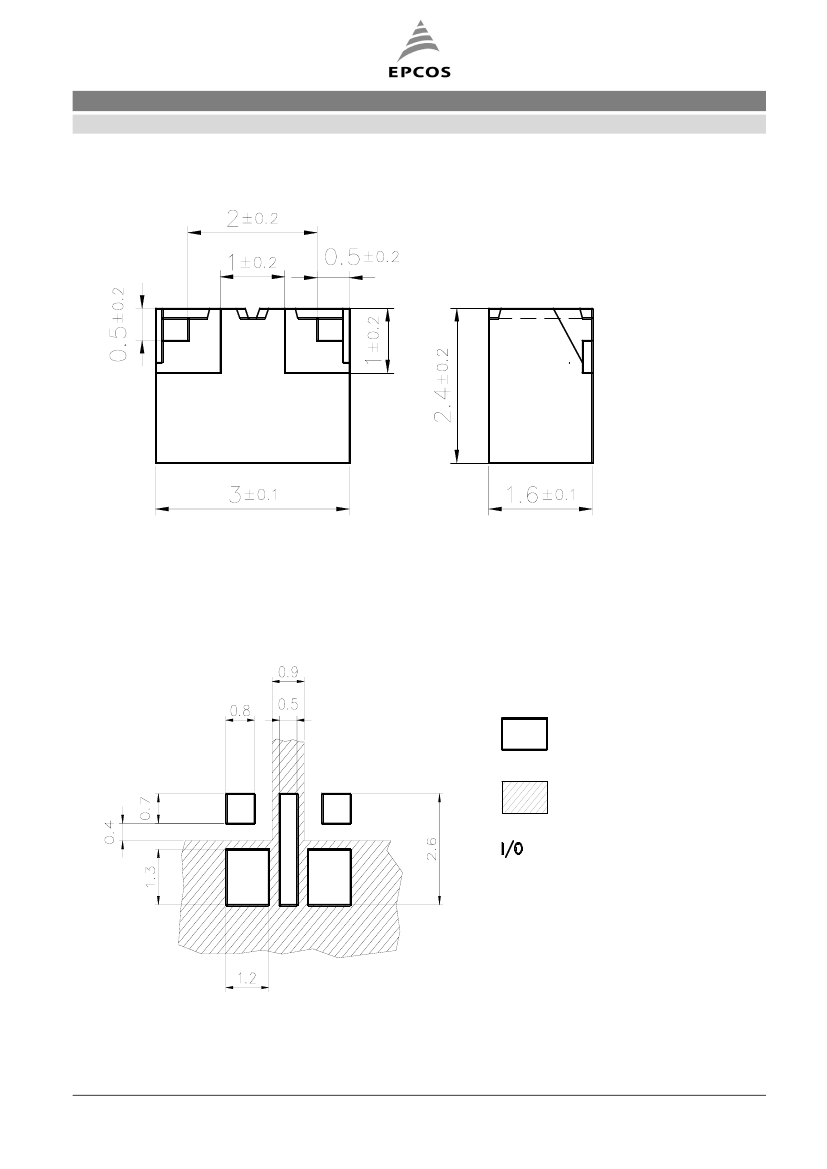

Component drawing
B69842N4967A130
S2H1/1/7
I/O
I/O
G
View from below onto the solder terminals and view from beside
Marking: ’EPCOS logo’, on top of the filter
Recommended footprint
solder pads
ground area below solder resist
with vias to second ground layer
connected to lines with an
impedance of 50 Ohm
Standard
condition
FR4 material
permitivity : 4.4
preferred thickness : 0.3
Vias: Ø0.3mm / mm²
For other thickness
correlation might be necessary
SAW MLIP CER PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 6
2010-01-28
Microwave Ceramics Filter
2-pole filter for WLAN 5 GHz/[4.900 … 5.030] band
Preliminary data sheet
Characteristics
min.
Center frequency
Insertion loss
Passband
Standing wave ratio
Impedance
Power
Attenuation
at DC to 1700 MHz
at 2845 MHz
at 4190 MHz
Maximum ratings
IEC climatic category (IEC 68-1)
Operating temperature
Typical passband characteristic
fc –
α
IL
B 130
SWR
Z
P
α
55
40
40
60
46
45
typ.
4.965
1.1
B69842N4967A130
S2H1/1/7
max.
–
1.3
GHz
dB
MHz
1.5
50
2.0
Ω
1.0
W
dB
dB
dB
–40 °C/+90 °C/56
Top –40/+85
°C
2000
0
-10
-20
-30
-40
-50
-60
-70
2500
3000
3500
4000
4500
5000
5500
6000
attenuation [dB]
S11
S21
frequency [MHz]
SAW MLIP CER PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 6
2010-01-28
Microwave Ceramics Filter
2-pole filter for WLAN 5 GHz/[4.900 … 5.030] band
Preliminary data sheet

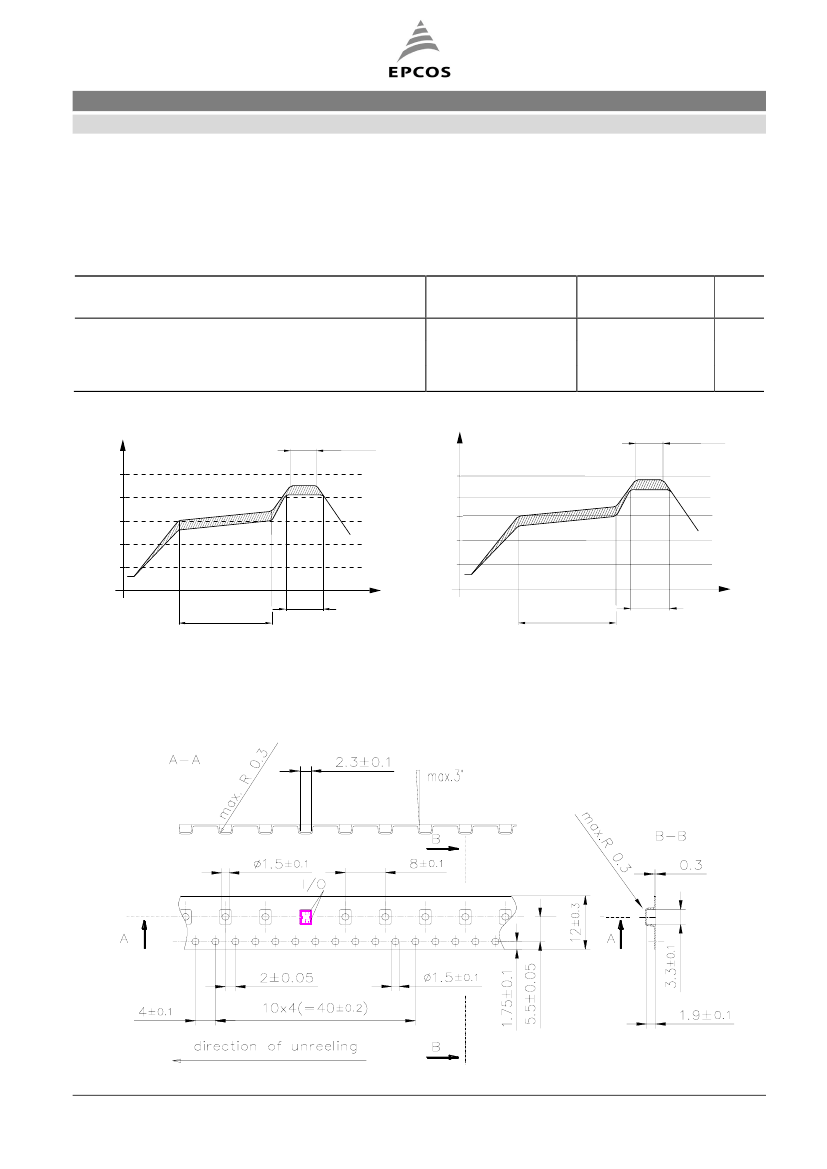

Processing information
Wettability acc. to IEC 68-2-58:
≥75%
(after aging)
Soldering requirements
Profile for eutectic
SnPb solder paste
Soldering type
Maximum soldering temperature
reflow
235 (max. 2 sec.)
B69842N4967A130
S2H1/1/7
Profile for leadfree
solder paste
reflow
260 (max. 2 sec.)
°C
(measuring point on top surface of the component) 225 (max. 10 sec.)
Recommended soldering conditions (infrared):
Temp. [°C]
250
215°C±10°C
200
150
100
50
within 10 sec.
250 (max. 10 sec.) °C
Temp. [°C]
250
within 10 sec.
245°C±5°C
200
150
100
50
20-40 sec.
40-80 sec.
Time [sec.]
30 sec.
2.5 °C/s
2-3 min.
Time [sec.]
> - 5 °C/s
Delivery mode
Blister tape acc. to IEC 286-3, PS, grey
Pieces/tape: 4000
SAW MLIP CER PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 6
2010-01-28
