Microwave Ceramics and Modules
2-Pole Filter
Preliminary Datasheet
Filter
B69812N2337B313
Features
SMD filter consisting of coupled resonators with stepped impedances
(NdBa)TiO3 (ε
r
= 88 /
TCf
=0±10 ppm/K) with a coating of copper (10µm) and tin (>5µm)
Excellent reflow solderability, no migration effect due to copper/tin metallization
Index
Page 2
•

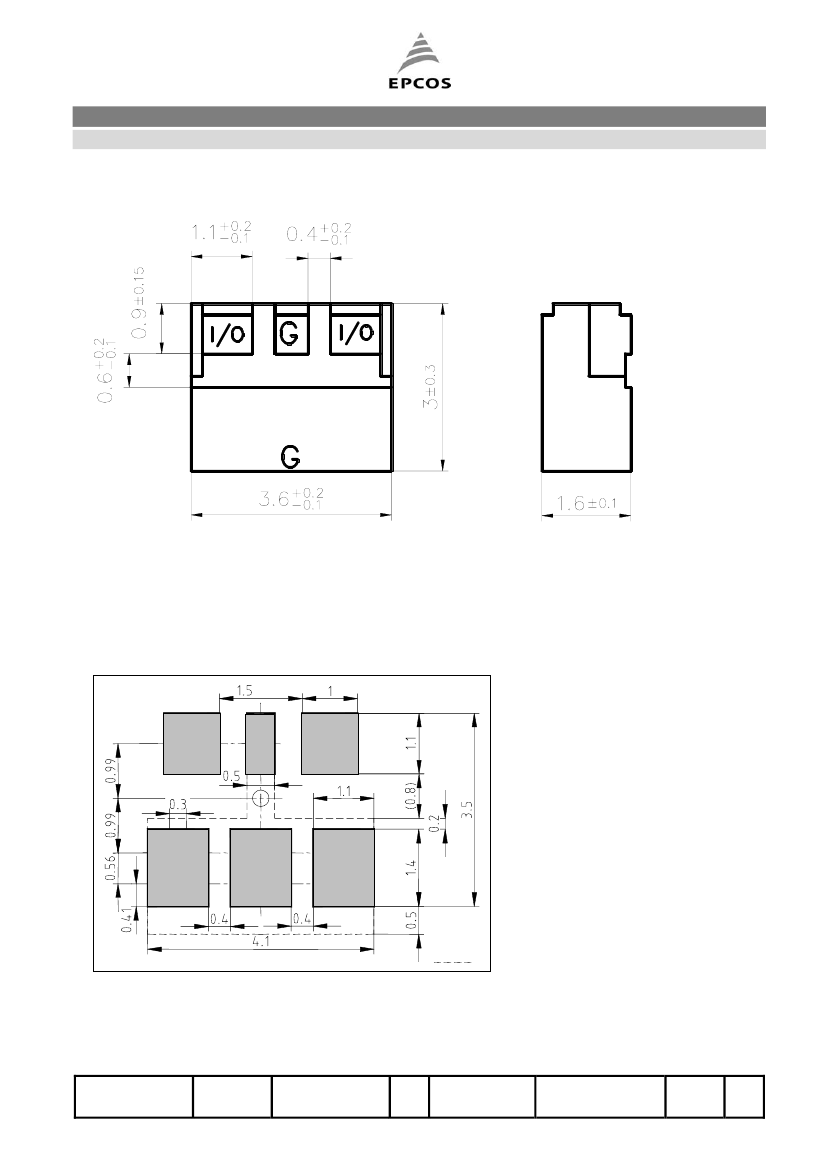

Component drawing
•
Recommended footprint
Page 3
•
Characteristics
•
Typical passband characteristic
Page 4
•
Processing information
•
Soldering requirements
•
Delivery mode
ISSUE DATE
10.06.03
ISSUE
P1
PUBLISHER
SAW MWC PD F
PAGE
1/4
Microwave Ceramics and Modules
2-Pole Filter
Preliminary Datasheet
Filter
B69812N2337B313
Characteristics
min.
Center frequency
Insertion loss
Passband
Amplitude ripple (peak -
peak)
Standing wave ratio
Impedance
Attenuation
at fc
±
200 MHz
at fc
±
230 MHz
IEC climatic category (IEC 68-1)
Operating temperature
f
c -
α
IL
B
12.5
∆α
SWR
Z
0.3
1.5
50
20
23
25
28
- 40/+ 90/56
T
op
- 40 / + 105
°C
0.5
2.0
Ω
dB
dB
typ.
1.5
max.
GHz
dB
MHz
dB
2.0
2.33875 -
Typical passband characteristic
2,100
2,125
2,150
2,175
2,200
2,225
2,250
2,275
2,300
2,325
2,350
2,375
2,400
2,425
2,450
2,475
2,500
2,525
2,550
2,575
0
-5
-10
-15
Attenuation [dB]
-20
S11[dB]
S21[dB]
-25
-30
-35
-40
-45
Frequency[GHz]
ISSUE DATE
10.06.03
ISSUE
P1
PUBLISHER
SAW MWC PD F
2,600
PAGE
3/4
Microwave Ceramics and Modules
2-Pole Filter
Preliminary Datasheet
Filter
B69812N2337B313
Processing information
Wettability to IEC 68-2-58:
≥
75% (after aging)
Soldering requirements
Soldering type
Maximum soldering temperature
(measuring point on top surface of the component)
Recommended soldering conditions (infrared):
Temp. [°C]
within 10 sec.
ZNr.: 505 (F
reflow
235 (max. 2 sec.)
225 (max. 10 sec.)
°C
°C
215°C±10°C
20-40 sec.
40-80 sec.
Time [sec.]
LOETPROF.DOC
Delivery mode
Blister tape to IEC 286-3, polyester, grey
Pieces/tape: t.b.d.
t.b.d.
