3221-40007 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3221-40007

3221-40007: DescriptionRF SMPM Connector, 1 Contact(s), Female, Locking, Jack,; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

3221-40007 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3221-40007	-	-	View	Buy Now

3221-40007 Overview

RF SMPM Connector, 1 Contact(s), Female, Locking, Jack,

3221-40007 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
subject depth	0.26 inch
Body diameter	0.124 inch
Body/casing type	JACK
Cable type	SEMI-RIGID
Characteristic impedance	50 Ω
Connector type	RF SMPM CONNECTOR
Contact point gender	FEMALE
Contact resistance	6 mΩ
Contact style	COAX
Dielectric withstand voltage	450VAC V
Durability	100 Cycles
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Installation option 1	LOCKING
Installation method	STRAIGHT
Number of ports	1
Maximum operating frequency	40 GHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Shell surface	GOLD OVER NICKEL
Shell material	BERYLLIUM COPPER
Total number of contacts	1
voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

ROHS COMPLIANT

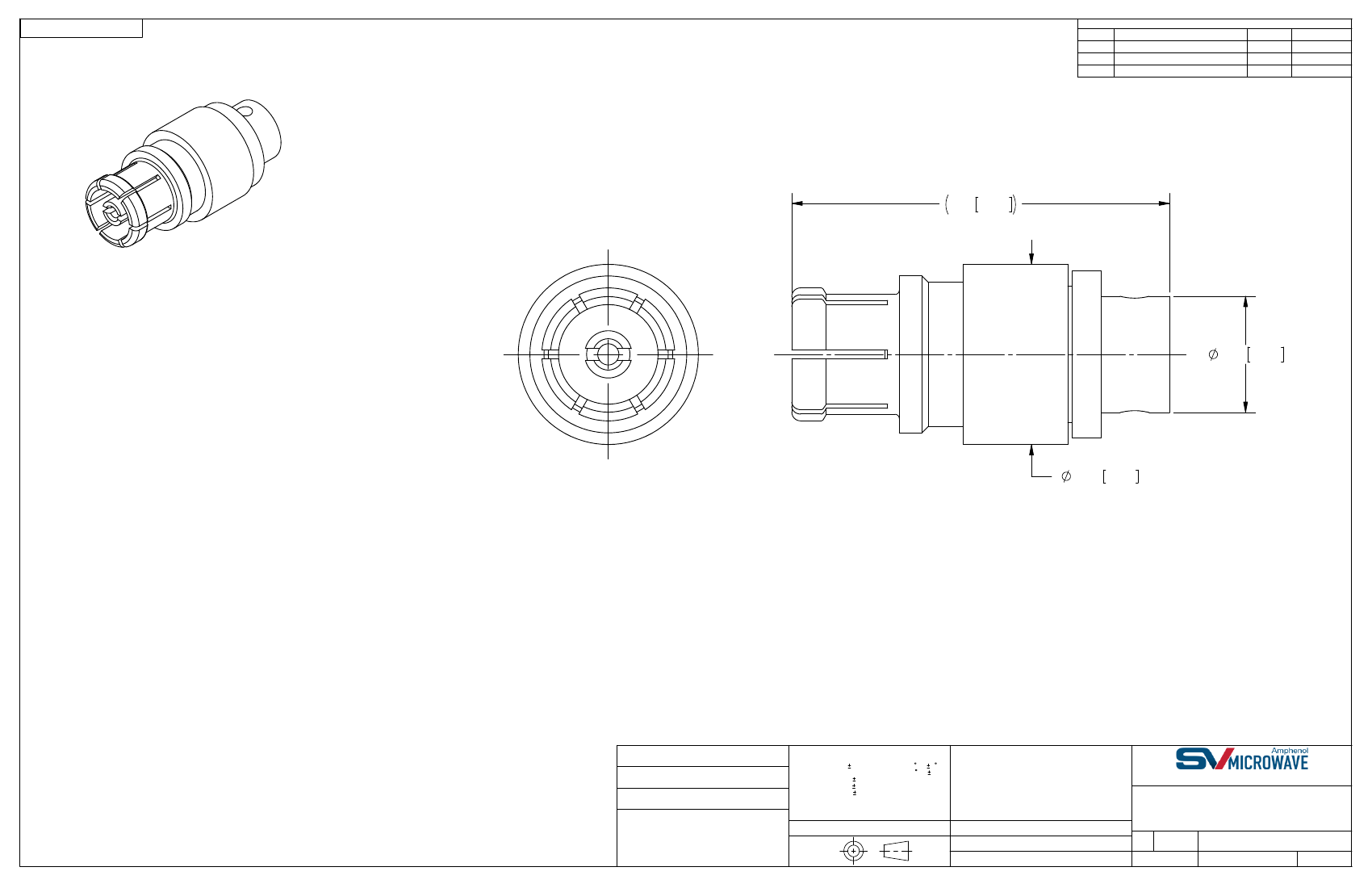

PRODUCT DATA DRAWING

REV

REVISION HISTORY

DESCRIPTION

DATE

APPROVED

NRN 34833

DCN 41517

07/08

07/15

STW

.260 6.60

.080 2.03

.124 3.15

MATERIAL:

BODY & CONTACT:

FERRULE:

INSULATOR:

BERYLLIUM COPPER

BRASS

PTFE

FINISH:

BODY, CONTACT

& FERRULE:

GOLD OVER NICKEL

PERFORMANCE:

IMPEDANCE:

FREQ. RANGE:

VSWR:

50 OHMS

DC TO 40.0 GHz.

1.15:1 DC TO 26.5 GHz.

1.25:1 DC TO 40.0 GHz.

MATERIAL:

FINISH:

SEE NOTES

N/A

PROPRIETARY

DIMENSIONS ARE IN INCHES TOLERANCES:

FRACTIONAL:

DECIMAL: .X

.XX

.XXX

1/64

.030

.010

.005

ANGULAR: X

X X'

1 0'

15'

UNLESS OTHERWISE SPECIFIED

1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]

2) ALL DIMENSIONS ARE AFTER PLATING.

3) BREAK CORNERS & EDGES .005 R. MAX.

4) CHAM. 1ST & LAST THREADS.

5) SURFACE ROUGHNESS 63

MIL-STD-10.

6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC

WITHIN .005 T.I.R.

7) REMOVE ALL BURRS

2400 Centrepark West Drive, Suite 100

West Palm Beach, FL 33409

TITLE:

SURFACE AREA:

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

THE INFORMATION CONTAINED IN THIS DRAWING

IS THE SOLE PROPERTY OF SV MICROWAVE, INC.

ANY REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

SV MICROWAVE, INC IS PROHIBITED.

THIRD ANGLE PROJECTION

DRAWN:

CHECKED:

APPROVED:

DAL 07/02/08

STW 07/02/08

SMPM STRAIGHT FEMALE

FOR Ø.047 CABLE

SIZE CAGE CODE DWG. NO.

3221-40007

95077

SCALE: 18:1

SHEET 1 OF 1
