HC SERIES
Features
Common mode chokes with Nanocrystalline cores
-Nominal current in each winding (I): from 2A to 30A.
-Nominal inductance (L): from 6mH to 28mH.
-Rated voltage: 250Vac.
-Test voltage: 1.5kVac, winding to winding.
-Creepage distance: 3mm, winding to winding.
-Ambient temperature: from –40ºC to +50ºC.
-Storage temperature: from –40ºC to +120ºC.
-Plastic case: UL 94V-0 listed.
-According to UL 1283.
Common Mode Chokes
IZI (Ω)
at 100kHz
typical
2000
1600
4500
3500
2000
1500
1600
1000
1000
1500
1600
250
1800
370
1600
1000
400
Rdc (mΩ)
typical
110
31,5
42
37
20
18
11
10
3
18
10
3
6,6
3
7
5,5
2,5
ØPIN (mm)
±0,1
0,5
0,75
0,7
0,8
0,95
0,9
1,25
1,2
2,2
0,9
1,25
1,6
1,6
1,8
1,7
1,8
2,2
Electrical specifications
Code
I
AC
(A)
L (mH)
at 10kHz
+50% / -30%
2 x 14
2 x 6,5
2 x 28
2 x 19
2 x 13
2x9
2 x 11
2x6
2x6
2x9
2 x 11
2 x 1,6
2 x 13
2 x 1,2
2 x 4.9
2 x 3,6
2 x 2,6
L (mH)
at 100kHz
minimum
2 x 1,5
2 x 0,65
2 x 4,5
2 x 2,7
2 x 1,8
2 x 1,4
2 x 1,3
2 x 2,0
2 x 0,5
2 x 1,4
2 x 1,3
2 x 0,2
2 x 1,2
2 x 0,4
2 x 1,4
2 x 1,1
2 x 0,3
HC140-02V1
HC6R5-04V1
HC280-04V1
HC190-06V2
HC130-08V2
HC9R0-10V2
HC110-13V2
HC6R0-15V3
HC6R0-30V3
HC9R0-10H1
HC110-13H1
HC1R6-20H1
HC130-16H2
HC1R2-25H2
HC4R9-20H3
HC3R6-25H3
HC2R6-32H3
2
4
4.5
6
8
10
13
15
30
10
13
20
16
25
20
25
32
117
HC SERIES
Common mode chokes with Nanocrystalline cores

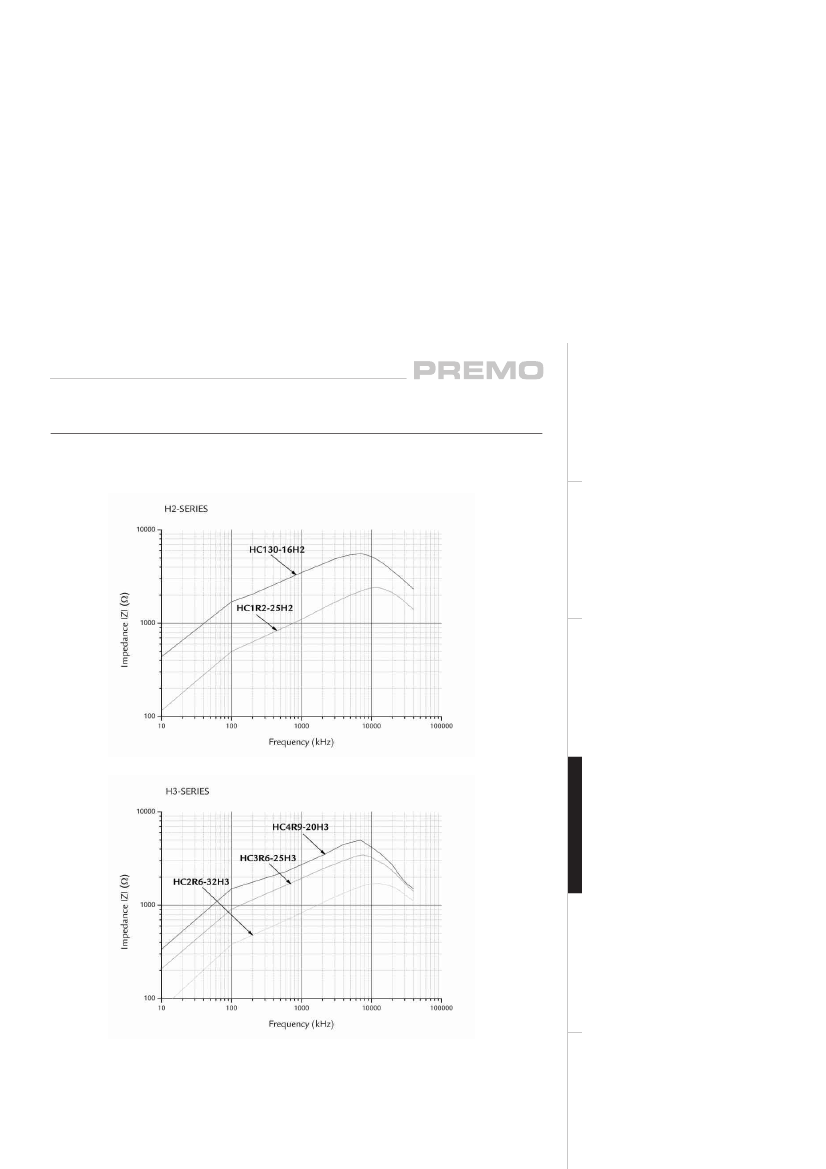

Curves: Impedance vs. Frequency
Note:
Impedance measurements have been obtained with both windings in parallel and at ambient temperature.
119
Common Mode Chokes

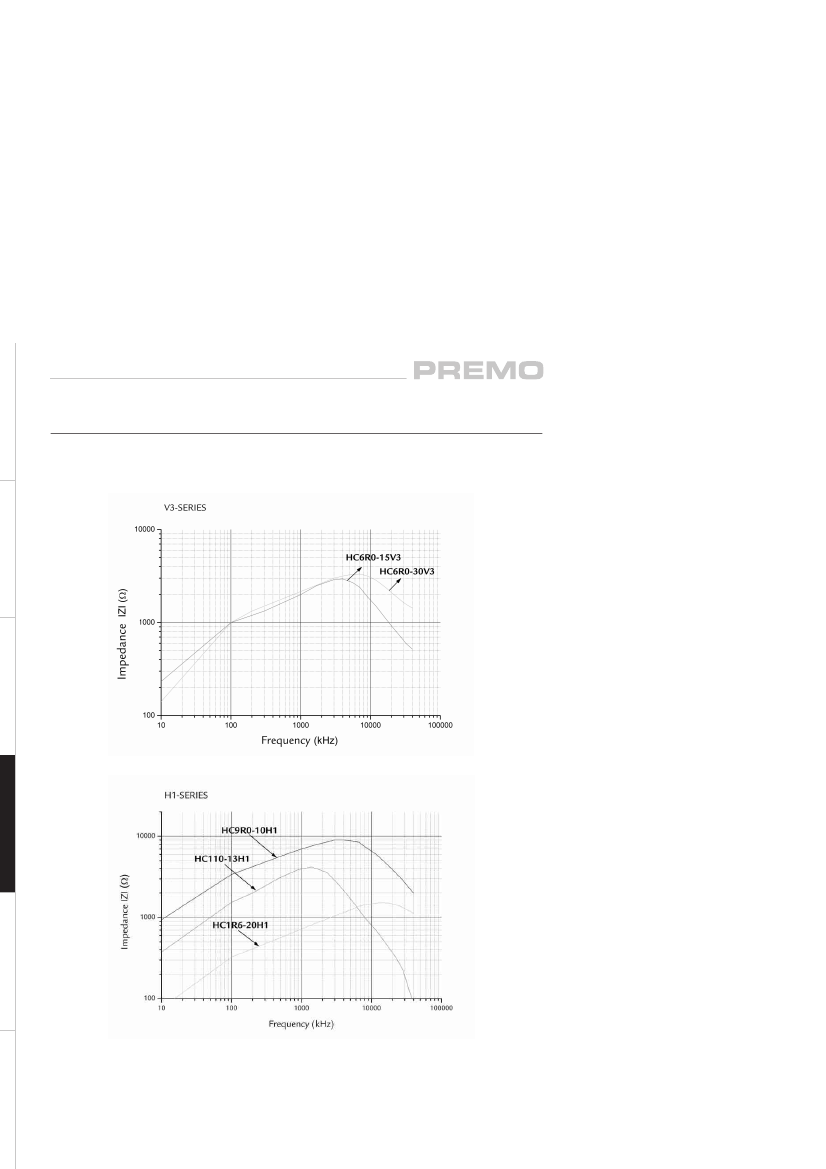

HC SERIES
Common Mode Chokes
Common mode chokes with Nanocrystalline cores
Note:
Impedance measurements have been obtained with both windings in parallel and at ambient temperature.
120

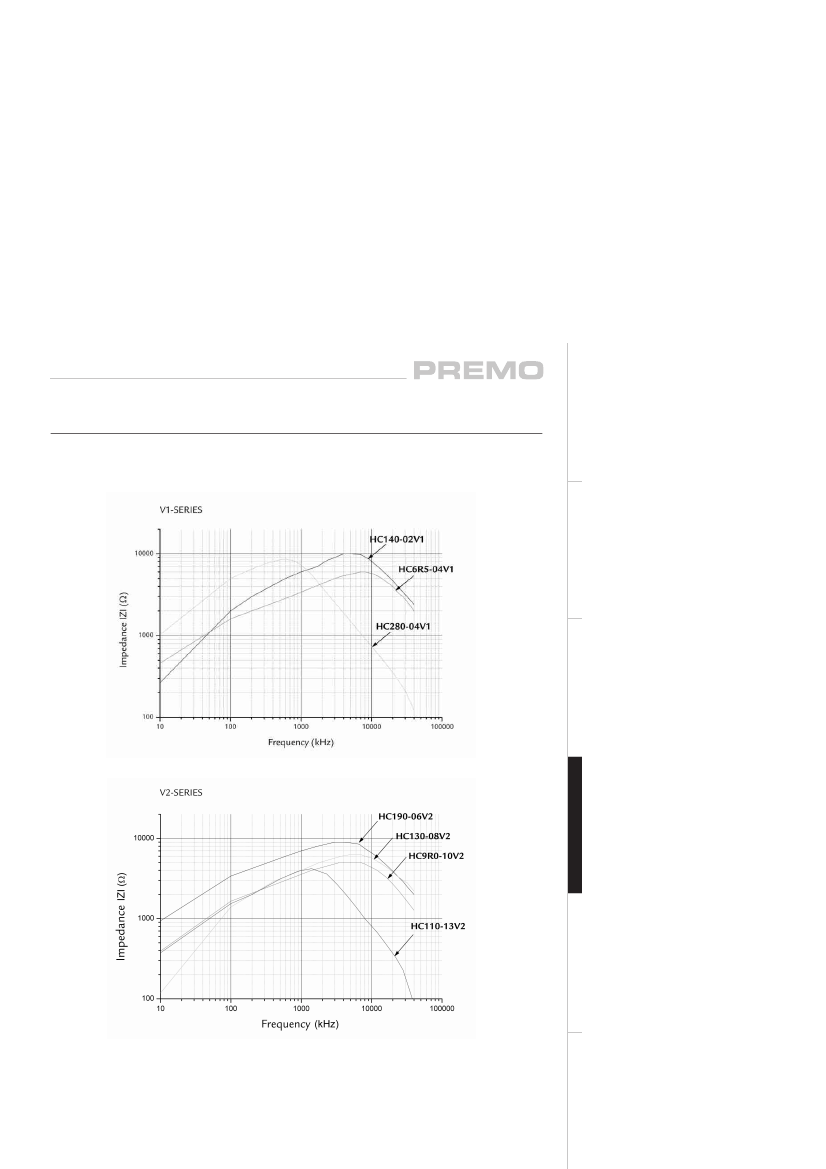

HC SERIES
Common mode chokes with Nanocrystalline cores
Common Mode Chokes
Note:
Impedance measurements have been obtained with both windings in parallel and at ambient temperature.
121
