DATA SHEET • SE2433T: 2.4 GHz POWER AMPLIFIER
Table 1. SE2433T Signal Descriptions (Note 1)
Pin
1
2
3
4
5
6
B2
B1
VCC1
RFIN
GND
N/C
Name
Description
Connect through bias resistor to Pin 11,
second stage bias.
Connect through bias resistor to Pin 11,
first stage bias.
Power supply. Connect to positive supply.
Input port, Connect to 50
Ω
single-ended RF
source, DC short to
GND.
Ground.
Connect to PCB ground.
Not connected.
Pin
7
8
9
10
11
12
Paddle
Note 1:
The N/C pins can be connected to ground, but the DNC pin should be left floating.
Name
N/C
N/C
RFOUT
DNC
BOUT
PAEN
GND
Not connected.
Not connected.
RF output port.
Do not connect.
Description
Bias supply, Connect to through bias resistors to
pins 1 and 2.
PA enable, Connect to
GPIO
signal to control power-
up status (see Table 7) .
Exposed die paddle; electrical and thermal ground;
Connect to PCB ground.
Electrical and Mechanical Specifications
Table 2 provides the absolute maximum ratings, and Table 3
shows the recommended operating conditions. Electrical
characteristics are shown in Tables 4 and 5.
Logic characteristics and logic controls are provided in Tables 6
and 7, respectively.

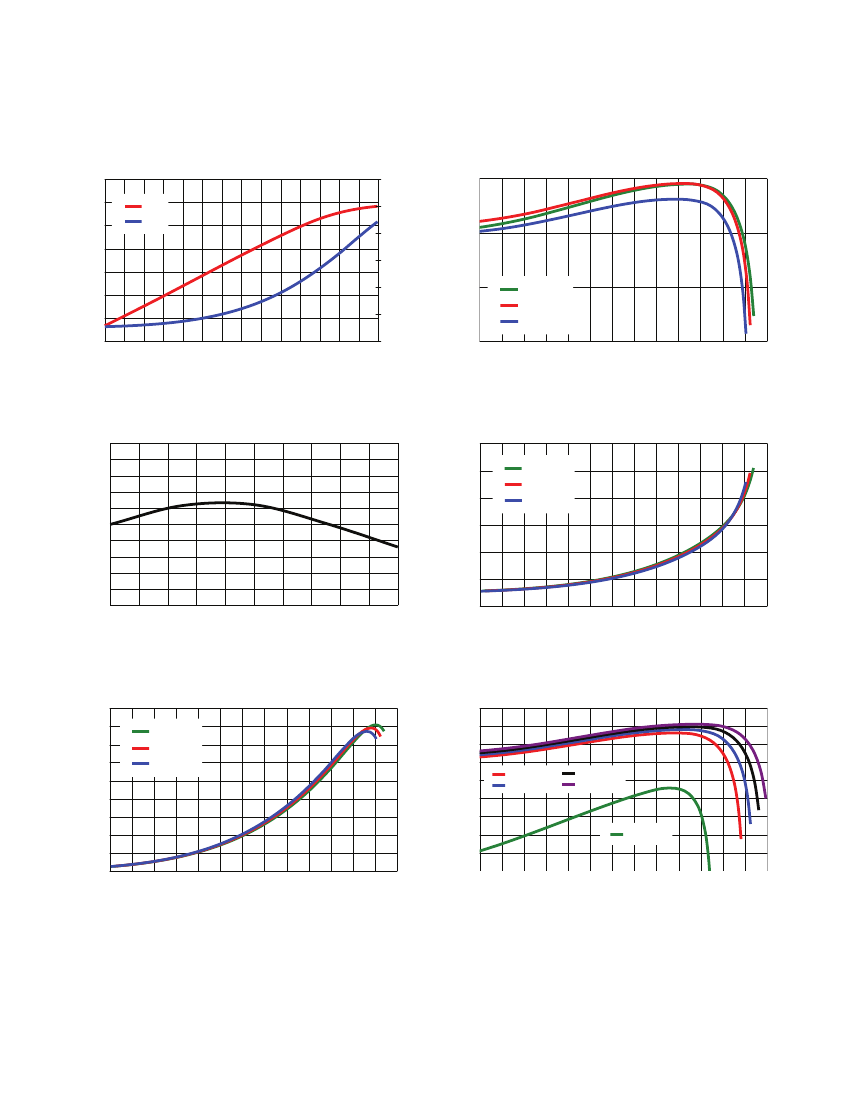

Typical performance characteristics are shown in Figures 3
through 14.
Table 2. SE2433T Absolute Maximum Ratings (Note 1)
Parameter
Supply voltage
Control pin voltages
Operating temperature
Storage temperature
TX input power
Electrostatic discharge:
Human Body Model (HBM), Class 1B
T
OP
T
STG
P
IN_MAX
ESD
500
V
Symbol
V
CC
Minimum
–0.3
–0.3
–0.3
–40
–40
Maximum
3.6
3.6
85
125
+6
Units
V
V
°C
°C
dBm
Note 1:
Exposure to maximum rating conditions for extended periods may reduce device reliability. There is no damage to device with only one parameter set at the
limit and all other parameters set at or below their nominal value. Exceeding any of the limits listed here may result in permanent damage to the device.
CAUTION:
Although this device is designed to be as robust as possible, electrostatic discharge (ESD) can damage this device. This device
must be protected at all times from ESD. Static charges may easily produce potentials of several kilovolts on the human body
or equipment, which can discharge without detection. Industry-standard ESD precautions should be used at all times.
