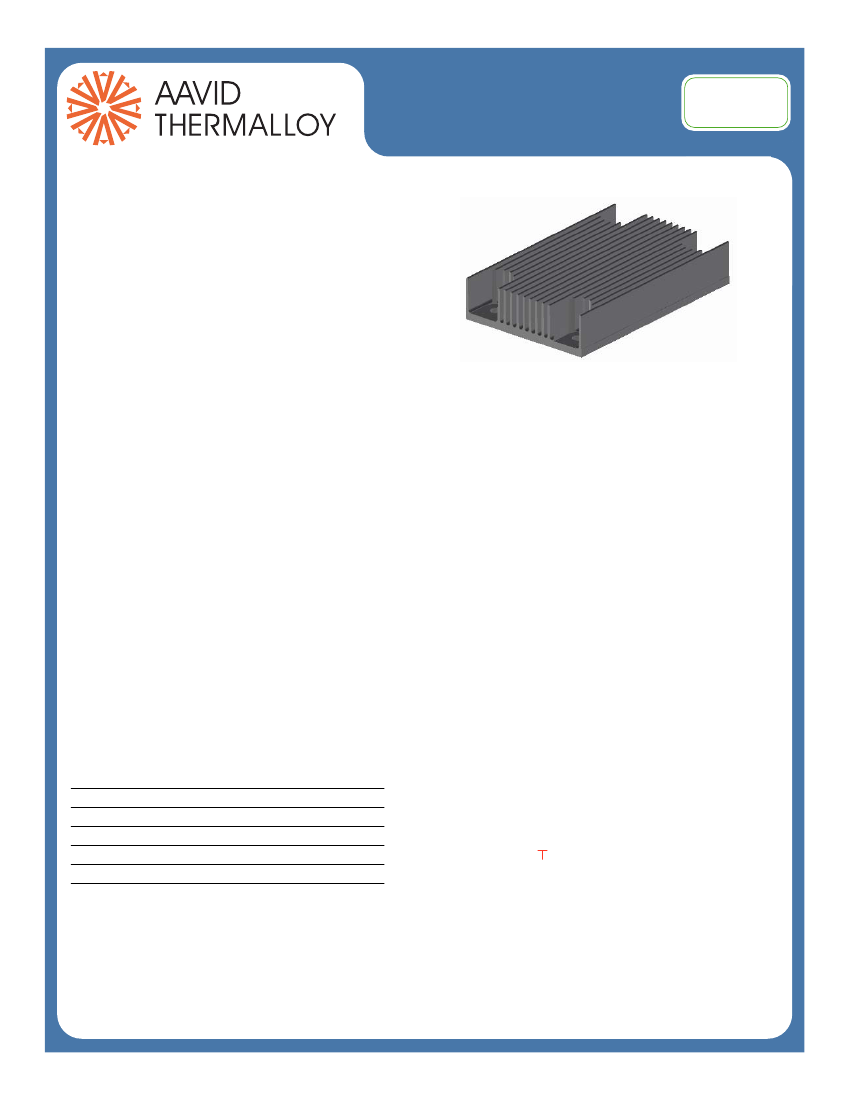

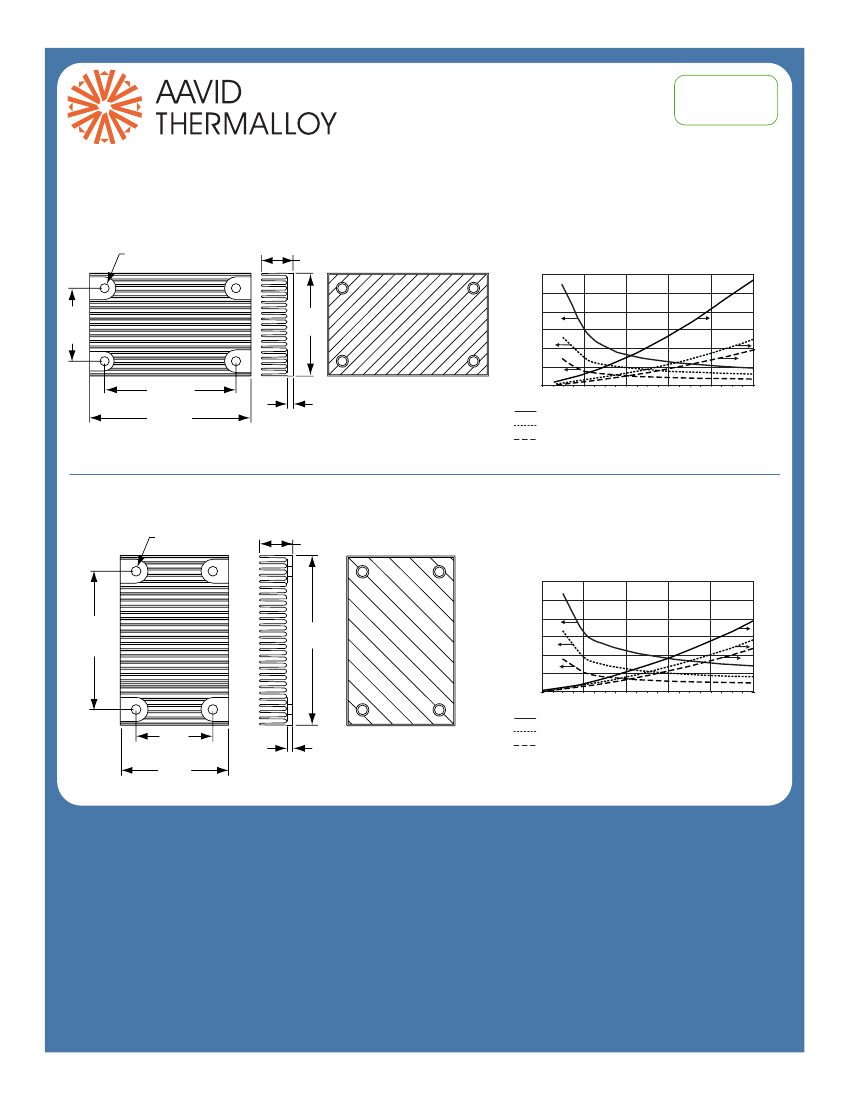

Heat Sinks for Quarter Brick
DC/DC Converters
RoHS
Compliant
STANDARD THERMAL SOLUTIONS
FOR QUARTER BRICK CONVERTERS
Aavid Thermalloy heat sinks are designed for engineers
seeking a complete off-the-shelf cooling solution for
industry standard quarter brick converters. Unlike other
converter heat sinks, Aavid designs feature thin fin
geometry which increases thermal performance and
reduces pressure drop. In addition, all heat sinks are
ready for mounting with interface material pre-applied
which streamlines procurement and assembly.
APPLICATION NEED:
• Maximum Performance
FEATURES AND BENEFITS:
• High fin density has more surface area
for heat transfer, despite small foot print.
• Thin fin geometry improves system airflow
and reduces fan costs.
• Hole pattern fits 1/4 brick DC/DC Converters from
top manufacturers like Delta, Emerson and Tyco
• Lengthwise and crosswise fin orientations in three
fin heights to allow a precise match to the application
• High performance QPad3
TM
interface pad saves
time and optional hardware kit provides the
complete solution under a single part number
• Low Pressure Drop
• Fits industry standard Quarter Brick modules
• Optimal configuration
• Simple assembly
ORDERING INFORMATION:
Part Number
241402B91200G
241404B91200G
241409B91200G
241402B92200G
241404B92200G
241409B92200G
Fin Configuration
Lengthwise
Lengthwise
Lengthwise
Crosswise
Crosswise
Crosswise
“H” height
6.0 (0.24)
11.4 (0.45)
22.9 (0.90)
6.0 (0.24)
11.4 (0.45)
22.9 (0.90)
Figure
A
A
A
B
B
B
Hardware Kit included
Optional Hardware Kit:
Four M3 x 0.5 x 4.5 screws with
captive lock washer individually bagged
Use code 03 in the 11th & 12th digit
Example: 241409B92203G
Q-pad is a registered trademark of the Bergquist Company
FOR MORE INFORMATION, VISIT OUR WEB SITE:
WWW.AAVIDTHERMALLOY.COM
TEL:
(603) 224-9988
Heat Sinks for Quarter Brick
DC/DC Converters
Lengthwise AirFlow
Figure A
ø 3.30 THRU
4X
“H”
12
Thermal Resistance (°C / W)
Device Case to Ambient
RoHS
Compliant
0.6
Pressure Drop (in. of H2O)
Pressure Drop (in. of H2O)
10
8
6
4
2
0
0
100
200
300
400
500
600
700
800
241402B91200G
241404B91200G
241409B91200G
Air Flow (LFM)
0.5
0.4
0.3
0.2
0.1
0
900 1000
26.2
(1.03)
2X
37.0
(1.46)
47.2 2X
(1.86)
58.0
(2.28)
2.0
(0.08)
4X
Crosswise AirFlow
Figure B
ø 3.30 THRU
4X
“H”
6
Thermal Resistance (°C / W)
Device Case to Ambient
0.6
0.5
0.4
0.3
0.2
0.1
0
100
200
300
400
500
600
700
800
0
900 1000
5
4
3
2
1
0
241402B92200G
241404B92200G
241409B92200G
Air Flow (LFM)
47.2
1.86)
2X
58.0
(2.28)
26.2
(1.03)
2X
37.0
(1.46)
2.0
(0.08)
4X
North America
70 Commercial Street
Concord, NH 03301
TEL: (603) 224-9988
FAX: (603) 223-1790
EMAIL: info@aavid.com
Europe - Italy
Via Aprile,32
40057 Cadriano (BO), Italy
TEL: (39) 051 764011
FAX: (39) 051 764090
EMAIL: sales.it@aavid.com
Asia - Taiwan
14F-4, NO. 79, Hsin Tai Wu RD.
SEC. 1, Hsi Chih
Taipei Hsien
Taiwan
TEL: 011(886) 2–2698–9888
FAX: 011(886) 2–2698–9808
Asia - Singapore
31 Admiralty Road, #06-01
Singapore 739984
TEL: 65 –6362–8388
FAX: 65–6362–8588
