BTCPower
HBO PH Series
Description
TM
Broadband TelCom Power,
Inc.
Redefining “Current” Limits In Power Conversion
Up to 300W Half Bricks

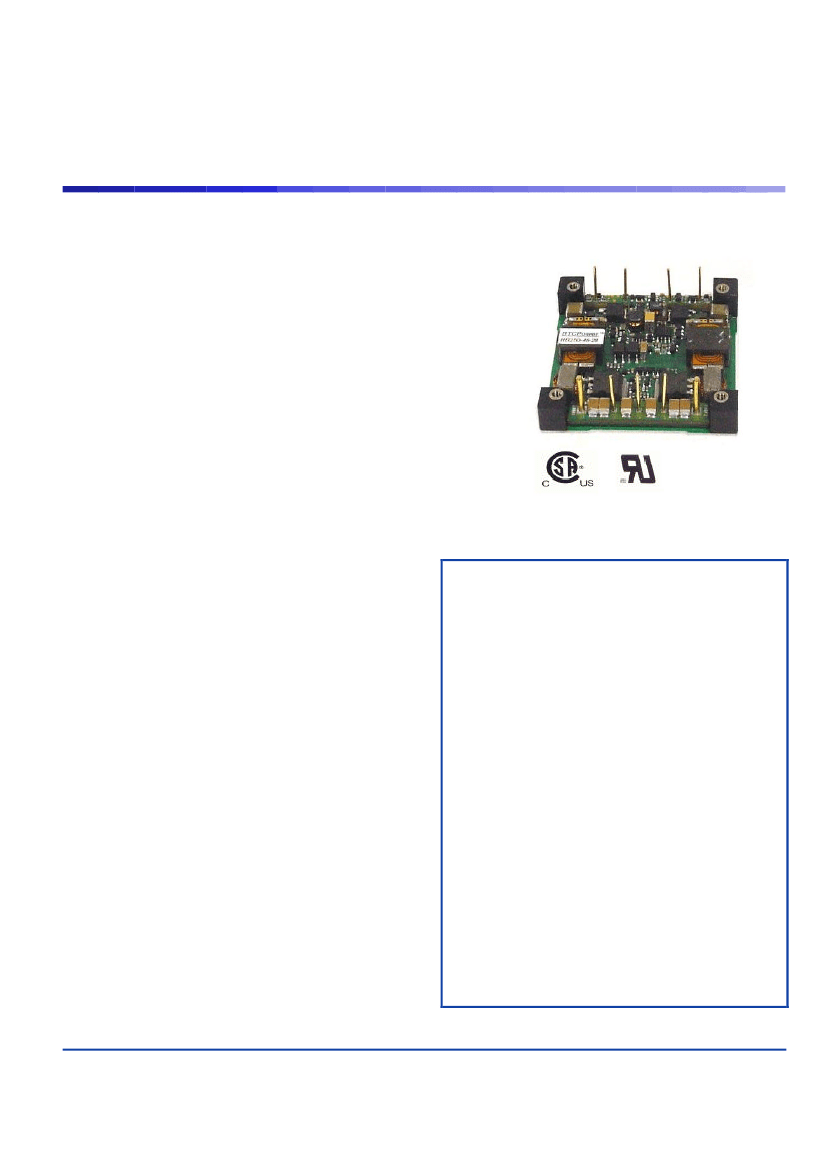

The HBO PH series of low cost DC/DC converters offer the
different current levels and are comparable to existing half-
bricks. With a wide input voltage range of 18-24V or 36-75V
they are available with an output voltage of either 1.8, 2.5,
3.3, 5.0, 12, 15, 24 or 28 Volts. All models feature an input
filter, output overvoltage and overtemperature protection,
output current limiting and short circuit protection. The
unique open frame construction with base plate design
achieves efficient heat transfer with no hot spots. The use of
patented Flat Transformer technology and other patent-
pending design concepts facilitate maximum power
delivered. The converters combine creative design concepts
with highly derated power devices to achieve very high
reliability, high performance and offer a low cost solution to
systems designers that are challenged to maximize power
and minimize board space.
Features
•
Delivers up to 300W in Half Brick
• High efficiency patented topology
• Low profile of only 0.34 inch
• 1.8V, 2.5V, 3.3V, 5.0V, 12V, 15V,
24V or 28V output modules
• 100V/100ms Input transient capability
• -40°C to +85 °C ambient operation
• Meets Basic Insulation requirements of EN60950
• UL 1950 recognized, CAN / CSA C22.2 No. 950-95
Certified, and TUV EN60950 ( pending )
• Meets conducted limits of FCC Class B and CEI
IEC61204-3 Class B with external filter
Specification Summary
• 80A @ 1.8V, 60A @ 2.5V, 60A @ 3.3V, 50A @ 3.3V,
50A @ 5.0V, 21A @ 12V
11A @ 24V, 11A @ 28V
• Tight output regulation, typical ±2%
• No minimum load required
• Ripple & Noise (20Mhz BW) 100 mV (pk-pk)
or 2% (pk-pk)
• Wide input operating range 18-24V or 36-75V
• On/Off pin and remote sense
• Output adjustment +/-10% range
Applications
•
Telecommunications
•
•
•
•
•
•
Data Communications
Wireless Communications
Networking Gear
Servers, Switches and Data Storage
Semiconductor Test Equipment
Distributed Power Architecture
• 1500V, 10M
input-to-output isolation
• Frame construction with heat spreader for low
temperature rise
• Output overcurrent and overvoltage protection
• Over Temperature protection
• Input Under voltage protection
• MTBF of 1,600,000 hours @ 50°C ( Bellcore )
Broadband TelCom Power, Inc. –
1719 S. Grand Avenue, Santa Ana, CA 92705 U.S.A.
Tel.: 714-259-4888 • Fax: 714-259-0840 • www.btcpower.com • Email: sales@btcpower.com PB HBO PH Rev3 16-1-04
HBO PH Series
Up to 300W Half Bricks
BTCPower
TM
Product Brief
Part Number and Selection Information
Model
Part Number
Positive Logic
HBO60A-24-2.5P
HBO50A-24-3.3P
HBO50A-24-5P
HBO21A-24-12P
HBO17A-24-15P
HBO11A-24-24P
HBO11A-24-28P
HBO80A-48-1.8P
HBO60A-48-2.5P
HBO60A-48-3.3P
HBO50A-48-3.3P
HBO50A-48-5P
HBO21A-48-12P
HBO17A-48-15P
HBO11A-48-24P
HBO11A-48-28P
Negative Logic
HBO60A-24-2.5N
HBO50A-24-3.3N
HBO50A-24-5N
HBO21A-24-12N
HBO17A-24-15N
HBO11A-24-24N
HBO11A-24-28N
HBO80A-48-1.8N
HBO60A-48-2.5N
HBO60A-48-3.3N
HBO50A-48-3.3N
HBO50A-48-5N
HBO21A-48-12N
HBO17A-48-15N
HBO11A-48-24N
HBO11A-48-28N
Voltage (Volts)
Nominal
24
24
24
24
24
24
24
48
48
48
48
48
48
48
48
48
Range
18-36
18-36
18-36
18-36
18-36
18-36
18-36
36-75
36-75
36-75
36-75
36-75
36-75
36-75
36-75
36-75
Input
Current (A)
No load
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
Full load
8.0
8.5
12.4
12.2
12.0
12.8
14.7
3.9
3.9
5.0
4.2
6.2
6.1
6.0
6.4
7.3
Output
Voltage
(Volts)
2.5
3.3
5.0
12.0
15.0
24.0
28.0
1.8
2.5
3.3
3.3
5.0
12.0
15.0
24.0
28.0
Current
(Amps)
60
50
50
21
17
11
11
80
60
60
50
50
21
17
11
11
Efficiency
75% Load
(%)
78
81
84
86
88
86
87
78
79
81
82
85
87
89
87
88
Typical at Ta= +25 ºC under nominal line voltage and 75% load conditions, unless noted.
Consult factory for other output voltage configurations and optional accessories such as heatsinks and filters.

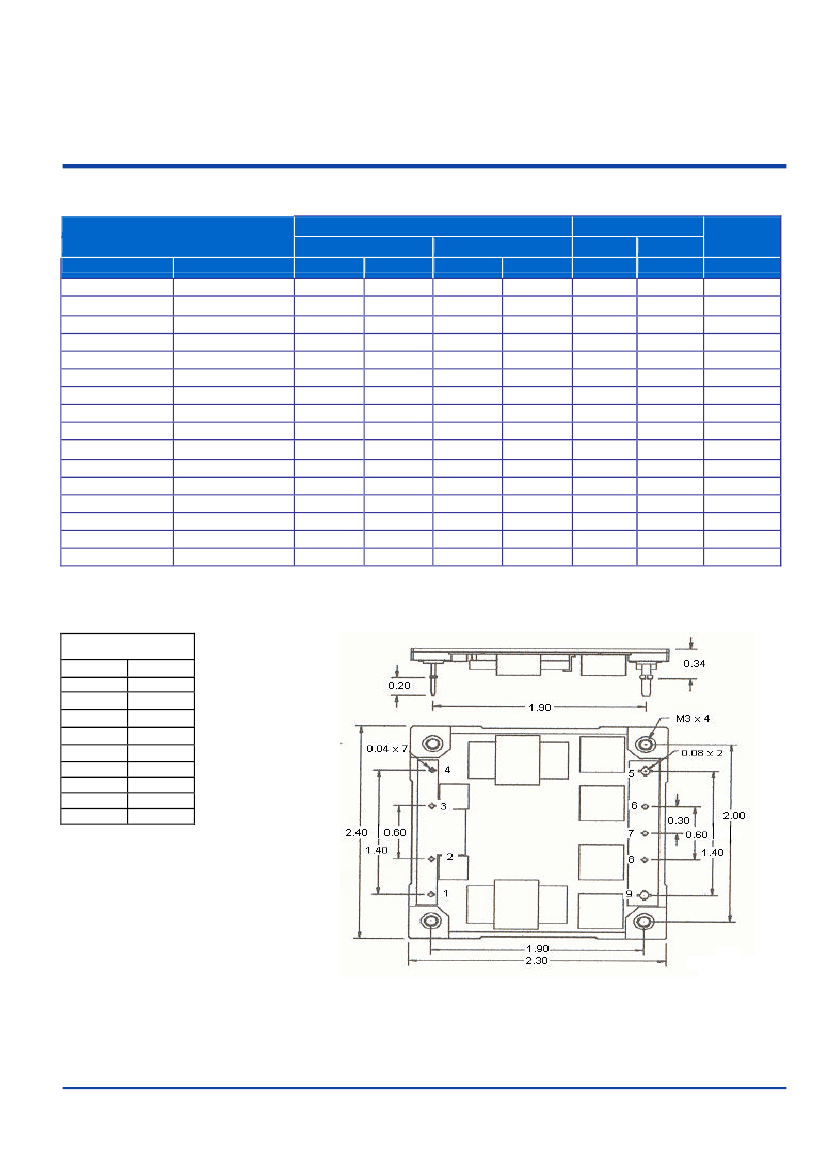

Outline Information and Pin-out
Pin Connection
Pin#
Function
1
2
3
4
5
6
7
8
9
Vin +
On/Off
Case
Vin -
Vout -
Sense -
Trim
Sense +
Vout +
All dimensions are in inches [mm]
Pin 5 and 9 are dia. 0.08 [2.03]
All other pins are all dia. 0.040 [1.02]
Pin material: Brass
Pin finish: Tin/Lead plated
Heat spreader (baseplate) material:
Aluminum
Weight: 50.5g
The information and specifications contained in this brief are believed to be accurate and reliable at the time of publication. Specifications are
subject to change without notice. Refer to product specification sheet for performance characteristics and application guidelines.
Broadband TelCom Power, Inc. –
1719 S. Grand Avenue, Santa Ana, CA 92705 U.S.A.
Tel.: 714-259-4888 • Fax: 714-259-0840 • www.btcpower.com • Email: sales@btcpower.com PB HBO PH Rev3 16-1-04
