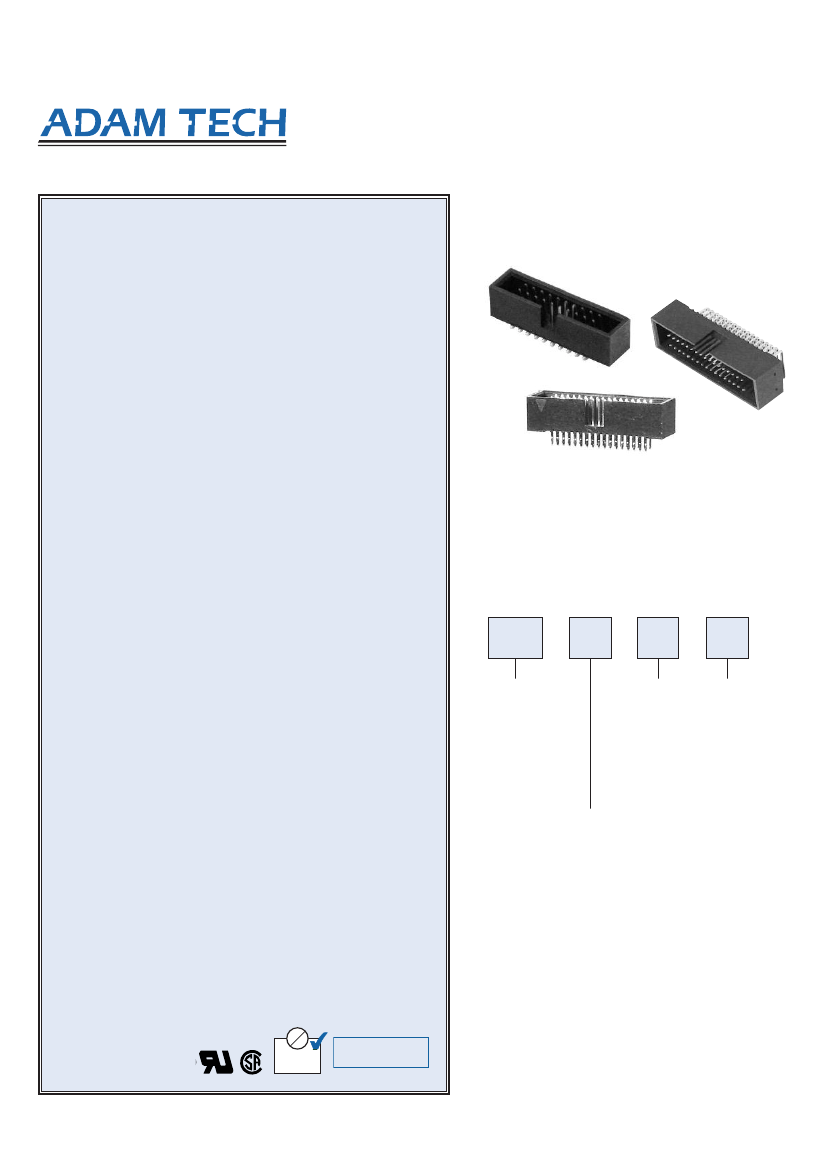

.050" BOX HEADERS
Adam Technologies, Inc.
INTRODUCTION
Adam Tech HBHR Series .050" Box Headers are fine pitched, dual
row shrouded headers for use with dual row IDC female socket
connectors. Our low profile, space saving design has a center slot for
the socket’s polarization bump. Adam Tech’s Box Headers are
available in Straight PCB Mount, Right Angle PCB Mount and SMT
Mounting. Plating options include choice of Gold, Tin or Selective
Gold. SMT versions are manufactured with a Hi-Temp insulator.
Additional options include latches and custom pin lengths.
FEATURES:
Shrouded, insulated connection
Superior low profile design
Slot for IDC socket Polarization bump
Straight PCB, Right Angle PCB and SMT versions
Gold, Tin or Selective Gold plating
Options include Elevated types and integral latches
Hi-Temp insulator available
MATING RECEPTACLES:
Mates with all industry standard .050" [1.27mm] pitch dual row IDC
sockets
SPECIFICATIONS:
Material:
Standard insulator: PBT, glass reinforced, rated UL94V-0
Optional Hi-Temp insulator: Nylon 6T, rated UL94V-0
Insulator Color: Black
Contacts: Brass
Plating:
G = Gold flash (30u” optional) over nickel underplate overall
SG = Gold flash (30u” optional) over nickel underplate on
contact area, tin over copper underplate on tails.
T = Tin over copper underplate overall
Electrical:
Operating voltage: 250V AC max.
Current rating: 1 Amp max
Contact resistance: 20 mΩ max. initial
Insulation resistance: 5000 MΩ min.
Dielectric withstanding voltage: 500V AC for 1 minute
Temperature Rating:
Operating temperature: -40°C to +105°C
Soldering process temperature: 260°C
PACKAGING:
Anti-ESD plastic trays
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
.050" X .050" & .050" X .100"
CENTERLINE
HBHR SERIES
ORDERING INFORMATION
HBHR
SERIES
INDICATOR
HBHR-B
=
Box header
.050" x .050"
HBHR-A
=
Box header
.050" x .100"
20
V
SG
MOUNTING
PLATING
ORIENTATION
G =
Gold plated
V =
Vertical
SG
= Selective
mount
gold plating
H
= Right angle
in contact
mount
area, tin
plated
solder tails
T
= Tin plated
POSITIONS
10, 20, 30, 40,
50, 60, 70, 80,
90, 100
This series is availabe in an
elevated version similar to
our BHRE Series as shown
on pgs. 260-261
Pb
UL
®
®
®
E
D
COMPLIANT
2002 / 95
/ EC
RoHS
V
HI-TEMP
INSULATOR
AVA I L A B L E
OPTIONS:
Add designator(s) to end of part number
30
= 30 µin gold plating in contact area
SMT
= Surface mount leads with Hi-Temp insulator for Hi-Temp
soldering processes up to 260°C
HT=
Hi-Temp insulator for Hi-Temp soldering processes
up to 260°C
(Add this option for thru-hole products only.
All SMT products are manufactured with Hi-Temp insulators)
266
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
RoHS
COMPLIANT
