2N3762 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2N3762

2N3762: DescriptionSmall Signal Bipolar Transistor, 1.5A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size80KB，2 Pages; ManufacturerCRYSTALONICS Inc.

Download Datasheet Parametric Compare View All

2N3762 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2N3762	-	-	View	Buy Now

2N3762 Overview

Small Signal Bipolar Transistor, 1.5A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN

2N3762 Parametric

Parameter Name	Attribute value
Parts packaging code	BCY
package instruction	CYLINDRICAL, O-MBCY-W3
Contacts	4
Manufacturer packaging code	CASE 79-04
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	1.5 A
Collector-emitter maximum voltage	40 V
Configuration	SINGLE
Minimum DC current gain (hFE)	30
JEDEC-95 code	TO-205AD
JESD-30 code	O-MBCY-W3
Number of components	1
Number of terminals	3
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	115 ns
Maximum opening time (tons)	43 ns
Base Number Matches	1

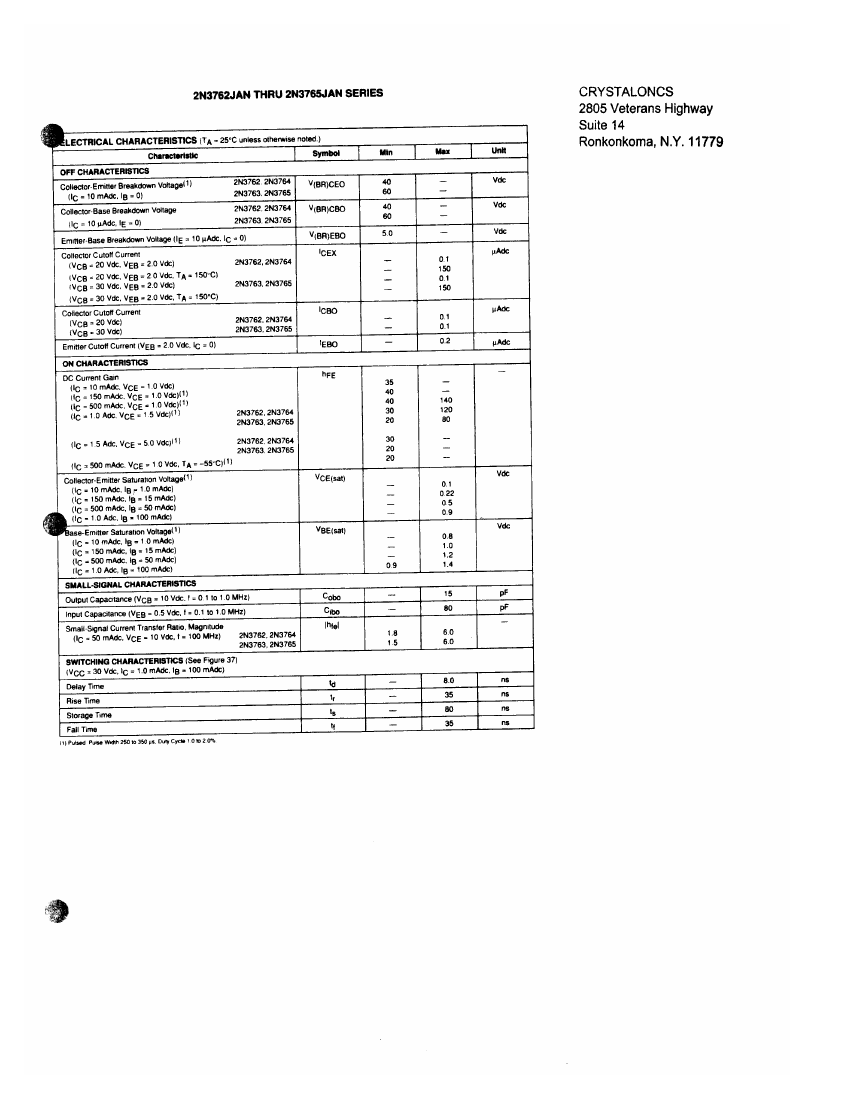

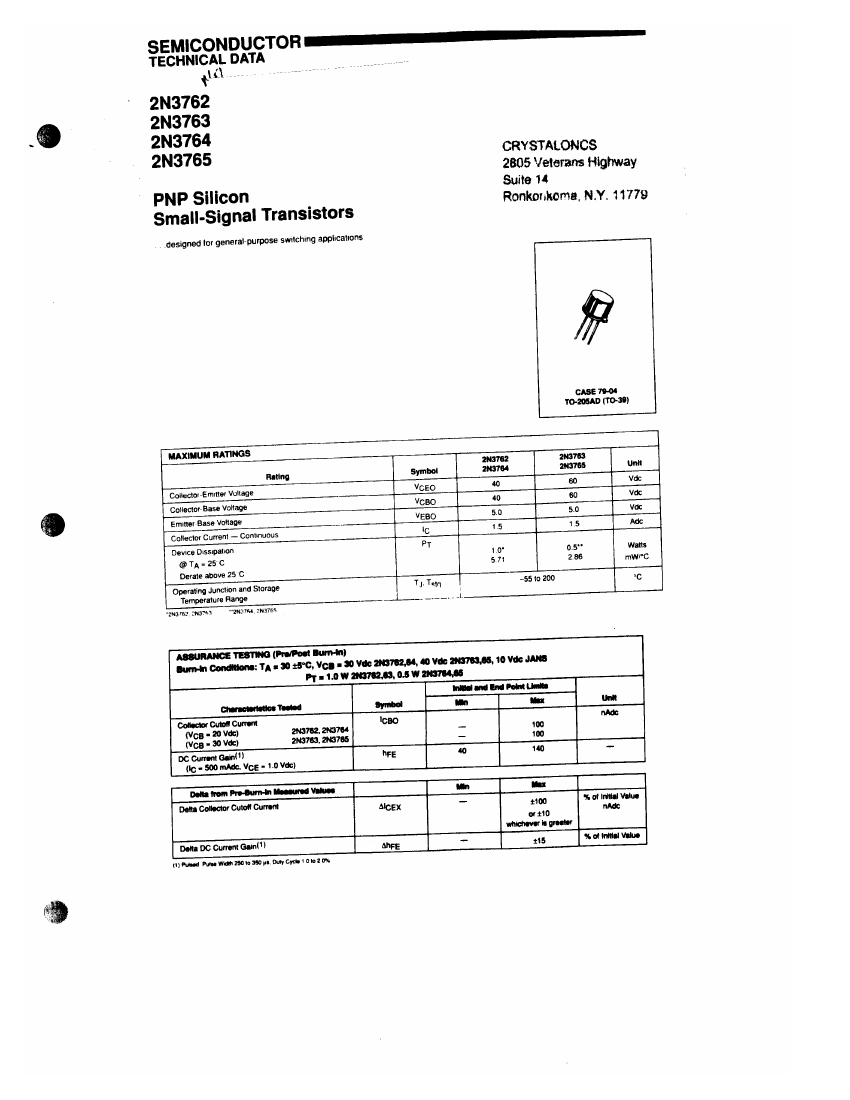

Preview

Download Datasheet

View All

2N3762 Related Products

	2N3762	JAN2N3762	JAN2N3764	2N3764	JAN2N3765	TMHC1707SP-3R3MN-D	JAN2N3763
Description	Small Signal Bipolar Transistor, 1.5A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN	Small Signal Bipolar Transistor, 1.5A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN	Small Signal Bipolar Transistor, 1.5A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN	Small Signal Bipolar Transistor, 1.5A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN	Small Signal Bipolar Transistor, 1.5A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN	SMD Power Inductor	Small Signal Bipolar Transistor, 1.5A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-205AD, CASE 79-04, TO-39, 3 PIN
Parts packaging code	BCY	BCY	BCY	BCY	BCY	-	BCY
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	-	CYLINDRICAL, O-MBCY-W3
Contacts	4	4	4	4	4	-	4
Manufacturer packaging code	CASE 79-04	CASE 79-04	CASE 79-04	CASE 79-04	CASE 79-04	-	CASE 79-04
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	-	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99
Maximum collector current (IC)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	-	1.5 A
Collector-emitter maximum voltage	40 V	40 V	40 V	40 V	60 V	-	60 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-	SINGLE
Minimum DC current gain (hFE)	30	35	35	30	35	-	35
JEDEC-95 code	TO-205AD	TO-205AD	TO-205AD	TO-205AD	TO-205AD	-	TO-205AD
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	-	O-MBCY-W3
Number of components	1	1	1	1	1	-	1
Number of terminals	3	3	3	3	3	-	3
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	-	200 °C
Package body material	METAL	METAL	METAL	METAL	METAL	-	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	-	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	-	CYLINDRICAL
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	-	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
surface mount	NO	NO	NO	NO	NO	-	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	-	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	-	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	-	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	-	SILICON
Maximum off time (toff)	115 ns	115 ns	115 ns	115 ns	115 ns	-	115 ns
Maximum opening time (tons)	43 ns	43 ns	43 ns	43 ns	43 ns	-	43 ns
Base Number Matches	1	1	1	1	1	-	-
Guideline	-	MIL-19500/396	MIL-19500/396	-	MIL-19500/396	-	MIL-19500/396
