2SC4536-QR

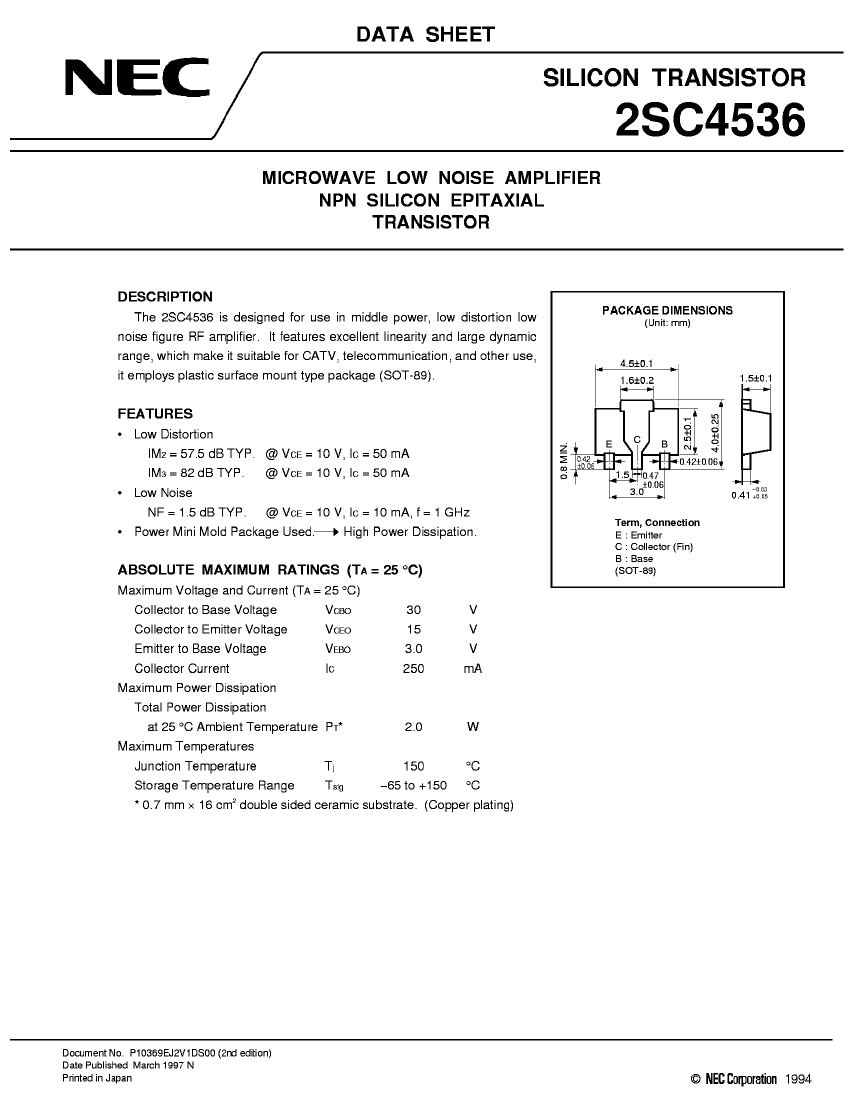

Description
RF Small Signal Bipolar Transistor, 0.25A I(C), 1-Element, Silicon, NPN, POWER, PLASTIC PACKAGE-3
CategoryDiscrete semiconductor    The transistor
File Size123KB,8 Pages
ManufacturerNEC Electronics
Download Datasheet Parametric Compare View All

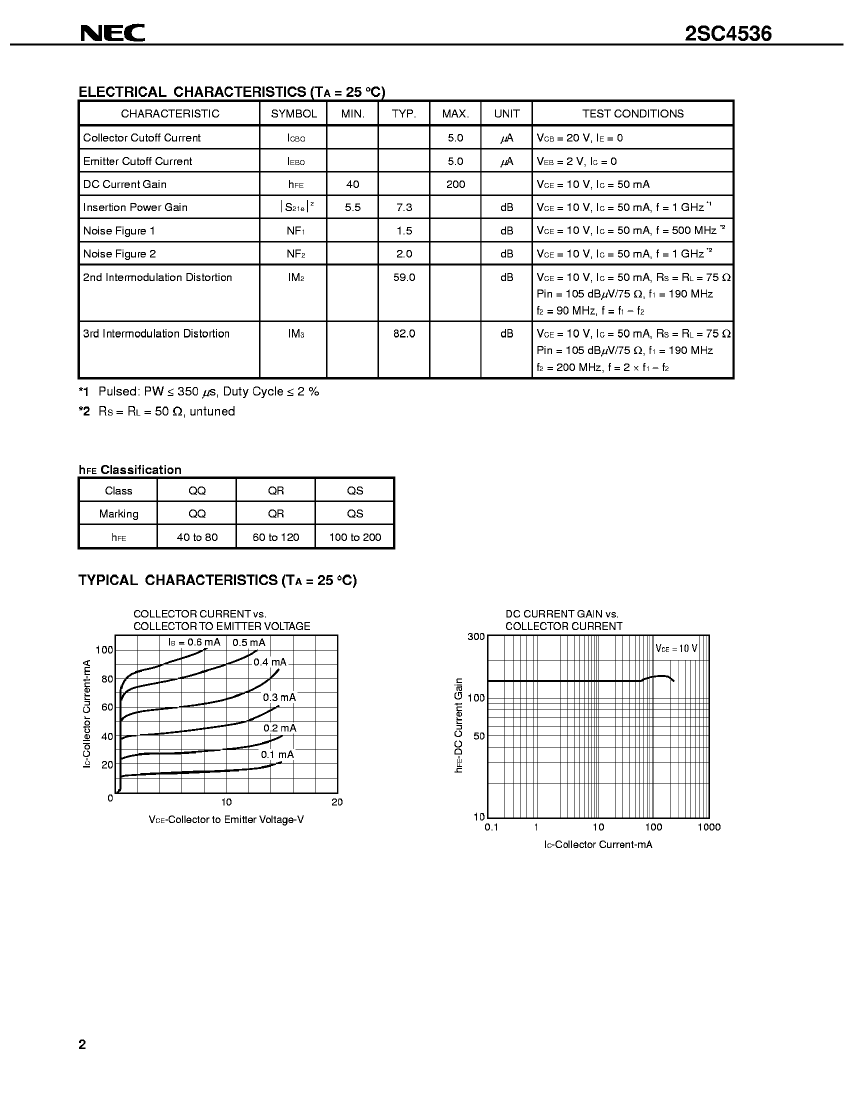

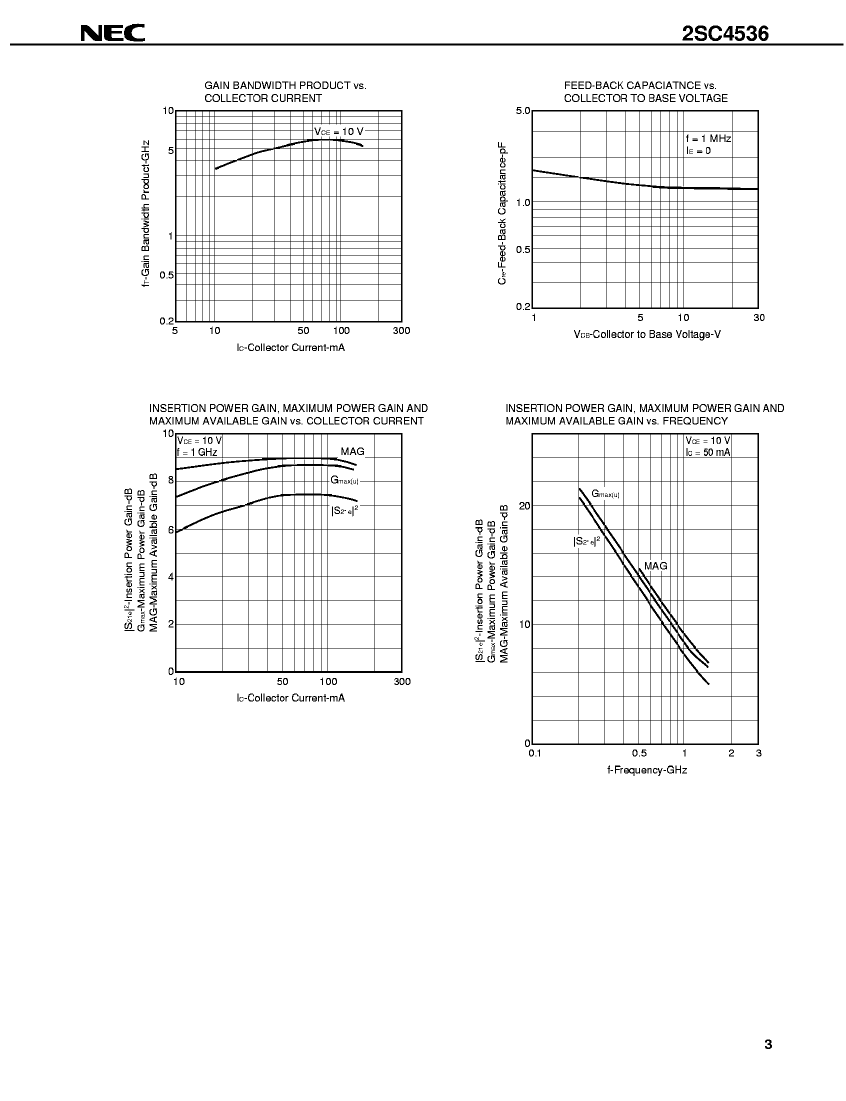

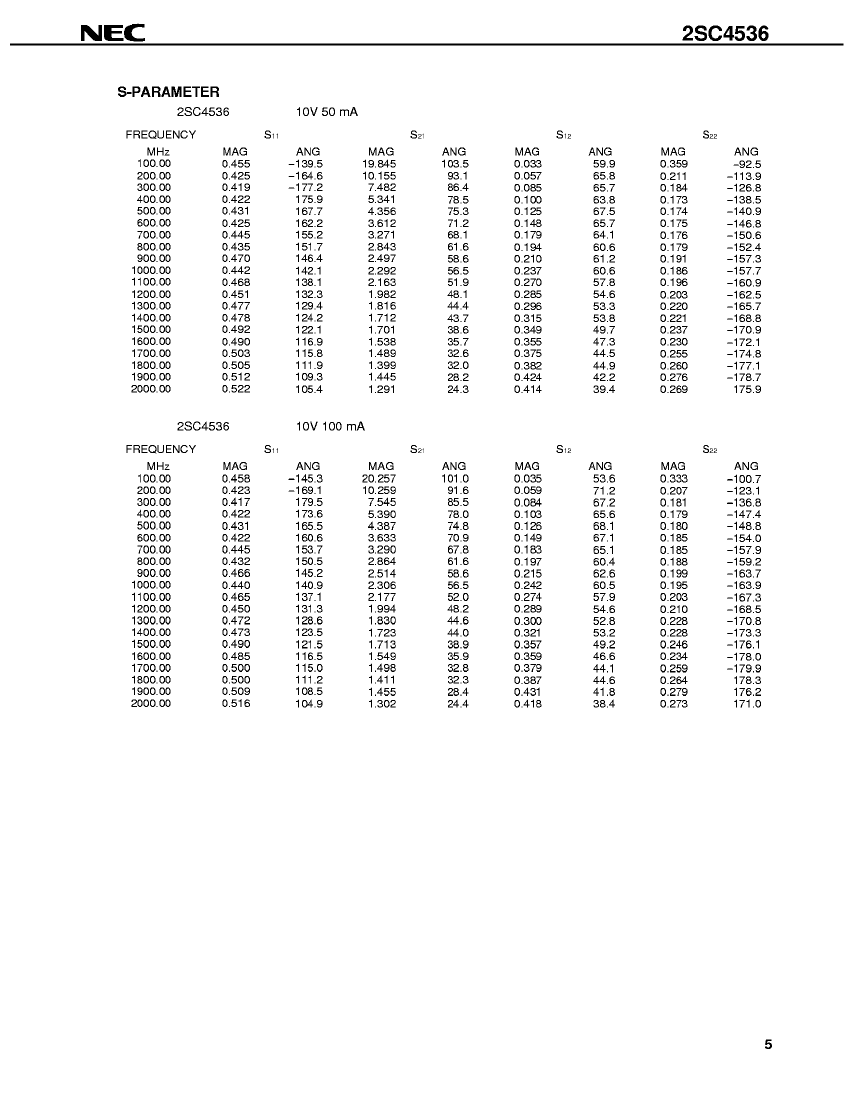

2SC4536-QR Overview

RF Small Signal Bipolar Transistor, 0.25A I(C), 1-Element, Silicon, NPN, POWER, PLASTIC PACKAGE-3

2SC4536-QR Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerNEC Electronics
package instructionSMALL OUTLINE, R-PSSO-F3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLOW NOISE
Shell connectionCOLLECTOR
Maximum collector current (IC)0.25 A
Collector-emitter maximum voltage15 V
ConfigurationSINGLE
JESD-30 codeR-PSSO-F3
JESD-609 codee0
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Base Number Matches1

2SC4536-QR Related Products

2SC4536-QR 2SC4536-QQ 2SC4536-QS
Description RF Small Signal Bipolar Transistor, 0.25A I(C), 1-Element, Silicon, NPN, POWER, PLASTIC PACKAGE-3 RF Small Signal Bipolar Transistor, 0.25A I(C), 1-Element, Silicon, NPN, POWER, PLASTIC PACKAGE-3 RF Small Signal Bipolar Transistor, 0.25A I(C), 1-Element, Silicon, NPN, POWER, PLASTIC PACKAGE-3
Is it Rohs certified? incompatible incompatible incompatible
Maker NEC Electronics NEC Electronics NEC Electronics
package instruction SMALL OUTLINE, R-PSSO-F3 SMALL OUTLINE, R-PSSO-F3 SMALL OUTLINE, R-PSSO-F3
Contacts 3 3 3
Reach Compliance Code compliant compliant compliant
ECCN code EAR99 EAR99 EAR99
Other features LOW NOISE LOW NOISE LOW NOISE
Shell connection COLLECTOR COLLECTOR COLLECTOR
Maximum collector current (IC) 0.25 A 0.25 A 0.25 A
Collector-emitter maximum voltage 15 V 15 V 15 V
Configuration SINGLE SINGLE SINGLE
JESD-30 code R-PSSO-F3 R-PSSO-F3 R-PSSO-F3
JESD-609 code e0 e0 e0
Number of components 1 1 1
Number of terminals 3 3 3
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Polarity/channel type NPN NPN NPN
Certification status Not Qualified Not Qualified Not Qualified
surface mount YES YES YES
Terminal surface Tin/Lead (Sn/Pb) TIN LEAD TIN LEAD
Terminal form FLAT FLAT FLAT
Terminal location SINGLE SINGLE SINGLE
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
transistor applications AMPLIFIER AMPLIFIER AMPLIFIER
Transistor component materials SILICON SILICON SILICON
Base Number Matches 1 1 1
