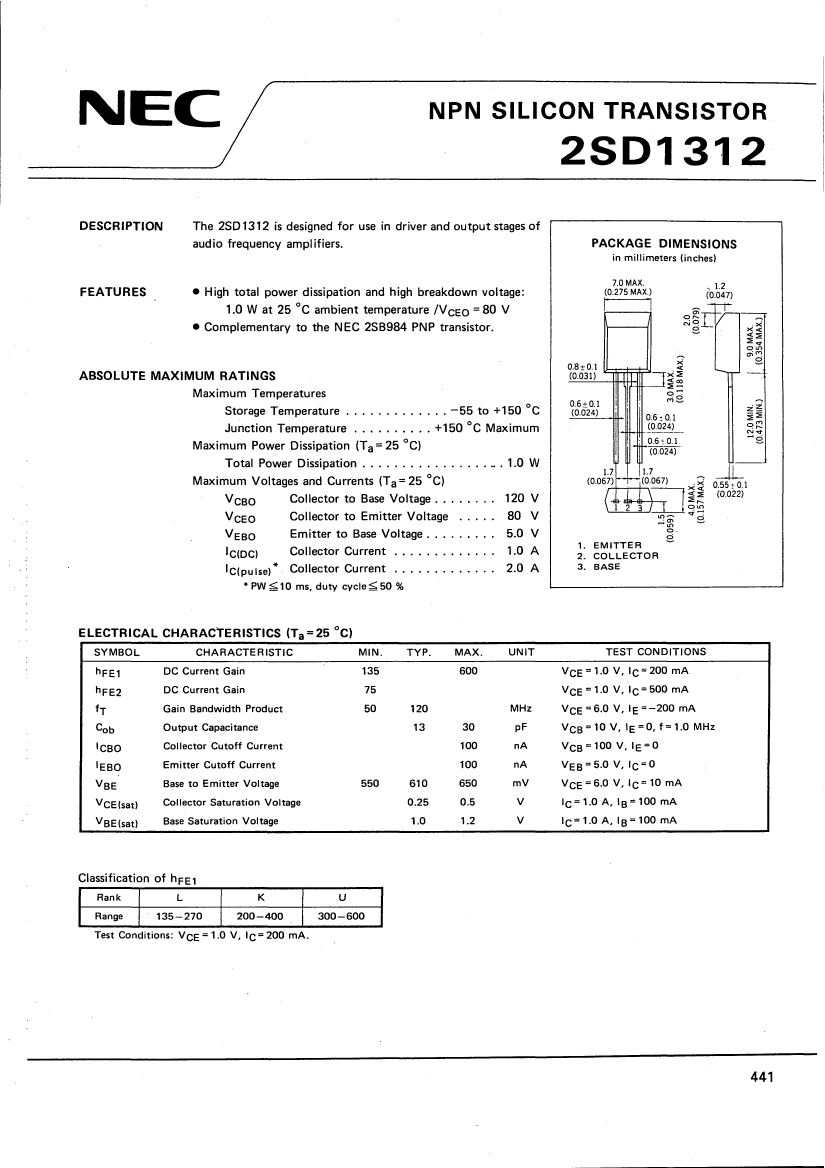

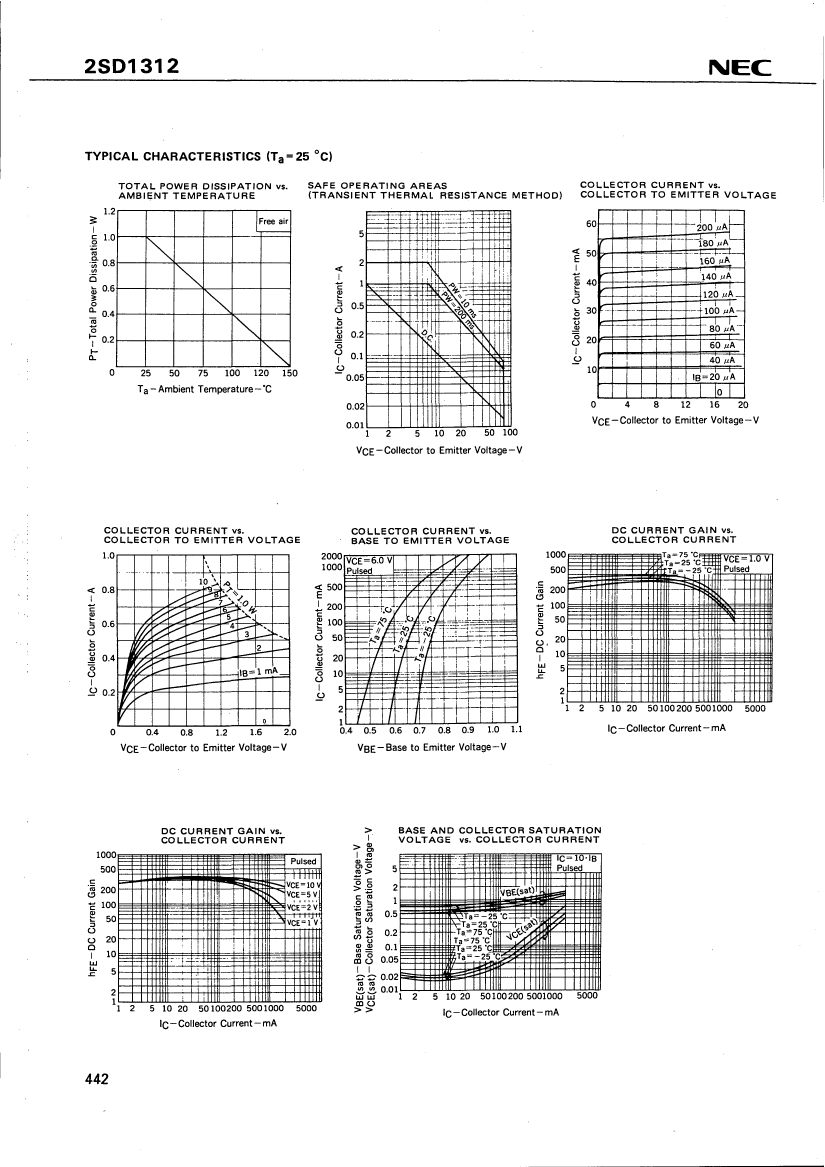

Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon,

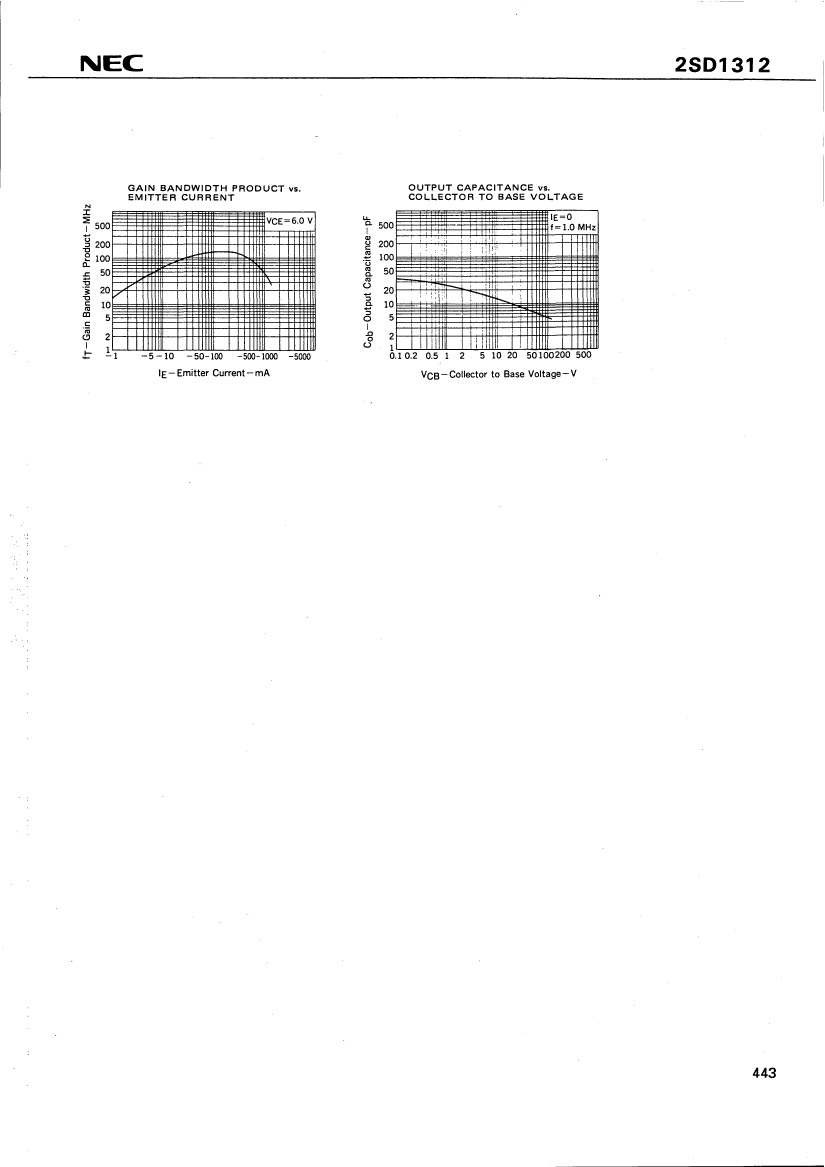

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | NEC Electronics |
| package instruction | IN-LINE, R-PSIP-T3 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 1 A |
| Collector-emitter maximum voltage | 80 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 135 |
| JESD-30 code | R-PSIP-T3 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 3 |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | NPN |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | TIN LEAD |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | AMPLIFIER |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 120 MHz |
| Base Number Matches | 1 |
| 2SD1312-K | 2SD1312-L-AZ | 2SD1312-U-AZ | 2SD1312-K-AZ | 2SD1312-AZ | 2SD1312 | 2SD1312-U | 2SD1312-L | |
|---|---|---|---|---|---|---|---|---|
| Description | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, |
| Maker | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics |
| package instruction | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 |
| Reach Compliance Code | compliant | unknown | unknown | unknown | unknown | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum collector current (IC) | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A |
| Collector-emitter maximum voltage | 80 V | 80 V | 80 V | 80 V | 80 V | 80 V | 80 V | 80 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 135 | 200 | 300 | 135 | 75 | 75 | 300 | 200 |
| JESD-30 code | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN | NPN | NPN | NPN |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| transistor applications | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 120 MHz | 120 MHz | 120 MHz | 120 MHz | 120 MHz | 120 MHz | 120 MHz | 120 MHz |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
