194389: DescriptionD Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, M3, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size87KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

194389 Overview

D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, M3, Plug, ROHS COMPLIANT

194389 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.248 inch
body length	2.087 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	YES
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	YES
Plug contact pitch	0.109 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	M3
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL,VDE,CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Terminal length	0.118 inch
Terminal pitch	2.7686 mm
Termination type	PRESS FIT
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

Verpackt in Tray

Verpackungseinheit 30 St.

6,3

-0,25

tray packaging

packaging unit 30 pcs

6,3

0,6

Leiterplatte

5 x 18 = 90

pcb

-0,4

+0,2

max. 138

3,2

Pin 1

4 x 58 = 232

38,5

-0,2

12,6

±0,3

-0,2

max. 325

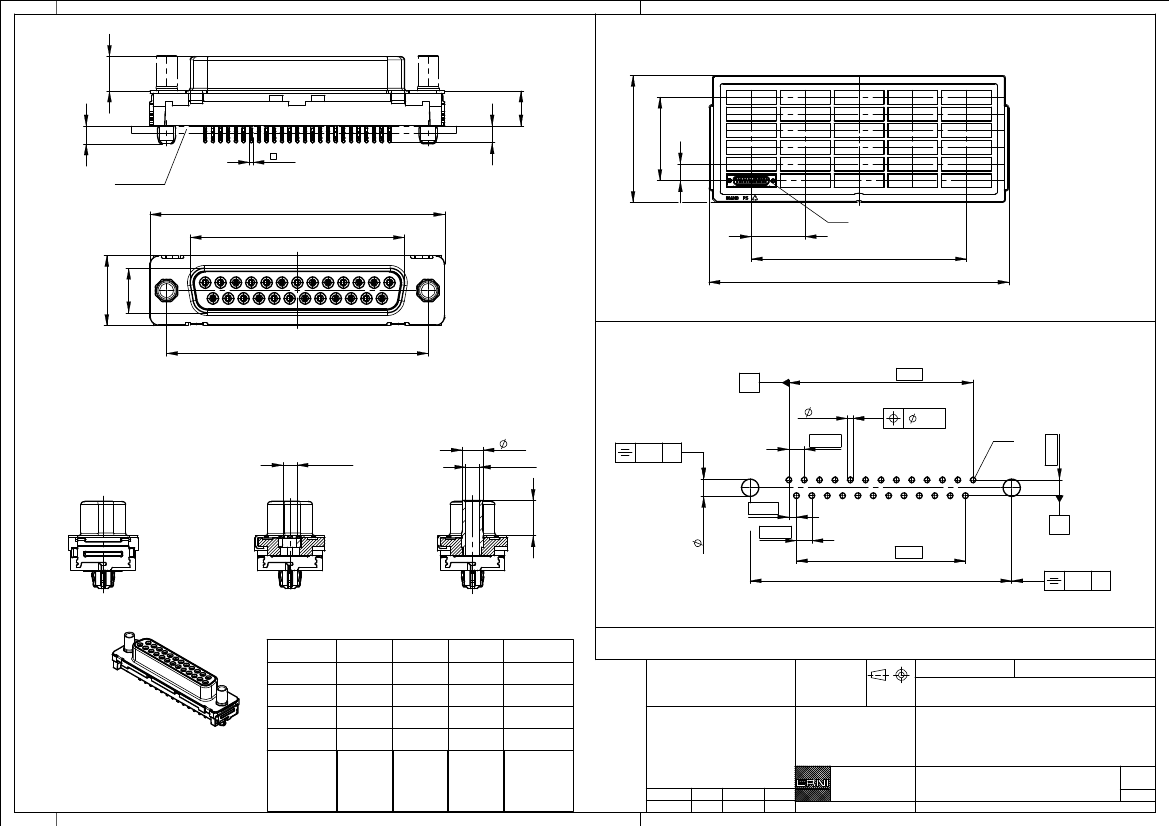

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

±0,1

Layoutvorschlag:

recommended layout:

12 x 2,76 = 33,12

+0,09

ohne /

without

max. Einschraubtiefe 3,7 mm

Mutter /

nut

thread depth max. 3,7 mm

max. Einschraubtiefe 5,5 mm

Bolzen /

bolt

-0,06

2,76

thread depth max. 5,5 mm

3,7

0,05 (25x)

2,84

11 x 2,76 = 30,36

±0,05

0,05

Pin 1

Gewinde

/ thread

/ #4-40

Gewinde

/ thread

/ #4-40

0,05

3,1

-0,06

+0,04

6,4

1,38

2,76

Beschriftung nach Bedruckungsvorschrift 174538

Part marking according to specification 174538

M 1:1

Lochaufbau siehe ERNI-Spezifikation 164062 /

hole design according to ERNI-specification 164062

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to the production documentation

Proprietary notice pursuant to ISO 16016 to be observed.

194385

194386

194387

#4-40

ohne

Mutter

Bolzen

Bemerkung

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

Anschlussbereich verzinnt

terminal area tin plating

Anforderungsstufe: 2

194388

194389

Ident.-Nr.

class: 2

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

25.02.2010

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-S 25-EE-3,0-6,3-BA8

TMC-S 25-EE-3,0-6,3-type 8

part-no.

without

thread

bolt

remark

www.ERNI.com

Class

144918

TMCS
