52088-111LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52088-111LF

52088-111LF: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size780KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

52088-111LF Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE

52088-111LF Parametric

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	SHIELDED
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	52088
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

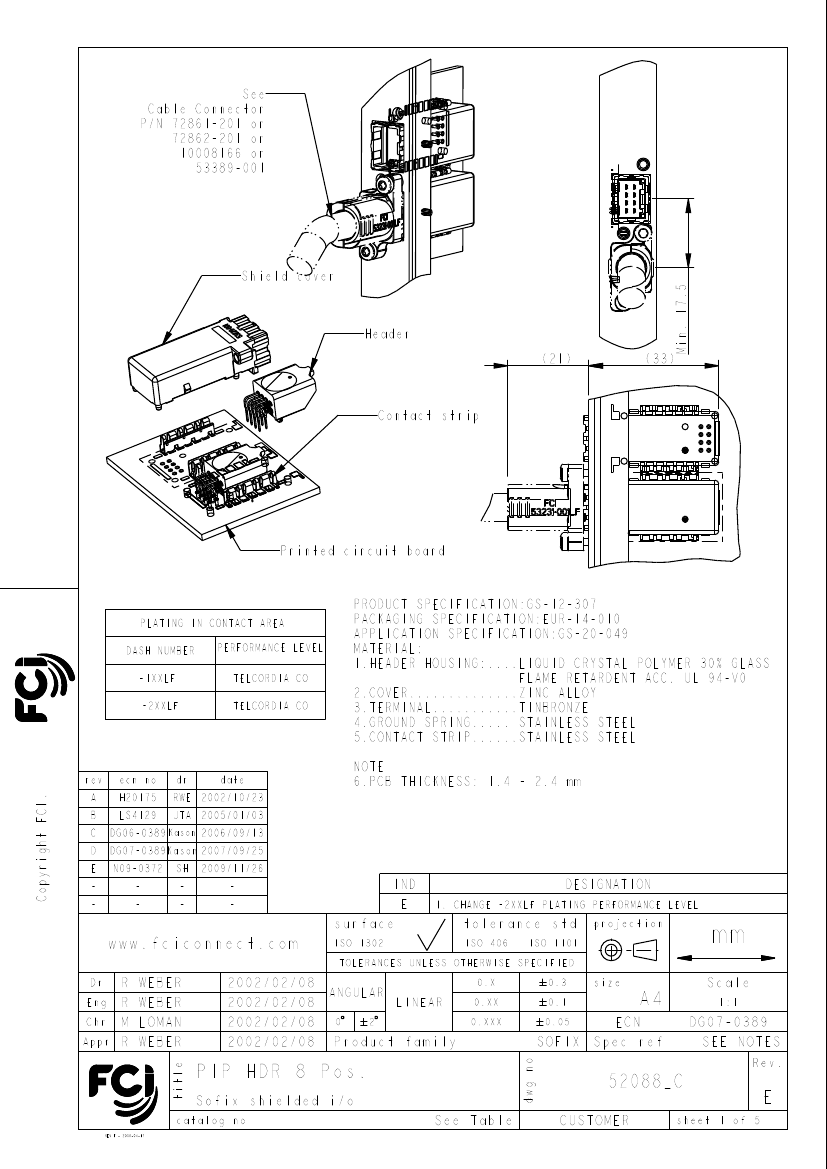

See

Cable Connector

P/N 72861-201 or

72862-201 or

10008166 or

53389-001

Shield cover

Min. 17.5

Header

(21 )

(33)

Contact strip

Printed circuit board

PLATING IN CONTACT AREA

DASH NUMBER

-1XXLF

-2XXLF

PERFORMANCE LEVEL

TELCORDIA CO

PRODUCT SPECIFICATION:GS-12-307

PACKAGING SPECIFICATION:EUR-14-010

APPLICATION SPECIFICATION:GS-20-049

MATERIAL:

1.HEADER HOUSING:....LIQUID CRYSTAL POLYMER 30% GLASS

FLAME RETARDENT ACC. UL 94-V0

2.COVER..............ZINC ALLOY

3.TERMINAL...........TINBRONZE

4.GROUND SPRING..... STAINLESS STEEL

5.CONTACT STRIP......STAINLESS STEEL

NOTE

6.PCB THICKNESS: 1.4 - 2.4 mm

rev

ecn no

H20175

LS4129

date

RWE 2002/10/23

JTA 2005/01/03

DG06-0389

Kason

2006/09/13

DG07-0389 Kason 2007/09/25

N09-0372

2009/11/26

IND

surface

ISO 1302

DESIGNATION

1. CHANGE -2XXLF PLATING PERFORMANCE LEVEL

tolerance std

ISO 406

ISO 1101

projection

www.fciconnect.com

Eng

Chr

Appr

Scale

1:1

TOLERANCES UNLESS OTHERWISE SPECIFIED

R WEBER

M LOMAN

R WEBER

title

2002/02/08

ANGULAR

0.X

0.3

0.1

0.05

size

LINEAR

0.XX

0.XXX

ECN

DG07-0389

SEE NOTES

Rev.

Product family

dwg no

SOFIX Spec ref

PIP HDR 8 Pos.

Sofix shielded i/o

See Table

52088_C

CUSTOMER

sheet

1 of 5

catalog no

REV F - 2006-04-17

PDM: Rev:E

STATUS:

Released

Printed: Aug 01, 2010

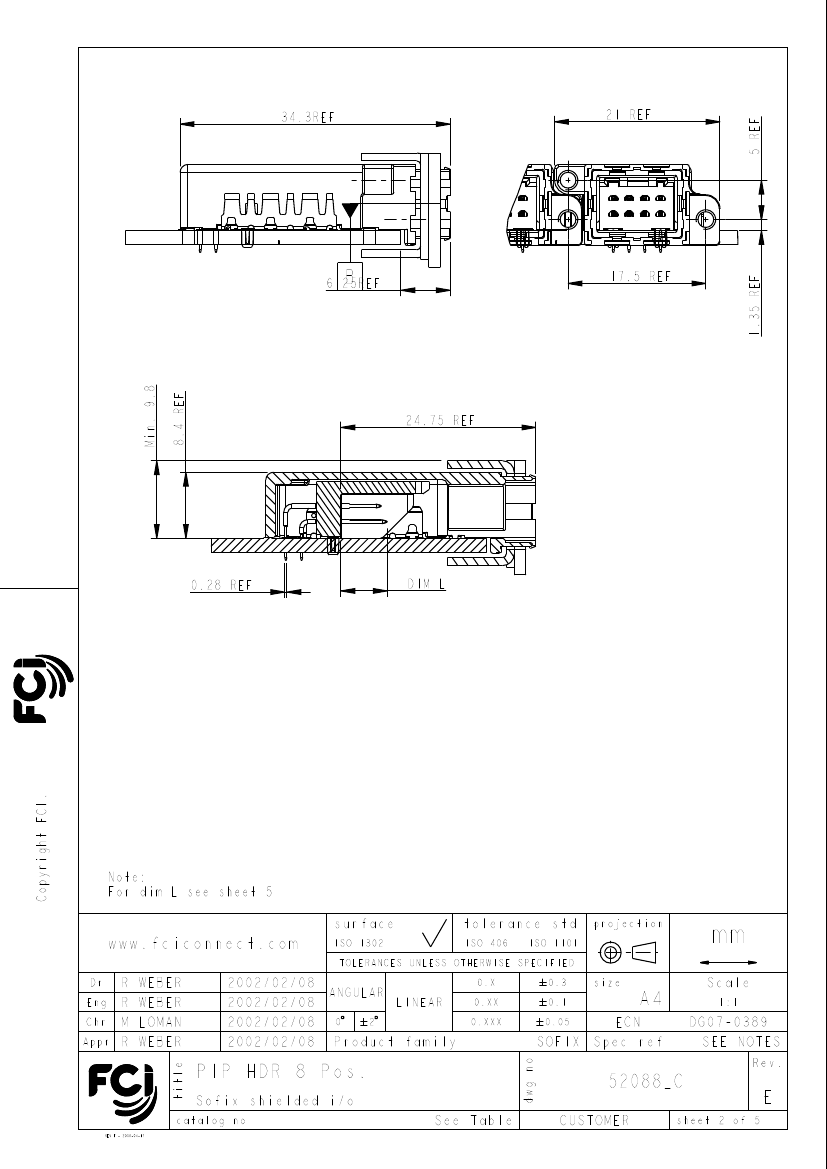

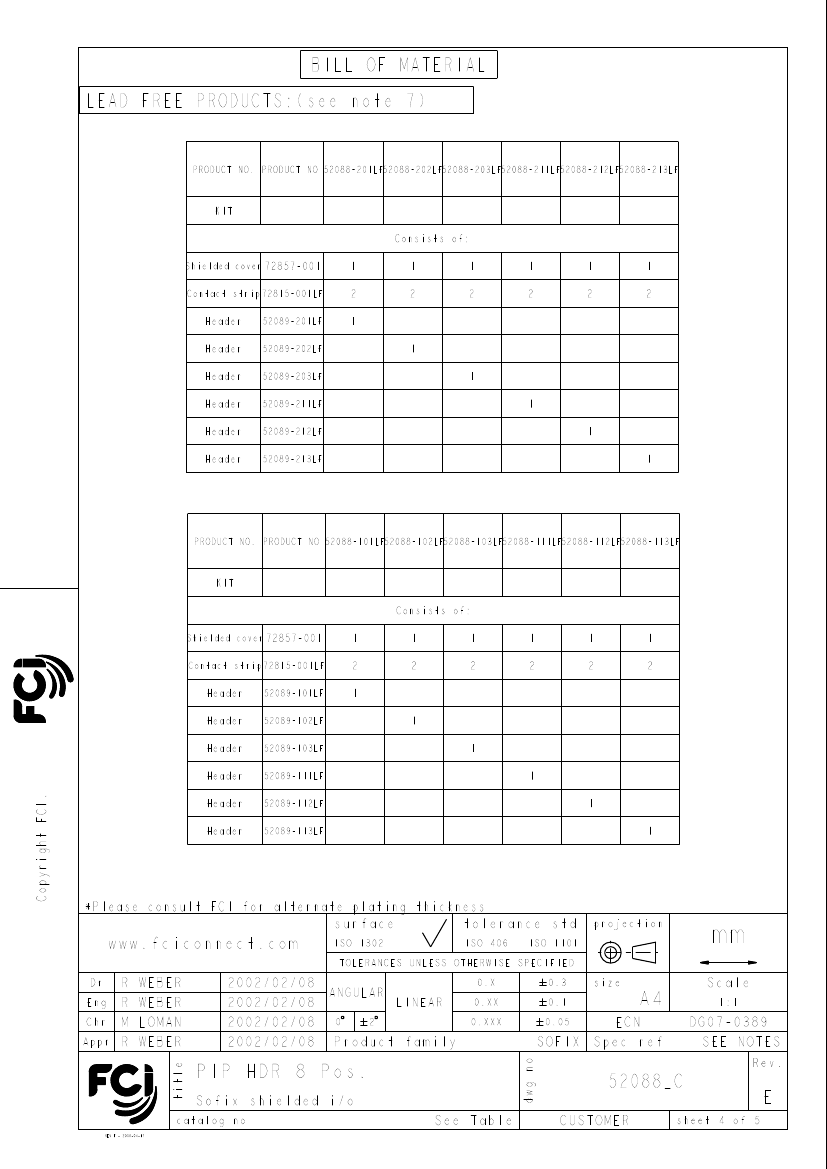

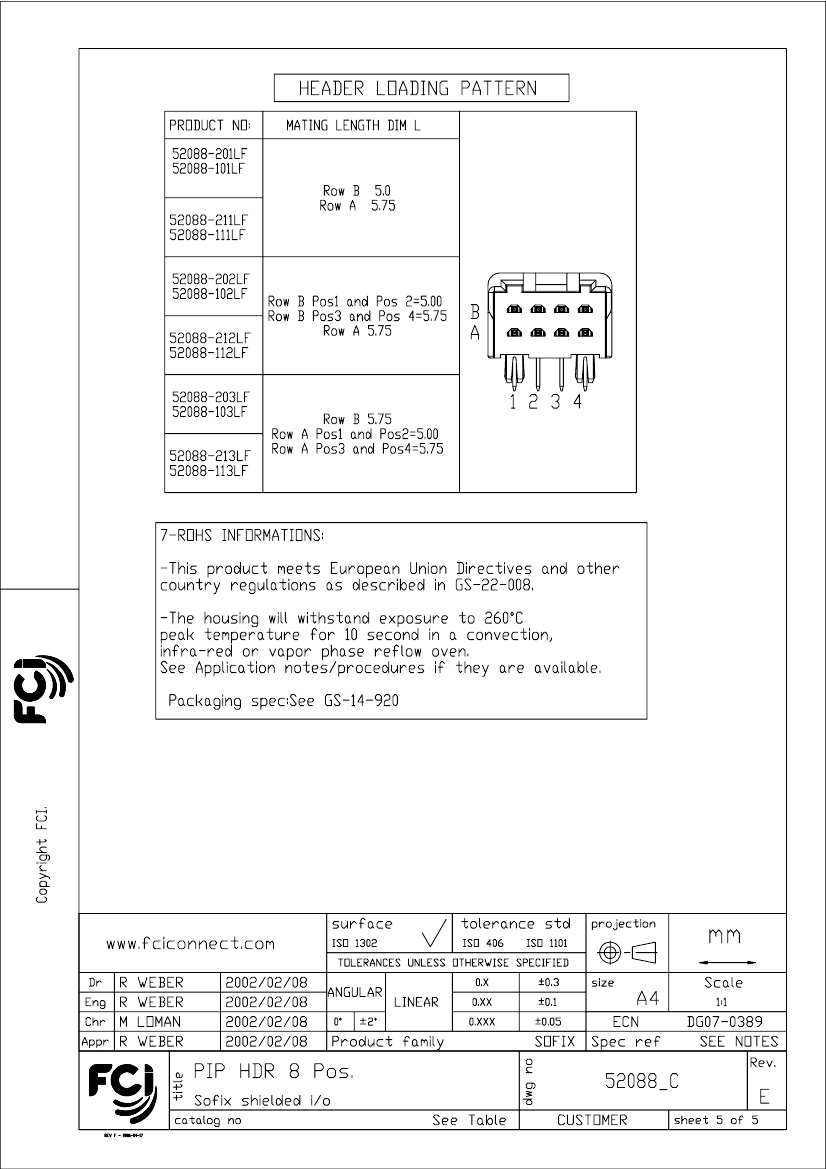

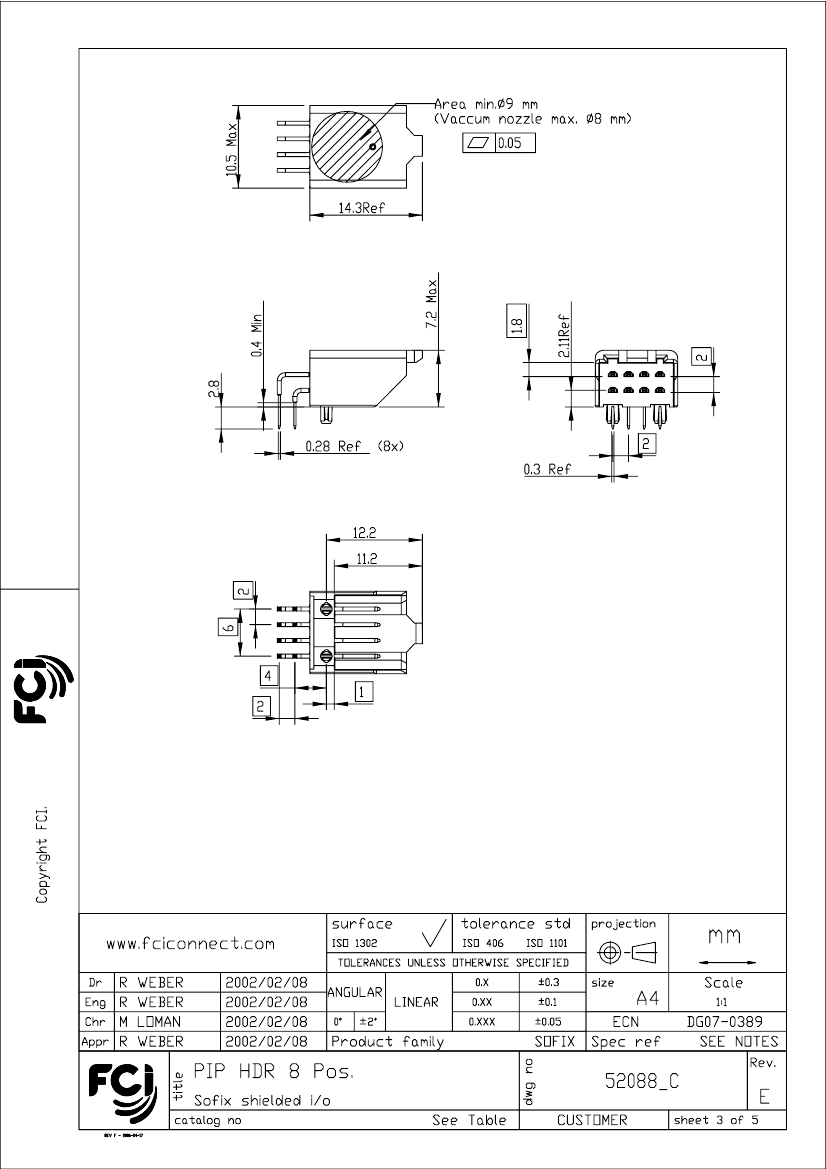

52088-111LF Related Products

	52088-111LF	52088-202LF	52088-203LF	52088-101LF	52088-102LF	52088-103LF	52088-112LF	52088-113LF	52088-201LF
Description	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE	METRAL	METRAL	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, LEAD FREE
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	8	8	8	8	8	8	8	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Manufacturer's serial number	52088	-	-	52088	52088	52088	52088	52088	-
Base Number Matches	1	-	-	1	1	1	1	1	-
