650932-5 datasheet, PDF - EEWORLD Datasheet

650932-5: DescriptionCONNECTOR,DIN-41612,PCB MNT,RECEPT,32 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL,HOLE .112-.124; CategoryThe connector The connector; File Size37KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

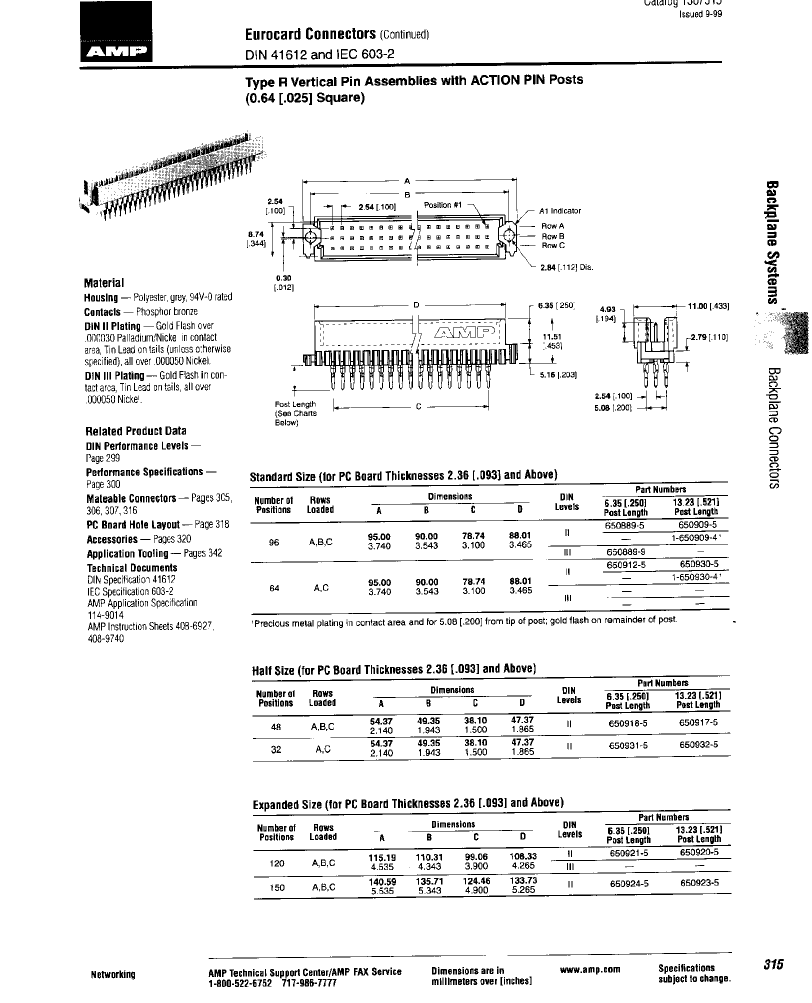

650932-5 Overview

CONNECTOR,DIN-41612,PCB MNT,RECEPT,32 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL,HOLE .112-.124

Parameter Name	Attribute value
Reach Compliance Code	unknow
body width	0.433 inch
subject depth	0.453 inch
body length	2.14 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000000 Ω
Insulator color	GRAY
insulator material	POLYESTER
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Installation option 1	HOLE .112-.124
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	2
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.521 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	32
Base Number Matches	1

	650932-5	650920-5
Description	CONNECTOR,DIN-41612,PCB MNT,RECEPT,32 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL,HOLE .112-.124	CONNECTOR,DIN-41612,PCB MNT,RECEPT,120 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL,HOLE .112-.124
Reach Compliance Code	unknow	unknown
body width	0.433 inch	0.433 inch
subject depth	0.453 inch	0.453 inch
body length	2.14 inch	4.535 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	YES	YES
Dielectric withstand voltage	1000VAC V	1000VAC V
Insulation resistance	1000000000000 Ω	1000000000000 Ω
Insulator color	GRAY	GRAY
insulator material	POLYESTER	POLYESTER
Plug contact pitch	0.1 inch	0.1 inch
Match contact row spacing	0.2 inch	0.1 inch
Installation option 1	HOLE .112-.124	HOLE .112-.124
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Loaded row name	A,C	A,B,C
PCB row number	2	3
Number of rows loaded	3	3
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.08 mm	2.54 mm
Rated current (signal)	1.5 A	1.5 A
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.521 inch	0.521 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	32	120
