NTL06C5N6TRF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> NTL06C5N6TRF

NTL06C5N6TRF: DescriptionGeneral Purpose Inductor, 0.0056uH, 3.572%, 1 Element, Alumina-Core, SMD, 0603, CHIP, 0603, ROHS COMPLIANT; CategoryPassive components inductor; File Size165KB，4 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NTL06C5N6TRF Overview

General Purpose Inductor, 0.0056uH, 3.572%, 1 Element, Alumina-Core, SMD, 0603, CHIP, 0603, ROHS COMPLIANT

NTL06C5N6TRF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	0603
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	0603
structure	Chip
core material	ALUMINA
DC Resistance	0.5 Ω
Nominal inductance(L)	0.0056 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	0.45 mm
Package length	1.6 mm
Package form	SMT
Package width	0.8 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	15
Maximum rated current	0.4 A
self resonant frequency	5000 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	INDUCTANCE TOLERANCE IS 0.2 NANO HENRY
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	300 MHz
Tolerance	3.572%

Preview

Download Datasheet

View All

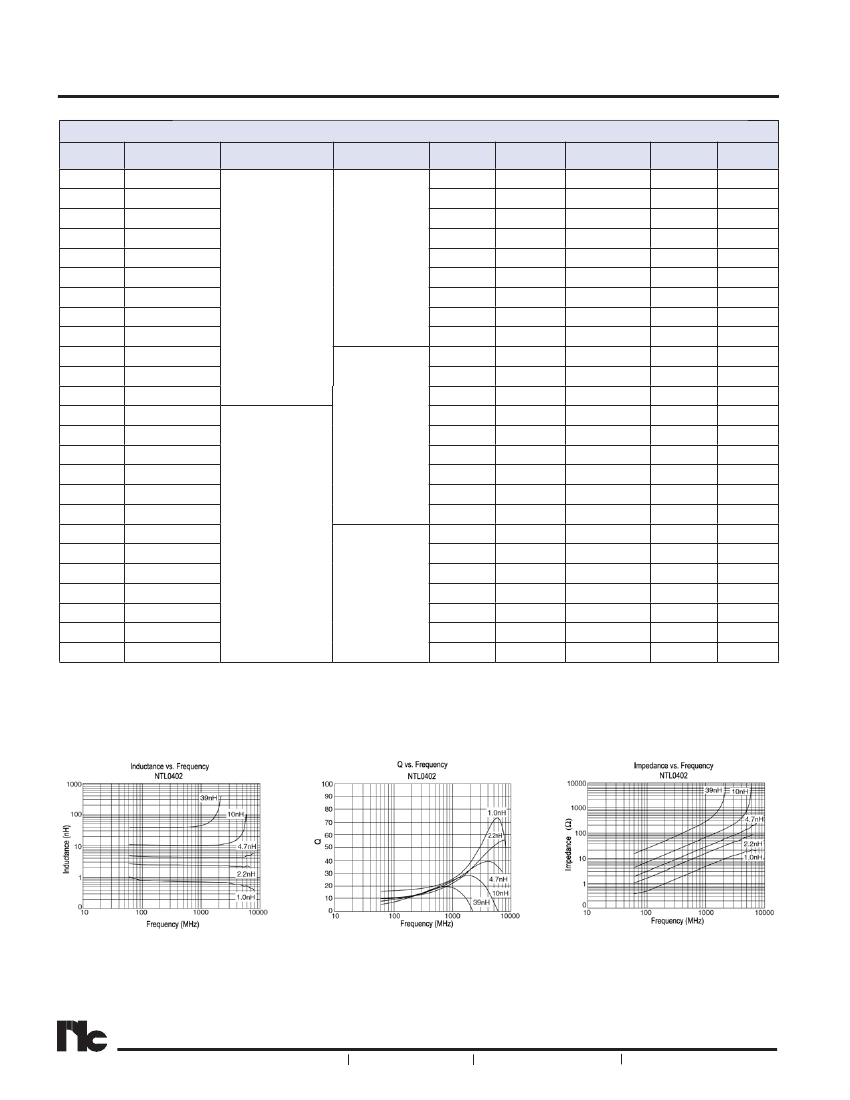

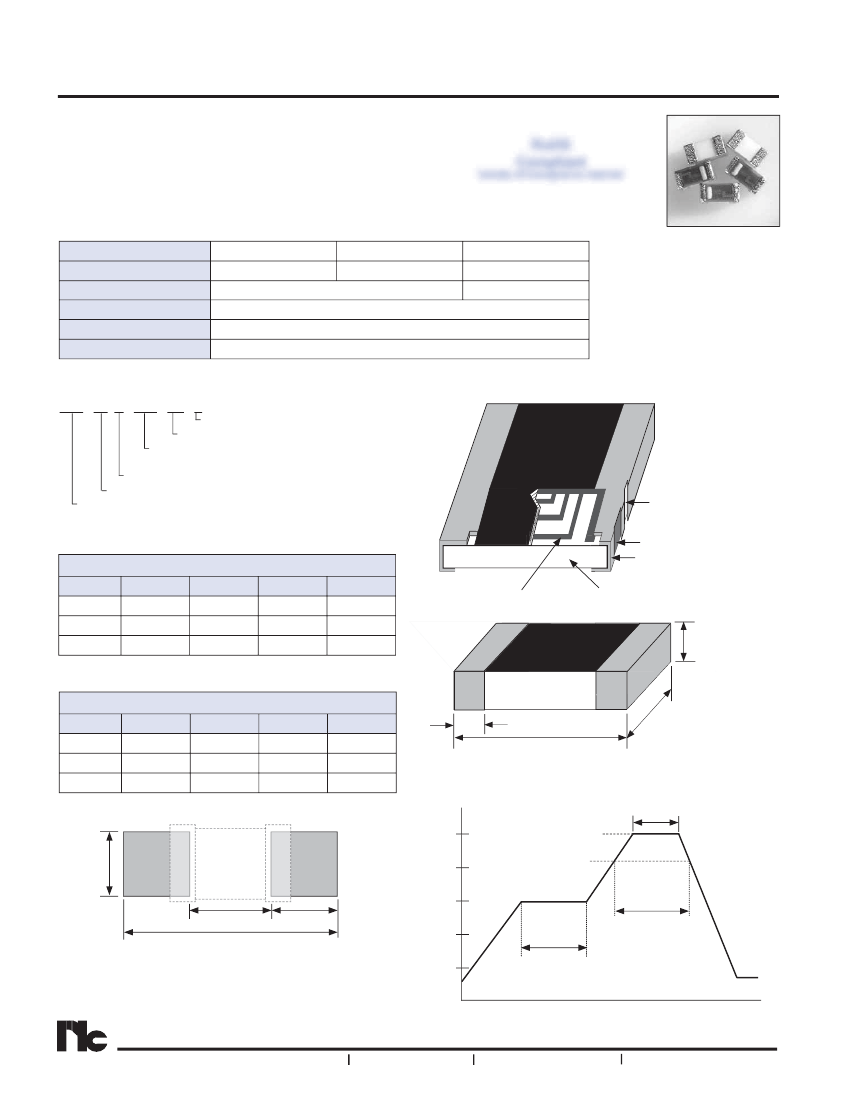

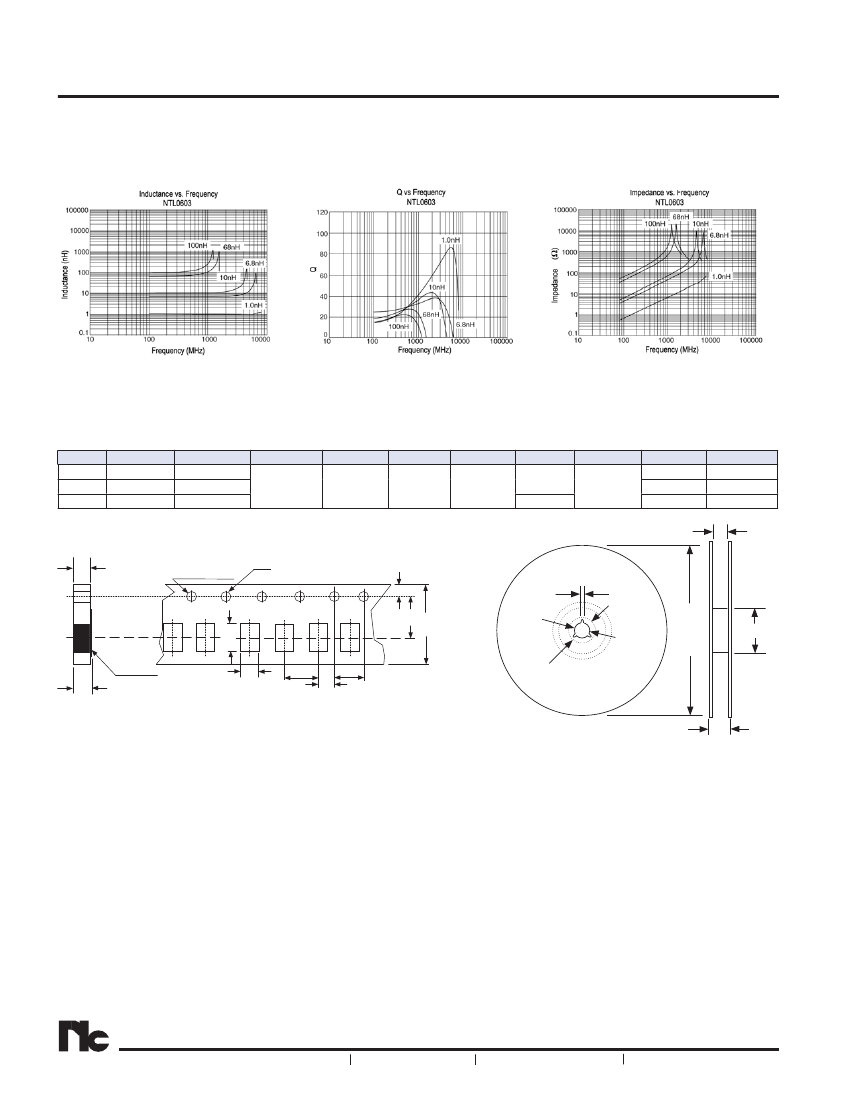

Thin Film Chip Inductors

FEATURES

• ULTRA-SMALL LOW PROFILE 0201, 0402 & 0603SIZES

• HIGH Q (15 ~ 40) @ 300MHz ~ 1.5GHz

• S-PARAMETER CHARACTERISTICS AVAILABLE

• HIGH CURRENT & HIGH SRF

• COMPATIBLE WITH Pb-FREE SOLDERING

• RoHS COMPLIANT

CHARACTERISTICS

Case Size

Inductance Range

Available Tolerance

Temperature Range

Resistance to Solder Heat

Temperature Cycling

0201

1.0nH ~ 5.6nH

0402

1.0nH ~ 15nH

0603*

1.0nH ~ 100nH

±0.2nH (C) & 2% (G)

NTL Series

RoHS

Compliant

includes all homogeneous materials

*See Part Number System for Details

±0.1nH (B), ±0.2nH (C) & 2% (G)

-40°C ~ +125°C

270°C ±5°C for 10 seconds

ΔL±10%

after 10 cycles -40°C/+20°C/+85°C/+20°C

*Not recommended for new designs (see NTI06 series)

PART NUMBER SYSTEM

NTL 02 C 33N TR F

RoHS compliant

Tape & Reel Packaging

Inductance Value in nano-henries,

"N" indicates decimal point

Inductance Tolerance (see values tables)

Case Code

Series

CONSTRUCTION

Copper (Cu)

Termination Base

2µm Nickel (Ni) Barrier

3µm Tin (Sn) Outerplating

CASE DIMENSIONS (mm)

Case Sixe

0201

0402

0603

0.61 ± 0.05

1.0 ± 0.10

1.6 ± 0.10

0.31 ± 0.05

0.5 ± 0.10

0.8 ± 0.10

0.28 ± 0.05

0.40 ± 0.10

0.45 ± 0.10

0.12 ± 0.05

0.25 ± 0.10

0.30 ± 0.10

Etched Copper Coil

Alumina Substrate

LAND PATTERN DIMENSIONS (mm)

Case Sixe

0201

0402

0603

0.2 ~ 0.3

0.5 ~ 0.6

0.6 ~ 1.0

0.8 ~ 0.9

1.5 ~ 1.8

2.4 ~ 2.8

0.2 ~ 0.3

0.5 ~ 0.6

0.7 ~ 0.9

0.3 ~ 0.4

0.5 ~ 0.6

0.9 ~ 1.1

REFLOW SOLDERING PROFILE

10 sec. max.

250°C

250°C max.

220°C

130°C ~ 180°C

Time above 220°C -

30 ~ 90 sec. max.

Temperature °C

200°C

150°C

100°C

50°C

60 ~ 90 sec.

Time (seconds)

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

Recommended Resources
