H-HP803-xx
3W Hexagon Power LED Series
Features
Highest Flux
Very long operating life ( life >> 50000hr )
More Energy Efficient than Incandescent and most Halogen lamps
Low voltage DC operated
Instant light (less than 100 ns)
Superior ESD protection

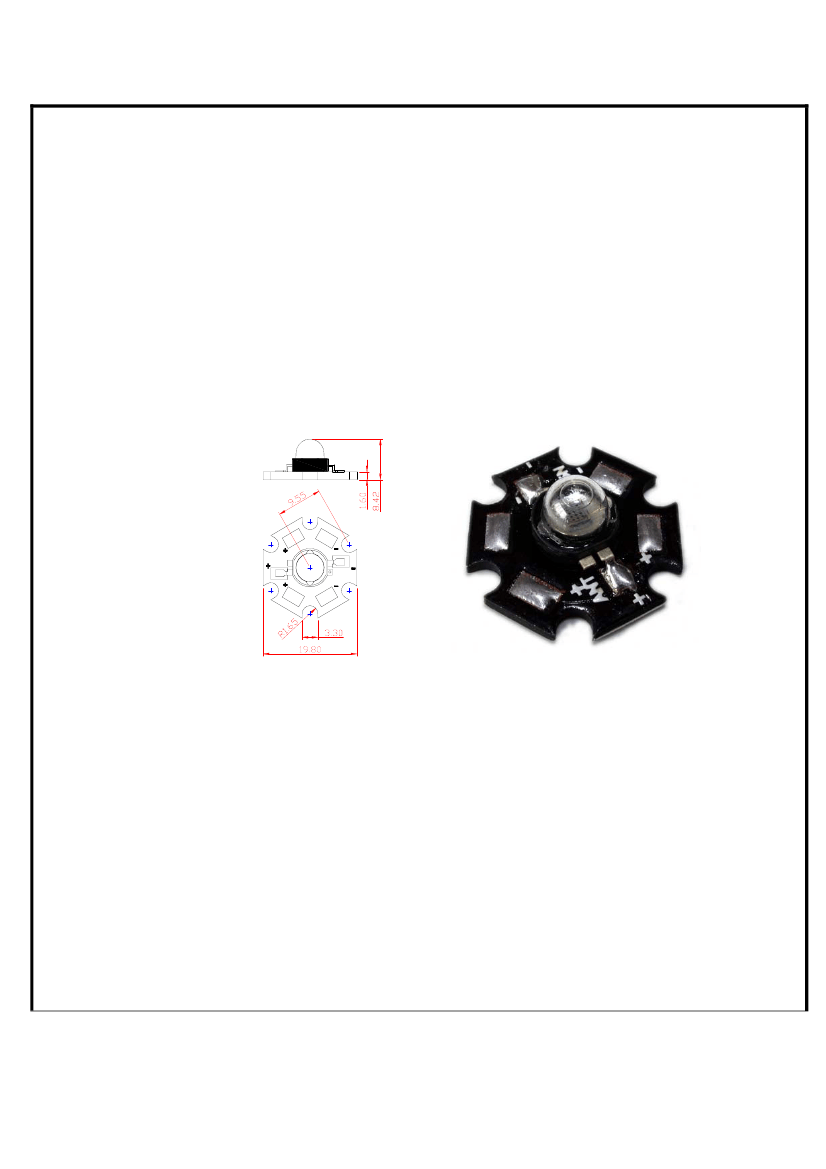

Package Dimensions
Notes
1.
2.
3.
4.
5.
6.
7.
Drawings not to scale
All dimensions are in millimeters .
Tolerance is ±0.1mm unless otherwise noted.
Protruded resin under flange is 1.0mm max.
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice.
Precautions for ESD:
STATIC SHIELD Electricity and surge damages the LED. It is recommended to use a wrist band or
anti-electrostatic glove when handling the LED. All devices, equipment and machinery must be
properly grounded
Absolute Maximum Ratings at Ta=25C
Parameter
Power Dissipation
Pulse Forward Current
Forward Current
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Symbol
PD
IPF
IF
VR
Topr
Tstg
Max
3
1000
700
5
- 40 to +85
- 40 to + 85
Unit
W
mA
mA
V
C
C
Flux Characteristics at 700mA , Junction Temperature, TJ= 25C
Color
White
Warm White
Blue
Cyan
Model
H-HP803NW
H-HP803WW
H-HP803NB
H-HP803CN
H-HP803PG
H-HP803NO
H-HP803NR
Typ.(Lumens)
55 lm
45 lm
16 lm
40 lm
55 lm
40 lm
55 lm
Angle
120
120
120
120
120
120
120
Pure
Green
Amber
Red
Optical Characteristics at 700mA , Junction Temperature, TJ = 25C
Color
White
Warm White
Blue
Cyan
CCT /
λD
Min.
5000K
2850K
460nm
490nm
520nm
587nm
620nm
Typ.
6000K
3300K
470nm
505nm
530nm
590nm
625nm
Max.
7000K
3800K
475nm
515nm
540nm
595nm
645nm
λ
--
--
25
30
35
20
20
λ/T
--
--
0.04
0.04
0.04
0.05
0.05
Pure
Green
Amber
Red
Electrical Characteristics at 700mA , Junction Temperature, TJ = 25C
Color
Min.
White
Warm White
Blue
Cyan
3.8 v
3.8 v
3.8 v
3.6 v
3.6 v
2.8 v
2.8 v
Forward Voltage
Typ.
4.0 v
4.0 v
4.0 v
3.8 v
3.8 v
3.0 v
3.0 v
Max.
4.2 v
4.2 v
4.2 v
4.2 v
4.2 v
3.2 v
3.2 v
/W
Thermal Resistance,
Junction To Case
V/T
-2.0
-2.0
-2.0
-2.0
-2.0
-2.0
-2.0
15
15
15
15
15
18
18
Pure
Green
Amber
Red
Notes
1.
2.
3.
Minimum luminous flux or radiometric power performance guaranteed within published operating
conditions. maintains a tolerance of
±10%
on flux and power measurements
Dominant wavelength is derived from the CIE 1931 Chromaticity diagram and represents the
perceived color. maintains a tolerance of± 1 nm for dominant wavelength measurements.
CCT ±5% tester tolerance.
Precautions For Use
Over–current–proof
Customer must apply resistors for protection, otherwise slight voltage shift will cause
big current change
Burn out will happen
Typical Electrical / Optical Characteristics Curves

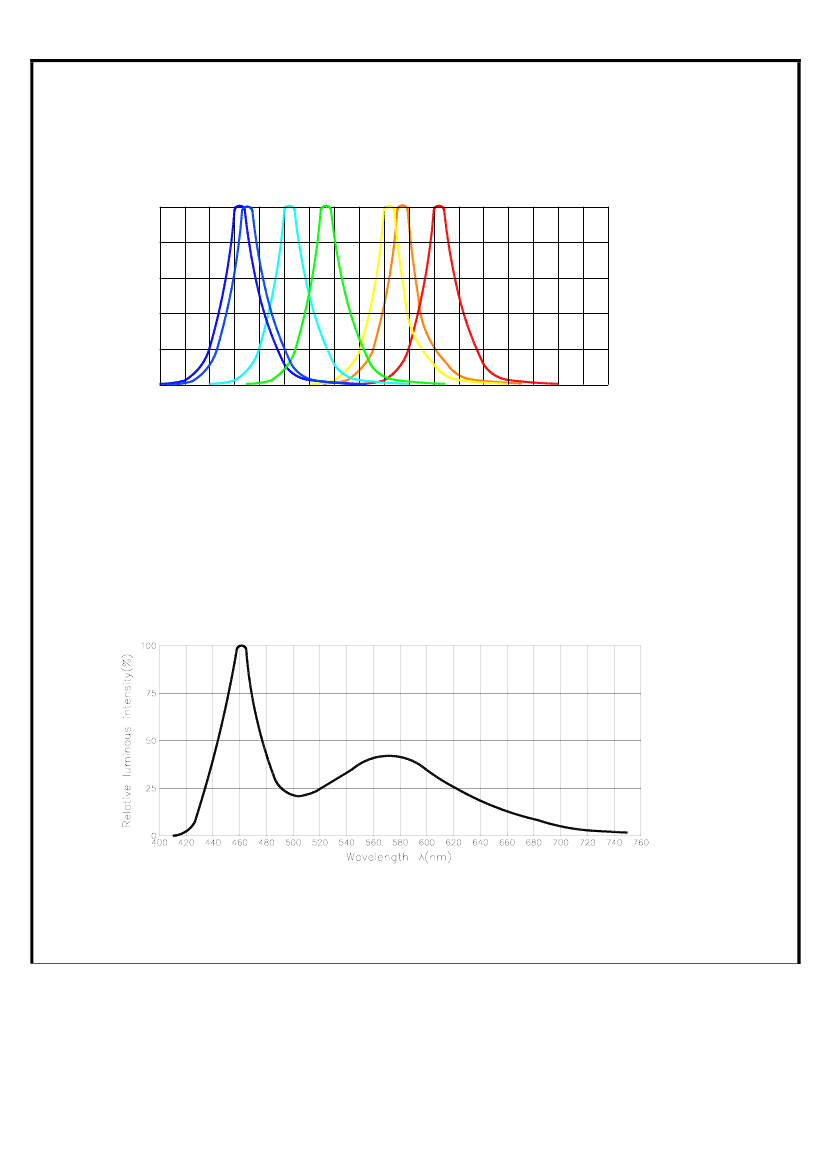

Spectrum Distribution
100
Relative luminous intensity(%)
Blue
Pure Blue
Yellow
Green
Amber
Red
80
60
Cyan
40
20
0
400 420 440 460 480 500 520 540 560 580 600 620 640 660 680 700 720 740 760
Wavelength (nm)
Spectrum Distribution

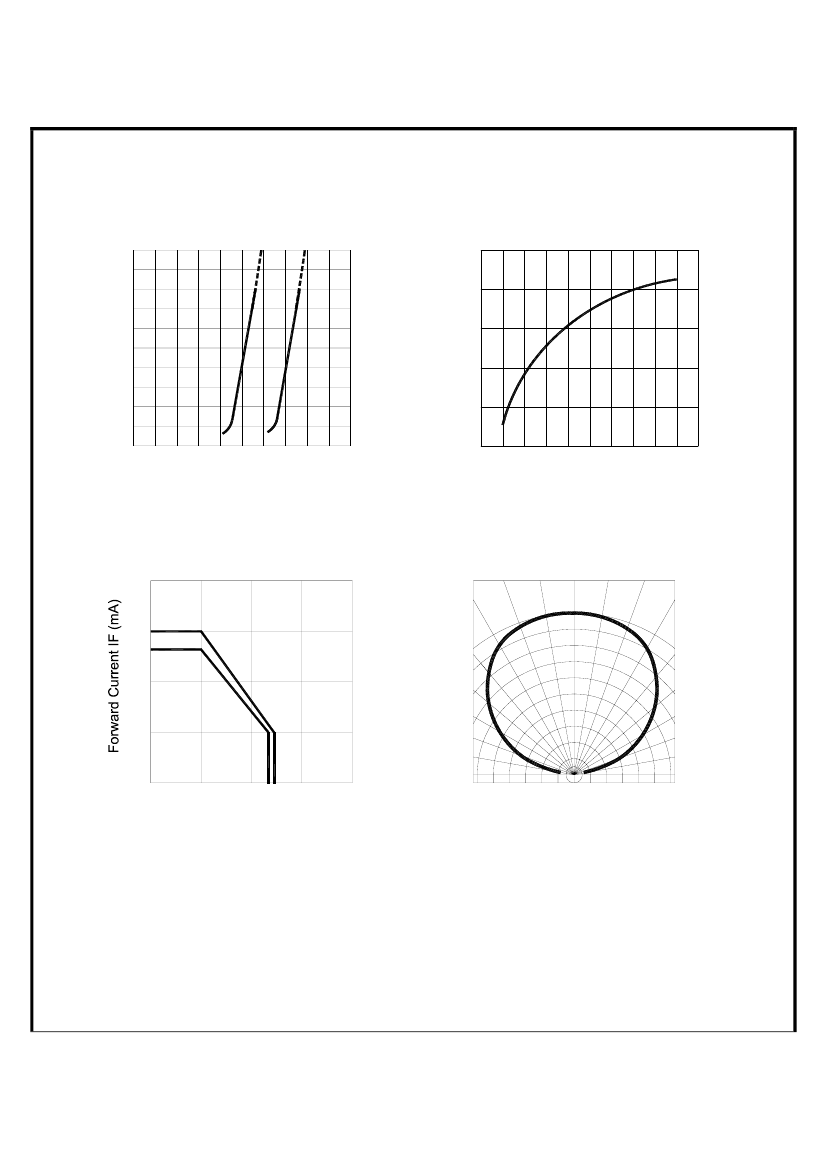

Forward Current VS. Forward Voltage
Relative Luminous Inttensity(%)
1000
Lum inous Intensity VS. Forward Current
125
Forward Current IF (mA)
800
100
Yellow/Red
600
75
400
Blue/Green
W hite
50
200
25
0
0
1.0
2.0
3.0
4.0
5.0
0
0
200
400
600
800
1000
Forward Voltage(VF) -Volts
Forward Current IF (mA)
Forward Current VS. Ambient Temperature
1000
30¢X
20¢X
Radiation Diagram
10¢X
0¢X
750
Yellow/Red
500
Blue/Green
White
250
40¢X
50¢X
60¢X
70¢X
80¢X
0
0
50
100
150
200
90¢X
0.6
0.4
0.2
0 0.1
0.3
0.5
1.0
0.9
0.8
0.7
Ambient Temperature (¢X )
C
