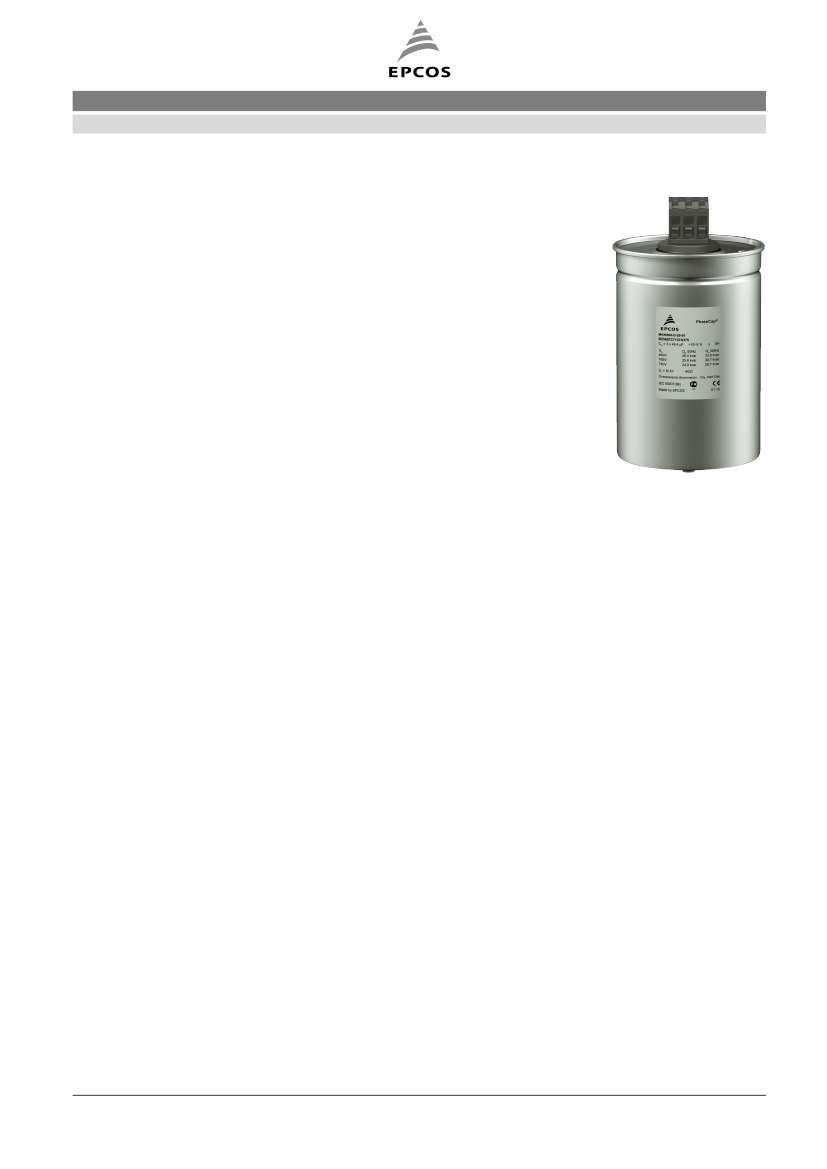

Film Capacitors – Power Factor Correction
PhaseCap Premium capacitors
Construction
Dielectric: Polypropylene film
Gas-impregnated, dry type, non-PCB
Concentric winding
Wave cut
Extruded round aluminum can with stud
Provided with ceramic discharge module
Triple safety system
B25667C4277A375
MKK440-D-16.7-01/MKK480-D-20-01
Features
Three-phase, delta connected
Self-healing technology
Naturally air cooled (or forced air cooling)
Indoor mounting
Typical applications
For power factor correction
Terminals
Optimized capacitor safety terminals
Mounting
Threaded stud at bottom of can
(max. torque for M12 = 10 Nm)
FILM P PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 10
March 2013
Film Capacitors – Power Factor Correction
PhaseCap Premium capacitors
Technical data and specifications
Characteristics
Rated capacitance C
N
Tolerance
Connection
Rated voltage V
N
Rated frequency f
N
Output
Rated current I
R
tan
δ
0
(dielectric)
W
N
R
S
R
is
•
C
B25667C4277A375
MKK440-D-16.7-01/MKK480-D-20-01
MKK440-D-16.7-01
3
•
91.6 µF
–5 / +10%
D (Delta)
440 V AC
50 Hz
16.7 kvar
22 A
0.2 W / kvar
64 Ws
3.49 mΩ
30 000 s
60 Hz
20.0 kvar
26 A
MKK480-D-20-01
3
•
91.6 µF
–5 / +10%
D (Delta)
480 V AC
50 Hz
20.0 kvar
24 A
0.2 W / kvar
60 Hz
24.0 kvar
29 A
Maximum ratings
V
max
(up to 8 h daily)
V
max
(up to 1 min)
I
max
I
S
V
TC imp
530 V AC
680 V AC
Up to 1.3
•
I
R
(A) including combined effects of harmonics,
overvoltages and capacitance tolerance
300
•
I
R
(A)
8 000 Vpk (Standard 1.2/50
μs
impulse)
Test data
V
TT
V
TC
*tan
δ
(50 Hz)
* Without discharge resistor
1 050 V AC / 50 Hz during 10 s
3 000 V AC / 50 Hz during 10 s
≤
0.5 W / kvar
Design data
Dimensions (d × h)
Weight approx.
Impregnation
Fixing
Max. torque (Al can stud)
Mounting position
116 × 200 mm
1.8 kg
Non-PCB, dry, inert gas
Threaded bolt M12
10 Nm
Any mounting position possible.
See “Maintenance and Installation Manual” for further details.
FILM P PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 10
March 2013
Film Capacitors – Power Factor Correction
PhaseCap Premium capacitors
B25667C4277A375
MKK440-D-16.7-01/MKK480-D-20-01
Climatic category –40/D
Θ
min.
Θ
max.
Storage temperature
Θ
hotspot
max.
Maximum power loss at
Θ
ambient
–40 ºC
+55 ºC
–40 ºC … +85 ºC
+85 ºC
P max.
10.0 W
6.7 W
3.3 W
0W
Humidity
Degree of protection
Maximum altitude
av. rel. < 95%
IP 20
4 000 m
at
Θ
ambient
+55 ºC
+65 ºC
+75 ºC
+85 ºC
M ax. allo wable po wer lo ss at specific ambient Temp.
B 25667C4277A 375
25
20
max
M ax. allo wable current (rms) at specific ambient Temp.
B 25667C4277A 375
35
30
25
max
15
10
5
0
15
35
55
75
95
20
15
10
5
0
15
35
55
75
95
P
I
Θ
amb
Θ
amb
M ax. allo wable ambient Temp. at specific po wer lo ss
B 25667C4277A 375
95
85
75
amb
amb
M ax. allo wable ambient Temp. at specific current (rms)
B 25667C4277A 375
95
85
75
65
55
45
35
25
15
65
55
45
35
25
15
0
5
10
15
20
25
Θ
Θ
0
5
10
15
20
max
25
30
35
P
max
I
FILM P PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 10
March 2013
Film Capacitors – Power Factor Correction
PhaseCap Premium capacitors
B25667C4277A375
MKK440-D-16.7-01/MKK480-D-20-01
Mean life expectancy
t
LD
Max. 7500 switchings per year
Up to 180 000 hours (temperature class –40/C);
Θ
HS
≤
70°C
Up to 130 000 hours (temperature class –40/D);
Θ
HS
≤
70°C
Terminals
Protection degree
Max. torque
Terminal cross section
Maximum terminal current
Creepage distance (min.)
Clearance (min.)
Isolated terminals, IP20
2.0 Nm
25 mm
2
80 A
12.7 mm
9.6 mm
Safety
Mechanical safety
Max. short circuit current
Discharge resistor time
Overpressure disconnector
(AFC: 10 kA)
≤
60 s to 75 V or less
Reference standards
IEC 60831–1/2, UL 810-5th edition
Certification: cUL file E238746; GOST
FILM P PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 10
March 2013
