15W AC-DC Reliable Industrial Adaptor
GS15E
series
EN60950-1
■
Features
•
Universal AC input / Full range
•
2 pole EURO plug, Class
Ⅱ
power unit
•
No load power consumption< 0.075W
•
Energy efficiency Level
Ⅵ
•
Comply with EU ErP and meet CoC Version 5
•
Protections: Short circuit / Overload / Over voltage
•
Fully enclosed plastic case
•
Pass LPS
•
2 years warranty
■
Description
■
Applications
•
Consumer electronic devices
•
Telecommunication devices
•
Office facilities
•
Industrial equipments

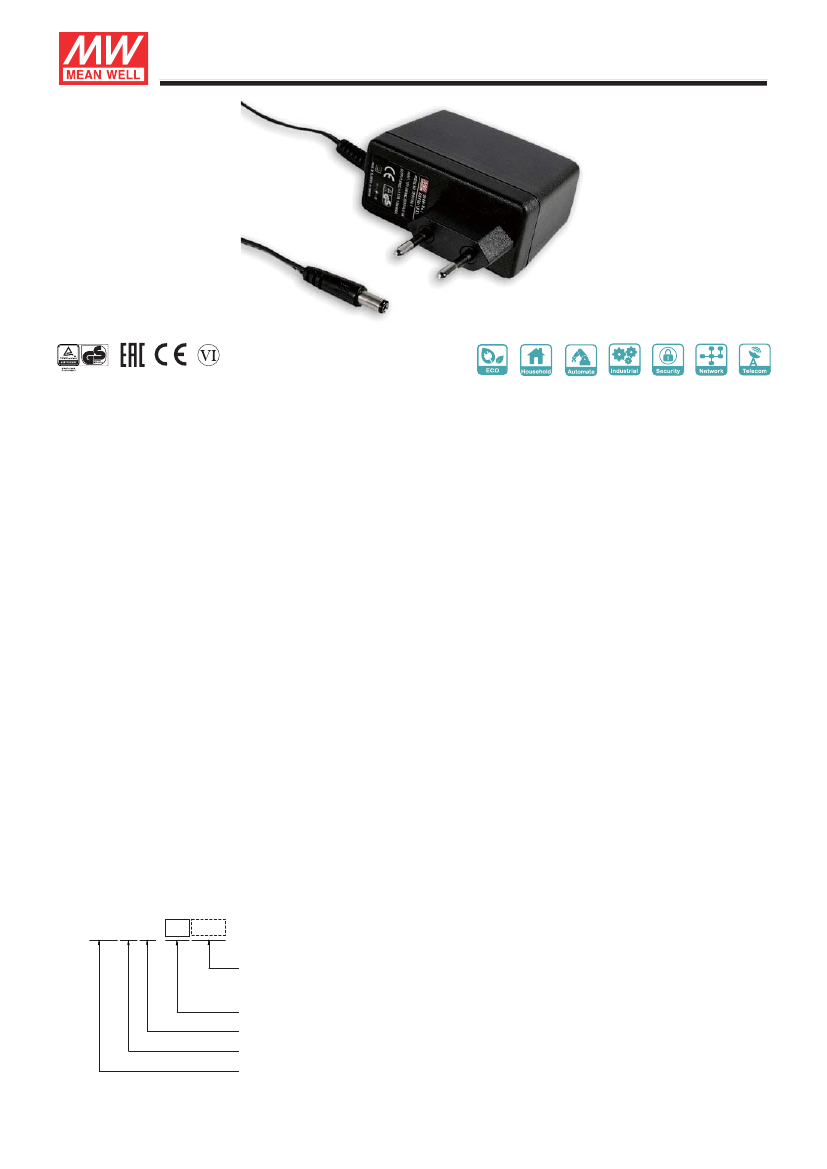

GS15E is a highly reliable, 15W wall-mounted style single-output green adaptor series. This product is
a class
Ⅱ
power unit (no FG), equipped with a 2-Pin standard European AC power plug, adopting the
input range from 90VAC to 264VAC. The entire series supplies different models with output voltages ranging
between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices.
With the efficiency up to 87% and the extremely low no-load power consumption below 0.075W, GS15E is
compliant with EU ErP, and meet Code of Conduct(CoC) Version 5
. The supreme feature allows the adaptor
to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes
the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical
shock.GS15E is certified for the international safety regulations.
■
Model Encoding
GS 15 E -
1
P1J
DC plug type
{
P1J: Plug for standard model, 2.1
ψ×
5
.
5
ψ×
11mm,
C+ tuning fork type
Other options available by customer requested (see Page 4~5)
Output voltage
EURO 2 pin AC plug
Rated wattage
Series name
File Name:GS15E-SPEC 2018-01-15
15W AC-DC Reliable Industrial Adaptor
GS15E
GS15E-3P1J
GS15E-3
12V
1.25A
0 ~ 1.25A
15W
80mVp-p
±3.0%
±0.5%
±3.0%
GS15E-4P1J
GS15E-4
15V
1.00A
0 ~ 1.00A
15W
100mVp-p
±3.0%
±0.5%
±3.0%
GS15E-5P1J
GS15E-5
18V
0.83A
0 ~ 0.83A
15W
120mVp-p
±3.0%
±0.5%
±3.0%
GS15E-6P1J
GS15E-6
24V
0.625A
0 ~ 0.625A
15W
150mVp-p
±2.0%
±0.5%
±2.0%
series
SPECIFICATION
ORDER NO.
SAFETY MODEL NO.
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
OUTPUT
RATED POWER
GS15E-1P1J
GS15E-1
Note.2
5V
GS15E-11P1J GS15E-2P1J
GS15E-1-1
7.5V
1.60A
0 ~ 1.60A
12W
80mVp-p
±5.0%
±0.5%
±5.0%
GS15E-2
9V
1.66A
0 ~1.66A
15W
80mVp-p
±5.0%
±0.5%
±5.0%
GS15E-8P1J
GS15E-8
48V
0.31A
0 ~ 0.31A
15W
240mVp-p
±2.0%
±0.5%
±2.0%
2.40A
0 ~ 2.40A
12W
RIPPLE & NOISE (max.)
Note.3
50mVp-p
VOLTAGE TOLERANCE
Note.4
±5.0%
LINE REGULATION
LOAD REGULATION
Note.5
±0.5%
Note.6
±5.0%
SETUP, RISE, HOLD UP TIME
3000ms, 50ms, 16ms at full load
90 ~ 264VAC 135 ~ 370VDC
VOLTAGE RANGE
FREQUENCY RANGE
INPUT
EFFICIENCY (Typ.)
AC CURRENT
INRUSH CURRENT (max.)
LEAKAGE CURRENT(max.)
OVERLOAD
PROTECTION
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
47 ~ 63Hz
80%
0.5A / 100VAC
Cold start 30A/ 115VAC 50A / 230VAC
0.25mA / 240VAC
105 ~ 250% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
>120% rated output voltage
Protection type : Clamp by zener diode
0 ~ +50
℃
(Refer to "Derating Curve")
20% ~ 90% RH non-condensing
-20 ~ +85
℃
, 10 ~ 95% RH non-condensing
±
0.03% /
℃
(0 ~ 40
℃
)
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
TUV EN60950-1,
EAC TP TC 004
approved
I/P-O/P:3KVAC
I/P-O/P:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance
Standard
Parameter
to EN55022 Class B, EN61000-3-2,3
Conducted emission
EN55032
(CISPR32)
82.5%
85%
85%
85%
85%
85.5%
87%
Test Level / Note
Class B
Class B
Class A
-------
Test Level /Note
Level 3, 8KV air; Level 2, 4KV contact
Level 2, 3V/m
Level 2, 1KV
Level 3, 1KV/L-N
Level 2, 3V
Level 1, 1A/m
＞
95% dip 0
.
5 periods, 30% dip 25 periods,
＞
95% interruptions 250 periods
EMC EMISSION
SAFETY &
EMC
(Note. 7)
Radiated emission
Harmonic current
EN55032
(CISPR32)
EN61000-3-2
EN61000-3-3
Standard
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
Voltage flicker
Parameter
ESD
RF field
susceptibility
EMC IMMUNITY
EFT bursts
Surge susceptibility
Conducted susceptibility
Magnetic field
immunity
Voltage dips , interruption
MTBF
DIMENSION
PACKING
PLUG
CABLE
OTHERS
CONNECTOR
500Khrs min. MIL-HDBK-217F(25
℃
)
34*71*50mm (L*W*H)
180g ; 60pcs / 12Kg / CARTON
See page 4~5 ; Other type available by customer requested
See page 4~5 ; Other type available by customer requested
NOTE
1.All parameters are specified at 230VAC input, rated load, 25
℃
70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1
μ
f & 47
μ
f capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 0% to 100% rated load.
7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the
EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)
File Name:GS15E-SPEC 2018-01-15
15W AC-DC Reliable Industrial Adaptor
GS15E
Type No.
A
OD
5
.
5
6.5
7.4
B
ID
3.4
4.4
C
L
11.0
11.0
D
series

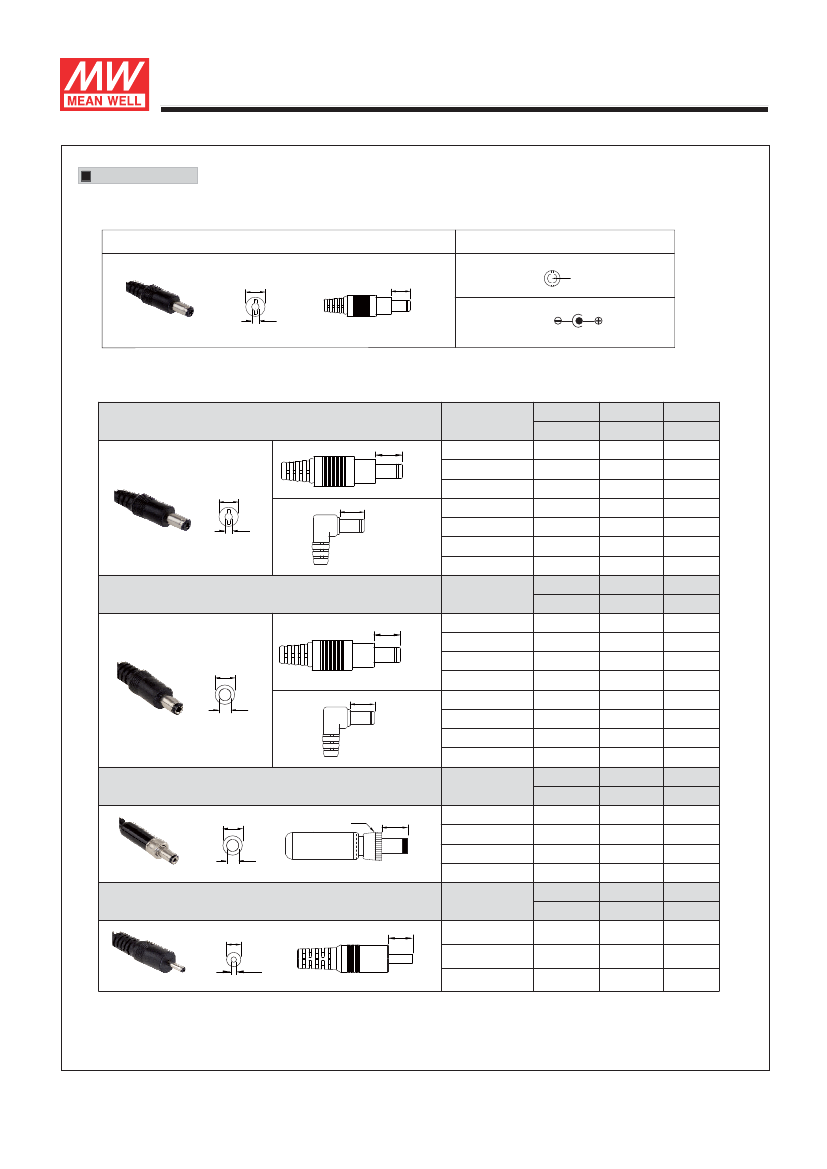

Center Pin Style
A
B
D
Center Pin
C
P4A
P4B
P4C
Type No.
1.0
1.4
EIAJ equivalent

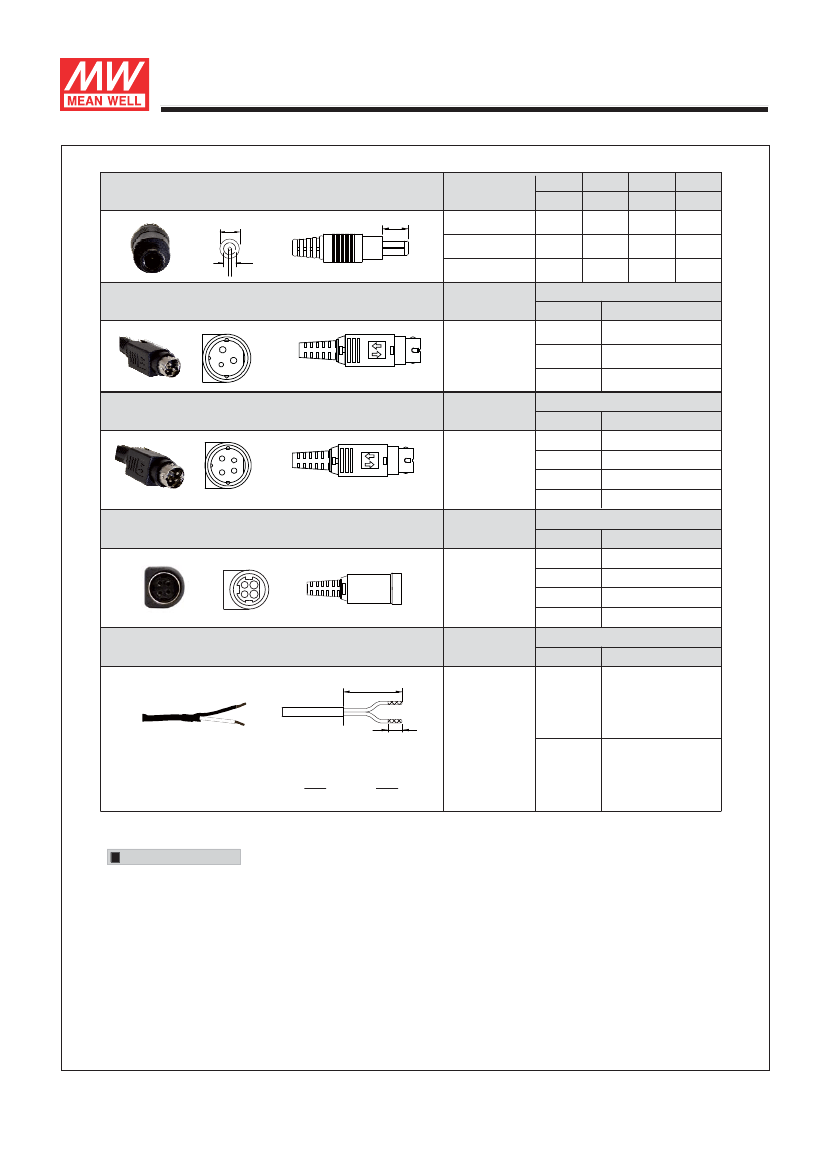

Min. DIN 3 Pin with Lock (male)
1
2
3
11.0
0.6
5.1
Pin Assignment
Output
PIN No.
+Vo
1
2
3
-Vo
+Vo
Pin Assignment
Output
PIN No.
+Vo
1
-Vo
2
3
-Vo
4
+Vo
Pin Assignment
Output
PIN No.
+Vo
1
-Vo
2
3
-Vo
4
+Vo
Pin Assignment
Output
PIN No.
R6B
KYCON
KPPX
-
3P equivalent
Min. DIN 4 Pin with Lock (male)
2 3
1 4
KYCON
KPPX
-
4P equivalent
Type No.
R7B
Min. DIN 4 Pin with Lock (female)
Type No.
23
14
KYCON KPJX-CM-4S equivalent
R7BF
Stripped and tinned leads
L
Type No.
1
2
L1
Length of Land L1 by request
( MW’s standard length, L: 25 mm, L1: 10 mm)
1
( White )
by customer
2
( Black )
+Vo
-Vo
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
File Name:GS15E-SPEC 2018-01-15
