Microwave Ceramics and Modules
2 Pole Filter for W-LAN 5GHz / [5.725–5.825] Band
Preliminary Datasheet
Filter
B69842N5777A100
Features
SMD filter consisting of coupled resonators with stepped impedances
MgTiO3 - CaTiO3 (εr = 21 /
TCf
=0±10 ppm/K) with a coating of copper (10µm) and tin (>5µm)
Excellent reflow solderability, no migration effect due to copper/tin metallization
Index
Page 2
Component drawing
Recommended footprint
Page 3
Characteristics
Maximum ratings
Typical passband characteristic
Page 4
Processing information
Soldering requirements
Delivery mode
ISSUE DATE
16.05.03
ISSUE
P2
PUBLISHER
SAW MWC PD F
PAGE
1/4
Microwave Ceramics and Modules
2 Pole Filter for W-LAN 5GHz / [5.725–5.825] Band
Preliminary Datasheet

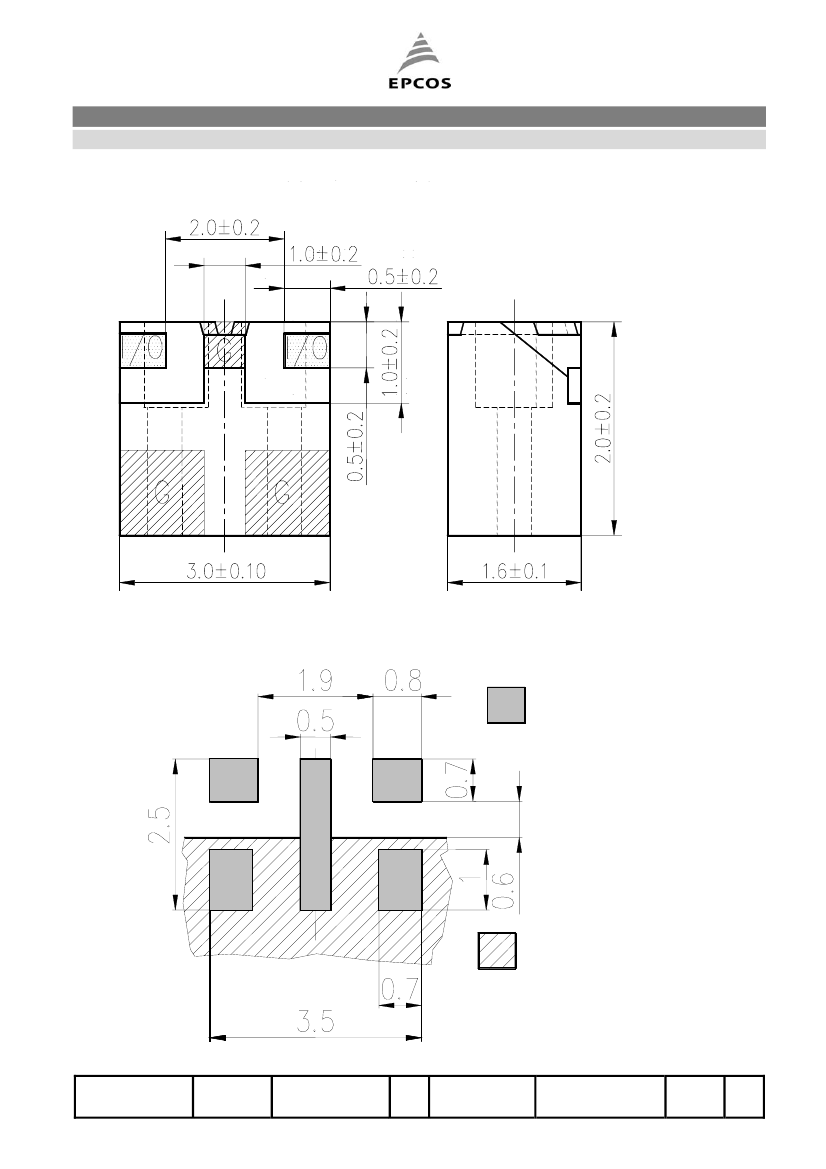

Component drawing
Filter
B69842N5777A100
Recommended footprint
Soldered Pads.
I/O Pads must be
connected to 50 ohms
impedance lines.
ground covered with solder
resist. It must be
connected to groung plane
below by vias
Max diameter: 0.3 mm
Max via pitch:1 mm
FOOTPRINT_130802.DWG WMF
ISSUE DATE
16.05.03
ISSUE
P2
PUBLISHER
SAW MWC PD F
PAGE
2/4
Microwave Ceramics and Modules
2 Pole Filter for W-LAN 5GHz / [5.725–5.825] Band
Preliminary Datasheet
Characteristics
min.
Center frequency
Insertion loss
Passband
Standing wave ratio
Impedance
Power
Attenuation
f
c -
α
IL
B
100
SWR
Z
P
α
typ.
5775
1.1
Filter
B69842N5777A100
max.
-
1.3
MHz
dB
MHz
1.5
50
2.0
Ω
1.0
W
dB
dB
dB
at DC to 1990 MHz
at 1990 to 2170 MHz
at 2400 to 2500 MHz
55
53
50
60
58
55
Maximum ratings
IEC climatic category (IEC 68-1)
Operating temperature
Typical passband characteristic
0
-10
-20
-30
-40
-50
-60
4,00
4,13
4,25
4,37
4,50
4,62
4,75
4,87
5,00
5,12
5,25
5,37
5,50
5,62
5,75
5,87
6,00
PAGE
S11 [dB]
S21 [dB]
- 40/+ 90/56
T
op -40 / + 85
°C
Attenuation [dB]
Frequency [GHz]
ISSUE DATE
16.05.03
ISSUE
P2
PUBLISHER
SAW MWC PD F
3/4
Microwave Ceramics and Modules
2 Pole Filter for W-LAN 5GHz / [5.725–5.825] Band
Preliminary Datasheet
Processing information
Wettability to IEC 68-2-58:
≥
75% (after aging)
Soldering requirements
Soldering type
Maximum soldering temperature
(measuring point on top surface of the component)
Recommended soldering conditions (infrared):
Temp. [°C]
within 10 sec.
Filter
B69842N5777A100
reflow
235 (max. 2 sec.)
225 (max. 10 sec.)
°C
°C
215°C±10°C
20-40 sec.
40-80 sec.
Time [sec.]
LOETPROF.DOC
Delivery mode
Blister tape acc. to IEC 286-3, PS, grey
Pieces/tape: t.b.d.
t.b.d.
