2082-6418-07 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 2082-6418-07

2082-6418-07: DescriptionFixed Attenuator, 0MHz Min, 18000MHz Max; CategoryWireless rf/communication Radio frequency and microwave; File Size31KB，1 Pages; ManufacturerXMA Corp.

Download Datasheet Parametric View All

2082-6418-07 Overview

Fixed Attenuator, 0MHz Min, 18000MHz Max

2082-6418-07 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA, I/P POWER-MAX(PEAK)=500W
Nominal attenuation	7 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

2082-64FF-XX

18 GHz SMA Hex/Round Attenuator

Specifications

Electrical:

Freq. Ranges:

DC-18 GHz (2082-6418-XX)

DC-12.4 GHz (2082-6412-XX)

DC-6 GHz

(2082-6406-XX)

1.15:1 Max

1.20:1 Max

1.25:1 Max

1.35:1 Max

2 Watts @ 25 Deg. C

500 Watts

50 Ohms

-54 to +125 °C

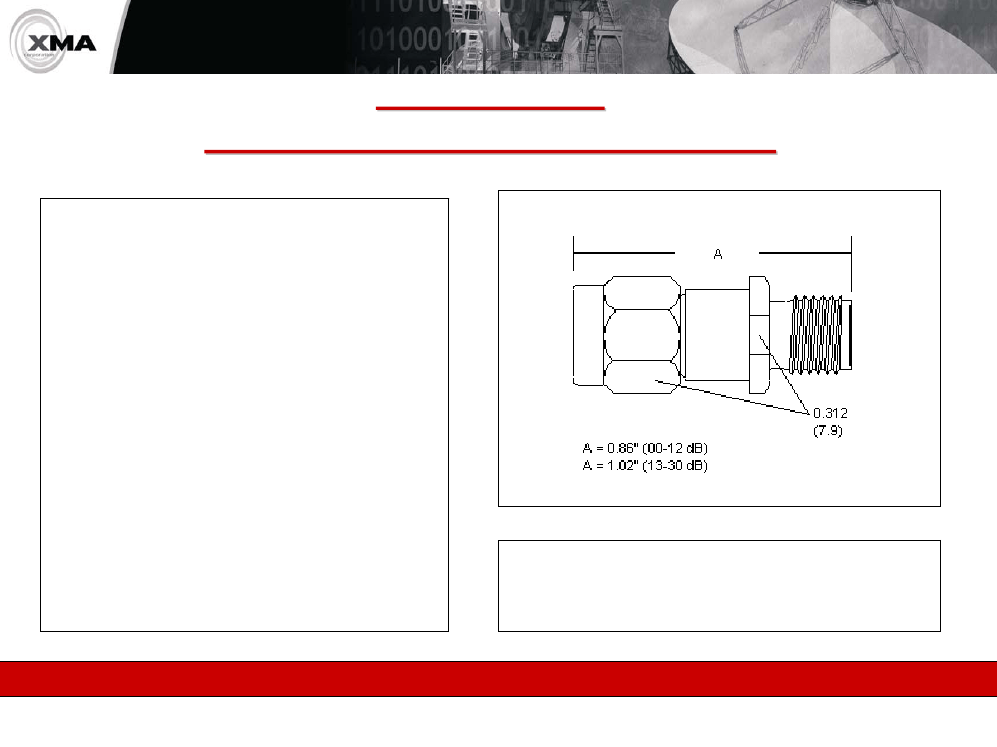

Outline Drawing

VSWR:

DC-4 GHz

DC-6 GHz

DC-12.4 GHz

DC-18 GHz

Power (Ave):

Power (Peak):

Impedance

Operating Temp Range

Mechanical:

Size

Length (0-12dB)

(13-30 dB)

Body Dia:

Connector & Body

Center Conductor

Rev: A5 112606DC

.86”

1.02”

.28”/.312 Hex Nut

Ordering Guide

Part Number Format: 2082-64FF-XX

XX = 00-12, 15, 20, 30 dB. Other dB Values available upon request.

FF = 18 (18 GHz); 12 (12.4 GHz); 06 (6 GHz)

Add letter U to end of part number for unmarked parts

Passivated Stainless Steel

Gold Plated Beryllium Copper

WHEN PERFORMANCE MATTERS

150 Dow Street Manchester, NH 03101

Tel:603-222-2256

Fax:603-222-2259

www.XMACORP.com
