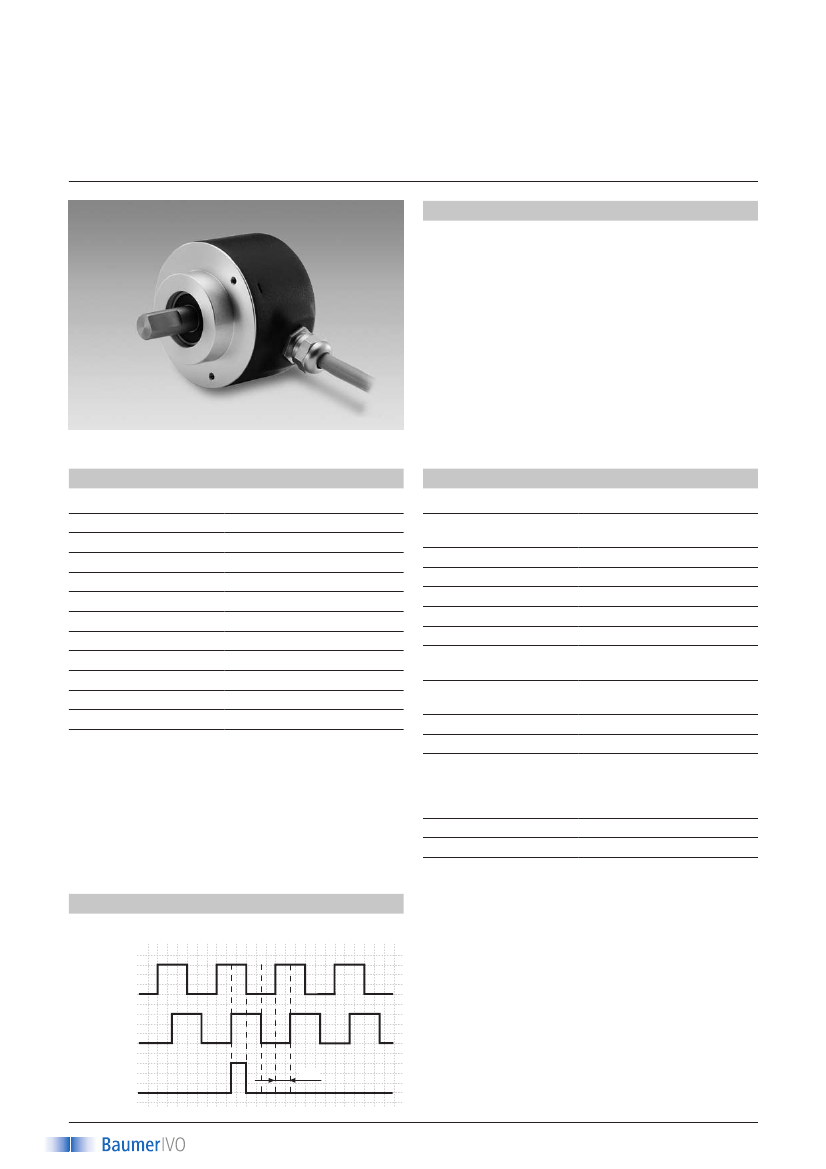

Incremental encoders
Shaft with clamping or synchro flange, PTB approved
Resolution 50 or 500 pulses
GPI0W
Features
– Encoder with shaft ø10 mm or ø6 mm
– PTB approved
–
Clamping flange or synchro flange
– High rotation speed max.10000 rpm
– Compact design
– High resistance to shock and vibrations
GPI0W with clamping flange
Technical data - electrical ratings
Voltage supply
Consumption w/o load
Resolution (steps/turn)
Reference signal
Sensing method
Output frequency
Output signals
Output circuit
Interference immunity
Emitted interference
Approval
10...30 VDC
≤30 mA (24 VDC)
50...500
Zero pulse, width 90°
Optical
≤150 kHz
A 90° B + N
Push-pull short-circuit proof
DIN EN 61000-6-2
DIN EN 61000-6-4
UL approval / E63076
Reverse polarity protection Yes
Technical data - mechanical design
Housing
Shaft
Flange
Protection DIN EN 60529
Operating speed
Starting torque
Rotor moment of inertia
Admitted shaft load
Materials
Operating temperature
Relative humidity
Resistance
ø58 mm
ø6 mm (synchro flange)
ø10 mm (clamping flange)
Clamping or synchro flange
IP 54
≤10000 rpm
≤0.015 Nm IP 54
14.5 gcm²
≤20 N axial
≤40 N radial
Housing: aluminium
Flange: aluminium
-25...+85 °C
95 % non-condensing
Subject to modification in technic and design. Errors and omissions excepted.
30/10/2008
DIN EN 60068-2-6
Vibration 10 g, 16-2000 Hz
DIN EN 60068-2-27
Shock 200 g, 6 ms
250 g
Cable
Weight approx.
E-connection
Output signals
Clockwise rotating direction when looking at flange.
Track A
Track B
90°
Zero pulse
1
www.baumerivo.com
Shaft with clamping or synchro flange, PTB approved
Resolution 50 or 500 pulses
Incremental encoders
GPI0W
Part number
GPI0W.
10
See part number (pulses)
12
14
16
22
24
26
E-connection
Cable 2 m, axial
Cable 5 m, axial
Cable 10 m, axial
Cable 2 m, radial
Cable 5 m radial
Cable 10 m, radial
Accessories
Mounting accessories
(page %S)
Z 119.006
Z 119.013
Z 119.015
Z 119.017
Z 119.025
Z 119.035
Eccentric fixing, single
Adaptor plate for clamping flange for
modification into synchro flange
Mounting adaptor for synchro flange
Mounting angle for clamping flange
Adaptor plate for clamping flange, mounting
by eccentric fixings (order separately)
Bearing flange for encoders with synchro
flange
Voltage supply / signals
10
10...30 VDC / push-pull
Flange / Shaft
0
Clamping flange, mounting M3 / ø10 mm
1
Clamping flange, mounting M4 / ø10 mm
5
Synchro flange, mounting M4 / ø6 mm
Part number (pulses)
39 (50)
15 (500)
Terminal assignment
Core colour Assignment
green
blue
beige
black
brown
Trigger level
Outputs
Output level High
Output level Low
Load High
Load Low
Push-pull
circuit-proof
>UB -3 V (I = -20 mA)
<0.5 V (I = 20 mA)
<20 mA
<20 mA
Track N (zero pulse)
Track A
Track B
GND (0 V)
UB
Example: ordering key 15 = 500 pulses.

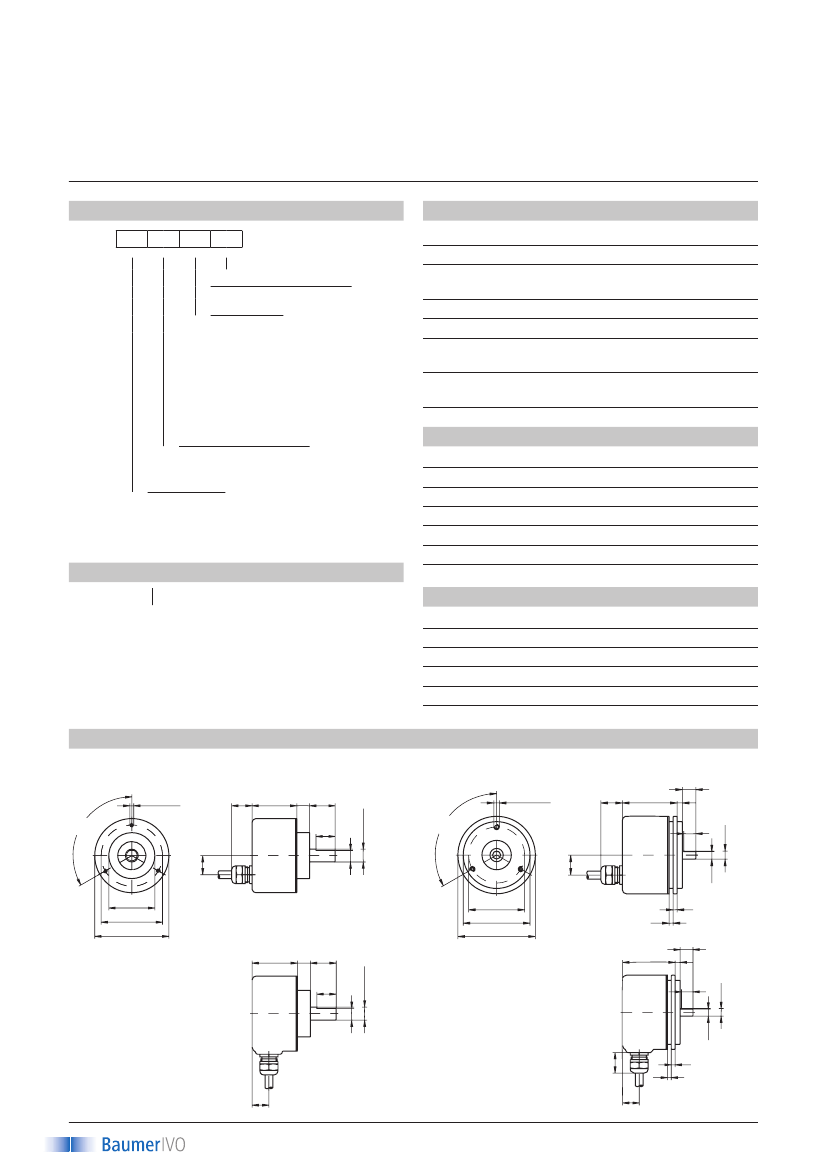

Dimensions
Clamping flange
ø10 h8
M3 x 5
120°
15
16
35
10 20
15
Sychro flange
M4 x 7
120°
15
16
41
4
10
9
5.5
36f8
48
±0.1
58
35
10 20
15
ø10h8
42
±0.1
50h7
58
3
41
4
3
10
9
5.5
16
3
13
3
2
www.baumerivo.com
30/10/2008
13
Subject to modification in technic and design. Errors and omissions excepted.
9
9
ø6f8
ø6f8
