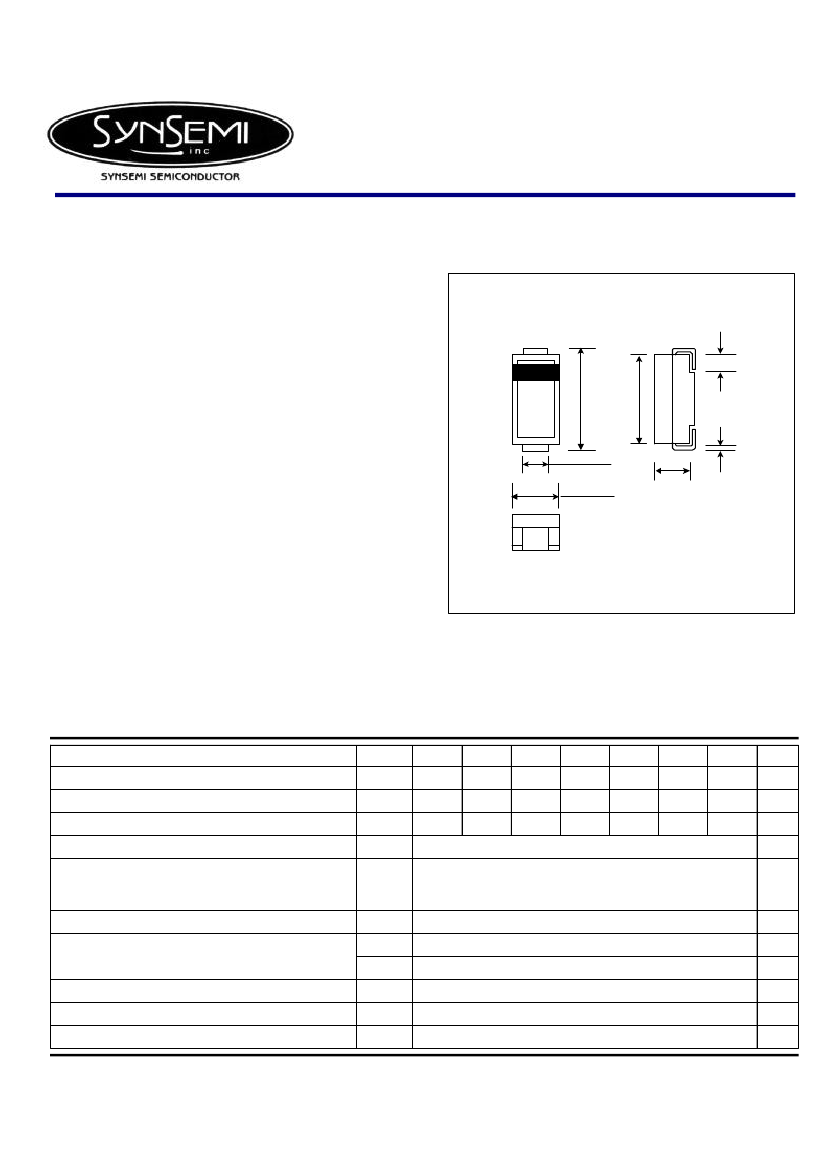

GN3A - GN3M
PRV : 50 - 1000 Volts
Io : 3.0 Amperes
FEATURES :
*
*
*
*
*
Glass passivated chip
High current capability
High reliability
Low reverse current
Low forward voltage drop
GLASS PASSIVATED JUNCTION
SILICON SURFACE MOUNT
SMC (DO-214AB)
1 .1
±
0.3
±
0.15
±
0.15
8.0
3.0
±
0.2
0.2
±
0.0 7
5.8
±
0.15
7.5
2.3
±
0.2
MECHANICAL DATA :
*
*
*
*
*
*
Case : SMC Molded plastic
Epoxy : UL94V-O rate flame retardant
Lead : Lead Formed for Surface Mount
Polarity : Color band denotes cathode end
Mounting position : Any
Weight : 0.21 gram
Dimensions in millimeter
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
RATING
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current Ta = 75
°C
Peak Forward Surge Current
8.3ms Single half sine wave Superimposed
on rated load (JEDEC Method)
Maximum Forward Voltage at I
F
= 3.0 Amps.
Maximum DC Reverse Current
at rated DC Blocking Voltage
Ta = 25
°C
Ta = 100
°C
SYMBOL
GN3A
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
I
R(H)
C
J
T
J
T
STG
50
35
50
GN3B
GN3D
GN3G
GN3J
GN3K
GN3M
UNIT
V
V
V
A
A
V
µA
µA
pF
°C
°C
100
70
100
200
140
200
400
280
400
3.0
150
1.0
5.0
50
50
- 65 to + 175
- 65 to + 175
600
420
600
800
560
800
1000
700
1000
Typical Junction Capacitance (Note1)
Junction Temperature Range
Storage Temperature Range
Note :
(1) Measured at 1.0 MHz and applied reverse voltage of 4.0V
DC
Page 1 of 2
Rev. 01 : January 10, 2004

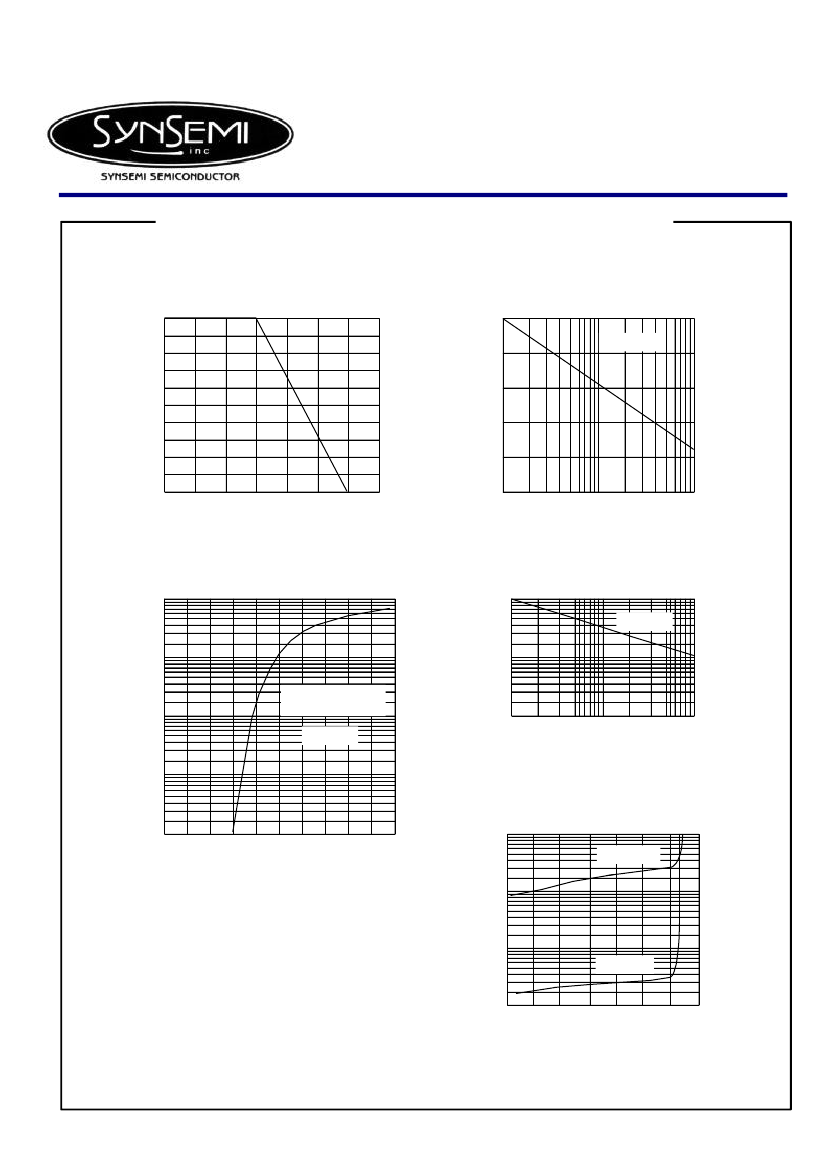

RATING AND CHARACTERISTIC CURVES ( GN3A - GN3M )
FIG.1 - DERATING CURVE FOR OUTPUT
RECTIFIED CURRENT
AVERAGE FORWARD OUTPUT
CURRENT, AMPERES
3.0
150
FIG.2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE
CURRENT, AMPERES
Ta = 25
°C
120
2.4
1.8
90
1.2
60
0.6
30
0
0
25
50
75
100
125
150
175
0
1
2
4
6
10
20
40
60
100
CASE TEMPERATURE, (
°
C)
FIG.3 - TYPICAL FORWARD CHARACTERISTICS
JUNCTION CAPACITANCE, (pF)
NUMBER OF CYCLES AT 60Hz
FIG 4 . - TYPICAL JUNCTION CAPACITANCE
100
100
50
FORWARD CURRENT, AMPERES
T
J
= 25
°C
10
10
5
Pulse W idth = 300
µs
2% Duty Cycle
1.0
1
1
2
4
10
20
40
T
J
= 25
°C
10
0
REVERSE VOLTAGE, VOLTS
0.1
FIG. 5 - TYPICAL REVERSE CHARACTERISTICS
0.01
0
0.2
0.4
0.6
10
0.8
1.0
1.2
1.4
1.6
1.8
2.0
FORWARD VOLTAGE, VOLTS
REVERSE CURRENT,
MICROAMPERES
Ta = 100
°C
1.0
0.1
Ta = 25
°C
0.01
0
20
40
60
80
10
0
12
0
140
PERCENT OF RATED REVERSE
VOLTAGE, (%)
Page 2 of 2
Rev. 01 : January 10, 2004
