Part Number

Search

8609.432.86.13.755.000.E2

Description
Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size514KB,5 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

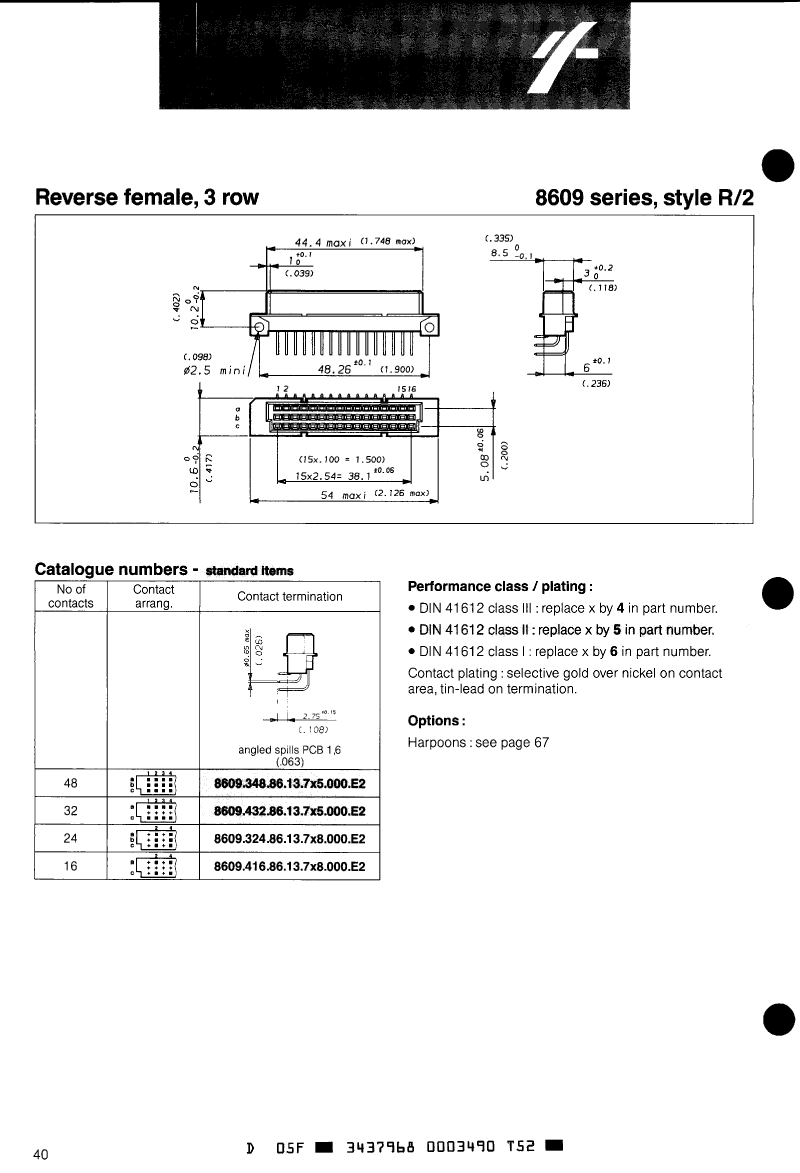

8609.432.86.13.755.000.E2 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug

8609.432.86.13.755.000.E2 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTANDARD: DIN 41612
body width0.417 inch
body length2.126 inch
Body/casing typePLUG
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedTIN LEAD
Contact point genderFEMALE
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceYES
Dielectric withstand voltage1000VAC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.9452 N
Insulation resistance1000000000000 Ω
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number8609
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Loaded row nameA,C
PCB row number3
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE

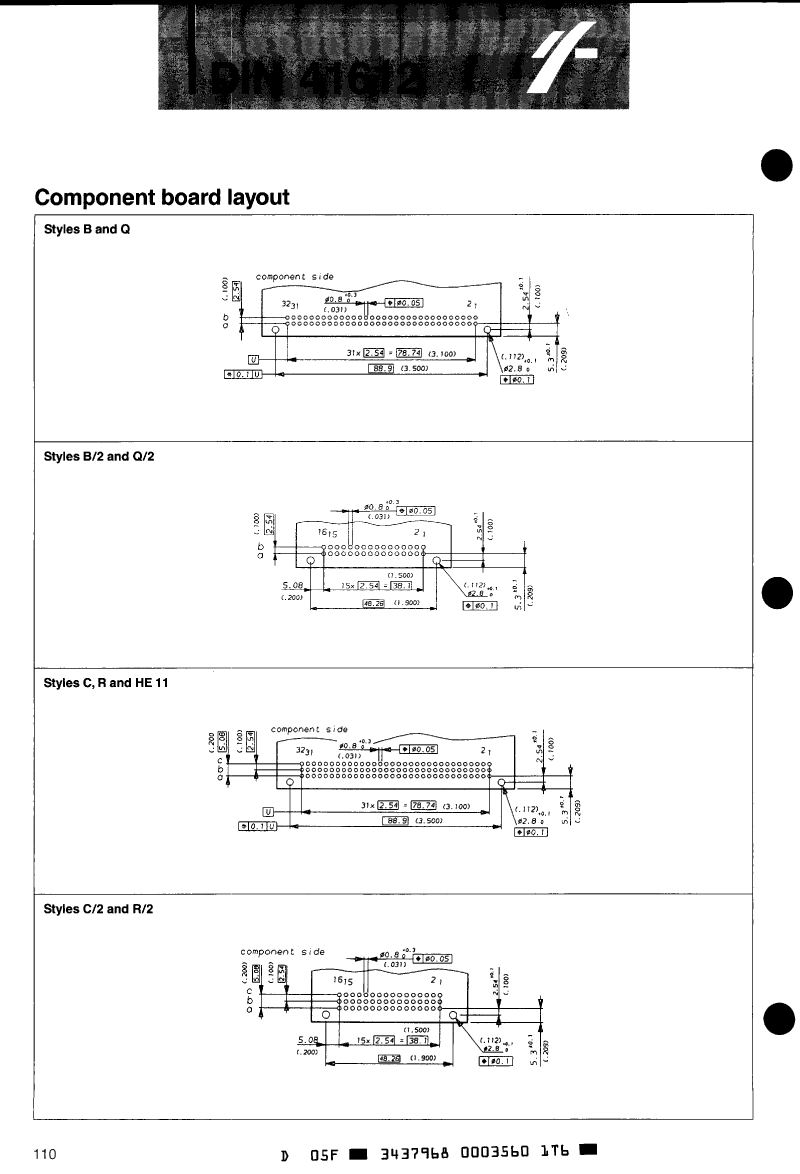

PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
polarization keyENDS
Rated current (signal)1.5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.108 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts32
UL Flammability Code94V-0
Evacuation force-minimum value.139 N
Base Number Matches1

8609.432.86.13.755.000.E2 Related Products

8609.432.86.13.755.000.E2 8609.348.86.13.755.000.E2
Description Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Other features STANDARD: DIN 41612 STANDARD: DIN 41612
body width 0.417 inch 0.417 inch
body length 2.126 inch 2.126 inch
Body/casing type PLUG PLUG
Connector type BOARD EURO CONNECTOR BOARD EURO CONNECTOR
Contact to complete cooperation GOLD OVER NICKEL GOLD OVER NICKEL
Contact completed and terminated TIN LEAD TIN LEAD
Contact point gender FEMALE FEMALE
Contact resistance 20 mΩ 20 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT
DIN compliance YES YES
Dielectric withstand voltage 1000VAC V 1000VAC V
Durability 200 Cycles 200 Cycles
Filter function NO NO
IEC compliance NO NO
maximum insertion force .9452 N .9452 N
Insulation resistance 1000000000000 Ω 1000000000000 Ω
JESD-609 code e0 e0
MIL compliance NO NO
Manufacturer's serial number 8609 8609
Plug contact pitch 0.1 inch 0.1 inch
Match contact row spacing 0.1 inch 0.1 inch
Mixed contacts NO NO
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Loaded row name A,C A,B,C
PCB row number 3 3
Number of rows loaded 2 3
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 2.54 mm 2.54 mm
polarization key ENDS ENDS
Rated current (signal) 1.5 A 1.5 A
Guideline UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL
Terminal length 0.108 inch 0.108 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type SOLDER SOLDER
Total number of contacts 32 48
UL Flammability Code 94V-0 94V-0
Evacuation force-minimum value .139 N .139 N
Base Number Matches 1 1
