Part Number

Search

842-816-2621-419

Description
Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch, Receptacle
CategoryThe connector    The connector
File Size292KB,3 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

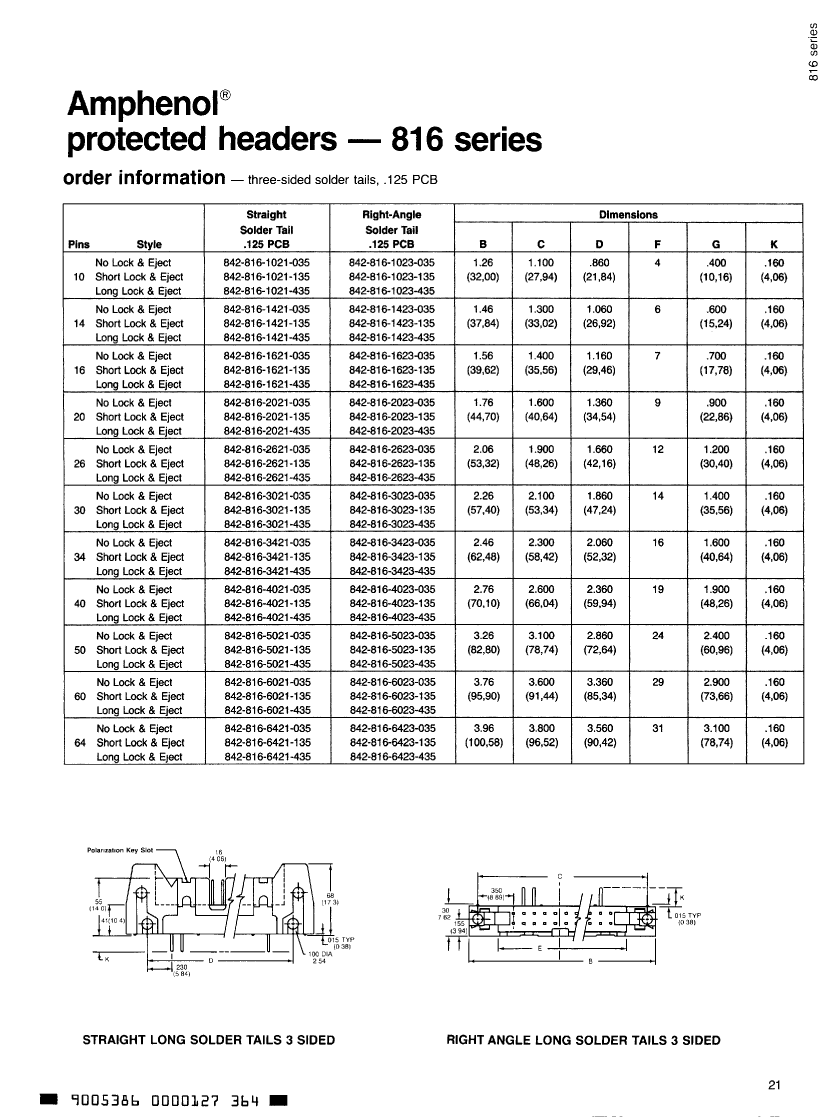

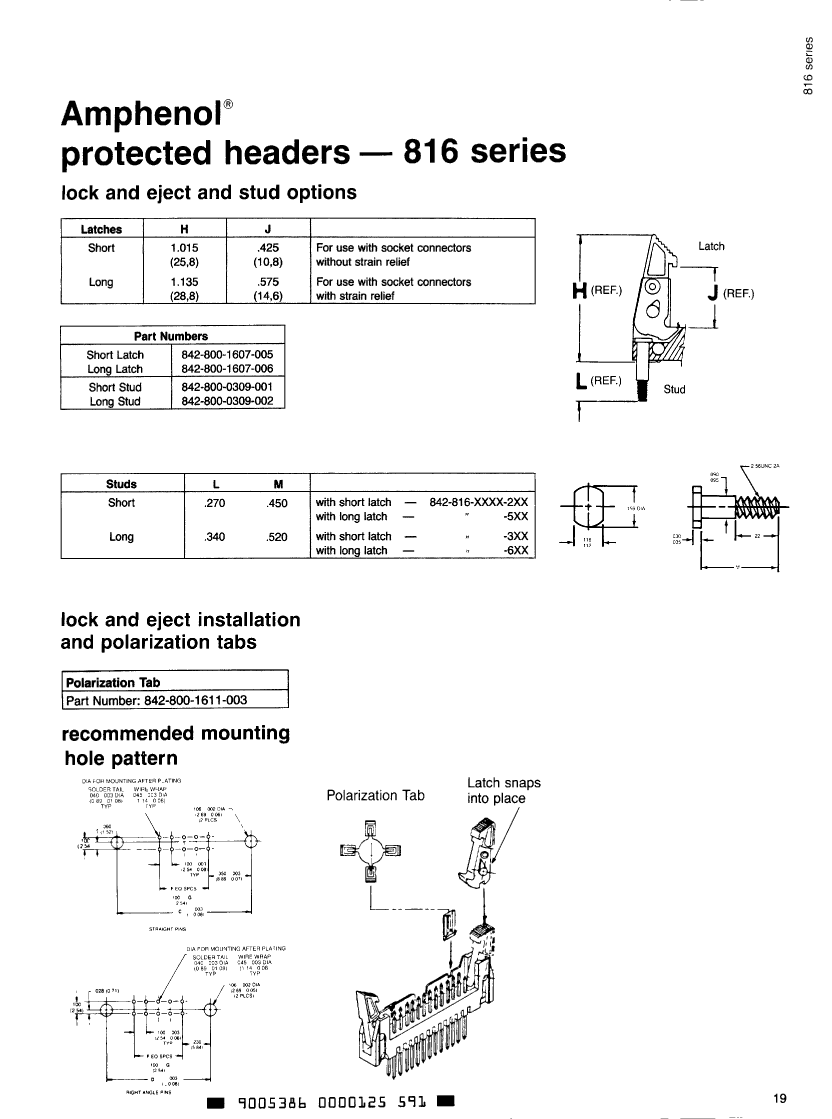

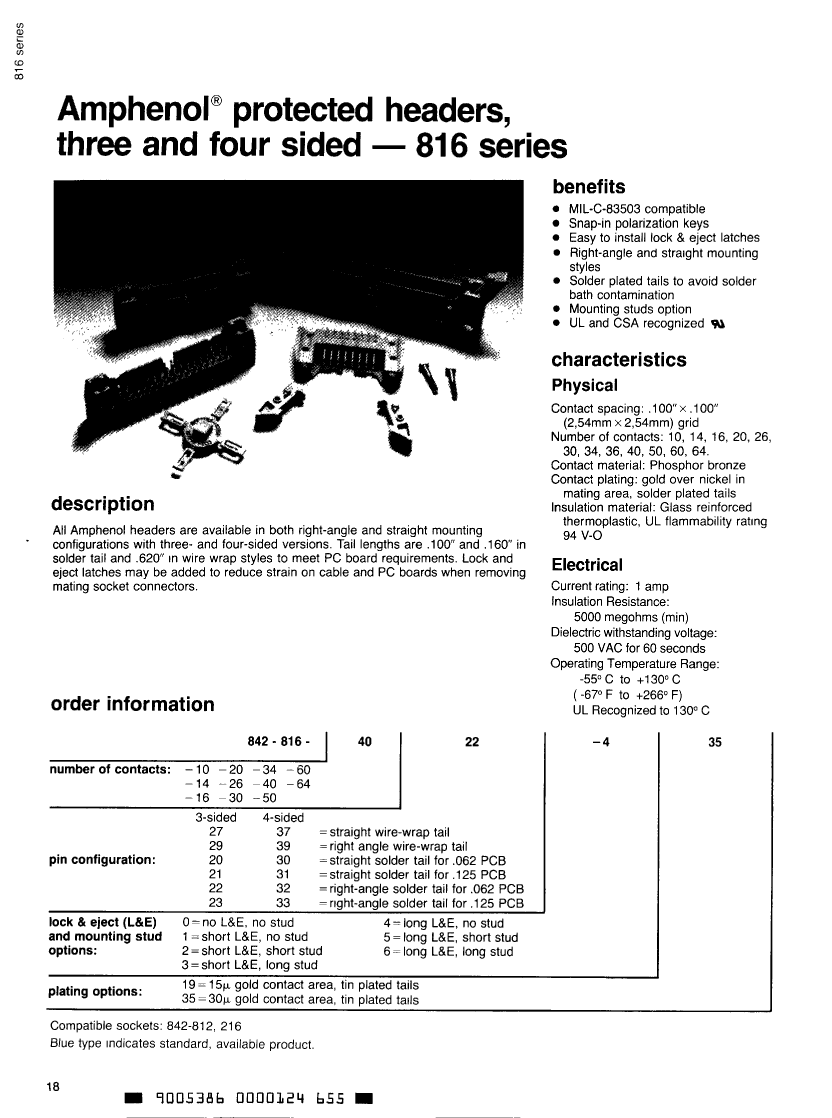

842-816-2621-419 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch, Receptacle

842-816-2621-419 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresLATCH, H=.57"
body width0.3 inch
subject depth0.68 inch
body length2.06 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance5000000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
Manufacturer's serial number816
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation option 1LATCH
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature130 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness15u inch
polarization keyCTR W/GUIDE SLOTS
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.16 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts26
Base Number Matches1
