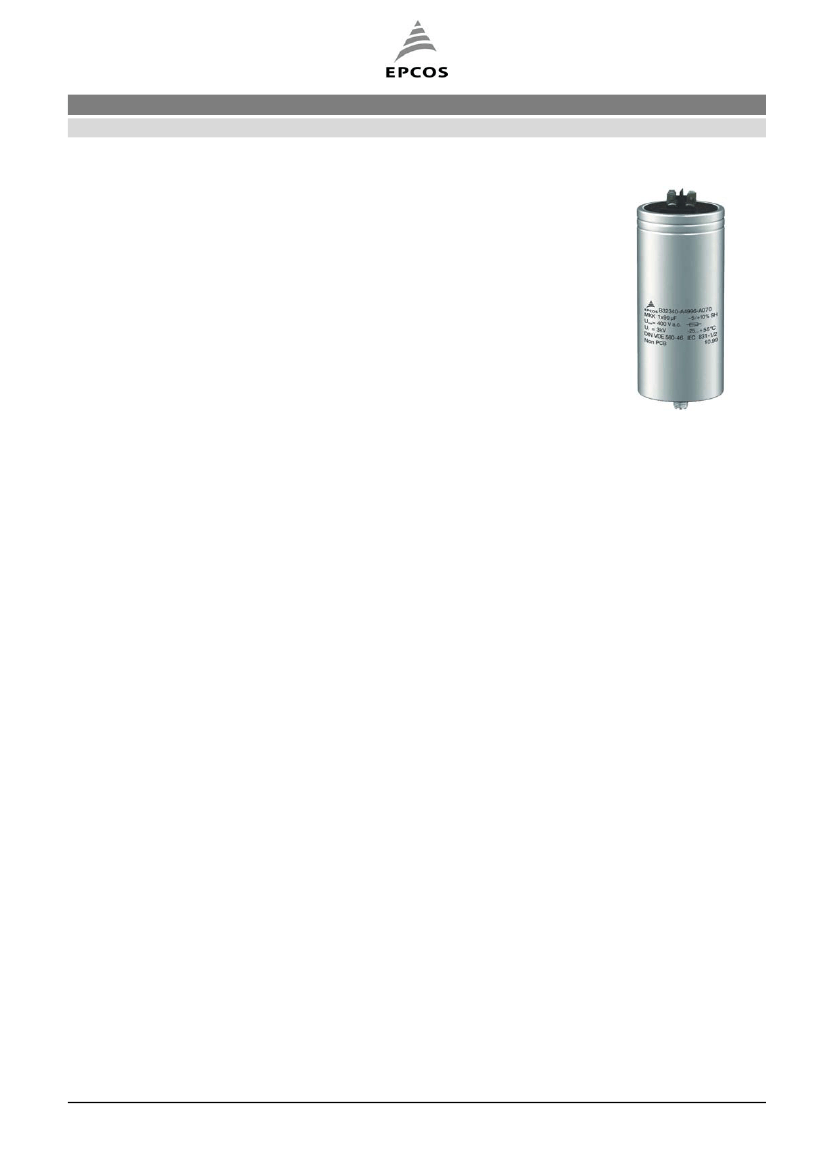

Power Capacitors
Power Factor Correction
B32340C
Construction
Dielectric: Polypropylene film
Non PCB, biodegradable soft resin
Extruded round aluminum can with stud
Provided with discharge resistors
Features
Single phase
Naturally air cooled or forced air cooling
Indoor mounting
Typical applications
PFC and detuned systems
Terminals
Fast-on terminals
Mounting parts
Threaded stud at bottom of can
Max. torque = 10 Nm for M12 (Ø 63.5 mm)
FK PM PFC
Page 1 of 6
December 2004
Power Capacitors
Power Factor Correction
B32340C
Technical data and specifications
Standard
Rated capacitance
C
N
&
Q
R
Tolerance (%)
Rated voltage
U
R
Rated frequency
f
R
Mean life expectancy
Maximum ratings
Maximum permissible overvoltage
U
max
U
R
+ 10% (up to 8 h daily)
U
R
+ 15% (up to 30 min daily),
U
R
+ 20% (up to 5 min daily)
U
R
+ 30% (up to 1 min daily)
1.5 x
I
R
(I
R
: rated current), including combined effects
of harmonics, overvoltages and capacitance
Max. 5 000 switchings per year according IEC 831
Up to 200 x
I
R
< 0.2 W/kvar
< 0.45 W/kvar
2.15 x
U
R
, 10 s
3 000
V
AC
, 10 s
-25/D
Max. temp. 55 °C
Max. mean 24 h = 45 °C
Max. mean 1 year = 35 °C
Safety
Self-healing technology, overpressure disconnector,
maximum allowed fault current 10 000 A in accordance
with UL 810-standard
Aluminum/cylindrical
IP00, IP20, optionally IP54
95%
4 000 m above sea level
Upright
Threaded M12 (10 Nm / Ø 63.5mm)
IEC 831-1+2, IS: 13340/41
UL 810 5
th
edition, cUL file E106388
According to dimensions table
-5 / +10
According to dimensions table
50/60 Hz
Up to 100 000 operating hours
Maximum permissible overcurrent
I
max
Number of switching operations
Transient inrush current (max)
I
S
Losses:
Dielectric
Total
Test voltage, terminal/terminal
U
TT
Test voltage, terminal/case
U
TC
Temperature class
Case/shape
Enclosure
Permissible maximum humidity
Maximum permissible altitude
Mounting position
Mounting and grounding
FK PM PFC
Page 2 of 6
December 2004
Power Capacitors
Power Factor Correction
Rated voltage: 230 VAC, 50 / 60 Hz
Type
50 Hz
Output
kvar
MKP230-I-0.8
MKP230-I-1.7
MKP230-I-2.5
0.8
1.7
2.5
I
R
A
3.6
7.2
10.9
60 Hz
Output
kvar
1.0
2.0
3.0
I
R
A
4.3
8.7
13.1
C
N
µF
50
100
150
dxh
mm
63.5 x 105
63.5 x 142
63.5 x 142
Weight
B32340C
Ordering code
kg
0.30
0.40
0.50
B32340C2002A830
B32340C2012A730
B32340C2022A530
Rated voltage: 400 VAC, 50 / 60 Hz
Type
50 Hz
Output
kvar
MKP400-I-0.8
MKP400-I-1.7
MKP400-I-2.5
MKP400-I-3.3
MKP400-I-4.2
MKP400-I-5.0
0.8
1.7
2.5
3.3
4.2
5.0
I
R
A
2.0
4.2
6.3
8.4
10.4
12.4
60 Hz
Output
kvar
1.0
2.0
3.0
4.0
5.0
6.0
I
R
A
2.3
5.0
7.5
10.0
12.5
15.0
C
N
µF
15
33
50
66
83
99
dxh
mm
63.5 x 68
63.5 x 68
63.5 x 105
63.5 x 105
63.5 x 142
63.5 x 142
Weight
Ordering code
kg
0.30
0.30
0.40
0.40
0.40
0.50
B32340C4001A880
B32340C4012A700
B32340C4022A500
B32340C4032A300
B32340C4051A000
B32340C4052A000
Rated voltage: 415 VAC, 50 / 60 Hz
Type
50 Hz
Output
kvar
MKP415-I-0.8
MKP415-I-1.7
MKP415-I-2.5
MKP415-I-3.3
MKP415-I-5.0
0.8
1.7
2.5
3.3
5.0
I
R
A
2.0
4.0
6.0
8.0
12.0
60 Hz
Output
kvar
1.0
2.0
3.0
4.0
6.0
I
R
A
2.4
4.8
7.2
9.7
14.4
C
N
µF
15
31
46
62
91
dxh
mm
63.5 x 68
63.5 x 105
63.5 x 142
63.5 x 142
63.5 x 142
Weight
Ordering code
kg
0.35
0.45
0.50
0.50
0.60
B32340C4002A810
B32340C4012A710
B32340C4022A510
B32340C4032A310
B32340C4052A010
Rated voltage: 440 VAC, 50 / 60 Hz
Type
50 Hz
Output
kvar
MKP440-I-0.7
MKP440-I-1.4
MKP440-I-2.1
MKP440-I-2.8
MKP440-I-3.3
MKP440-I-4.2
MKP440-I-5.0
0.7
1.4
2.1
2.8
3.3
4.2
5.0
I
R
A
1.6
3.2
4.7
6.4
7.6
9.5
11.4
60 Hz
Output
kvar
0.8
1.7
2.5
3.3
4.0
5.0
6.0
I
R
A
1.9
3.8
5.7
7.6
9.1
11.4
13.6
C
N
µF
11
23
34
46
55
68
82
dxh
mm
63.5 x 68
63.5 x 68
63.5 x 105
63.5 x 105
63.5 x 142
63.5 x 142
63.5 x 142
Weight
Ordering code
kg
0.30
0.30
0.40
0.40
0.50
0.50
0.60
B32340C4001A840
B32340C4011A740
B32340C4021A540
B32340C4031A340
B32340C4032A340
B32340C4051A040
B32340C4052A040
Rated voltage: 480 VAC, 50 / 60 Hz
Type
50 Hz
Output
kvar
MKP480-I-0.7
MKP480-I-1.4
MKP480-I-2.1
MKP480-I-2.8
0.7
1.4
2.1
2.8
I
R
A
1.5
2.9
4.3
5.8
60 Hz
Output
kvar
0.8
1.7
2.5
3.3
I
R
A
1.7
3.5
5.2
6.9
C
N
µF
10
19
29
38
dxh
mm
63.5 x 105
63.5 x 105
63.5 x 105
63.5 x 142
Weight
kg
0.30
0.30
0.50
0.50
B32340C4001A880
B32340C4011A780
B32340C4021A580
B32340C4031A380
Ordering code
FK PM PFC
Page 4 of 6
December 2004
