B32023A3334K189 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> B32023A3334K189

B32023A3334K189: DescriptionCAPACITOR, METALLIZED FILM, POLYPROPYLENE, 0.33uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size306KB，5 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric View All

B32023A3334K189 Overview

CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 0.33uF, THROUGH HOLE MOUNT, RADIAL LEADED

B32023A3334K189 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
Other features	RATED AC VOLTAGE (V): 300, SAFETY CLASS Y2
capacitance	0.33 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
JESD-609 code	e3
Manufacturer's serial number	B32023
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	110 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
positive tolerance	10%
surface mount	NO
Terminal surface	MATTE TIN
Terminal shape	WIRE
Base Number Matches	1

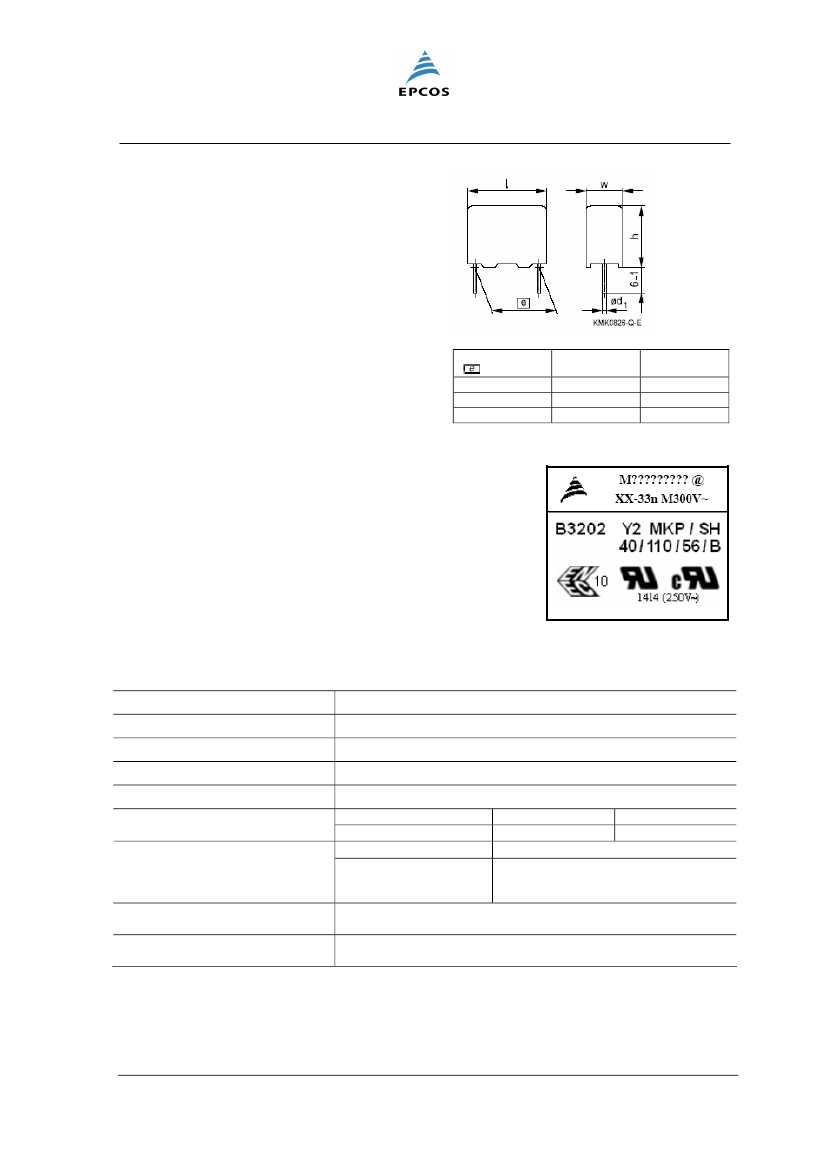

Preview

Download Datasheet

View All

EMI Suppression Capacitors (MKP)

B3202* Series

Series/Type:

B32021, B32022, B32023, B32024, B32026

Ordering code: B3202.A…+…

Date:

Version:

March 2007

Content of inside pages of data sheet. Data will be automatically entered into front page

headlines, headers and footers. Please fill in the table and then change the colour to “White”.

This ensures that the table disappears for the customer pdf.

Identification/Classification 1:

(header 1)

Identification/Classification 2:

(header 2)

Ordering code:

Series/Type:

Preliminary data (optional):

(if necessary)

Department:

Date:

FK DC PM

March 2007

EMI Suppression Capacitors (MKP)

B3202* Series

B3202.A…+…

B32021, B32022, B32023, B32024, B32026

EPCOS AG 2007. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the information

contained therein without EPCOS' prior express consent is prohibited.

Important notes

The following applies to all products named in this publication:

1. Some parts of this publication contain

statements about the suitability of our products for certain areas

of application.

These statements are based on our knowledge of typical requirements that are often placed

on our products in the areas of application concerned. We nevertheless expressly point out

that such

statements cannot be regarded as binding statements about the suitability of our products for a

particular customer application.

As a rule, EPCOS is either unfamiliar with individual customer applications

or less familiar with them than the customers themselves. For these reasons, it is always ultimately incumbent

on the customer to check and decide whether an EPCOS product with the properties described in the product

specification is suitable for use in a particular customer application.

2. We also point out that

in individual cases, a malfunction of passive electronic components or failure

before the end of their usual service life cannot be completely ruled out in the current state of the art,

even if they are operated as specified.

In customer applications requiring a very high level of operational

safety and especially in customer applications in which the malfunction or failure of a passive electronic

component could endanger human life or health (e.g. in accident prevention or life-saving systems), it must

therefore be ensured by means of suitable design of the customer application or other action taken by the

customer (e.g. installation of protective circuitry or redundancy) that no injury or damage is sustained by third

parties in the event of malfunction or failure of a passive electronic component.

The warnings, cautions and product-specific notes must be observed.

4. In order to satisfy certain technical requirements,

some of the products described in this publication may

contain substances subject to restrictions in certain jurisdictions (e.g. because they are classed as

“hazardous”).

Useful information on this will be found in our Material Data Sheets on the Internet

(www.epcos.com/material). Should you have any more detailed questions, please contact our sales offices.

5. We constantly strive to improve our products. Consequently,

the products described in this publication

may change from time to time.

The same is true of the corresponding product specifications. Please check

therefore to what extent product descriptions and specifications contained in this publication are still

applicable before or when you place an order.

We also

reserve the right to discontinue production and delivery of products.

Consequently, we cannot

guarantee that all products named in this publication will always be available.

Unless otherwise agreed in individual contracts,

all orders are subject to the current version of the

“General Terms of Delivery for Products and Services in the Electrical Industry” published by the

German Electrical and Electronics Industry Association (ZVEI).

7. The trade names EPCOS, EPCOS-JONES, Alu-X, BAOKE, CeraDiode, CSSP, MLSC, MotorCap, PhaseCap,

PhaseMod, SIFERRIT, SIFI, SIKOREL, SilverCap, SIMID, SIOV, SIP5D, SIP5K, WindCap are

trademarks

registered or pending

in Europe and in other countries. Further information will be found on the Internet at

www.epcos.com/trademarks.

FK DC PM

Page 5 of 5

March 2007
