2N3055C datasheet, PDF - EEWORLD Datasheet

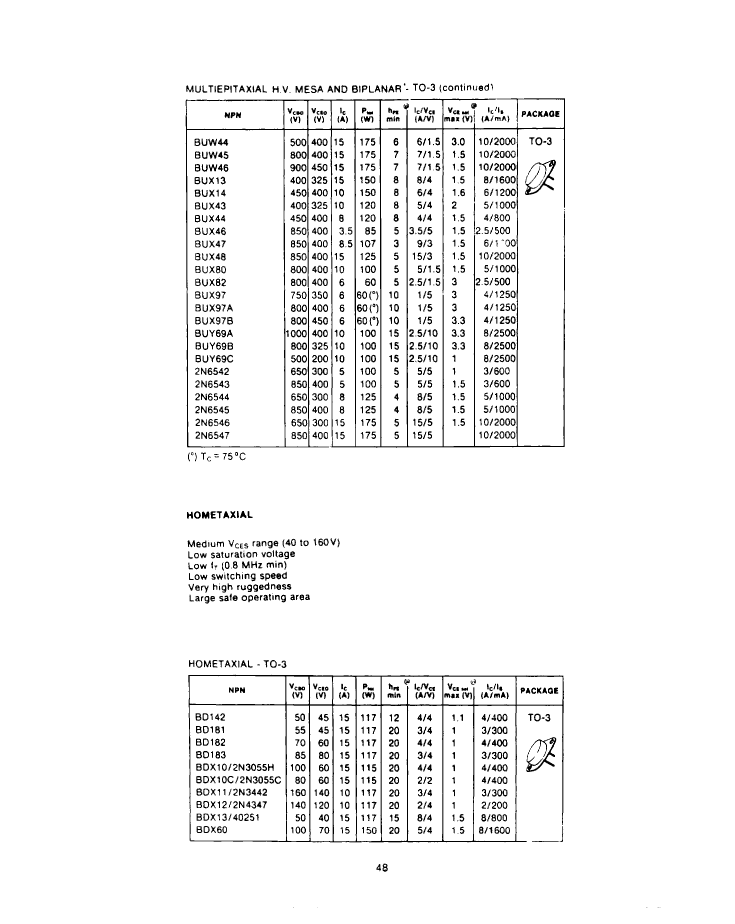

2N3055C: DescriptionPower Bipolar Transistor, 15A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin,; CategoryDiscrete semiconductor The transistor; File Size31KB，1 Pages; ManufacturerCrimson Semiconductor Inc.

Download Datasheet Parametric Compare View All

2N3055C Overview

Power Bipolar Transistor, 15A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Maximum collector current (IC)	15 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	20
JEDEC-95 code	TO-3
JESD-30 code	O-MBFM-P2
Number of components	1
Number of terminals	2
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Maximum power consumption environment	115 W
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	BOTTOM
Transistor component materials	SILICON
Nominal transition frequency (fT)	0.8 MHz
VCEsat-Max	1 V
Base Number Matches	1

	2N3055C	2N3055H	BDX10	BDX10C
Description	Power Bipolar Transistor, 15A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin,	Power Bipolar Transistor, 15A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin,	Power Bipolar Transistor, 15A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin,	Power Bipolar Transistor, 15A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin,
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum collector current (IC)	15 A	15 A	15 A	15 A
Collector-emitter maximum voltage	60 V	60 V	60 V	60 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	20	20	20	20
JEDEC-95 code	TO-3	TO-3	TO-3	TO-3
JESD-30 code	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Package body material	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	NPN	NPN	NPN	NPN
Maximum power consumption environment	115 W	115 W	115 W	115 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	0.8 MHz	0.8 MHz	0.8 MHz	0.8 MHz
VCEsat-Max	1 V	1 V	1 V	1 V
