2060-30F datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 2060-30F

Preview

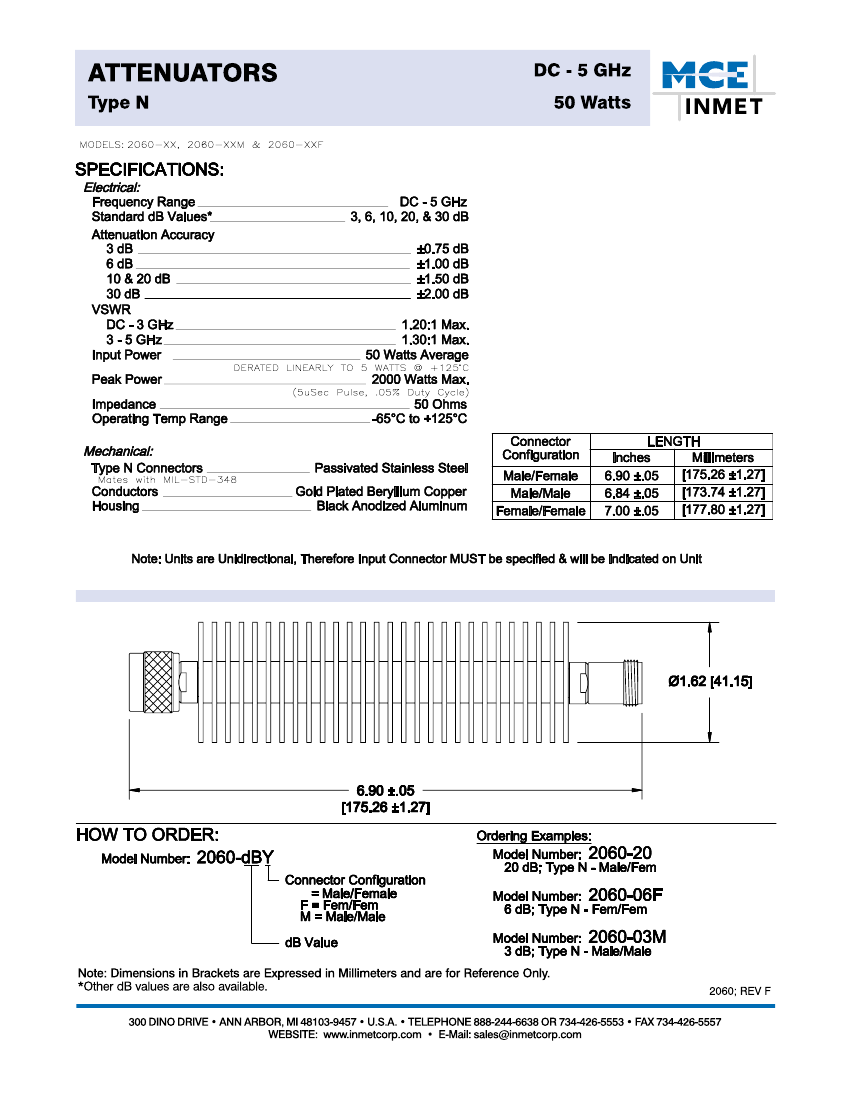

2060-30F: DescriptionFixed Attenuator, 0MHz Min, 5000MHz Max; CategoryWireless rf/communication Radio frequency and microwave; File Size241KB，1 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric Compare View All

2060-30F Overview

Fixed Attenuator, 0MHz Min, 5000MHz Max

2060-30F Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	N-F, I/P POWER-MAX(PEAK)=1000W
Nominal attenuation	30 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	46.99 dBm
JESD-609 code	e4
Maximum operating frequency	5000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

2060-30F Related Products

	2060-30F	2060-06F	2060-03F	2060-03M	2060-10F	2060-20F	2060-20	2060-10M
Description	Fixed Attenuator, 0MHz Min, 5000MHz Max	Fixed Attenuator, 0MHz Min, 5000MHz Max	Fixed Attenuator, 0MHz Min, 5000MHz Max	Fixed Attenuator, 0MHz Min, 5000MHz Max	Fixed Attenuator, 0MHz Min, 5000MHz Max	Fixed Attenuator, 0MHz Min, 5000MHz Max	Fixed Attenuator, 0MHz Min, 5000MHz Max	Fixed Attenuator, 0MHz Min, 5000MHz Max
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	N-F, I/P POWER-MAX(PEAK)=1000W	N-F, I/P POWER-MAX(PEAK)=1000W	N-F, I/P POWER-MAX(PEAK)=1000W	N-M, I/P POWER-MAX(PEAK)=1000W	N-F, I/P POWER-MAX(PEAK)=1000W	N-F, I/P POWER-MAX(PEAK)=1000W	N-F; N-M, I/P POWER-MAX(PEAK)=1000W	N-M, I/P POWER-MAX(PEAK)=1000W
Nominal attenuation	30 dB	6 dB	3 dB	3 dB	10 dB	20 dB	20 dB	10 dB
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	46.99 dBm	46.99 dBm	46.99 dBm	46.99 dBm	46.99 dBm	46.99 dBm	46.99 dBm	46.99 dBm
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
Maximum operating frequency	5000 MHz	5000 MHz	5000 MHz	5000 MHz	5000 MHz	5000 MHz	5000 MHz	5000 MHz
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR
Terminal surface	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Maximum voltage standing wave ratio	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3
Base Number Matches	1	1	1	1	1	1	1	1
