UCY2C221MHD16X25 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> UCY2C221MHD16X25

UCY2C221MHD16X25: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size42KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

UCY2C221MHD16X25 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

UCY2C221MHD16X25 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	220 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	1.508 mA
Manufacturer's serial number	CY
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	160 V
ripple current	1185 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

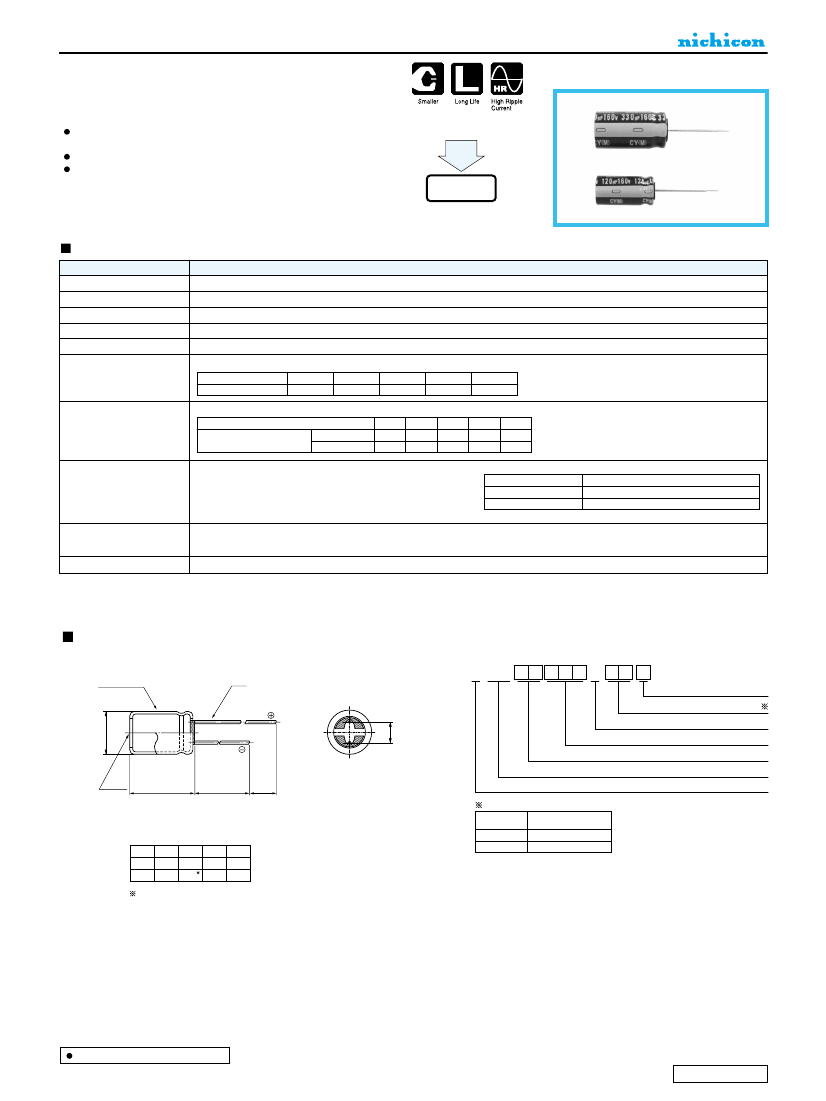

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Sized, High Ripple Current, High Reliability

series

High ripple current and Long Life product withstanding

load life of 8000 to 10000 hours at +105°C.

Suited for ballast application.

Compliant to the RoHS directive (2002/95/EC).

Smaller

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Tangent of loss angle (tan

δ)

Performance Characteristics

– 40 to +105°C

160 to 400V

6.8 to 560µF

± 20% at 120Hz, 20°C

After 1 minute's application of rated voltage, leakage current is not more than 0.04CV+100 (µA)

Measurement frequency : 120Hz, Temperature : 20°C

Rated voltage (V)

tan

(MAX.)

160

0.20

200

0.20

250

0.20

350

0.24

400

0.24

Measurement frequency : 120Hz

Rated voltage (V)

Stability at Low Temperature

Z–25°C / Z+20°C

Impedance ratio ZT / Z20 (MAX.)

Z–40°C / Z+20°C

160

200

250

350

400

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20˚C after D.C. bias plus rated

ripple current is applied for 10000 hours (8000 hours for

φD=10)

at 105˚C, the peak voltage shall not exceed the rated

voltage.

Capacitance change

tan

Leakage current

Within ±20% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Shelf Life

Marking

After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C

5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

Printed with white color letter on dark brown sleeve.

Radial Lead Type

Type numbering system (Example : 250V 100µF)

10 11

Sleeve (P.E.T.)

φd

U CY 2 E 1 0 1 M HD

Size code

Configuration

φD

0.5MAX.

0.5

Capacitance tolerance (±20%)

Rated capacitance (100µF)

Rated voltage (250V)

Series name

Pressure

relief vent

L +

1.5 MAX.

MIN

Type

Configuration

Pb-free leadwire

Pb-free PET sleeve

(mm)

12.5 to 18

φD

φd

5.0

0.6

12.5

5.0

0.6

7.5

0.8

7.5

0.8

In case L > 25 for the

φ12.5

dia. unit, lead dia.

d = 0.8mm.

•

Please refer to page 20 about the end seal configulation.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next page.

CAT.8100Y
