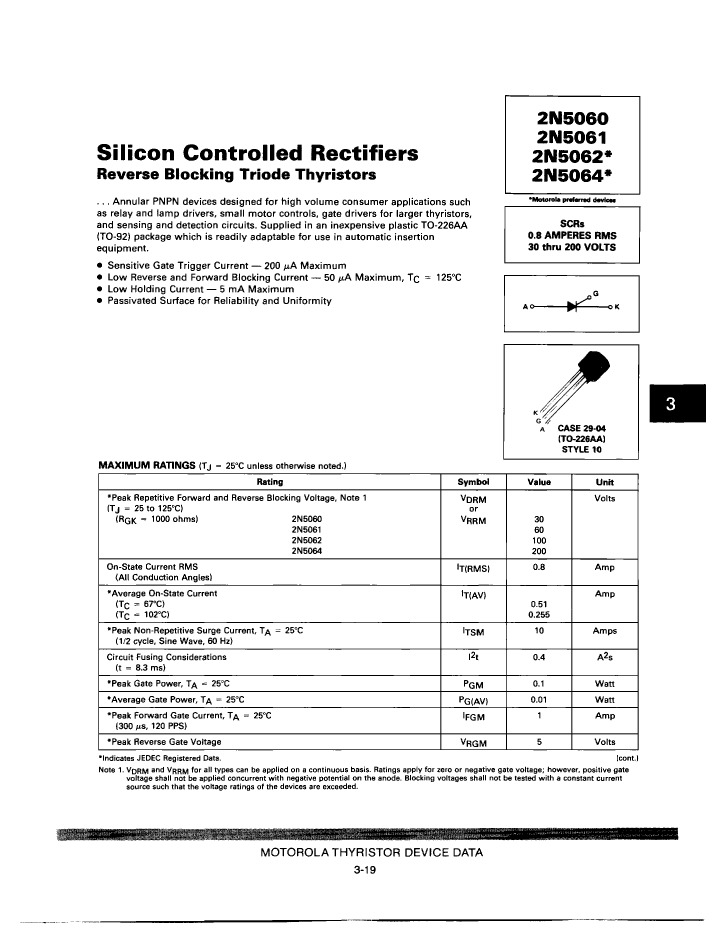

Silicon Controlled Rectifier, 0.8A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element, TO-226AA

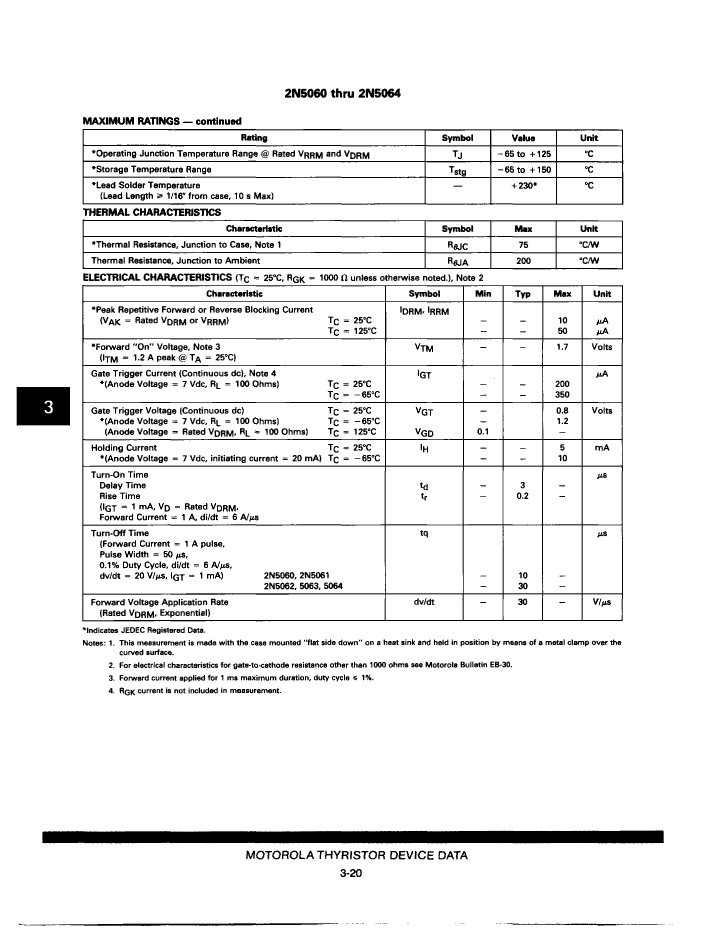

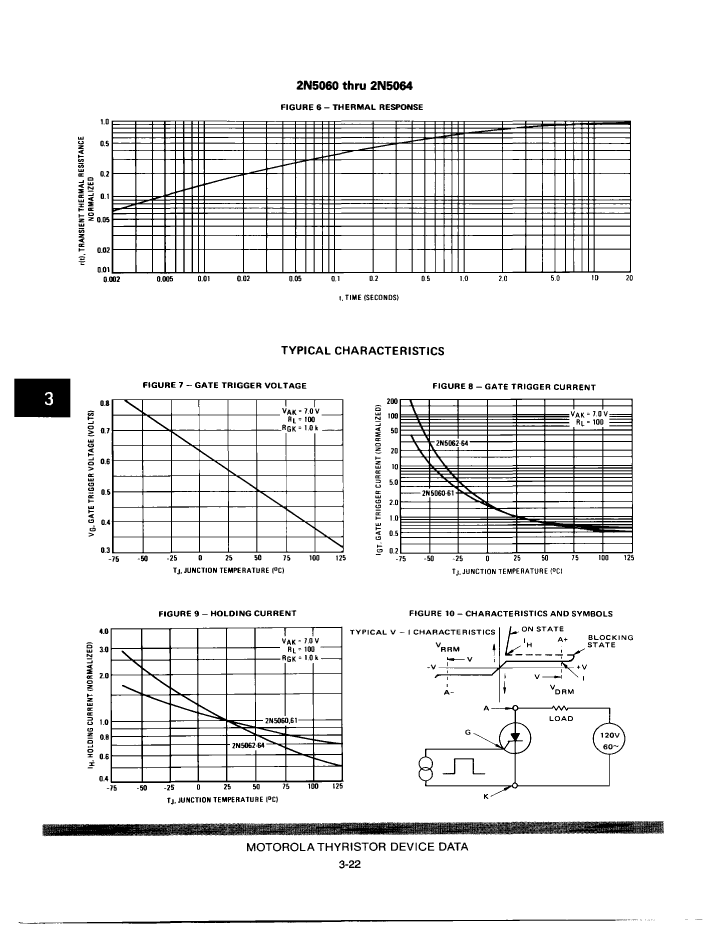

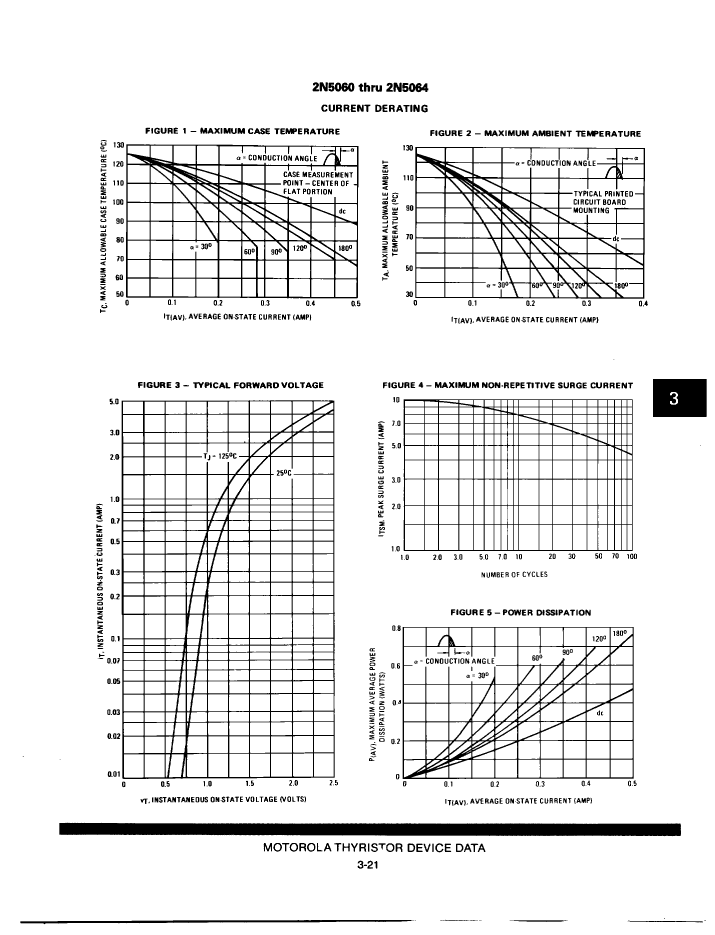

| Parameter Name | Attribute value |
| package instruction | CYLINDRICAL, O-PBCY-W3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | SENSITIVE GATE |
| Nominal circuit commutation break time | 30 µs |
| Configuration | SINGLE |
| Maximum DC gate trigger current | 0.2 mA |
| Maximum DC gate trigger voltage | 0.8 V |
| Maximum holding current | 5 mA |
| JEDEC-95 code | TO-226AA |
| JESD-30 code | O-PBCY-W3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -65 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Certification status | Not Qualified |
| Maximum rms on-state current | 0.8 A |
| Maximum repetitive peak off-state leakage current | 10 µA |
| Off-state repetitive peak voltage | 200 V |
| Repeated peak reverse voltage | 200 V |
| surface mount | NO |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Trigger device type | SCR |
| Base Number Matches | 1 |
| 2N5064-5 | 2N5061-5 | 2N5060-18 | 2N5060-5 | 2N5061-18 | 2N5062-18 | 2N5062-5 | 2N5064-18 | |
|---|---|---|---|---|---|---|---|---|
| Description | Silicon Controlled Rectifier, 0.8A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element, TO-226AA | 0.8A, 60V, SCR, TO-226AA | 0.8A, 30V, SCR, TO-226AA | 0.8A, 30V, SCR, TO-226AA | 0.8A, 60V, SCR, TO-226AA | 0.8A, 100V, SCR, TO-226AA | 0.8A, 100V, SCR, TO-226AA | 0.8A, 200V, SCR, TO-226AA |
| package instruction | CYLINDRICAL, O-PBCY-W3 | CYLINDRICAL, O-PBCY-W3 | CYLINDRICAL, O-PBCY-W3 | CYLINDRICAL, O-PBCY-W3 | CYLINDRICAL, O-PBCY-W3 | CYLINDRICAL, O-PBCY-W3 | CYLINDRICAL, O-PBCY-W3 | CYLINDRICAL, O-PBCY-W3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | SENSITIVE GATE | SENSITIVE GATE | SENSITIVE GATE | SENSITIVE GATE | SENSITIVE GATE | SENSITIVE GATE | SENSITIVE GATE | SENSITIVE GATE |
| Nominal circuit commutation break time | 30 µs | 10 µs | 10 µs | 10 µs | 10 µs | 30 µs | 30 µs | 30 µs |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum DC gate trigger current | 0.2 mA | 0.2 mA | 0.2 mA | 0.2 mA | 0.2 mA | 0.2 mA | 0.2 mA | 0.2 mA |
| Maximum DC gate trigger voltage | 0.8 V | 0.8 V | 0.8 V | 0.8 V | 0.8 V | 0.8 V | 0.8 V | 0.8 V |
| Maximum holding current | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA |
| JEDEC-95 code | TO-226AA | TO-226AA | TO-226AA | TO-226AA | TO-226AA | TO-226AA | TO-226AA | TO-226AA |
| JESD-30 code | O-PBCY-W3 | O-PBCY-W3 | O-PBCY-W3 | O-PBCY-W3 | O-PBCY-W3 | O-PBCY-W3 | O-PBCY-W3 | O-PBCY-W3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum rms on-state current | 0.8 A | 0.8 A | 0.8 A | 0.8 A | 0.8 A | 0.8 A | 0.8 A | 0.8 A |
| Maximum repetitive peak off-state leakage current | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA |
| Off-state repetitive peak voltage | 200 V | 60 V | 30 V | 30 V | 60 V | 100 V | 100 V | 200 V |
| Repeated peak reverse voltage | 200 V | 60 V | 30 V | 30 V | 60 V | 100 V | 100 V | 200 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| Trigger device type | SCR | SCR | SCR | SCR | SCR | SCR | SCR | SCR |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
