pansion to a 1-of-24 decoder using just three LS138 devices or to a 1-of-32
decoder using four LS138s and one inverter. The LS138 is fabricated with the
Schottky barrier diode process for high speed and is completely compatible
with all Motorola TTL families.

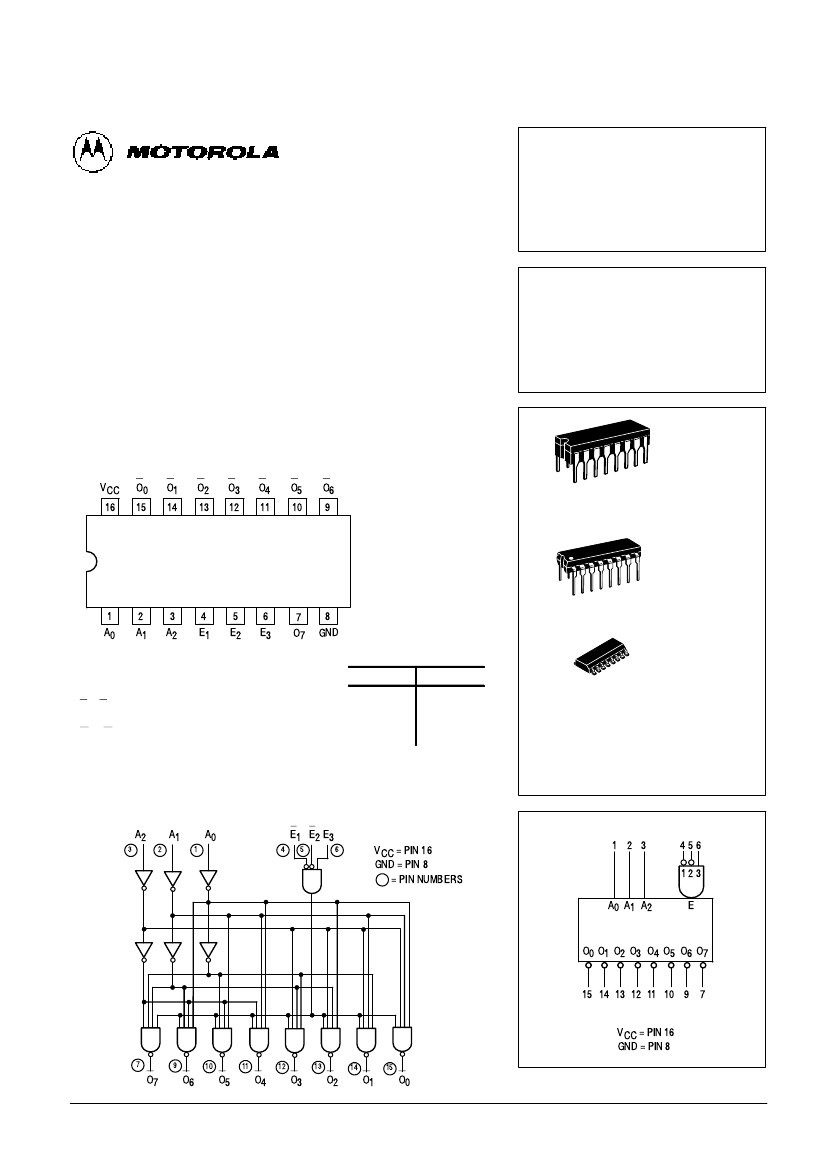

SN54/74LS138
1-OF-8 DECODER/
DEMULTIPLEXER
LOW POWER SCHOTTKY
•
•
•
•
•
Demultiplexing Capability
Multiple Input Enable for Easy Expansion
Typical Power Dissipation of 32 mW
Active Low Mutually Exclusive Outputs
Input Clamp Diodes Limit High Speed Termination Effects
CONNECTION DIAGRAM DIP
(TOP VIEW)
VCC
16
O0
15
O1
14
O2
13
O3
12
O4
11
O5
10
O6
9
NOTE:
The Flatpak version
has the same pinouts
(Connection Diagram) as
the Dual In-Line Package.
16
1
J SUFFIX
CERAMIC
CASE 620-09
16
1
N SUFFIX
PLASTIC
CASE 648-08
1
A0
2
A1
3
A2
4
E1
5
E2
6
E3
7
O7
8
GND
PIN NAMES
A0 – A2
E1, E2
E3
O0 – O7
Address Inputs
Enable (Active LOW) Inputs
Enable (Active HIGH) Input
Active LOW Outputs (Note b)
LOADING
(Note a)
HIGH
0.5 U.L.
0.5 U.L.
0.5 U.L.
10 U.L.
LOW
0.25 U.L.
0.25 U.L.
0.25 U.L.
5 (2.5) U.L.
16
1
D SUFFIX
SOIC
CASE 751B-03
ORDERING INFORMATION
SN54LSXXXJ
SN74LSXXXN
SN74LSXXXD
Ceramic
Plastic
SOIC
NOTES:
a) 1 TTL Unit Load (U.L.) = 40
µA
HIGH/1.6 mA LOW.
b) The Output LOW drive factor is 2.5 U.L. for Military (54) and 5 U.L. for Commercial (74)
Temperature Ranges.
LOGIC DIAGRAM
A2
3
2
A1
1
A0
4
E1 E2 E3
5
6
LOGIC SYMBOL
VCC = PIN 16
GND = PIN 8
= PIN NUMBERS
1 2 3
456
12 3
A0 A1 A2
E
O0 O1 O2 O3 O4 O5 O6 O7
15 14 13 12 11 10 9
VCC = PIN 16
GND = PIN 8
7
9
10
11
12
13
14
15
7
O7
O6
O5
O4
O3
O2
O1
O0
FAST AND LS TTL DATA
5-230
SN54/74LS138
FUNCTIONAL DESCRIPTION
The LS138 is a high speed 1-of-8 Decoder/Demultiplexer
fabricated with the low power Schottky barrier diode process.
The decoder accepts three binary weighted inputs (A0, A1, A2)
and when enabled provides eight mutually exclusive active
LOW Outputs (O0 – O7). The LS138 features three Enable in-
puts, two active LOW (E1, E2) and one active HIGH (E3). All
outputs will be HIGH unless E1 and E2 are LOW and E3 is
HIGH. This multiple enable function allows easy parallel ex-
pansion of the device to a 1-of-32 (5 lines to 32 lines) decoder
with just four LS138s and one inverter. (See Figure a.)
The LS138 can be used as an 8-output demultiplexer by
using one of the active LOW Enable inputs as the data input
and the other Enable inputs as strobes. The Enable inputs
which are not used must be permanently tied to their appropri-
ate active HIGH or active LOW state.
TRUTH TABLE
INPUTS
E1
H
X
X
L
L
L
L
L
L
L
L
E2
X
H
X
L
L
L
L
L
L
L
L
E3
X
X
L
H
H
H
H
H
H
H
H
A0
X
X
X
L
H
L
H
L
H
L
H
A1
X
X
X
L
L
H
H
L
L
H
H
A2
X
X
X
L
L
L
L
H
H
H
H
O0
H
H
H
L
H
H
H
H
H
H
H
O1
H
H
H
H
L
H
H
H
H
H
H
O2
H
H
H
H
H
L
H
H
H
H
H
OUTPUTS
O3
H
H
H
H
H
H
L
H
H
H
H
O4
H
H
H
H
H
H
H
L
H
H
H
O5
H
H
H
H
H
H
H
H
L
H
H
O6
H
H
H
H
H
H
H
H
H
L
H
O7
H
H
H
H
H
H
H
H
H
H
L
H = HIGH Voltage Level
L = LOW Voltage Level
X = Don’t Care
A0
A1
A2
LS04
A3
A4
H
123
A0 A1 A2
E
A0 A1 A2
123
E
A0 A1 A2
123
E
A0 A1 A2
123
E
LS138
O0 O1 O2 O3 O4 O5 O6 O7
LS138
O0 O1 O2 O3 O4 O5 O6 O7
LS138
O0 O1 O2 O3 O4 O5 O6 O7
LS138
O0 O1 O2 O3 O4 O5 O6 O7
O0
O31
Figure a
FAST AND LS TTL DATA
5-231
SN54/74LS138
GUARANTEED OPERATING RANGES
Symbol
VCC
TA
IOH
IOL
Supply Voltage
Operating Ambient Temperature Range
Output Current — High
Output Current — Low
Parameter
54
74
54
74
54, 74
54
74
Min
4.5
4.75
– 55
0
Typ
5.0
5.0
25
25
Max
5.5
5.25
125
70
– 0.4
4.0
8.0
Unit
V
°C
mA
mA
DC CHARACTERISTICS OVER OPERATING TEMPERATURE RANGE
(unless otherwise specified)
Limits
Symbol
VIH
VIL
VIK
VOH
Parameter
Input HIGH Voltage
Input LOW Voltage
Input Clamp Diode Voltage
Output HIGH Voltage
54
74
54, 74
VOL
Output LOW Voltage
74
Input HIGH Current
Input LOW Current
Short Circuit Current (Note 1)
Power Supply Current
– 20
0.35
0.5
20
0.1
– 0.4
–100
10
V
µA
mA
mA
mA
mA
2.5
2.7
54
74
– 0.65
3.5
3.5
0.25
0.4
Min
2.0
0.7
0.8
– 1.5
V
V
V
V
Typ
Max
Unit
V
V
Test Conditions
Guaranteed Input HIGH Voltage for
All Inputs
Guaranteed Input LOW Voltage for
All Inputs
VCC = MIN, IIN = – 18 mA
VCC = MIN, IOH = MAX, VIN = VIH
or VIL per Truth Table
IOL = 4.0 mA
IOL = 8.0 mA
VCC = VCC MIN,
VIN = VIL or VIH
per Truth Table
IIH
IIL
IOS
ICC
VCC = MAX, VIN = 2.7 V
VCC = MAX, VIN = 7.0 V
VCC = MAX, VIN = 0.4 V
VCC = MAX
VCC = MAX
Note 1: Not more than one output should be shorted at a time, nor for more than 1 second.
AC CHARACTERISTICS
(TA = 25°C)
Symbol
tPLH
tPHL
tPLH
tPHL
tPLH
tPHL
tPLH
tPHL
Parameter
Propagation Delay
Address to Output
Propagation Delay
Address to Output
Propagation Delay E1 or E2
Enable to Output
Propagation Delay E3
Enable to Output
Levels of
Delay
2
2
3
3
2
2
3
3
Limits
Min
Typ
13
27
18
26
12
21
17
25
Max
20
41
27
39
18
32
26
38
Unit
ns
ns
ns
ns
Test Conditions
VCC = 5.0 V
CL = 15 pF
AC WAVEFORMS
V
IN
1.3 V
1.3 V
V
IN
1.3 V
1.3 V
t
PHL
V
OUT
t
PLH
t
PHL
V
OUT
t
PLH
1.3 V
1.3 V
1.3 V
1.3 V
Figure 1
Figure 2
FAST AND LS TTL DATA
5-232

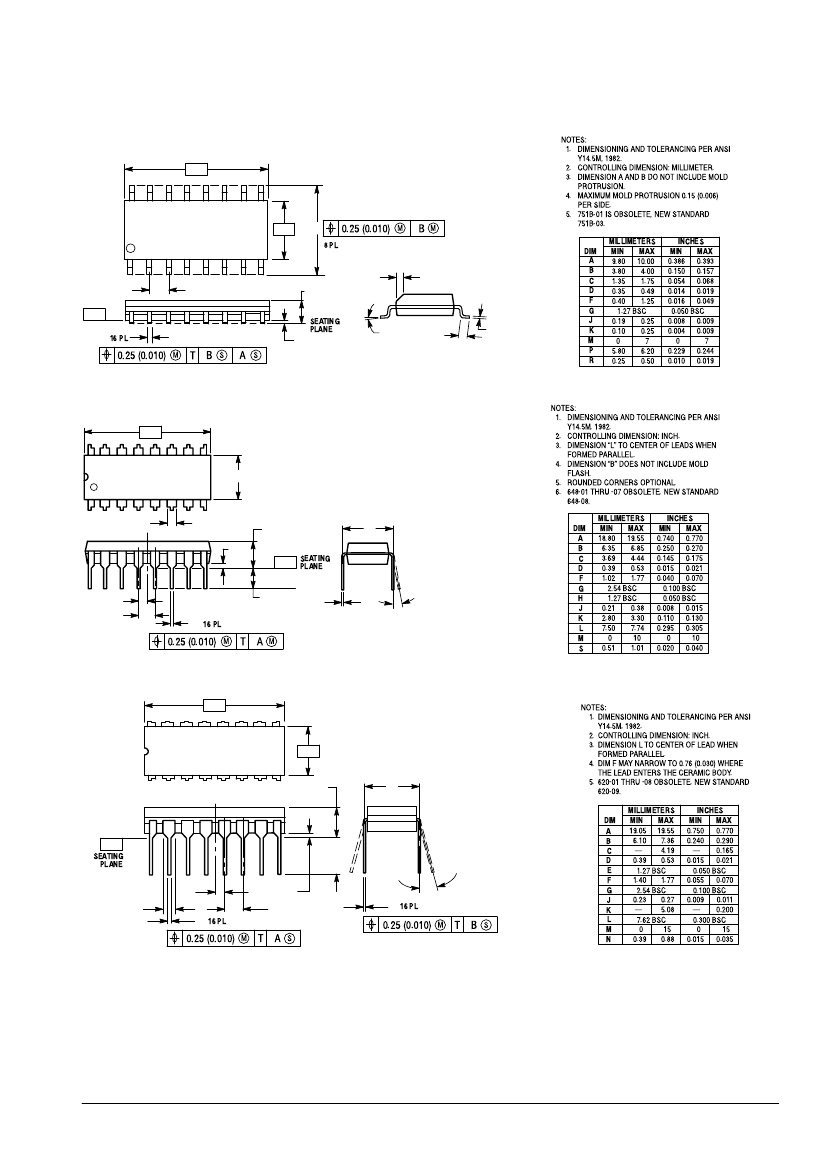

-A-
Case 751B-03 D Suffix
16-Pin Plastic
SO-16
NOTES:
1.
DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2.
3.
CONTROLLING DIMENSION: MILLIMETER.
DIMENSION A AND B DO NOT INCLUDE MOLD
PROTRUSION.
4.
MAXIMUM MOLD PROTRUSION 0.15 (0.006)
PER SIDE.
5.
751B 01 IS OBSOLETE, NEW STANDARD
751B 03.
16
9
-B-
1
8
P
8 PL
0.25 (0.010)
M
B
M
R X 45°
G
-T-
D
16 PL
0.25 (0.010)
M
C
SEATING
PLANE
K
T
B
S
M
F
J
A
S
DIM
A
B
C
D
F
G
J
K
M
P
R
MILLIMETERS
MIN
MAX
9.80
3.80
1.35
0.35
0.40
10.00
4.00
1.75
0.49
1.25
INCHES
MIN
MAX
0.386
0.150
0.054
0.014
0.016
0.393
0.157
0.068
0.019
0.049
1.27 BSC
0.19
0.10
0
0.25
0.25
7
0.050 BSC
0.008
0.004
0
0.009
0.009
7
°
°
°
°
5.80
0.25
6.20
0.50
0.229
0.010
0.244
0.019
Case 648-08 N Suffix
16-Pin Plastic
-A-
16
9
NOTES:
1.
DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2.
3.
CONTROLLING DIMENSION: INCH.
DIMENSION L" TO CENTER OF LEADS WHEN
FORMED PARALLEL.
4.
DIMENSION B" DOES NOT INCLUDE MOLD
FLASH.
5.
6.
ROUNDED CORNERS OPTIONAL.
648 01 THRU 07 OBSOLETE, NEW STANDARD
648 08.
B
1
8
F
S
C
-T-
K
SEATING
PLANE
L
H
G
D
16 PL
0.25 (0.010)
M
J
M
T
A
M
DIM
A
B
C
D
F
G
H
J
K
L
M
S
MILLIMETERS
MIN
MAX
18.80
6.35
3.69
0.39
1.02
19.55
6.85
4.44
0.53
1.77
INCHES
MIN
MAX
0.740
0.250
0.145
0.015
0.040
0.770
0.270
0.175
0.021
0.070
2.54 BSC
1.27 BSC
0.21
2.80
7.50
0
0.38
3.30
7.74
10
0.100 BSC
0.050 BSC
0.008
0.110
0.295
0
0.015
0.130
0.305
10
°
°
°
°
0.51
1.01
0.020
0.040
-A-
16
9
Case 620-09 J Suffix
16-Pin Ceramic Dual In-Line
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
-B-
1
8
3. DIMENSION L TO CENTER OF LEAD WHEN
FORMED PARALLEL.
4. DIM F MAY NARROW TO 0.76 (0.030) WHERE
THE LEAD ENTERS THE CERAMIC BODY.
C
L
5. 620 01 THRU 08 OBSOLETE, NEW STANDARD
620 09.
-T-
SEATING
PLANE
K
E
F
D
16 PL
0.25 (0.010)
M
N
G
T
A
S
M
J
16 PL
0.25 (0.010)
M
T
B
S
DIM
A
B
C
D
E
F
G
J
K
L
M
N
MILLIMETERS
MIN
MAX
19.05
6.10
19.55
7.36
4.19
0.39
0.53
INCHES
MIN
MAX
0.750
0.240
0.770
0.290
0.165
0.015
0.021
1.27 BSC
1.40
1.77
0.050 BSC
0.055
0.070
2.54 BSC
0.23
0.27
5.08
7.62 BSC
0
0.100 BSC
0.009
0.011
0.200
0.300 BSC
0
°
15
°
°
15
°
0.39
0.88
0.015
0.035
FAST AND LS TTL DATA
5-233
Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty, representation or guarantee regarding
the suitability of its products for any particular purpose, nor does Motorola assume any liability arising out of the application or use of any product or circuit,
and specifically disclaims any and all liability, including without limitation consequential or incidental damages. “Typical” parameters can and do vary in different
applications. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Motorola does
not convey any license under its patent rights nor the rights of others. Motorola products are not designed, intended, or authorized for use as components in
systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of
the Motorola product could create a situation where personal injury or death may occur. Should Buyer purchase or use Motorola products for any such
unintended or unauthorized application, Buyer shall indemnify and hold Motorola and its officers, employees, subsidiaries, affiliates, and distributors harmless
against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that Motorola was negligent regarding the design or manufacture of the part.
Motorola and
are registered trademarks of Motorola, Inc. Motorola, Inc. is an Equal Opportunity/Affirmative Action Employer.
Literature Distribution Centers:
USA: Motorola Literature Distribution; P.O. Box 20912; Phoenix, Arizona 85036.
EUROPE: Motorola Ltd.; European Literature Centre; 88 Tanners Drive, Blakelands, Milton Keynes, MK14 5BP, England.
JAPAN: Nippon Motorola Ltd.; 4-32-1, Nishi-Gotanda, Shinagawa-ku, Tokyo 141, Japan.
ASIA PACIFIC: Motorola Semiconductors H.K. Ltd.; Silicon Harbour Center, No. 2 Dai King Street, Tai Po Industrial Estate, Tai Po, N.T., Hong Kong.
[i=s]This post was last edited by paulhyde on 2014-9-15 08:57[/i] Competing students from Northwestern Polytechnical University: Feng Xiaoqiang, He Ying, Shao Nan, Supervisor: Shao ShuyuanAbstract: Ta...
[font=微软雅黑][size=3] [/size][/font] [font=微软雅黑][size=3]2015, [/size][/font][font=微软雅黑][size=3]has passed in a hurry, and there is only one day left until 2016. In this year, I have gained a lot. [/size...
[Ask if you don't understand] The black color below the picture is the situation encountered in use. A capacitor is connected between the same direction and reverse input terminals of LM293A. I don't ...
I need the program of UTC1212 wireless transceiver module urgently. If any friend has it, please send it to my email 934336403@qq.com
Thank you very much...
Today anqi90 made some suggestions for the Chat and Laugh section!Change the categories in the upper right corner of the picture such as Solved, Problem Discussion, and Data Download to Breaking News,...
On August 23rd, Geely's subsidiary, Jiyao Tongxing, announced it has the industry's largest advanced production capacity for tandao
batteries
, with eight production bases across China. Jiy...[Details]
When you are happily watching NBA or football, your wife asks you to turn off the lights in the bedroom. Would you be depressed? Of course, unless you are not afraid of your wife.
Now you are ...[Details]
With the rapid development of technology, automotive intelligence is increasing at an unprecedented rate. This not only enhances vehicle functionality and comfort, but also places higher deman...[Details]
New energy pure electric vehicles generally accelerate faster than comparable fuel-powered vehicles, both from a standing start and while accelerating. Many believe this is simply due to the motor'...[Details]
Current Development Status of DVR Market
A DVR, or digital video recorder, uses a hard disk for recording, unlike traditional analog video recorders. It's often called a DVR because it's a com...[Details]
The fracture mechanism is stress concentration, which typically occurs at the capacitor lead pins or pad connection points, as shown in the figure. Under vibration, the capacitor lead pins and pad ...[Details]
Batteries are a core component of new energy vehicles, accounting for over 40% of the total cost. This is also the area where automakers are most willing to tamper with costs. Since 2021, domestic ...[Details]
0 Introduction
With a rapidly aging population, a young couple is now required to care for an increasing number of elderly people, leading to a growing difficulty in providing care for them. E...[Details]
For the average person, an electricity meter is a monthly bill. For beginners, it's a collection of components and parts. For experienced meter engineers, however, it's a complex and complex proces...[Details]
We know that the power output by the engine does not directly act on the wheels to drive the car, but needs to pass through a series of power transmission mechanisms. So how is the power transmitte...[Details]
01 Overview
The HJM315A/B is a domestically produced programmable three-phase motor driver specifically designed for small and medium-sized motor gyroscopes. It consists of an MCU, LDO, three-...[Details]
August 19, 2025 – Mouser Electronics, a leading New Product Introduction (NPI) distributor offering an extensive portfolio of semiconductors and electronic components, announced that
it will be...[Details]
Abstract: This design uses field-effect transistors to create a tube-like audio power amplifier. The preamplifier uses a single Class A transistor, while the power stage utilizes Class AB push-pull...[Details]
1. Introduction to power amplifier circuit
1. Generally speaking, the main function of a power amplifier circuit is to allow the load to obtain maximum power without distorting the signal or c...[Details]
1. Overview of the current status and future development of the bionic market
Bionic robots, innovative products that integrate biomechanics and robotics, have experienced explosive growth...[Details]
TI Technology Forum
京公网安备 11010802033920号
EEWORLD
