2001-7010-02U datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 2001-7010-02U

Preview

2001-7010-02U: DescriptionRF/Microwave Termination, 0MHz Min, 18000MHz Max; CategoryWireless rf/communication Radio frequency and microwave; File Size40KB，1 Pages; ManufacturerXMA Corp.

Download Datasheet Parametric Compare View All

2001-7010-02U Overview

RF/Microwave Termination, 0MHz Min, 18000MHz Max

2001-7010-02U Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA-M, I/P POWER-MAX(PEAK)=500W
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	NICKEL
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

2001-7010-XX

2 Watt SMA Male Termination

Specifications

Electrical

Freq. Range:

VSWR:

DC-4 GHz

4-8 GHz

8-12.4GHz

12.4-18GHz

Input Power:

Peak Power:

Operating Temp Range:

DC – 18 GHz

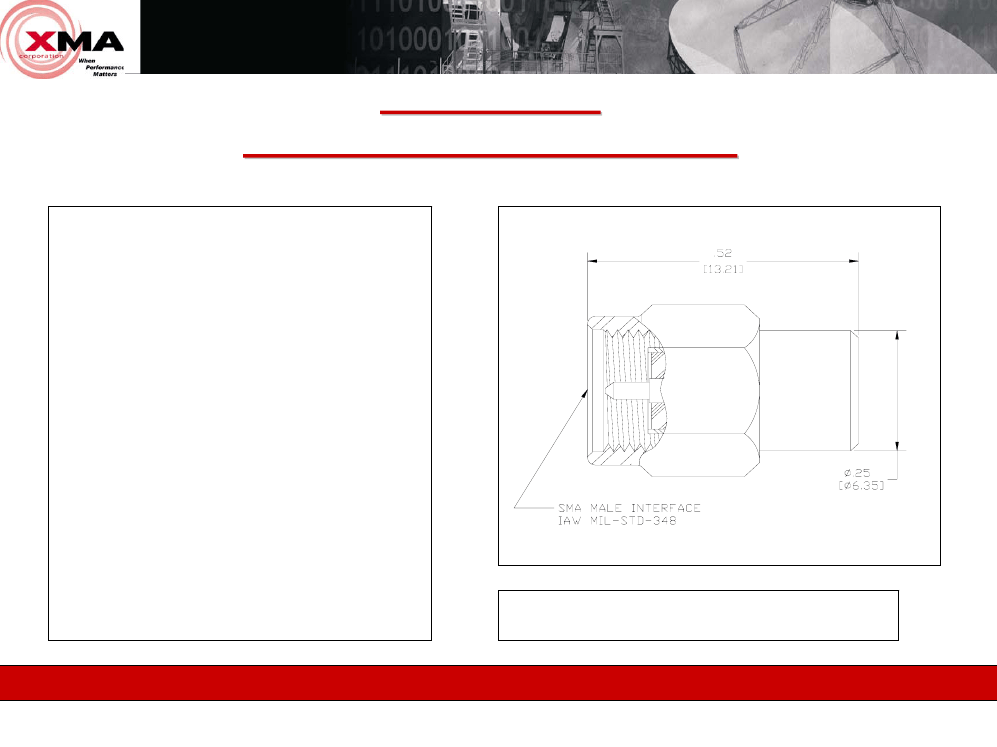

Outline Drawing

1.05:1 Max

1.10:1 Max

1.15:1 Max

1.20:1 Max

2 Watts @ +25 °C Max

(Derated Linearly to 0.2 Watt @ +125 °C)

500 Watts Max

(5uSec Pulse, 0.05% Duty Cycle)

-65 to +125 °C

Mechanical

Size:

Length:

Body Dia:

Body:

Coupling Nut:

Body:

Coupling Nut:

0.52”

0.312” Hex/ Ø 250

Gold Plated Stainless Steel

Nickel Plated Stainless Steel

Passivated Stainless Steel

Finish: XX=00

XX=02

“ U” as suffix indicates Unmarked Part

Custom configurations available upon request

Rev: A0

121207DC

WHEN PERFORMANCE MATTERS

150 Dow Street • Manchester, NH 03101

Tel: 603-222-2256

Fax: 603-222-2259

www.xmacorp.com

2001-7010-02U Related Products

	2001-7010-02U	2001-7010-00U	S-LDTC144TET1G	2001-7010-00
Description	RF/Microwave Termination, 0MHz Min, 18000MHz Max	RF/Microwave Termination, 0MHz Min, 18000MHz Max	Bias Resistor Transistor	RF/Microwave Termination, 0MHz Min, 18000MHz Max
Reach Compliance Code	unknown	unknown	-	unknown
Other features	SMA-M, I/P POWER-MAX(PEAK)=500W	SMA-M, I/P POWER-MAX(PEAK)=500W	-	SMA-M, I/P POWER-MAX(PEAK)=500W
structure	COAXIAL	COAXIAL	-	COAXIAL
Maximum input power (CW)	33.01 dBm	33.01 dBm	-	33.01 dBm
Maximum operating frequency	18000 MHz	18000 MHz	-	18000 MHz
Maximum operating temperature	125 °C	125 °C	-	125 °C
Minimum operating temperature	-65 °C	-65 °C	-	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	-	RF/MICROWAVE TERMINATION
Terminal surface	NICKEL	GOLD	-	GOLD
Maximum voltage standing wave ratio	1.2	1.2	-	1.2
Base Number Matches	1	1	-	1
