17266 MHz Cavity Band Pass Filter

Part Number: AE17266B11677

Mechanical

Mounting Method:

Through Holes

Connector Type:

2.92- Female

Dimensions:

2.13” X 0.75” x 0.35”

Electrical Specifications

Center Frequency:

17266 MHz

Bandwidth:

9024 MHz (12754-21778 MHz)

Insertion Loss :

2.0 dB Max.

VSWR :

2.2:1 Max.

Rejection1:

70dB Min @ 1275-10840 MHz

Rejection2:

80dB Min @ 25508-42000 MHz

Power Handling:

5 Watts

Impedance :

50 Ohms

Environmental

Operating Temperature:

-40°C to +70°C

Storage Temperature:

-55°C to +85°C

Shock:

20 G. 11ms

Vibration:

20 G. 5 to 200Hz

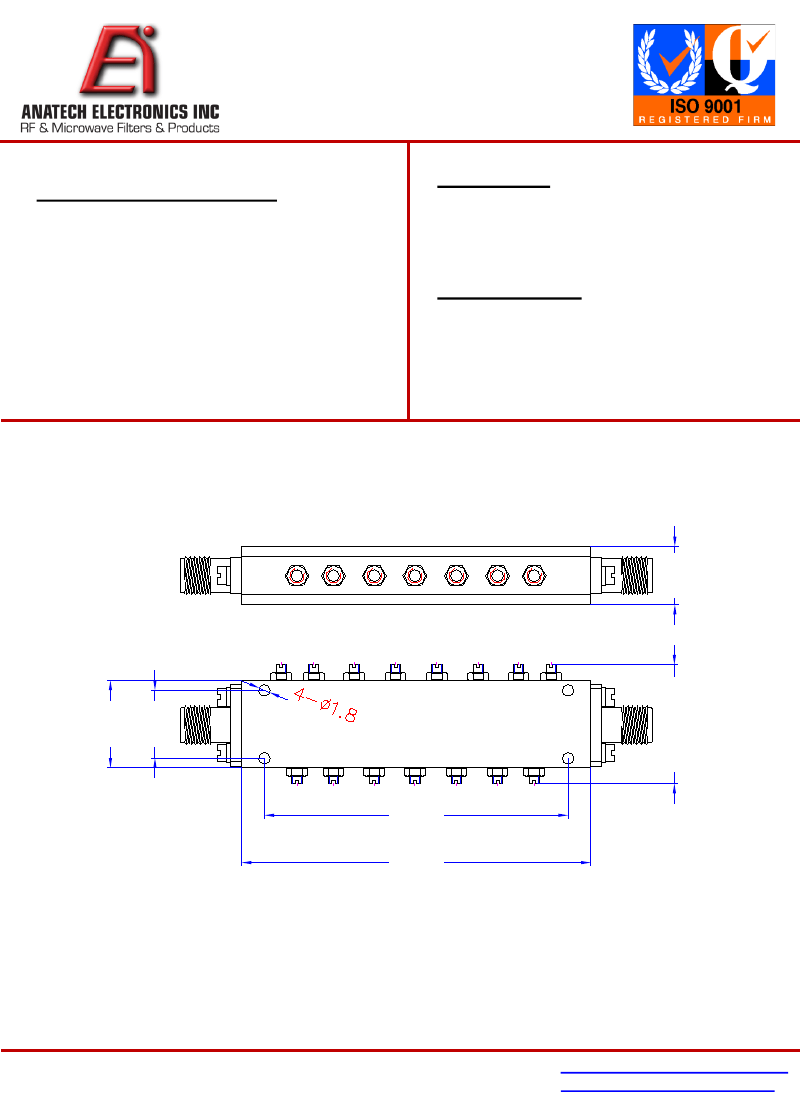

Outline Drawing:

[

07]

46.9

[1.85]

53.9

[2.13]

2 decimal places: +/-0.01 inches [+/- 0.3mm]

3 decimal places: +/- 0.005 inches [+/- 0.13mm]

Angles: +/- 1 Deg.

When max dimensions are called out the above tolerances do not apply as long as it is under the max call out.

70 Outwater Lane

Garfield, NJ 07026

Phone: (973) 772-4242

Fax : (973) 321-3941

Email:

sales@anatechelectronics.com

Web:

www.anatechelectronics.com

Max19[.75]

13.5

[.53]

10.5

[.41]

[.35]
