2651E20115N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Optical fiber> 2651E20115N

2651E20115N: DescriptionPhotodiode Detector, 1100nm Min, 1600nm Max, FC/APC, Through Hole Mount; CategoryWireless rf/communication Optical fiber; File Size169KB，5 Pages; ManufacturerEMCORE; Websitehttp://www.emcore.com/

Download Datasheet Parametric View All

2651E20115N Overview

Photodiode Detector, 1100nm Min, 1600nm Max, FC/APC, Through Hole Mount

2651E20115N Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	AM-VSB CATV, QAM 64/256, PON, FTTC AND FTTH RECEIVER
body width	8.61 mm
body height	20.5 mm
Body length or diameter	8.61 mm
Connection Type	FC/APC
Maximum dark power	50 nA
Fiber optic equipment types	PHOTODIODE DETECTOR
Fiber type	9/125
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum operating wavelength	1600 nm
Minimum operating wavelength	1100 nm
Nominal operating wavelength	1350 nm
Responsiveness	0.95 A/W
minimum return loss	-40 dB
Maximum supply voltage	15 V
Minimum supply voltage	10 V
Nominal supply voltage	12 V
surface mount	NO
Transmission type	ANALOG
Base Number Matches	1

Preview

Download Datasheet

View All

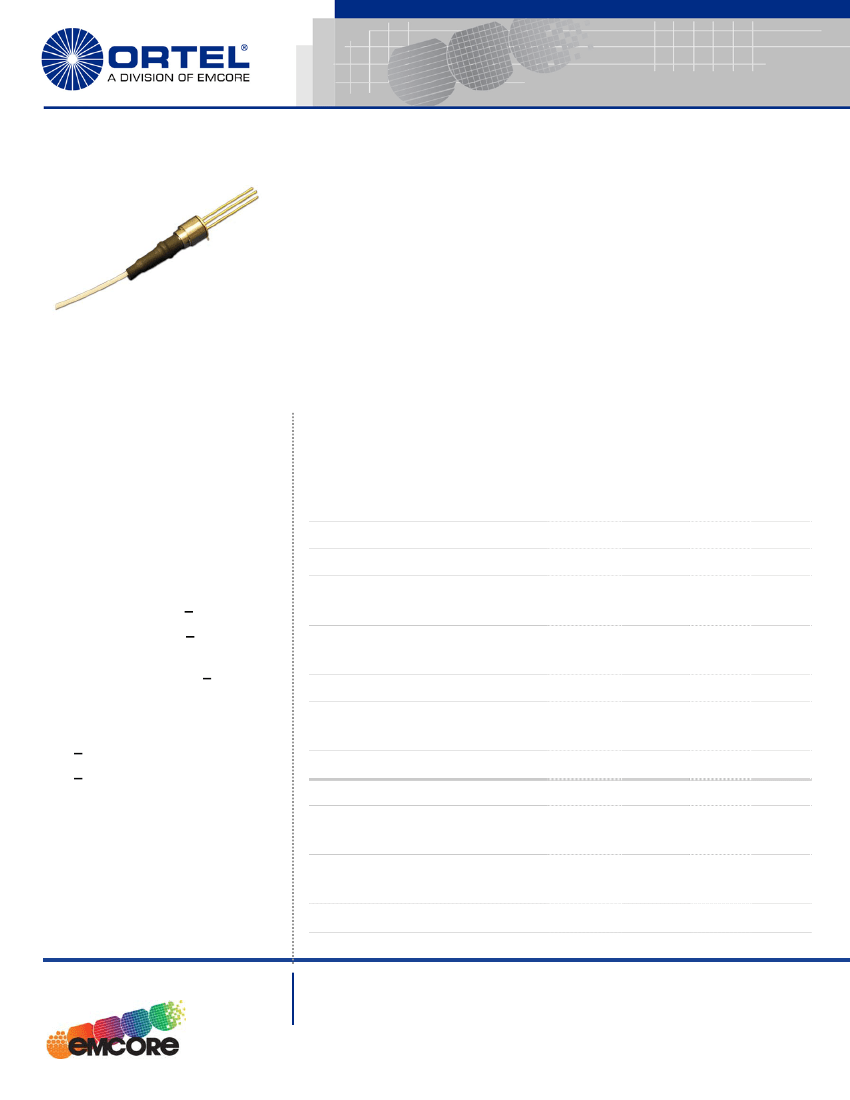

DATA SHEET| AUGUST 2, 2006

2651A/2651E Broadband Photodiode

The 2651 provides the proven high performance of Ortel’s photodiode

technology in a very practical, cost-effective package. The 2651A

features high linearity and low capacitance over a 1 GHz bandwidth. The

extended bandwidth 2651E offers high linearity and low capacitance up

to 3 GHz. These broadband photodiodes are housed in a small,

environmentally rugged coaxial package.

The 2651 broadband photodetector is designed to provide the

performance and flexibility needed to meet the expanding applications of

two-way communications networks. This photodiode is used today in

forward-and return-path applications, including AM-VSB CATV, QAM

64/256, PON, FTTC and FTTH receivers.

Applications

Forward-path and return-path

broadband video transport

FTTx

1527

receivers

EDFA and network monitors

Operating Case Temperature

The 2651A and 2651E photodiodes are compliant with all criteria of the

Restriction of the Use of Hazardous Substances in Electrical and

Electronic Equipment (RoHS) guidelines 2002/95/EC.

Performance Highlights

Min

-40

1100

0.85

0.95

Typ

0.35

Max

+85

1600

0.4

1000

3000

1.0

-75

-65

-85

-75

dBc

p-p

dBc

MHz

Units

°C

A/W

Features

Low cost package

Low capacitance, < 0.4 pF

Low dark current, < 50 nA at

+85°C

1 GHz flat response, + 0.5 dB

Extended bandwidth option

High responsivity

- > 0.85 mA/mW at 1310 nm

- > 0.95 mA/mW at 1550 nm

Telcordia GR-468 compliant

RoHS compliant

Wavelength

Responsivity, 1310 nm

1550 nm

Dark Current, 25°C

85°C

Capacitance

Bandwidth, 2651A

2651E

Gain Flatness, < 1 GHz

Gain Up-Tilt, 2651E, 1 GHz to 3 GHz

DSO, 2651A/E, < 1 GHz

2651E, 1 GHz – 3 GHz

DTB, 2651A/E, < 1 GHz

2651E, 1 GHz – 3 GHz

Bias Voltage

See following pages for complete specifications and operating conditions.

For more information on this and other products:

Contact Sales at Ortel 626-293-3400, or visit www.emcore.com.
