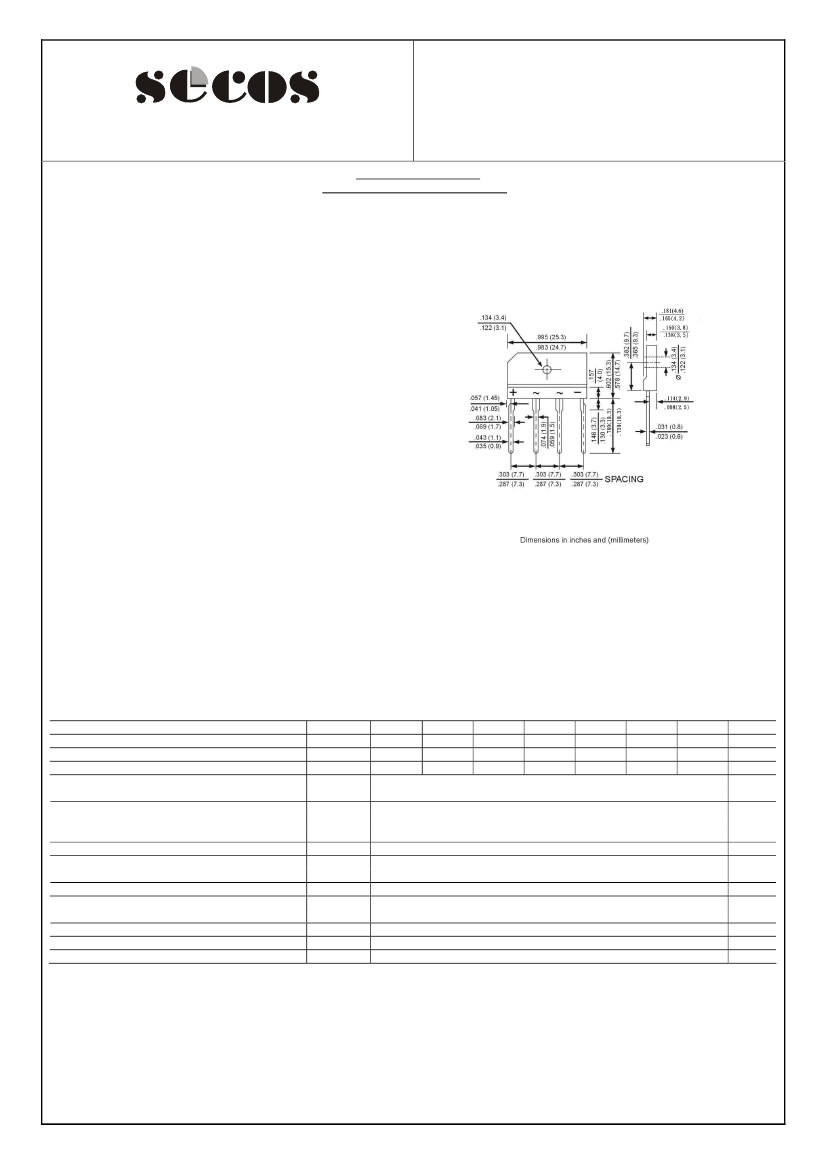

GBJ6A ~ GBJ6M
Elektronische Bauelemente
VOLTAGE 50V ~ 1000V
6.0
AMP Glass Passivated Bridge Rectifiers
RoHS Compliant Product
A suffix of “-C” specifies halogen-free.
FEATURES
.
Surge overload rating – 125 amperes peak
.
Ideal for printed circuit board
.
Reliable low cost construction utilizing
Molded plastic technique
.
Plastic material has underwrites laboratory
Flammability classification 94V-0
.
Polarity: marked on body
.
Mounting position: Any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25
ambient temperature unless otherwise specified
.
Resistive or inductive load, 60Hz,
For capacitive load, derate current by 20%.
GBJ6A
TYPE NUMBER
SYMBOL
Maximum Recurrent Peak Reverse Voltage
V
RRM
50
Maximum RMS Voltage
V
RMS
35
Maximum DC Blocking Voltage
V
DC
50
Maximum Average Forward (with heatsink Note2)
I
(AV)
Rectified Current @ T
C
=100 (without heatsink)
Peak Forward Surge Current, 8.3 ms single
I
FSM
half Sine-wave superimposed
on rated load (JEDEC method)
Maximum Forward Voltage at 2.0A
V
F
Maximum DC Reverse Current Ta=25
I
R
at Rated DC Blocking Voltage Ta=125
2
I t Rating for fusing (t<8.3ms)
I
2
t
Typical Junction Capacitance
C
J
per element (Note1)
Typical Thermal Resistance (Note 2)
R
JC
Operating Temperature Range
T
J
Storage Temperature Range
T
STG
NOTES:
1. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
2. Device mounted on
75mm
x
75mm
x 1.6mm Cu Plate Heatsink.
GBJ6B
GBJ6D
GBJ6G
GBJ6J
GBJ6K
GBJ6M
100
70
100
200
140
200
400
280
400
6.0
2.8
170
1.0
5.0
500
120
55
1.8
- 55 ~ + 150
- 55 ~ + 150
600
420
600
800
560
800
1000
700
1000
UNITS
V
V
V
A
A
V
µA
A
2
S
pF
/W
http://www.SeCoSGmbH.com/
01-Jun-2002 Rev. A
Any changing of specification will not be informed individual
Page 1 of 2
GBJ6A ~ GBJ6M
Elektronische Bauelemente
VOLTAGE 50V ~ 1000V
6.0
AMP Glass Passivated Bridge Rectifiers
RATING AND CHARACTERISTIC CURVES
Fig. 1 - Forward Current Derating Curve
6.0
5.0
4.0
3.0
2.0
0.0
0
Without Heatsink
Single Phase Half Wave 60Hz
Resistive or Inductive Load
20
40
60
80
100
120
140
With Heatsink
Fig. 2 - Maximum Non-Repetitive Surge Current
Peak Forward Surge Current,
Amperes
180
160
140
120
100
80
60
40
20
0
0
Single Half-Sine-Wave
(JEDEC Method)
2
5
10
20
50
100
Average Forward Current
Amperes
Case Temperature, C
Number of Cycles at 60 Hz
Fig. 3 - Typical Junction Capacitance
100
10
Fig. 4 - Typical Forward Charactistics
Instantaneous Forward Current, (A)
Capacitance, (pF)
1.0
T
J
= 25 C
Pulse Width: 300 us
o
T
J
= 25
o
C, f = MHz
10
0.1
1.0
1.0
Reverse Voltage, Volts
1000
4.0
10.0
100
0.01
0
Instantaneous Forward Voltage, Volts
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
Fig. 5 - Typical Reverse Characteristics
Instantaneous Reverse Current, (uA)
100
T
J
= 125 C
o
T
J
= 100 C
10
o
1.0
T
J
= 50 C
o
T
J
= 25 C
0.1
0
20
40
60
80
100
o
Percent of Rate Peak Reverse Voltage, %
http://www.SeCoSGmbH.com/
01-Jun-2002 Rev. A
Any changing of specification will not be informed individual
Page 2 of 2
