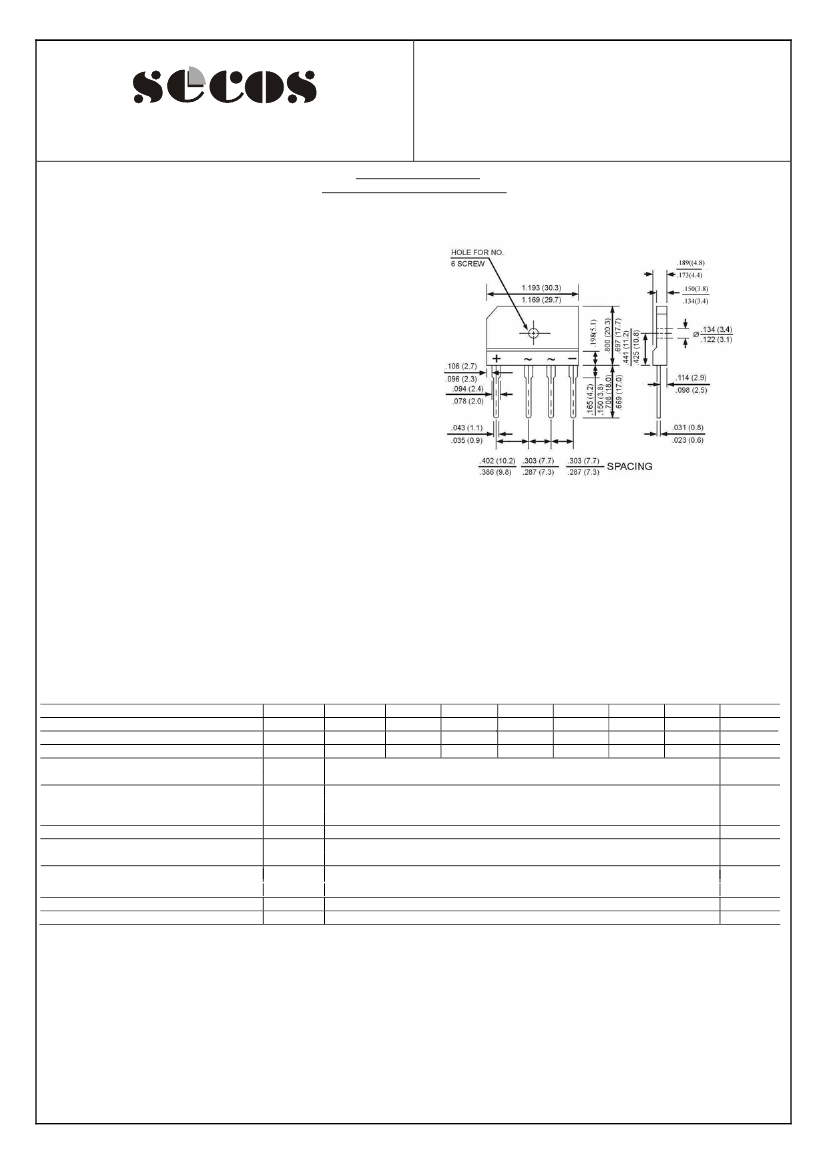

GBJ2005 ~ GBJ210
VOLTAGE 50V ~ 1000V
Elektronische Bauelemente
2.0 AMP Glass Passivated Bridge Rectifiers
RoHS Compliant Product
A suffix of “-C” specifies halogen-free.
FEATURES
*
Ideal for printed circuit board
*
Surge overload rating - 60A peak
*
The plastic material has UL flammability
classification 94V-0
*
Mounting position: Any
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature unless otherwise specified
.
Single phase, half wave, 60Hz, resistive or inductive load,
For capacitive load, derate current by 20%.
o
Maximum Recurrent Peak Reverse Voltage
TYPE NUMBER
Maximum Average Forward Rectified
o
@ T
A
=50
C
Output Current
Maximum RMS Voltage
Maximum DC Blocking Voltage
SYMBOL
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
I
R
T
J
T
STG
GBJ2005
50
35
50
GBJ201
100
70
100
GBJ20 2
200
140
200
GBJ204
400
280
400
GBJ206
600
420
600
GBJ208
800
560
800
GBJ210
1000
700
1000
UNITS
V
V
V
A
A
V
µA
mA
o
o
2.0
60
1.1
10
1.0
- 55 ~ + 150
- 55 ~ + 150
Peak Forward Surge Current 8.3 ms
single half sine-wave super imposed
on rated load
Maximum Forward Voltage at 1.0A
Maximum Reverse Current
at Rated DC Blocking Voltage
Maximum Reverse Current at Rate
o
DC Blocking Voltage per element
@T
A
=100C
Operating Temperature Range
Storage Temperature Range
C
C
http://www.SeCoSGmbH.com/
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page 1 of 2
GBJ2005 ~ GBJ210
VOLTAGE 50V ~ 1000V
Elektronische Bauelemente
2.0 AMP Glass Passivated Bridge Rectifiers

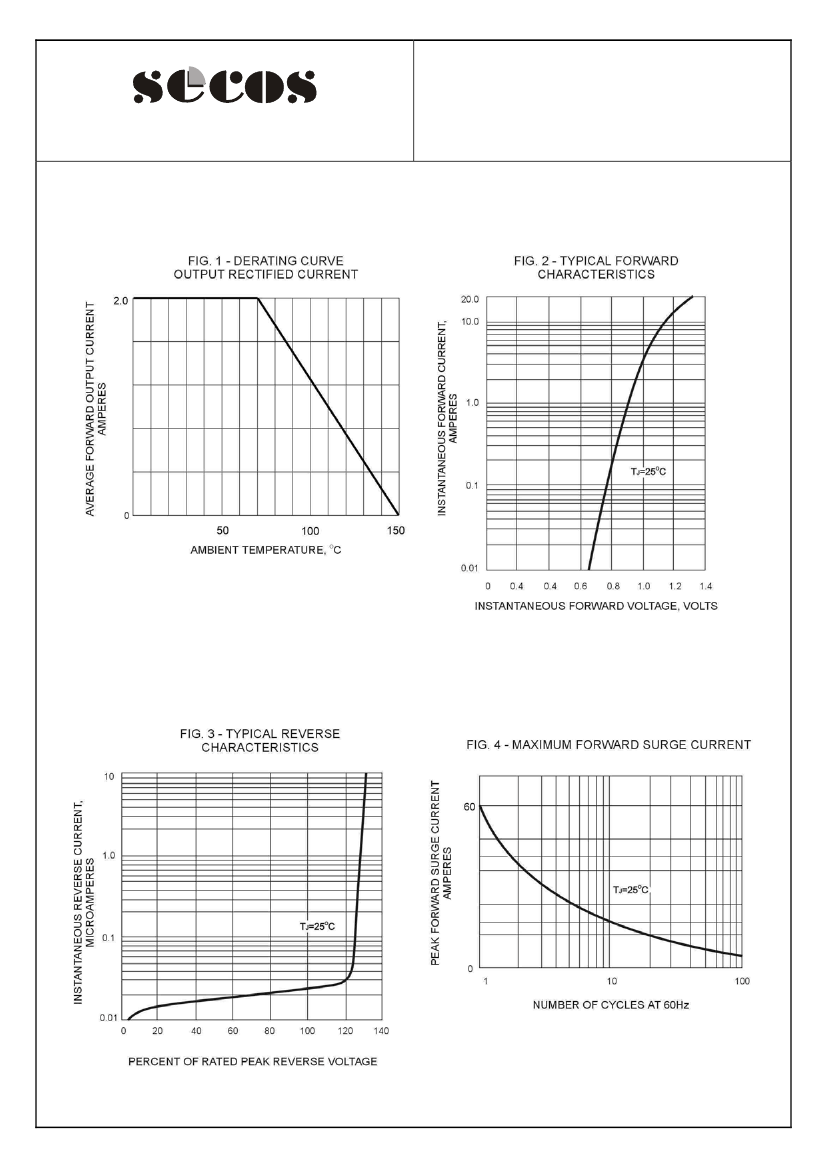

Characteristics Curve
http://www.SeCoSGmbH.com/
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page 2 of 2
