200-35-10-860 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 200-35-10-860

Preview

200-35-10-860: DescriptionRF SMA/SSMA Connector, 1 Contact(s), Female, Panel Mount, Solder Lug Terminal, Locking, Jack; CategoryThe connector The connector; File Size93KB，1 Pages; ManufacturerSGMC Microwave

Download Datasheet Parametric View All

200-35-10-860 Overview

RF SMA/SSMA Connector, 1 Contact(s), Female, Panel Mount, Solder Lug Terminal, Locking, Jack

200-35-10-860 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	0.085 SEMI-RIGID CABLE
subject depth	0.6 inch
Body/casing type	JACK
Cable type	SEMI-RIGID
Characteristic impedance	50 Ω
Contact point gender	FEMALE
Contact style	COAX
Durability	500 Cycles
Insertion loss	0.4 dB
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	PANEL
Number of ports	1
Maximum operating frequency	40 GHz
Maximum operating temperature	204 °C
Minimum operating temperature	-240 °C
Termination type	SOLDER LUG
Total number of contacts	1
voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

DWG

NO.

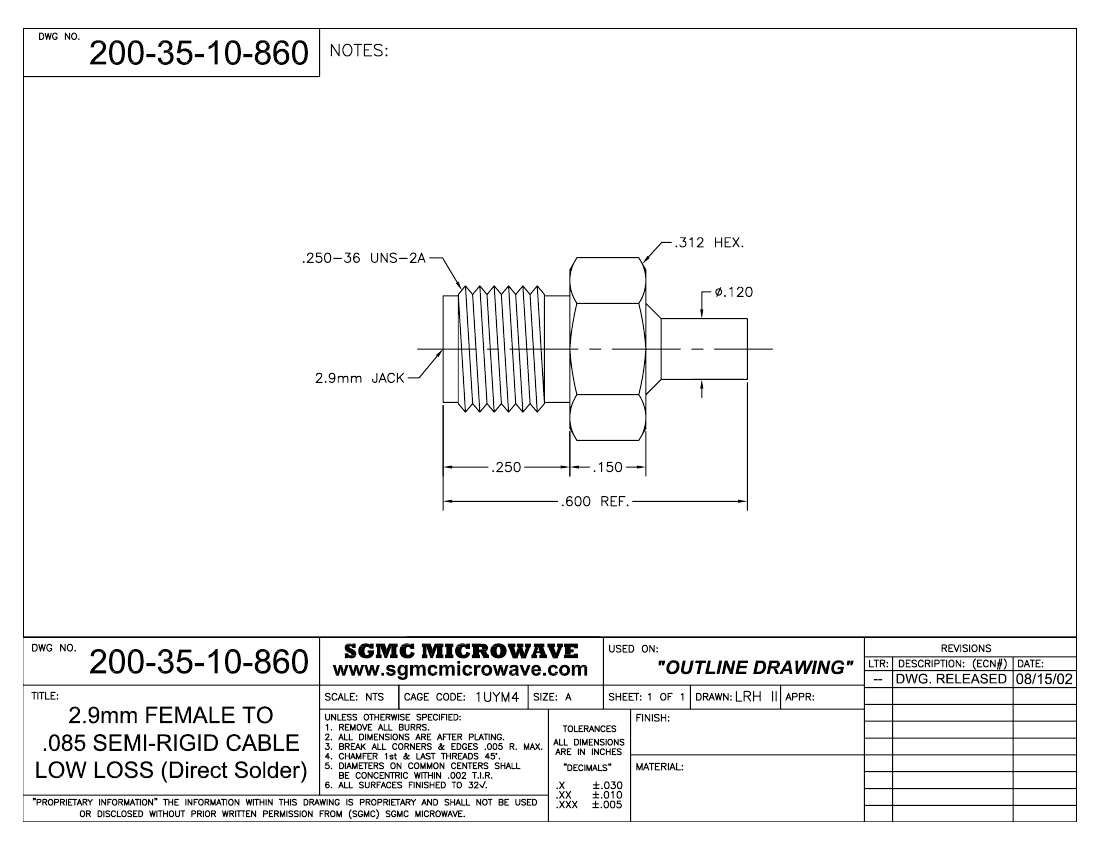

200-35-10-860

NOTES:

.312 HEX.

.250-36 UNS-2A

∅

.120

2.9mm JACK

.250

.150

.600 REF.

DWG

NO.

200-35-10-860

www.sgmcmicrowave.com

SCALE:

NTS

CAGE CODE:

SPECIFIED:

SGMC MICROWAVE

1UYM4

SIZE:

A

USED

ON:

REVISIONS

LTR:

--

"OUTLINE DRAWING"

SHEET: 1

OF

1

DRAWN:

DESCRIPTION: (ECN#)

DATE:

DWG. RELEASED

08/15/02

TITLE:

LRH II

APPR:

2.9mm FEMALE TO

.085 SEMI-RIGID CABLE

UNLESS OTHERWISE

1. REMOVE

2.

ALL

FINISH:

TOLERANCES

PLATING.

MAX.

ALL

DIMENSIONS

INCHES

ALL BURRS.

AFTER

CORNERS &

&

LAST

EDGES .005 R.

SHALL

DIMENSIONS ARE

1st

3. BREAK ALL

4. CHAMFER

BE

6.

ALL

THREADS 45.

.002 T.I.R.

TO

32 .

ARE IN

LOW LOSS (Direct Solder)

5. DIAMETERS ON COMMON CENTERS

CONCENTRIC

WITHIN

SURFACES FINISHED

"DECIMALS"

.X

.XX

.XXX

.030

.010

.005

MATERIAL:

"PROPRIETARY INFORMATION" THE INFORMATION WITHIN THIS DRAWING IS PROPRIETARY AND SHALL NOT BE USED

OR DISCLOSED WITHOUT PRIOR WRITTEN PERMISSION FROM (SGMC) SGMC MICROWAVE.
