(1-Form-B) relay that uses optically coupled MOSFET
technology to provide 3750V
rms
of input to output
isolation.
Its optically coupled outputs, which use the patented
OptoMOS architecture, are controlled by a highly
efficient GaAIAs infrared LED.
The LCB110 has low on-resistance and is well suited
for most applications requiring a normally closed relay.
Features
•
3750V
rms
Input/Output Isolation
•
Low Drive Power Requirements
(TTL/CMOS Compatible)
•
Arc-Free With No Snubbing Circuits
•
FCC Compatible
•
VDE Compatible
•
No EMI/RFI Generation
•
Small 6-Pin Package
•
Machine Insertable, Wave Solderable
•
Surface Mount Tape & Reel Version Available
Approvals
•
UL Recognized Component: File E76270
•
CSA Certified Component: Certificate 1175739
•
EN/IEC 60950-1 Certified Component:
TUV Certificate B 09 07 49410 006
Applications
•
Telecommunications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook,
Pocket Size)
•
Hook Switch
•
Dial Pulsing
•
Ground Start
•
Ringing Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment-Patient/Equipment Isolation
•
Security
•
Aerospace
•
Industrial Controls
Ordering Information
Part #
LCB110
LCB110S
LCB110STR
Description
6-Pin DIP (50/Tube)
6-Pin Surface Mount (50/Tube)
6-Pin Surface Mount (1000/Reel)
* For other packaging options consult factory.
Pin Configuration
AC/DC Configuration
+ Control
– Control
N/C
1
2
3
6
5
4
Load
Do Not Use
Load
DC Only Configuration
+ Control
– Control
N/C
1
2
3
6
5
4
+ Load
– Load
Switching Characteristics
of Normally Closed Devices
Form-B
I
F
I
LOAD
10%
90%
Pb
DS-LCB110-R09
e
3
www.ixysic.com
t
off
t
on
1
I
NTEGRATED
C
IRCUITS
D
IVISION
Absolute Maximum Ratings @ 25ºC
Parameter
Blocking Voltage
Reverse Input Voltage
Input Control Current
Peak (10ms)
Input Power Dissipation
1
Total Power Dissipation
2
Isolation voltage, Input to Output
Operational Temperature
Storage Temperature
1
1
LCB110
Ratings
350
5
50
1
150
800
3750
-40 to +85
-40 to +125
Units
V
P
V
mA
A
mW
mW
V
rms
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at conditions
beyond those indicated in the operational sections of this
data sheet is not implied.
Derate linearly 3.33 mW / ºC
Derate linearly 6.67 mW / ºC
Electrical Characteristics @ 25ºC
Parameter
Output Characteristics
Load Current Continuous
AC/DC Configuration
DC Configuration
Peak Load Current
On-Resistance
AC/DC Configuration
DC Configuration
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
Input Characteristics
Input Control Current to Activate
Input Control Current to Deactivate
Input Voltage Drop
Reverse Input Current
Common Characteristics
Input to Output Capacitance
Conditions
Symbol
Min
Typ
Max
Units
-
t=10ms
I
L
=120mA
I
L
=200mA
I
F
=5mA, V
L
=350V
P
I
F
=5mA, V
L
=10V
I
F
=5mA, V
L
=50V, f=1MHz
I
L
=120mA
-
I
F
=5mA
V
R
=5V
-
I
L
I
L
R
ON
I
LEAK
t
on
t
off
C
OUT
I
F
I
F
V
F
I
R
C
I/O
-
-
-
-
-
-
-
-
-
0.4
0.9
-
-
-
-
23
7
-
0.38
0.93
25
-
0.7
1.2
-
3
120
200
±350
35
10
1
3
3
-
5
-
1.4
10
-
mA
rms
/ mA
DC
mA
DC
mA
P
A
ms
pF
mA
mA
V
A
pF
2
www.ixysic.com
R09
I
NTEGRATED
C
IRCUITS
D
IVISION
PERFORMANCE DATA @25ºC (Unless Otherwise Noted)*
Typical LED Forward Voltage Drop
(N=50, I
F
=5mA)
35
30
Device Count (N)
Device Count (N)
25
20
15
10
5
0
1.17
1.19
1.21
1.23
1.25
LED Forward Voltage Drop (V)
25
20
15
10
5
0
0.18
0.25
0.32
0.39
0.46
0.53
Turn-On Time (ms)
LCB110
Typical Turn-On Time
(N=50, I
F
=5mA, I
L
=120mA
DC
)
25
20
15
10
5
0
0.75
Typical Turn-Off Time
(N=50, I
F
=5mA, I
L
=120mA
DC
)
Device Count (N)
0.80
0.85
0.90
0.95
1.0
1.05
Turn-Off Time (ms)
25
20
15
10
5
0
Typical I
F
for Switch Operation
(N=50, I
L
=120mA
DC
)
Typical I
F
for Switch Dropout
(N=50, I
L
=120mA
DC
)
25
20
15
10
5
0
25
20
15
10
5
0
0.40
0.45
0.50
0.55
0.60
0.65
0.70
Typical On-Resistance Distribution
(N=50, I
L
=120mA
DC
)
Device Count (N)
Device Count (N)
Device Count (N)
0.45
0.50
0.55
0.60
0.65
0.70
0.75
22.4
22.7
23.0
23.3
23.6
23.9
24.2
LED Current (mA)
LED Current (mA)
On-Resistance ( )
Typical Blocking Voltage Distribution
(N=50, I
F
=5mA)
25
20
15
10
5
0
370
375
380
385
390
395
Blocking Voltage (V
P
)
Device Count (N)
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
Turn-On Time (ms)
1.6
1.4
1.2
1.0
0.8
-40
-20
0
20
40
60
80
100
120
Temperature (ºC)
0.30
0.25
0.20
0.15
0.10
0.05
0
0
5
Typical Turn-On Time
vs. LED Forward Current
(I
L
=120mA
DC
)
0.7
0.6
Turn-Off Time (ms)
0.5
0.4
0.3
0.2
0.1
0
Typical Turn-Off Time
vs. LED Forward Current
(I
L
=120mA
DC
)
I
F
=50mA
I
F
=10mA
I
F
=5mA
10
15
20
25
30
35
40
45
50
0
5
10
15
20
25
30
35
40
45
50
LED Forward Current (mA)
LED Forward Current (mA)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please
contact our application department.
R09
www.ixysic.com
3
I
NTEGRATED
C
IRCUITS
D
IVISION

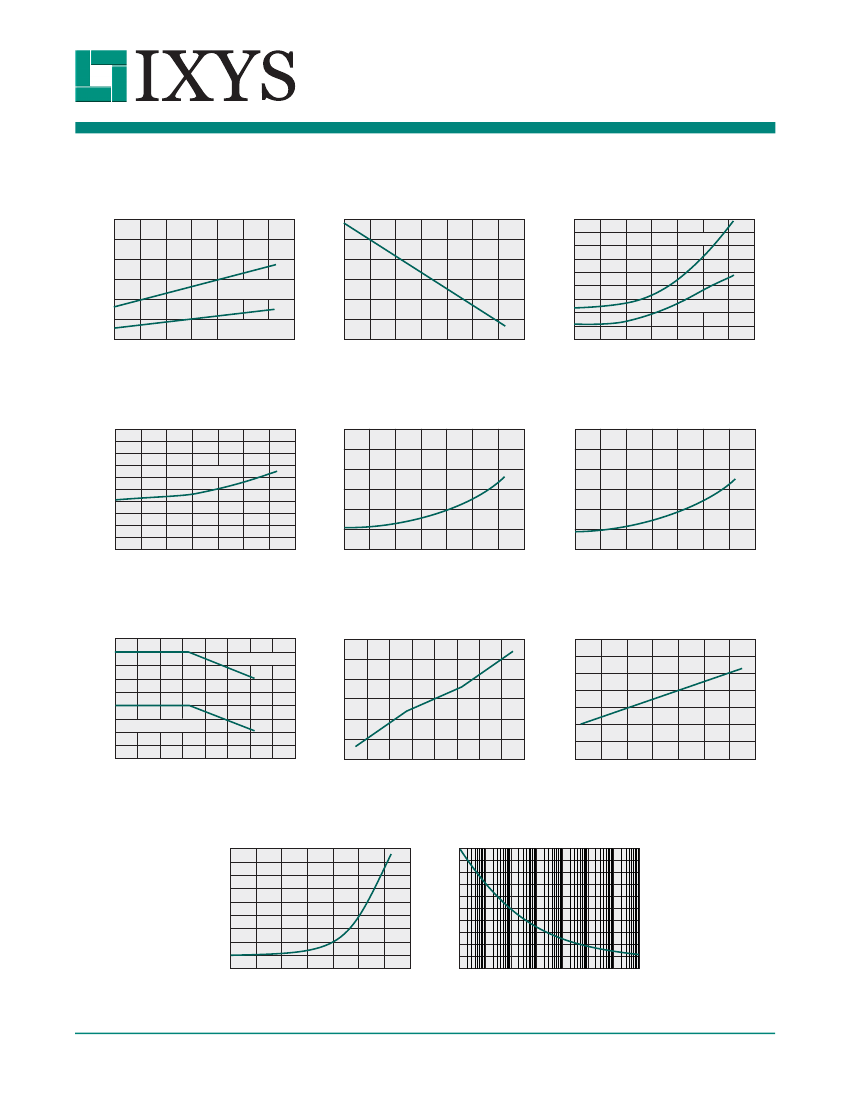

PERFORMANCE DATA @25ºC (Unless Otherwise Noted)*
Typical On-Resistance
vs. Temperature
(I
L
=120mA
DC
)
60
50
Turn-On Time (ms)
On-Resistance ( )
40
30
AC/DC Configuration
20
10
DC Configuration
0
-40
-20
0
20
40
60
80
100
Temperature (ºC)
0
-40
-20
0
20
40
60
Temperature (ºC)
80
100
-40
-20
0
20
40
60
0.6
0.5
0.4
0.3
0.2
0.1
LCB110
Typical Turn-On Time
vs. Temperature
(I
F
=5mA, I
L
=120mA
DC
)
Turn-Off Time (ms)
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
Typical Turn-Off Time
vs. Temperature
(I
L
=120mA
DC
)
I
F
=5mA
I
F
=10mA
80
100
Temperature (ºC)
50
45
40
35
30
25
20
15
10
5
0
-40
-20
Typical On-Resistance
vs. Temperature
(I
L
=100mA)
3.0
2.5
LED Current (mA)
Typical I
F
for Switch Operation
vs. Temperature
(I
L
=120mA
DC
)
3.0
2.5
LED Current (mA)
2.0
1.5
1.0
0.5
0
Typical I
F
for Switch Dropout
vs. Temperature
(I
L
=120mA
DC
)
On-Resistance ( )
Instantaneous
2.0
1.5
1.0
0.5
0
-40
-20
0
20
40
60
80
100
0
20
40
60
80
100
-40
-20
0
20
40
60
80
100
Temperature (ºC)
Temperature (ºC)
Temperature (ºC)
220
200
Load Current (mA)
180
160
140
120
100
80
60
40
-40
-20
Maximum Load Current
vs. Temperature
(I
F
=0mA)
DC Configuration
Typical Load Current
vs. Load Voltage
150
Blocking Voltage (V
P
)
Load Current (mA)
100
50
0
-50
400
395
390
385
380
375
370
365
-4
-3
-2
0
-1
1
Load Voltage (V)
2
3
4
-40
Typical Blocking Voltage
vs. Temperature
(I
F
=5mA)
AC/DC Configuration
-100
-150
0
20
40
60
80
100
120
Temperature (ºC)
-20
0
20
40
60
80
100
Temperature (ºC)
Typical Leakage vs. Temperature
Measured Across Pins 4&6
(I
F
=5mA, V
L
=350V)
0.045
0.040
0.030
0.025
0.020
0.015
0.010
0.005
0
-40
-20
0
20
40
60
Temperature (ºC)
80
100
Load Current (A)
0.035
Leakage ( A)
Energy Rating Curve
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
10 s 100 s 1ms 10ms 100ms
Time
1s
10s 100s
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please
contact our application department.
4
www.ixysic.com
R09
I
NTEGRATED
C
IRCUITS
D
IVISION
Manufacturing Information
Moisture Sensitivity
LCB110
All plastic encapsulated semiconductor packages are susceptible to moisture ingression. IXYS Integrated
Circuits Division classified all of its plastic encapsulated devices for moisture sensitivity according to
the latest version of the joint industry standard,
IPC/JEDEC J-STD-020,
in force at the time of product
evaluation. We test all of our products to the maximum conditions set forth in the standard, and guarantee proper
operation of our devices when handled according to the limitations and information in that standard as well as to any
limitations set forth in the information or standards referenced below.
Failure to adhere to the warnings or limitations as established by the listed specifications could result in reduced
product performance, reduction of operable life, and/or reduction of overall reliability.
This product carries a
Moisture Sensitivity Level (MSL) rating
as shown below, and should be handled according
to the requirements of the latest version of the joint industry standard
IPC/JEDEC J-STD-033.
Device
LCB110 / LCB110S
Moisture Sensitivity Level (MSL) Rating
MSL 1
ESD Sensitivity
This product is
ESD Sensitive,
and should be handled according to the industry standard
JESD-625.
Reflow Profile
This product has a maximum body temperature and time rating as shown below. All other guidelines of
J-STD-020
must be observed.
Device
LCB110 / LCB110S
Maximum Temperature x Time
250ºC for 30 seconds
Board Wash
IXYS Integrated Circuits Division recommends the use of no-clean flux formulations. However, board washing to
remove flux residue is acceptable. Since IXYS Integrated Circuits Division employs the use of silicone coating as
an optical waveguide in many of its optically isolated products, the use of a short drying bake could be necessary
if a wash is used after solder reflow processes. Chlorine- or Fluorine-based solvents or fluxes should not be used.
Cleaning methods that employ ultrasonic energy should not be used.
I directly recorded every bit of code I learned from this code: TI official routine: PC sends characters to the microcontroller, and then the microcontroller sends it back to the PC. It is such a simp...
Hardware experts please help! My mouse suddenly stopped working, but the mouse is still on, just can't move. It was working fine last night, but it's like this when I turned on the computer this morni...
SETB SDA; Release the SDA bus ACALL DELAY SETB SCL WAITASKW: MOV C,SDA JC WAITASKW CLR SCL CLR SDA My intention above is to wait for SDA to become 0 and then assign value to carry bit C and then execu...
Hey guys, have you ever made RS485 driver under ucos? The problem I'm facing now is: When running the 485 driver under bare metal, the interrupt and receiving and sending are completely correct. But w...
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
